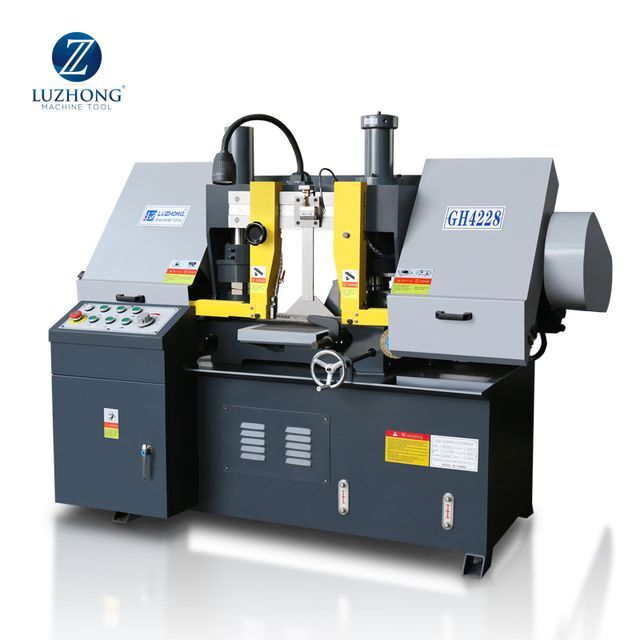

Factory sale at low cost Automatic belt saw GH4220 Horizontal band saw machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $2390.00 / 1 - 19 sets
$1890.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	400 sets of automatic band saw machine GH4220 horizontal band saw machine per month	Marketing Type:	New Products 2020
color:	custom made	Saw blade speed:	27, 45, 69 mm/min
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Automatic Band Saw GH4220 Horizontal Band Saw	Warranty:	13 months
brand:	Lu Zhong	Band saw blade size:	2650270.9mm
Weight (kg):	620	Video external inspection:	if
Showroom location:	Chile, United Arab Emirates	Main selling point:	easy to operate
Hydraulic motor power:	0.55kW	Type of machine:	Band saw
Core components:	Pump	port:	China any port automatic band saw machine GH4220 horizontal band saw machine
Mechanical test report:	if	Applicable industries:	Mechanical Repair Shop, Manufacturing Plant
Sawing range:	200-200*200mm	Health status:	new
Core Components Warranty:	13 months	pack:	Plywood case
Packaging Details:	Automatic Band Saw Machine GH4220 Horizontal Band Saw Machine Packing Type: Plywood Box Packing Size: 13008001100mm (one set per box) NW/GW: KGS	product name:	Automatic Band Saw GH4220 Horizontal Band Saw
place of origin; place of origin:	China

Product Description

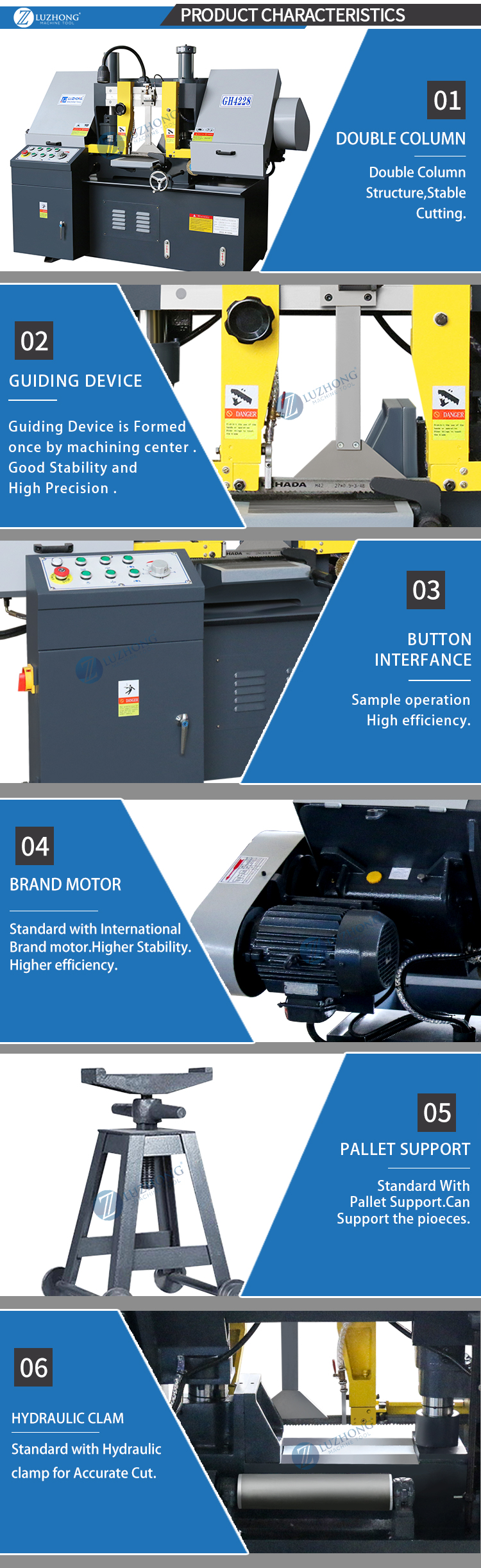

Proven design with double-column guides ensures maximum precision and stability, reducing costs
- Efficient machining of large parts.
The feed of the saw frame is infinitely regulated by the hydraulic throttle valve
At the end of the saw cycle, the saw blade will stop and return to its original position

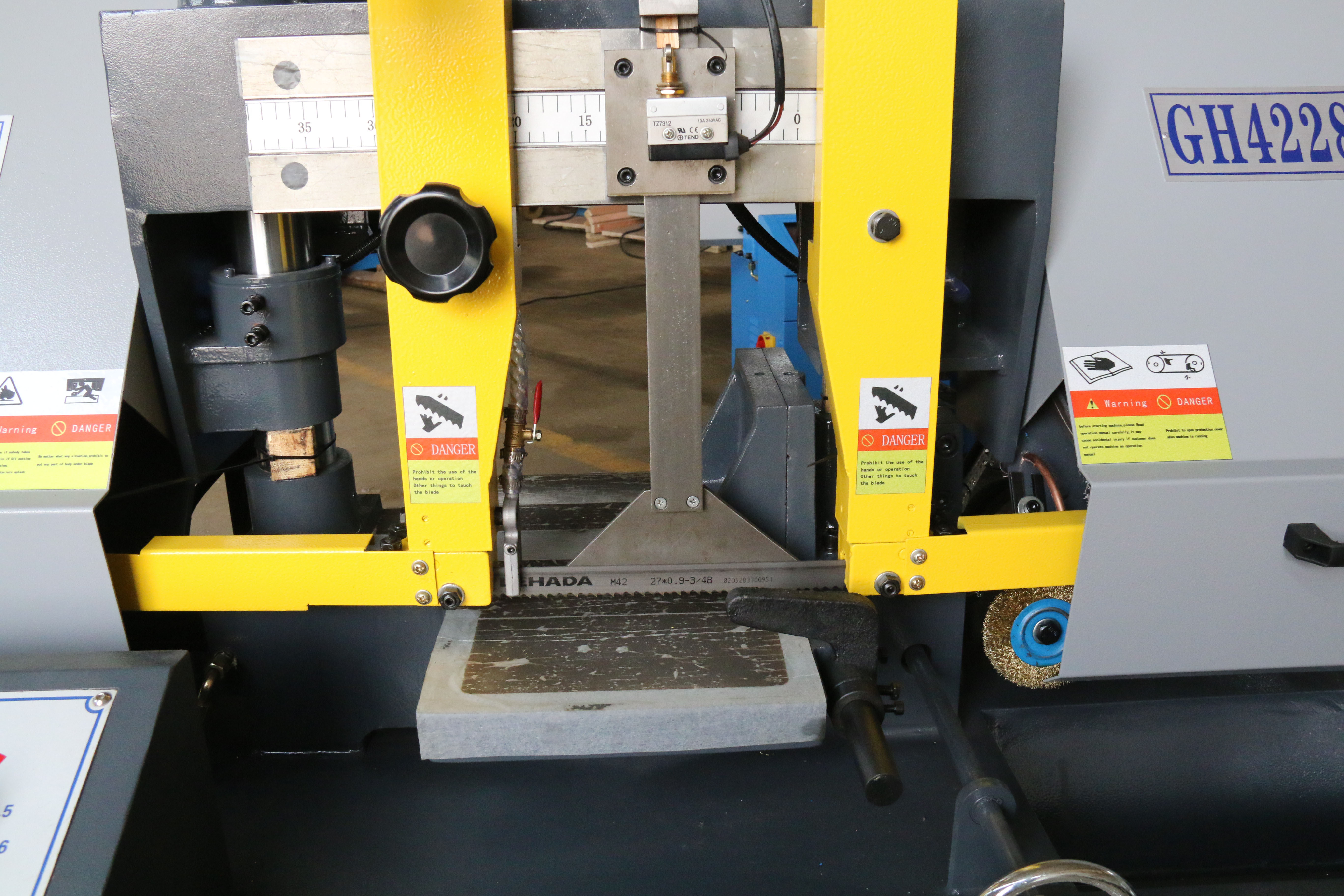

Very strong, adjustable blade guides keep the blade on track
Includes hydraulic workholding with clamping pressure control
Standard equipment: hydraulic workholding, 1 saw blade belt, material support frame, cooling system, work light, operation
manual
Optional equipment: automatic blade fragmentation control, quick drop protection, hydraulic blade tension, automatic chip removal
Device, various blade linear speeds, blade guard, wheel guard opening protection, CE standard electrical equipment

Specification			unit	GH4220	GH4228
cut capacity 90°	rectangle	mm	200X200	280X280
		round	mm	200	280
		square	mm	200	280
Blade speed			m/min	27,45,69	27,45,69
size			mm	2800x27x0.9	3505x27x0.9
main motor power			kilowatt	1.5	2.2
Hydraulic motor power			kilowatt	0.55	0.55
Coolant pump motor power			kilowatt	0.04	0.04
Dimensions			mm	1400x900x1100	1860x1100x1400
weight			Kilogram	350	610

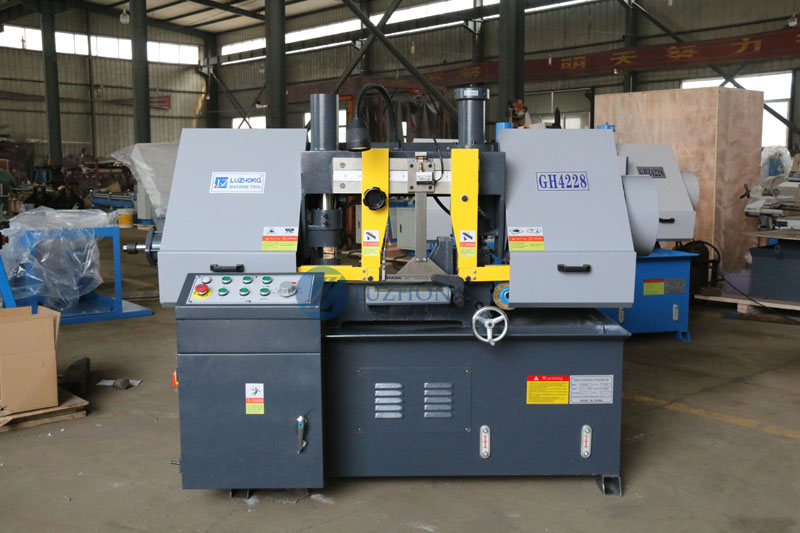

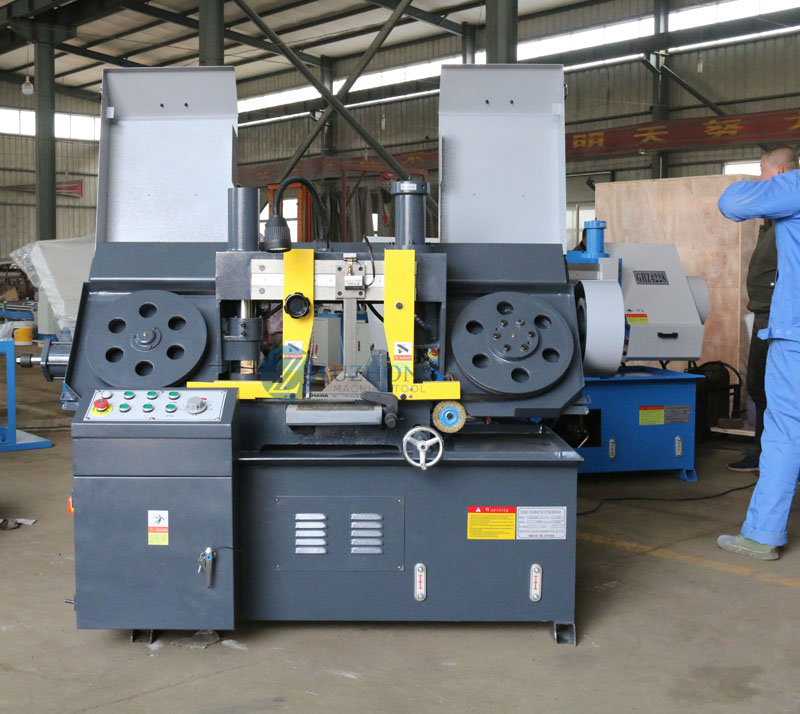

Details display

Recommended Products

Company Profile

FAQ

1: How to choose the most suitable machine?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawings and we will choose the most suitable machine for you.

2: What is your company's main product?
A: We specialize in producing all kinds of machines, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, drilling machines, radial drilling machines, sawing machines, planers, etc.

3: Where is our factory? How can I visit there?
A: Our factory is located in Tengzhou, Shandong Province, China, 277500. Warmly welcome you to visit us.

4. What are your terms of trade?
A : FOB, CFR and CIF are all acceptable.

5: What are the payment terms?
A: T/T, 30% down payment when order, 70% balance payment before shipment;
Irrevocable LC at sight.

5: What is the MOQ?
A: 1 set. (Only some low cost machines will have more than 1 set)
