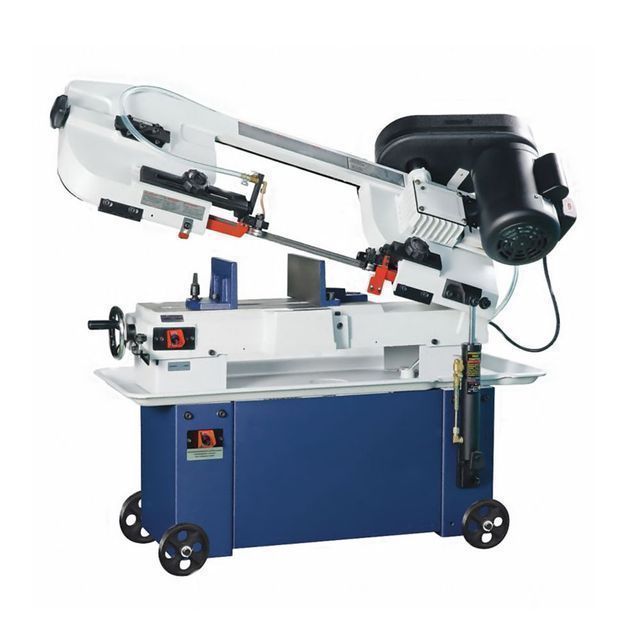

Variable Angle China Cutting Metal Band Saw Machine

Supplier: Almaco Machine Tool Co., Ltd.
Region: Jiangsu, China
Contact: Mr Bill Jin
Price: $225.00 /set
Min. Order: 1 set

Click here to contact

Product details

Blade speed:	24, 47, 61MPM	Showroom location:	Egypt, Canada, Algeria
Supply capacity:	45 sets per month	Gross weight:	140 kg
Packaging Details:	steel pallet or pp package	Mechanical test report:	if
Core components:	Gearbox, motor, PLC	Cutting capacity (mm):	128
brand:	Almaco	Video shipment inspection:	if
port:	Shanghai Port	Health status:	new
Announcement @90:	128mm	payment terms:	L/C, Western Union, T/T
Warranty:	1 year	motor:	375W (0.5HP), 50/60Hz
Marketing Type:	normal product	Main selling points:	long lasting
drive:	triangle belt	Fectangular @90:	128 x 150mm
Blade size:	12.7 x 0.64 x 1638mm	product name:	metal cutting band saw
Model:	GB-128DR	Type of machine:	band sawing machine
place of origin; place of origin:	Jiangsu, China	Weight (kg):	110
Blade speed (m/min):	24, 47, 61	Core component warranty:	1 year
net weight:	110 kg	Applicable industries:	Building materials store, machinery repair shop, manufacturing plant

Product Description

brief introduction

It is a sawing machine that uses a ring-shaped band saw blade as a saw, and is wound on two saw wheels for unidirectional continuous linear motion to saw wood.

It is mainly composed of bed, saw wheel, upper saw wheel lifting and tilting device, band saw blade tensioning device, saw blade guiding device, workbench, guide plate and so on.

feature

The bed is welded by cast iron or steel plate. The guide device is commonly known as the saw card to prevent the band saw blade from twisting or swinging during the sawing process.

The structure of the saw card has a roller type and a slider type, and the slider type is made of hardwood or wear-resistant plastic.

Specification

Model			GB-128DR
maximum. capacity	Round@90	128mm
		rectangle@90	128 x 150mm
		Notice@45	95mm
		rectangle@45	75 x 95mm
blade speed	@60Hz	24, 47, 61MPM
blade speed		@50Hz	20, 29, 50MPM
Blade size			12.7 x 0.64 x 1638 mm
motor			375W (0.5HP), 50/60Hz
drive			triangle belt
Package dimensions			980 x 750 x 640 mm
Net weight/Gross weight			110/140 kg
