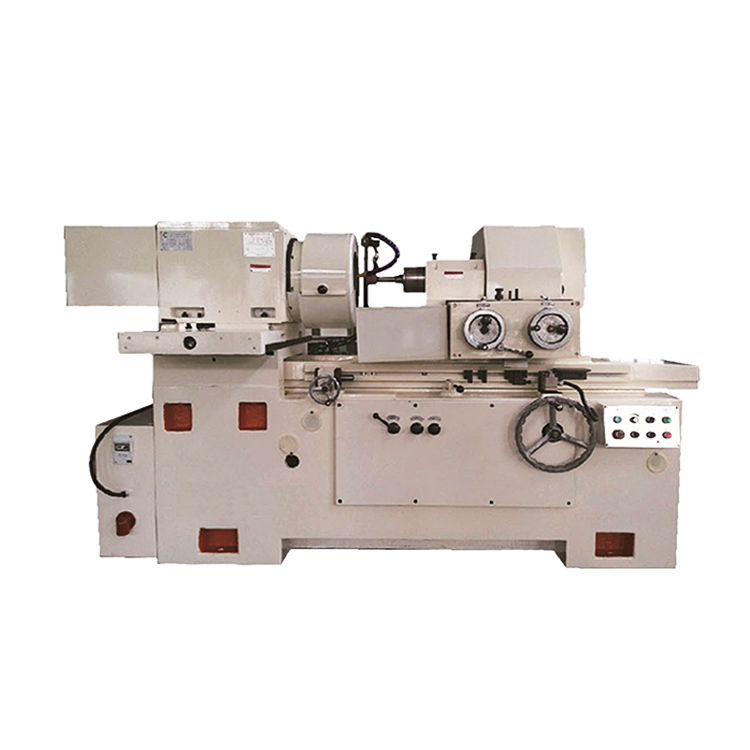

CNC Metal Internal Grinding Machine With Grinding Wheel Exquisite Appearance

Click here to contact
Product details
Mechanical test report:ifMaximum grinding depth:200 mm
maximum. Work piece length (mm):400Video outbound inspection:if
Whether CNC:CNC systemWarranty:1 year
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramSupply capacity:46 sets per month
Power (kW):Y90L-2/2.2Marketing Type:2020 New Products
Main selling points:competitive priceGrinding diameter (inner) (mm):50
Packaging Details:Standard export packagingWeight (kg):3800
Core component warranty:1 yearEach adjustment handwheel:0.01
Dimensions (L*W*H):3000*1450*1650Hydraulic motor power:Y90L-4B5/1.5kw
Cylindricity (mm):0.003The maximum stroke of the feeding slide:70mm
brand:AlmacoCooling motor power:AB-25/0.09kw
Core components:Motor, Gearbox, PLCThe maximum rotation angle of the headstock:30°
Workpiece speed:100~500 rpmWheel speed (rev/min):11000
Showroom location:Egypt, Canada, Algeriafeature:powerful
color:custom colorOrigin:Jiangsu, China
Health status:newGrinding diameter (outer diameter) (mm):200
maximum. Workpiece weight(kg):450Applicable industries:Manufacturing plants, construction works, machinery repair shops
port:Shanghai PortName:Internal grinding machine
Surface roughness (μm):0.32 micronsRoundness (mm):0.002
Recommended Products
Product Description

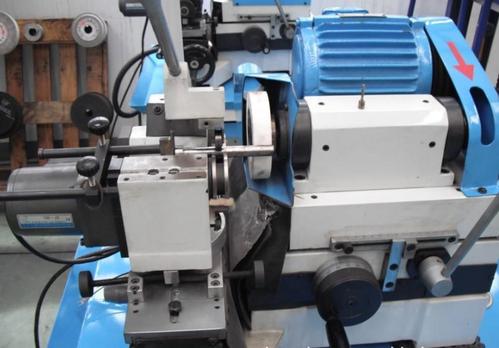

The machine is an ordinary internal grinding machine, capable ofGrinding cylindrical, conical through holes or blind holes in various mechanical workpiecesSingle piece or small batch production. The grinding wheel of this machine is fed horizontally, and the table is reciprocated longitudinally.
The infeed of the grinding wheel can be performedmanual or hydraulic. In the case of hydraulic feed, the wheels generate
The table performs fine feed motion (that is, periodic feed) every time it reciprocates. The feed increment can be adjusted steplessly. this
The feeding system is equipped with a jumping mechanism, and the grinding wheel can be moved by the jumping mechanismjump in and out of action.
haveThere are two drive chains in the feed system: One for grinding, one for adjustment and dressing feed. they are not
interfere with each other. During the grinding process, the hand wheel does not advance and retreat frequently, and the operator does not have to
Remember the position of the dial for easy adjustment and operation.
Specification
Internal grinding machine
M2120A
Grinding diameter
Diameter 50-200mm
grinding depth
200 mm
Workpiece cover turning diameter
Diameter 400mm
Work cover turning diameter
Diameter 600mm
Spindle box maximum load
450 kg
Maximum stroke of worktable
600mm
Spindle box maximum rotation angle
30°
Workpiece speed
100~500 rpm
Grinding wheel spindle speed
11000, 8000, 6000, 5000, 4000 rpm
Maximum stroke of headstock (horizontal)
250mm
Table speed (stepless)
1.6~6m/min
Maximum stroke of feeding slide
70mm
Feed amount per revolution of feed hand wheel
0.4 mm
Feeding amount per grid of feeding hand wheel
0.002mm
Adjusting the handwheel per revolution
2 mm
Each adjustment hand wheel
0.01
Feed per cycle of hydraulic motor
0.005-0.01mm
Workpiece motor power
Y90L-2/2.2kw
Grinding wheel motor power
Y112M-2B3/4kw
Hydraulic motor power
Y90L-4B5/1.5kw
cooling motor power
AB-25/0.09kw
Dimensions (L*W*H)
3000*1450*1650mm
weight
3800 kg
Roundness 0.002mm Cylindricity 0.003mm Roughness 0.32Ra
