AA4C valve grinder 3M9390

Supplier: Shanghai AA4C Auto Maintenance Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sunny Wang
Price: $1000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Voltage:	380V	Certification:	International Organization for Standardization
Other names:	Cylindrical Surface Grinder Grinding Machine	color:	Red
maximum. Grinding diameter:	90mm	strength:	1.1 kW
After-sales service provided:	Provide overseas third-party support	Origin:	China Shanghai
brand:	AA4C	maximum. Grinding length:	540mm
Shipping Details:	15-20 days	weight:	125 kg
payment terms:	L/C, D/P, T/T, Western Union	usage:	grinding valve
CNC or not:	normal	accurate:	0.01-0.02mm
application:	grinding valve	Key words:	valve grinder
Voltage:	380v	Dimensions (LWH):	740540640 mm
port:	Shanghai	type:	Internal grinding machine
Health status:	new	Model:	VR90
Packaging Details:	plywood case	Name:	Valve grinder
Supply capacity:	100pcs AA4C Valve Grinder 3M9390 per month	model:	VR90 (3M9390)

Product Description

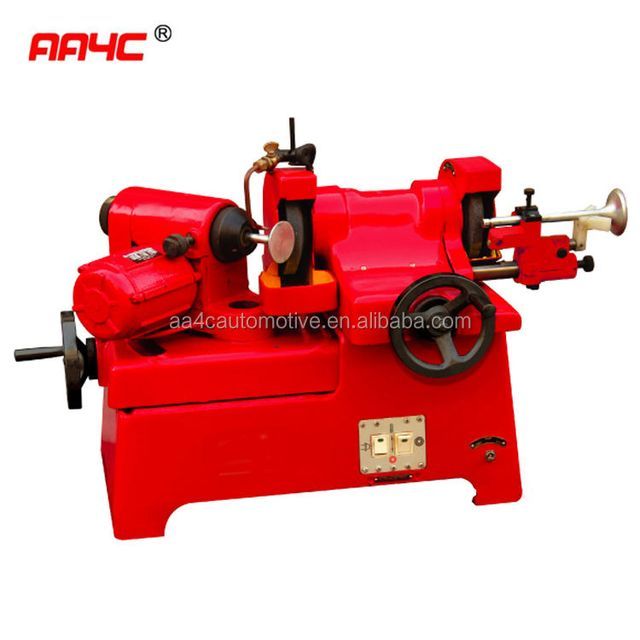

High performance valve grinder 3M9390
Valve grinder
polisher
Cylindrical grinder

illustrate:

3M9390 valve grinder is specially designed for auto repair shops and agricultural machinery repair centers. It is compact in structure, light in weight, simple in structure and easy to operate. It is a necessary equipment for car repair service.

Specification

Model	3M9390
maximum. Grinding diameter	Φ90mm
Grinding valve diameter range	Φ25-Φ90mm
Shaft diameter	Φ6-Φ16 mm
Grinding angle	30°-60°
Working head longitudinal sliding stroke	110mm
Grinding wheel head lateral sliding stroke	90 mm
Spindle speed	180-300 rpm
wheel speed	4500 rpm
maximum. grinding depth	0.025mm
Dimensions (length x width x height)	630×410×500mm
Package size (length x width x height)	740×540×640mm
Net weight/Gross weight	88/125 kg
