Internal CNC thread milling center

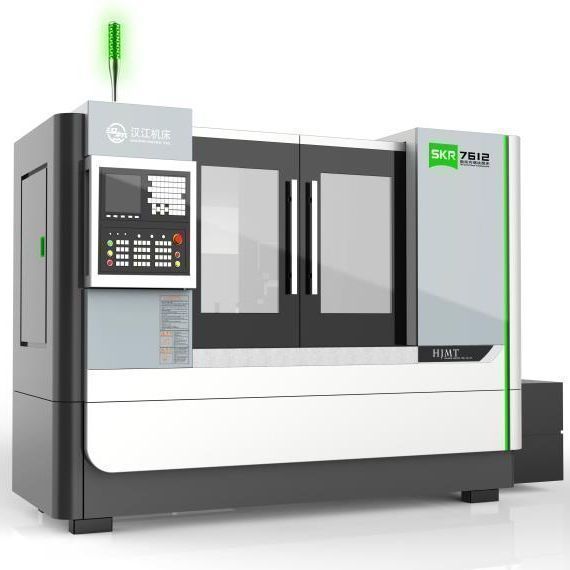

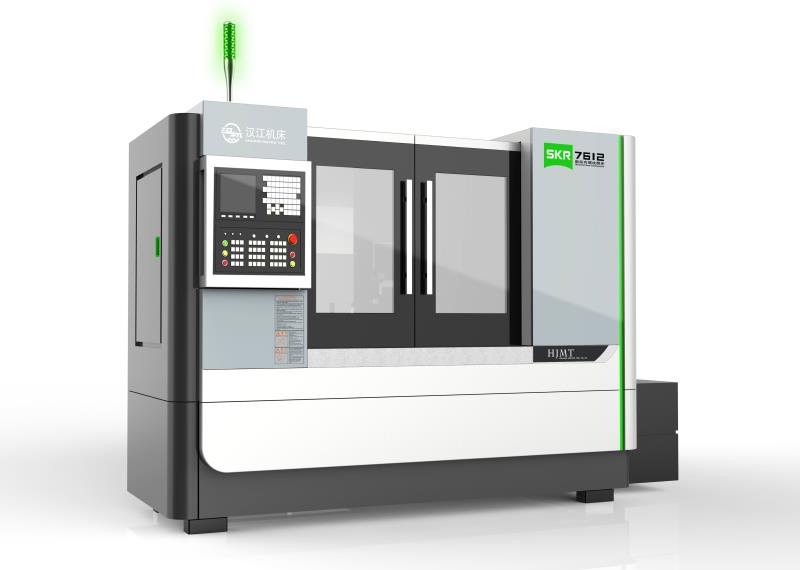

SK7612A CNC Internal Thread Grinder This machine is mainly used for precision grinding of ball screw nuts. Precision grinding of cylindrical faces, end faces and discs of nuts in a single setup.

Using the SIEMENS 828D NC system, 3 of the 4 axes can perform linked motion.

main feature

1) The basic parts such as bed, worktable and grinding wheel frame are all made of high-strength and high-quality cast iron, which have undergone aging treatment and manual scraping technology to ensure advanced stability and high precision;

2) The traverse (Z axis) of the worktable is generated by the servo motor through the coupling chain and the high-precision ball screw pair;

3) The X-axis is driven by a servo motor through a coupling chain and a high-precision ball pair to control the cross feed of cylindrical grinding and internal thread grinding;

4) The operation is automated, with a high degree of intelligence and no pollution.

5) Use the connector to connect with the air conveyor, which can be directly connected to the filling machine in series.
