Cylinder Surfacing TB8016 Boring Machine Of Almaco
-
Supplier: Almaco Machine Tool Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Bill Jin -
Price: $1187.00 /set -
Min. Order: 1 set
Product details
| Spindle feed: | 0.09mm/r; | Showroom Location: | Egypt,Canada,Algeria; |
| Weight (T): | 1.3; | Spindle speed(4 steps): | 125,185,250,370r/min; |
| Motor Output: | 0.85/1.1kw; | Table Travel (Y) (mm): | 160; |
| Place of Origin: | Jiangsu China; | Range of Spindle Speed(r.p.m): | 370; |
| Dimension(L*W*H): | 1250*1050*1970mm; | Pneumatic pressure: | 0.6mpa; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining; | Warranty of core components: | 1 Year; |
| Number of Axes: | 2; | Color: | Custmized; |
| After-sales Service Provided: | Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Table Travel (X) (mm): | 39; |
| Port: | shanghai china; | Local Service Location: | Egypt,Canada,Algeria; |
| CNC or Not: | Normal; | Payment Terms: | L/C,D/P,D/A,T/T; |
| Voltage: | 380V; | Table Size (mm): | Other; |
| Type: | VERTICAL; | Key Selling Points: | Competitive Price; |
| Supply Ability: | 30 Set/Sets per Month; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Marketing Type: | New Product 2020; | Spindle quickreset: | 430,640mm/min; |
| Product name: | cylinder surfacing boring machine for sale; | Packaging Detail: | wooden case; |
| Warranty: | 1 Year; | Core Components: | PLC,Gearbox,Motor; |
| Positioning Accuracy (Y axis) mm: | 0.001; | Table Travel (Z) (mm): | 0; |
| Package Preview: | ; | Boring diameter: | 39-160mm; |
| Travel (W-axis) (mm): | 1000; | Brand Name: | ALMACO; |
| Certification: | CE;ISO9001; | Video outgoing-inspection: | Provided; |
| Positioning Accuracy (Z axis) mm: | 0.005; | Condition: | New; |
| Model: | TB8016; | Machinery Test Report: | Provided; |
| Max Boring depth: | 320mm; | Positioning Accuracy (X axis) mm: | 0.001; |
Product Description

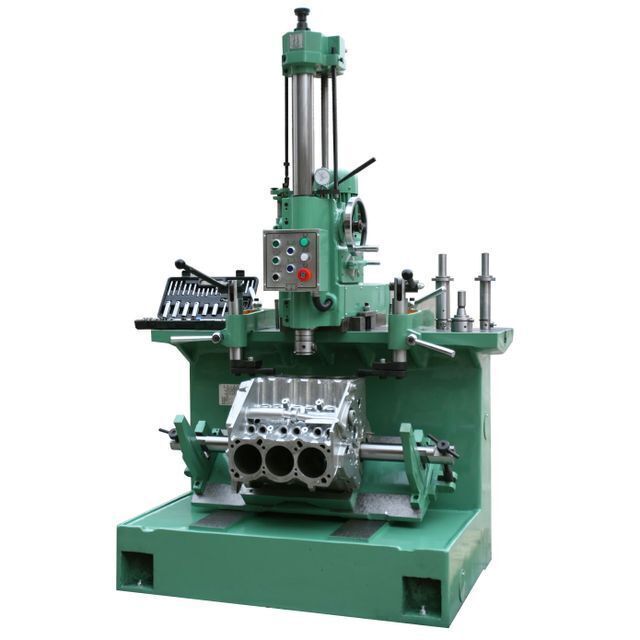

vertical air floating fine boring machine TB8016
This vertical air-floating fine boring machine is mainly used for reboring single line cylinder and V-engine cylinders of
automobiles motor cycles and tractors and also for other machine element holes.
Features:
automobiles motor cycles and tractors and also for other machine element holes.
Features:
1,Easy and flexible operation
2,Reliable performance,widely use,processing accuracy,high productivity.
3,Air-floating location quick and precise ,automatic pressure.
4,Spindle speed is suitability
5,the tool setting and measuring device.
6,There is a vertical measuring device.
7,Good rigidity,amoumt of cuting.
2,Reliable performance,widely use,processing accuracy,high productivity.
3,Air-floating location quick and precise ,automatic pressure.
4,Spindle speed is suitability
5,the tool setting and measuring device.
6,There is a vertical measuring device.
7,Good rigidity,amoumt of cuting.
Specification
NO | Item | Unit | Technical Specfication | ||
1 | Boring diameter | mm | 39-160 | ||
2 | Max Boring depth | mm | 320 | ||
3 | Boring travel | longitudinal | mm | 1000 | |
transversal | 45 | ||||
4 | Spindle speed(4 steps) | r/min | 125,185,250,370 | ||
5 | Spindle feed | mm/r | 0.09 | ||
6 | Spindle quickreset | mm/min | 430,640 | ||
7 | Pneumatic pressure | Mpa | 0.6 | ||
8 | Motor Output | Kw | 0.85/1.1 | ||
9 | Overall dimensions L*W*H | mm | 1250*1050*1970 | ||
10 | V-block fixture patented system | Degree | 30 ° ,45 ° | ||
11 | Machine weight | Kg | 1300 | ||
12 | V-block fixture patented system weight | Kg | 130 | ||
