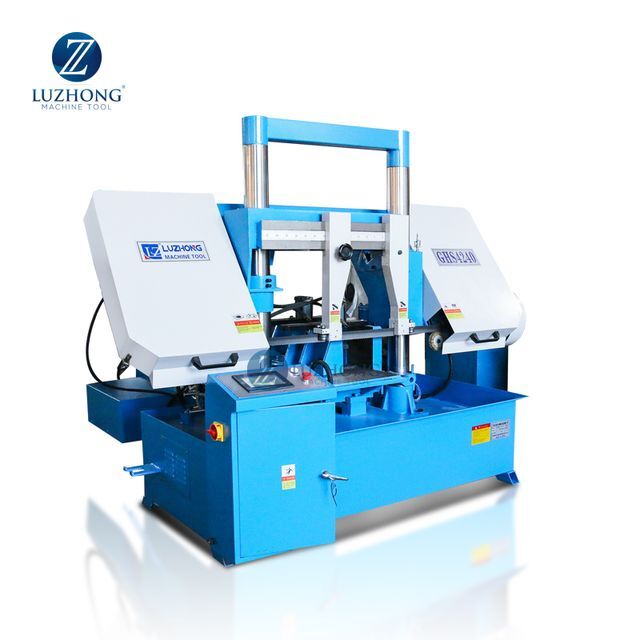

GHS4228 Small Horizontal CNC Metal Band Saw Machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $5370.00 / 1 - 1 sets
$5100.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	manufacturing plant	After Warranty Service:	Video technical support, online support, spare parts
Band saw blade size:	3505340.9mm	After-sales service provided:	Video technical support, online support
Working clamping method:	hydraulic	Core Components Warranty:	1 year
Weight (kg):	1600	Main selling point:	competitive price
Core components:	pressure vessel	Mechanical test report:	if
brand:	Lu Zhong	Health status:	new
Video external inspection:	if	Packaging Details:	Plywood Case Small GHS4228 Horizontal Metal CNC Band Saw
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance	Saw blade speed:	27, 45, 69 mm/min
Hydraulic motor power:	0.55kW	Sawing range:	280-280*280mm
Marketing Type:	New product	Local service location:	India, UAE, Nigeria
Type of machine:	Band saw	Cooling pump power:	0.04kW
Supply capacity:	250 sets of S Metal CNC Band Saws per month	Name:	Small GHS4228 Horizontal Metal CNC Band Saw Machine
Showroom location:	India, UAE, Nigeria	place of origin; place of origin:	Shandong China
port:	any port in China	Warranty:	1 year

Product Description

feature:
Extremely robust two-column cast iron construction
PLC control for fully automatic sawing process
Easy-to-use touchscreen monitor for quick and easy recording of saw parameters
Linear measuring system of the feed unit ensures maximum accuracy in the long term
The feed of the saw frame is infinitely regulated by the hydraulic throttle valve
Extra rigid, adjustable blade guide
Hydraulic workpiece clamping with clamping pressure control and
Bundled vise included in standard equipment

Standard equipment	optional equipment
PLC control 1 saw blade Hydraulic Workholding binding vise material support cooling system working lamp Operation Manual	Automatic blade breakage control Rapid fall protection Hydraulic blade tension Automatic chip removal device Various blade line speeds Blade guard Wheel cover opening protection CE standard electrical equipment

Specification			GHS4228
sawing range	round steel	Φ280mm
sawing range		square material	280×280mm
Saw blade size			3505×27×0.9mm
Saw blade speed			27\45\69m/min
Motor Power	main motor	2.2kW
		Oil pump motor	0.55kW
		Cooling Pump Motor	0.04kw
Saw Machine Dimensions			1860×1100×1400mm
