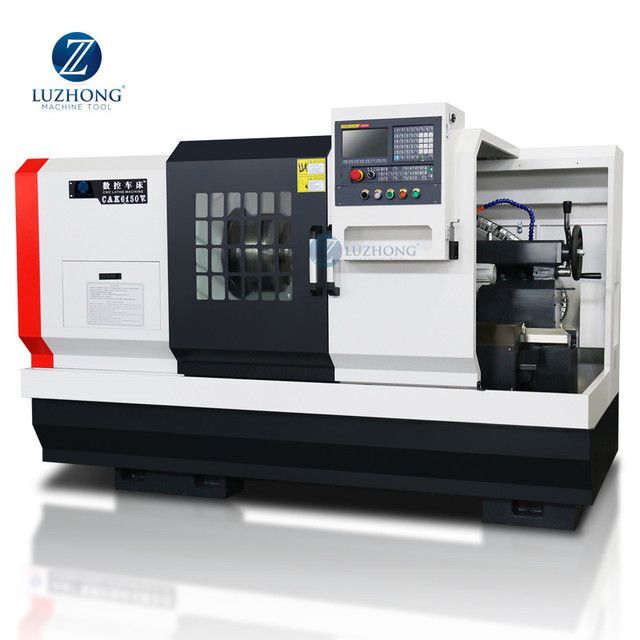

High Precision CAK6150V Lathe Horizontal Flat Bed CNC Lathe Machine

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $12800.00 / 1 - 4 sets
$12300.00 / 5 - 9 sets
$11800.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

CNC Control System:	GSK;	Spindle hole:	82mm;
Max.processing length:	1000/1500mm;	Condition:	New;
Machinery Test Report:	Provided;	CNC or Not:	CNC;
Travel (X Axis)(mm):	300 mm;	Weight (KG):	2850;
Number of Axes:	2;	Machining Capacity:	Medium Duty;
Name:	High Precision CAK6150V Lathe Horizontal Flat Bed CNC Lathe Machine;	Place of Origin:	Shandong, China;
No. of Spindles:	Single;	Core Components:	Motor,Engine;
Marketing Type:	New Product 2020;	Model Number:	CAK6150V;
Spindle speed:	1800rpm;	Travel (Z Axis)(mm):	1000 mm;
Max. Spindle Speed (r.p.m):	1800 r.p.m;	Tool Post Stations:	8,6,4;
Max. Length of Workpiece (mm):	1000;	Position accuracy:	±0.015;
Bar capacity:	65mm;	Color:	As customers' request;
Packaging Detail:	The Package of cnc lathe machine is export standard plywood case with iron pallet below ,very strong and durable . The cnc lathe machine will be shipped to customers by land freight or sea freight .;	Showroom Location:	Indonesia,India,UAE;
Spindle Bore(mm):	82;	Width of bed (mm):	400 mm;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Trade Assurance;	Applicable Industries:	Manufacturing Plant;
Key Selling Points:	Competitive Price;	Positioning Accuracy (mm):	0.01 mm;
Brand Name:	Luzhong machine;	Automatic Grade:	Automatic;
Supply Ability:	100 Sets per Month;	Port:	Qingdao Port;
Warranty:	13 months;	Chuck size:	250mm;
Spindle Motor Power(kW):	7.5;	Video outgoing-inspection:	Provided;
Type:	Horizontal;	Warranty of core components:	13 months;
Dimension(LWH):	2950x1520x1750mm;	Structure:	Flat Bed Lathe;
Voltage:	220V/380V;

Product Description

Standard Configuration	Optional Configuration

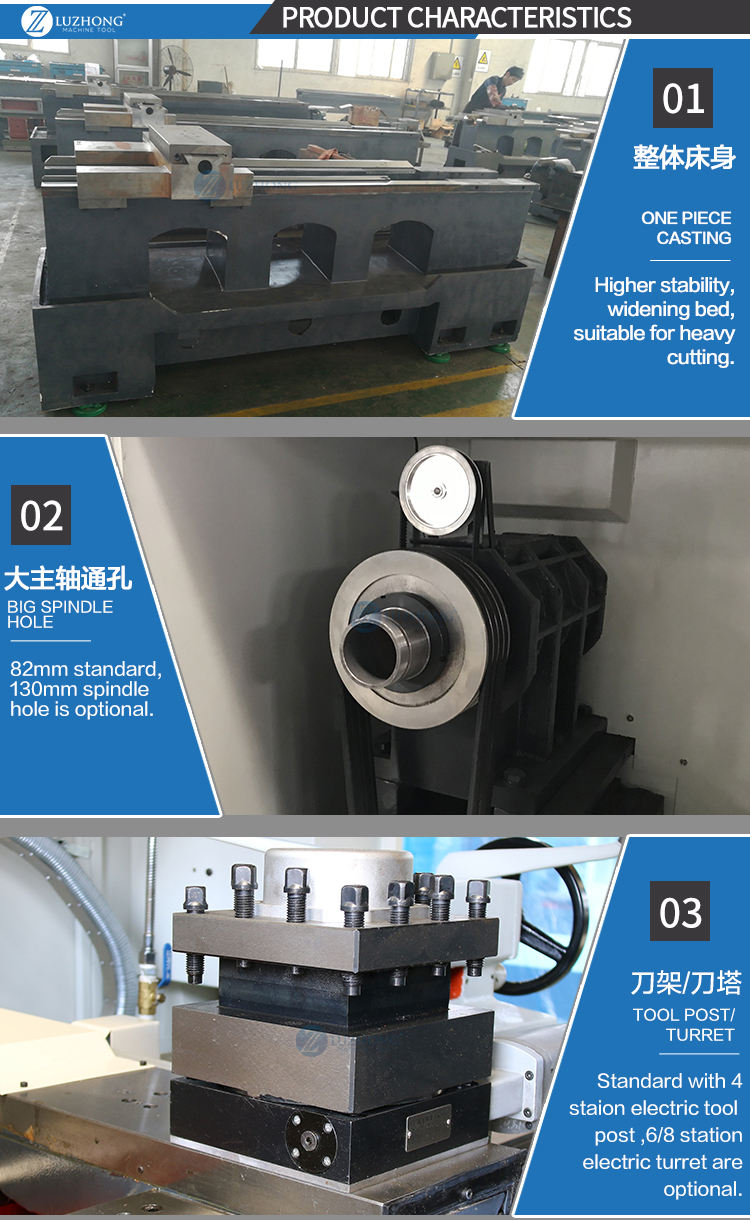

One piece casting, Guide way width 400mm GSK980TC3 control system Independent spindle 3 jaw manual chuck , Manual tailstock Electric 4 station electric tool post	Siemens or Fanuc control system , Hydraulic chuck, 6/8 Electric turret , Hydraulic tailstock , Double chuck as optional (130mm) Automatic chip conveyor

SPECIFICATIONS	Units	CAK6150V
Swing over bed	mm	500
Swing over cross slide	mm	280
Distance between centers	mm	1000/1500/2000
Spindle bore	mm	82 (Optional 130)
Spindle bore taper	-	Metric φ90/1:20
Spindle nose type	-	A2-8(A2-11)
Spindle speed steps	-	Stepless
Spindle speed range	rpm	1800 (Optional 800)
Turret/tool post	-	Eletric 4 position
Tool size	mm	25 x 25
X axis travel	mm	300
Z axis travel	mm	1000/1500/2000
X axis rapid traverse	mm/min	6000
Z axis rapid traverse	mm/min	10000
Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	200
Main spindle motor	kw	7.5
Coolant pump motor	kw	0.125
Weight for 1000	kg	2900
Weight for 1500	kg	3300
Weight for 2000	kg	3700
Dimension for 1000	mm	2950x1700x1800
Dimension for 1500	mm	3650x1700x1800
Dimension for 2000	mm	4250x1700x1800

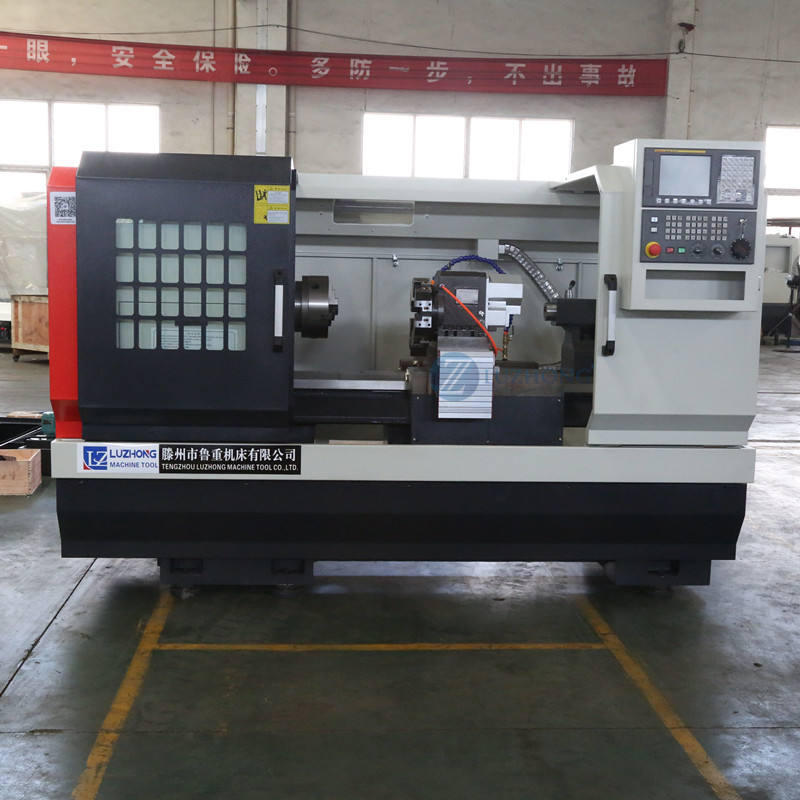

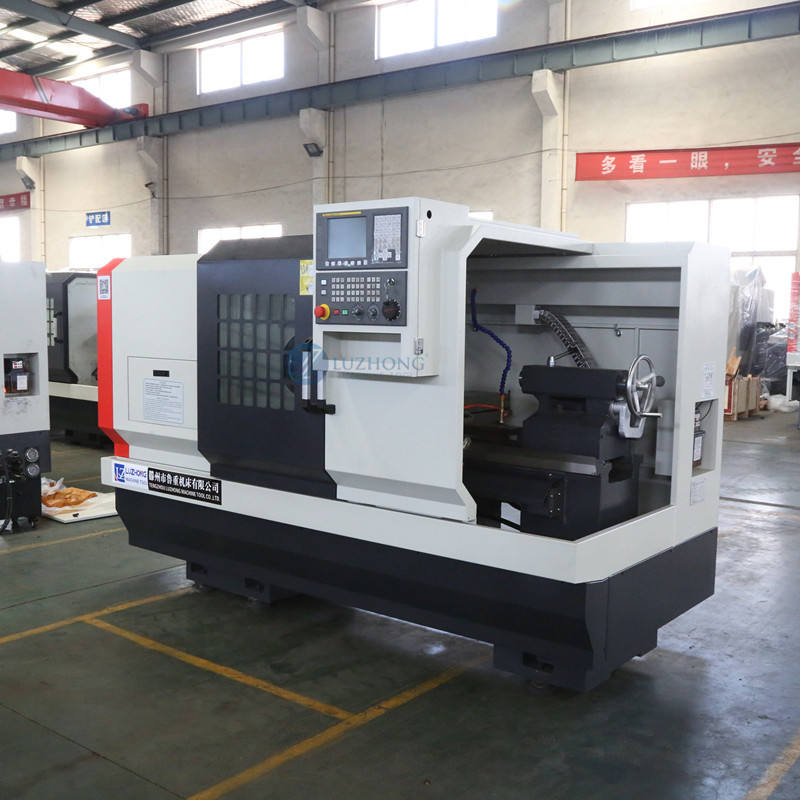

Details Display

Recommend Products

Company Profile

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
