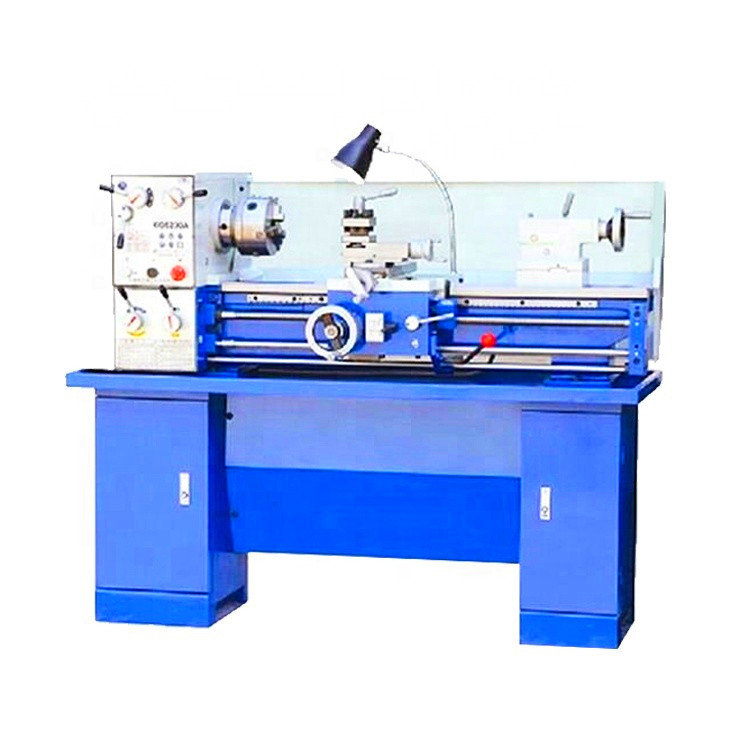

Low Cost Horizontal Precision Metal Lathe Machine Engine Lathe

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $889.00 /set
Min. Order: 1 set

Click here to contact

Product details

Spindle bore diameter:	40 mm	Spindle speed range:	40-1800 rpm
Core components:	Motor, PLC, Gearbox	maximum. Spindle speed (rev/min):	2500 rpm
Automatic level:	semi-automatic	Weight (kg):	1560
Video outbound inspection:	if	Dimensions (LWH):	19007601435 mm
Origin:	Jiangsu, China	model:	CQ6236
structure:	Flat bed lathe	brand:	Smucker
Spindle bore diameter:	52 mm (2 3/64 inches)	maximum. Swing diameter (mm):	500mm
Marketing Type:	2020 New Products	Spindle motor power (kW):	5.5
maximum. Work piece length (mm):	500 mm	Warranty:	1 year
Core component warranty:	1 year	Spindle speed number:	12
Main selling points:	competitive price	Number of axes:	2
Supply capacity:	38 sets per month	Name:	Ordinary lathe
port:	China Shanghai	Travel (X-axis) (mm):	250mm
Travel (Z axis) (mm):	1500mm	Processing capacity:	500
type:	horizontal	Health status:	new
After-sales service provided:	Engineers available to repair machinery overseas	maximum. Turning length (mm):	1500
payment terms:	L/C, D/P, D/A, T/T	Whether CNC:	CNC system
Showroom location:	Canada, Turkey, Germany, Peru, Indonesia, Spain, Kenya, Argentina, Algeria, Sri Lanka, Ukraine	Spindle bore diameter (mm):	56 meters
Spindle bore taper:	MT-5	Mechanical test report:	if
Tool Station:	4	Number of spindles:	twin
Voltage:	380V	Packaging Details:	wooden box
Bed width (mm):	400mm	Applicable industries:	Mechanical repair shops, manufacturing plants, food and beverage plants

Recommended Products

Product Description

Features:

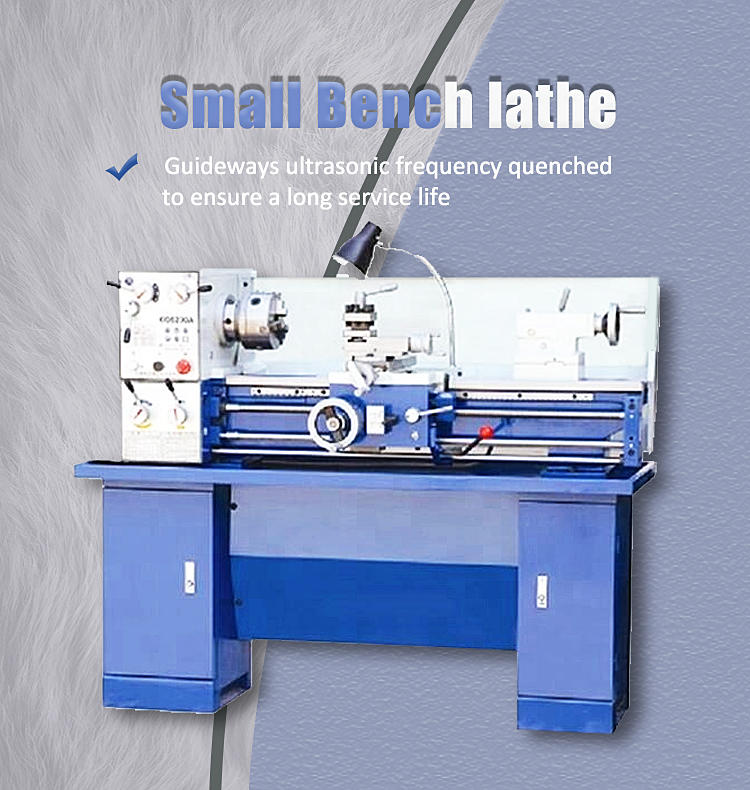

Hardened and ground beds
12-speed full gearbox head
2.4kw (3PH) motor
Foot brake provides quick braking
There is an emergency stop button on the front of the headstock
Jog button for easy gear engagement and jog spindle
An additional safety switch automatically shuts off the machine when changing belts or gears.

Drills, reamers, reamers, taps, dies, and knurling tools can also be processed on lathes.

Specification

					32501
Model					GH-1440K (CQ6236)
general capacity	Maximum swivel on bed	mm	356 (14 inches)
		Carriage maximum rotation	mm	210(8-1/5'')
		Maximum clearance swing	mm	508 (20 inches)
		bed width	mm	260(10-1/5'')
		Distance between centers (two centers)	mm	750 (30 inches)/1000 (40 inches)
Spindle	Spindle bore taper		MT-5
		Spindle bore	mm	40(1-1/2'')
		Spindle speed		12
		Spindle speed range	Rotating speed	40-1800
		Spindle nose		D4
threading and feeding	Metric thread		37 kinds/(0.4-7mm)
	Metric thread				23 kinds/(0.45-7.5mm)
		whitworth thread		28 kinds/(4-56T.P.I'')
		whitworth thread			40 kinds/(4-112T.P.I'')
		Longitudinal feed range	mm/rev	0.043-0.653 (0.0012''-0.0294'')
		Cross feed range	mm/rev	0.024-0.359 (0.0004''-0.0103'')
Lead screw	Screw diameter	mm	22(7/8'')
Lead screw		Lead screw pitch thread		4mm or 8T.PI
Tailstock	Tailstock sleeve travel	mm	120(4-3/4'')
		Tailstock sleeve diameter	mm	45(1-25/32'')
		Tailstock sleeve tapered hole		MT-3
strength	main motor power	kilowatt	2.4Kw(3PH),3PH,4P,60Hz,230V
	Coolant pump motor power	kilowatt	004Kw (0.055HP)
Lathe dimensions (length * width * height)			mm	19007101170
Lathe package size (lengthwidthheight)			mm	19007601435
net weight			Kilogram	1200 (2650 lbs)
gross weight			Kilogram	1300 (2850 lbs)
