T2S500 German Technology High Quality Low Price Inclined Bed CNC Lathe Machine Tool CNC Machinery Wholesale Supplier Manufacturer

Click here to contact

Product details

Maximum cutting length:	300/500/1000mm	Positioning accuracy (mm):	0.01
type:	Horizontal Inclined Bed CNC Lathe	Spindle nose:	A2-8
After-sales service provided:	Online support, video technical support, no after-sales service, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services	Warranty:	1 year
maximum. Turning length (mm):	500	port:	Shanghai
Weight (kg):	4050	maximum. Spindle speed (rpm):	50-4000
Dimensions (LWH):	2950018601850mm	maximum. Swing diameter:	560mm
Tool column brand:	Taiwan	Supply capacity:	200 sets per month
CNC or not:	CNC	Maximum cutting diameter:	350mm
The maximum diameter of the rod:	66mm	CNC system:	FANUC or GSK, SIMENS optional
Repeatability (X/Y/Z) (mm):	0.004	brand:	SYMG
model:	T2S/500	Chuck size:	10''
Chip removal device:	Chain Automatic Chip Conveyor	Voltage:	380V/220V
Package preview:		Packaging Details:	Shipping wooden box standard
Certification:	International Organization for Standardization	Main selling points:	German technology is of high quality and low price
Health status:	new	payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
X/Z axis moving speed:	30m/min	Power (kW):	15
Spindle maximum torque:	290 Nm	maximum. Swing diameter (mm):	560
maximum. Work piece length (mm):	600	Applicable industries:	Mechanical repair shops, manufacturing plants, farms, construction, energy and mining, machining
Automatic level:	automatic	Turret Type:	8 or 12 station electric turret
Year:	new	Origin:	Liaoning, China

product description

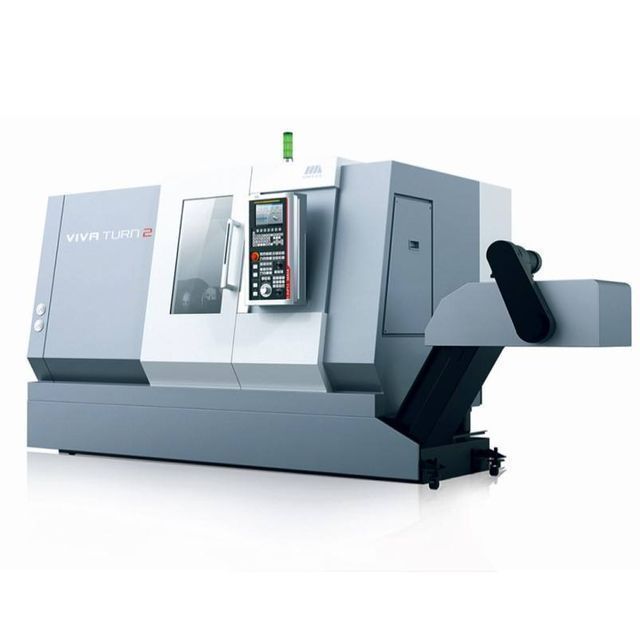

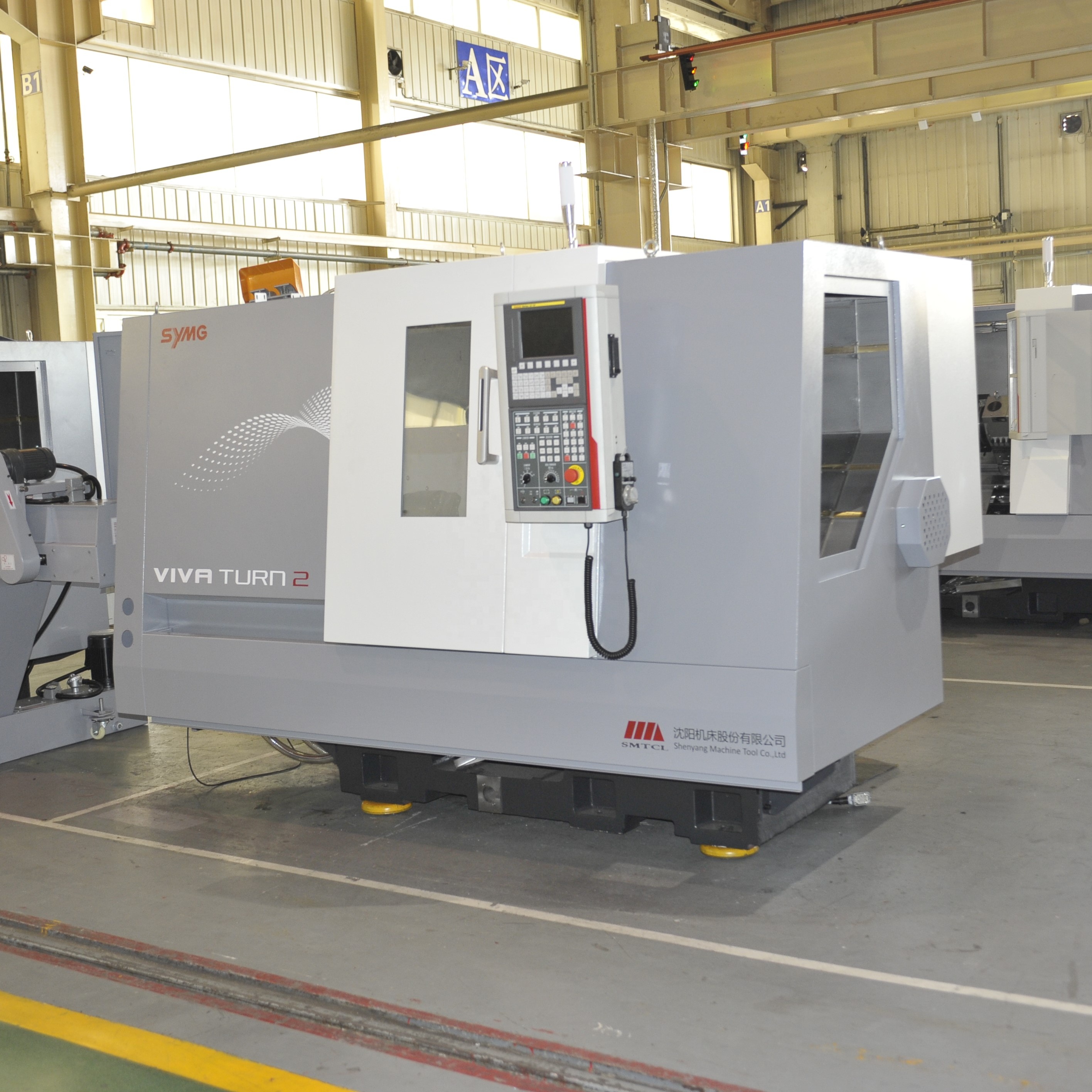

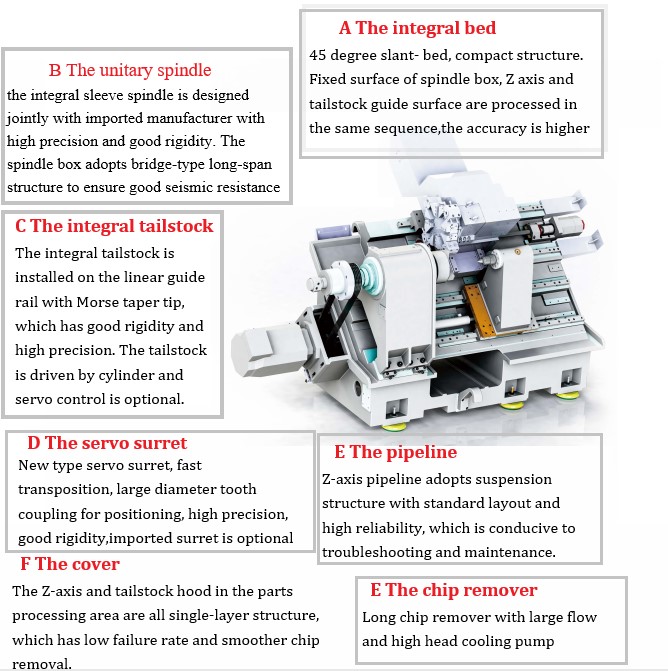

Long Live Turn 2 Series full function CNC lathe

High stability, continuous precision and high efficiency

German CE standard certification

Long Live Turn 2The series of horizontal lathes is a new generation of products produced according to the needs of customers, based on the world's leading research and development concept of lathes and our company's many years of experience in designing horizontal CNC lathes.
The main performance indicators of the product have reached the international advanced level, ultra-high precision and stability, high rigid structure and large cutting feed, allowing customers to obtain pure world-quality machine tools with high efficiency, high stability and high cost performance.

Machine parameters

project			unit	T2C	T2S
maximum swing in bed			mm	560	560
cutting length			mm	350/500/1000	300/500/1000
cutting diameter			mm	320	320
Standard Cutting Diameter			mm	280	350
slider maximum turning diameter			mm	350	350
Spindle nose				A2-6	A2-8
Spindle bore			mm	65	80
Maximum through steel bar diameter			mm	50	66
single ingot	Spindle speed range		rev/min/Nm	30~4500/235	30-4000/290
Headstock	The maximum output torque of the main shaft		rev/min/Nm	30~4500/235	30-4000/290
main motor	15 minutes/continuous		kilowatt	11/15	15/18.5
main motor	15 minutes/continuous		kilowatt	11/15	15/18.5
standard chuck	Chuck diameter		inch	8''	10''
X-axis rapid traverse speed			m/min	30	30
Z-axis rapid movement speed			m/min	30	30
X-axis travel			mm	200	200
Z axis travel			mm	410/560/1050	410/560/1050
Tailstock travel			mm	450/900	450/900
Tailstock Spindle Taper Taper			Mohs	5#	5#
Standard Tool Holder Form				Horizontal 8 stations	Horizontal 8 stations
Tool size		Outer knife	mm	25×25	25×25
Tool size		Boring bar diameter	mm	40	40
Precision				IT6	IT6
Processing workpiece surface roughness			Micron	Ra1.6	Ra1.6
positioning accuracy		X axis	mm	0.01	0.01
positioning accuracy		Z axis	mm	0.01	0.01
Repeatability		X axis	mm	0.004	0.004
Repeatability		Z axis	mm	0.005	0.005
machine weight		gross weight	Kilogram	4000	4200
from under the bed			mm	1050	1050
weight capacity		disk type	Kilogram	200
weight capacity		Shaft parts	Kilogram	500
Machine Appearance		length x width x height	mm	2750×1860×1850	2950×1860×1850
