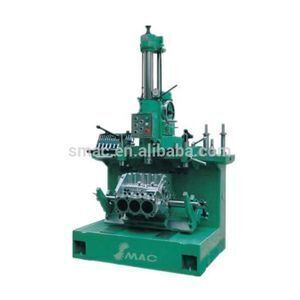

TB8016 1300kg Perfect Vertical Air Floating Fine Boring Machine cylinder boring machine
- 5990.00 set
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | CNC or Not: | normal; |
| Certification: | CE;ISO; | Dimension(L*W*H): | 1250*1050*1970mm; |
| Production Capacity: | w; | Brand Name: | SMAC; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service; | Range of Spindle Speed(r.p.m): | 370 r.p.m; |
| Weight: | 1300kg; | name: | vertical air floating fine boring machine TB8016; |
| Travel (W-axis) (mm): | 0; | Type: | Boring Machine; |
| Showroom Location: | Egypt; | Spindle Motor Power(kW): | 1.1; |
| Supply Ability: | 33.0 Set/Sets per Month; | Table Travel (Z) (mm): | 0; |
| Place of Origin: | China; | Port: | shanghai; |
| Warranty: | 1 YEAR; | Key Selling Points: | Multifunctional; |
| Packaging Detail: | wooden case; | Table Travel (X) (mm): | 1000; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,HOME USE,Retail,Construction works ; | Max. Table Load(kg): | 200; |
| Condition: | New; | Table Travel (Y) (mm): | 45; |
| Vertical: | air floating; | Local Service Location: | Egypt; |
| Number of Axes: | 2; | No. of Spindles: | Twin; |
| Motor Power (kw): | 1.1; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union; |
| Weight (T): | 1.3 T; | Voltage: | 380V; |

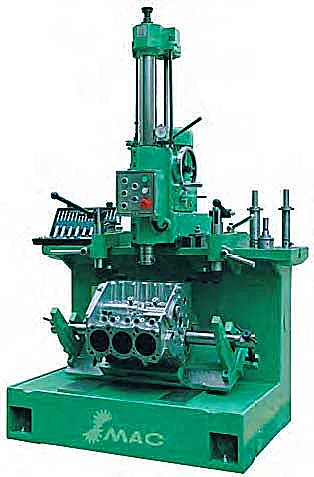

TB 8016 1300kg Perfect Vertical Air Floating Fine Boring Machine
vertical air floating fine boring machine TB8016
This vertical air-floating fine boring machine is mainly used for reboring single line cylinder and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
Features:
1,Easy and flexible operation
2,Reliable performance,widely use,processing accuracy,high productivity.
3,Air-floating location quick and precise ,automatic pressure.
4,Spindle speed is suitability
5,the tool setting and measuring device.
6,There is a vertical measuring device.
7,Good rigidity,amoumt of cuting.
vertical air floating fine boring machine TB8016
| Boring diameter | mm | 39-160 | |
| Max Boring depth | mm | 320 | |
| Boring travel | longitudinal | mm | 1000 |
| transversal | 45 | ||
| Spindle speed(4 steps) | r/min | 125,185,250,370 | |
| Spindle feed | mm/r | 0.09 | |
| Spindle quickreset | mm/min | 430,640 | |
| Pneumatic pressure | Mpa | 0.6 | |
| Motor Output | Kw | 0.85/1.1 | |
| Overall dimensions L*W*H | mm | 1250*1050*1970 | |
| V-block fixture patented system | Degree | 30 ° ,45 ° | |
| Machine weight | Kg | 1300 | |
| V-block fixture patented system weight | Kg | 130 | |
vertical air floating fine boring machine TB8016
1. Accept L/C, T/T ,D/A,D/Ptype of payments.
2. Regarding to the technical questions, pls contact our R&D.
3. Any question, call us or send email, we will try our best to satisfy you.
