Hydraulic joint electric automatic cigarette sheet plate rolling machine roll bending machine aluminum foil roll roll to sheet

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $17200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	NAME:	Hydraulic Rolling Machine/3 roller bending machine;
Core Components:	PLC,engine,Bearing,Gearbox,MOTOR,PRESSURE VESSEL,GEAR,pump;	Key Selling Points:	Competitive price;
Max. Working Length (mm):	2500 mm;	Port:	Shanghai Port;
Place of Origin:	China;	Payment Terms:	L/C,D/A,D/P,T/T;
Warranty:	1 YEAR;	Warranty of core components:	1 YEAR;
Max. Plate Thickness (mm):	12 mm;	Material / Metal Processed:	aluminum,Carbon Steel,Brass / Copper,ALLOY,STAINLESS STEEL;
Packaging Detail:	steel pallet.;	After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Machinery Repair Shops;	Rolling Speed (m/min):	1 - 4;
Brand Name:	smac;	Supply Ability:	50.0 Set/Sets per Month;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Machine Type:	Roller-Bending Machine;
Showroom Location:	none;	No. of Roller:	3;
Weight (KG):	18000 KG;	Motor Power (kw):	7.5 kw;
Local Service Location:	none;	Machinery Test Report:	Provided;
Marketing Type:	Hot Product 2019;	Video outgoing-inspection:	Provided;

Product Description

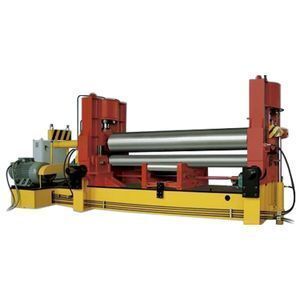

Hydraulic Rolling Machine/3 roller bending machine

The upper roll can move vertically as well as horziontally.

It has double function of pre-bending and rounding.

The upper roll in drum-type, and support roll is added to the lower roll. Through regulations of the support roll, it can coil high precision.

Products to the extent of thin-thick plates.

Realize NC control and single-person operation. Simple & reliable, greatly raising efficiency.

Add up tapering reel and realize zero-piece coiling with great taper.

Vertical & horizontal motion of the upper roll is digitally indicated. Setting of motion scope is distinctive and direct.

Excellent precision products can be obtained because of continuous bending and end prebending of high
precision, Besides, with the drum shape of the TOP roller and the coordinating adjustment of the back-up roller,you can make ideal bending products from thin to thick plates with a wide recam.

https://smac.en.alibaba.com/product/60231742494-50021670/the_hot_sale_and_low_price_good_lathe_for_sale_CQ6263D_of_SMAC.html?spm=a2700.icbuShop.41413.10.1bf778a1kza9Il

Project	Units	Technical Data
Specifications		RPB-12×2500
type		The upper roller digital display
Upper roller adding pressure	T	80
Max width of roll board	mm	2500
The length of working rolls	mm	2600
Max thickness of plate bending	mm	12
Max thickness of plate pre-bending	mm	10
Min diameter can be rolled	mm	700
Up roll diameter	mm	Φ270
Down roll diameter	mm	Φ150
Distance between two down rolls	mm	245
Drive speed	m/min	about 4.0
Max capacity of coiled board :	Mpa	σs≤245
Main motor	kw	7.5
Moving motor	kw	4
Lifting motor	kw	2.2

Packaging & Shipping

The machines are packed with wooden case or depend on your requires.

Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign

Packaging & Shipping

1. Accept L/C, T/T ,D/A,D/Ptype of payments.
2. Regarding to the technical questions, pls contact our R&D.
3. Any question, call us or send email, we will try our best to satisfy you.
