AH Roll Bending Machines for (Power, NC Hydraulic, Hydraulic, Manual)
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
AH Machinery supplies full range of Plate Rolling Machine, Roll Bending Machine, Plate Bending Rolls, Metal Plate Rolls made in Taiwan, customized specifications are available.
/APPLICATIONS/
Aerospace, aviation repair, automobile refit, home appliance, military industry, pressure vessel, ship, wind power and so on./SPECIFICATION/
- Type= Power, NC Hydraulic, Hydraulic, Manual- Roll= 3, 4
- For= Light / Medium / Heavy Duty
- Tonnage [Tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600
- Bending Length [mm/inch]= 1220/48.0, 1232/48.5, 1500/59.1, 1830/72.0, 1855/73.0, 2000/78.7, 2440/96.0, 2465/97.0, 2500/98.4, 3000/118.1, 3048/120.0, 3075/121.0, 3100/122.0, 3700/145.7, 4000/157.5
- Bending Thickness [mm]= 1.0/20GA, 1.2/18GA, 1.6/16GA, 2.0/14GA, 2.5/12GA, 3.0/11GA, 3.5/10GA, 4.0/8GA, 4.5/7GA, 6.5/3GA
- Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000
- Max. Open Height [mm/inch]= 100/3.9
- Working Height [mm/inch]= 800/31.5, 900/35.4
- Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8
- Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8
- Rake Angle [°]= 0-135°
- Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7
- Main Motor [HP/kw]= 2/1.49, 3/2.2, 4 / 3.6, 5/3.6, 7/5.5, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8
- Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1
- Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1
- Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9
- Min. Reverse Bend= 8 [5/16"]
- Beam Adjustment= 25 [1"]
- Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8
- Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7
- Suitable for= SPHC, SS 400, SUS 304
/FEATURES/
#Customized_specifications_are_available.#High_caliber_and_Accurate.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
FIND OUT MORE= https://www.ahmatw.com/
LINKEDIN= https://www.linkedin.com/in/ah-machinery-8836401b4/
FACEBOOK= https://facebook.com/ahmachinery.tw
INSTAGRAM= https://instagram.com/ah_machinery_tw
/WAREHOUSE/
|
|

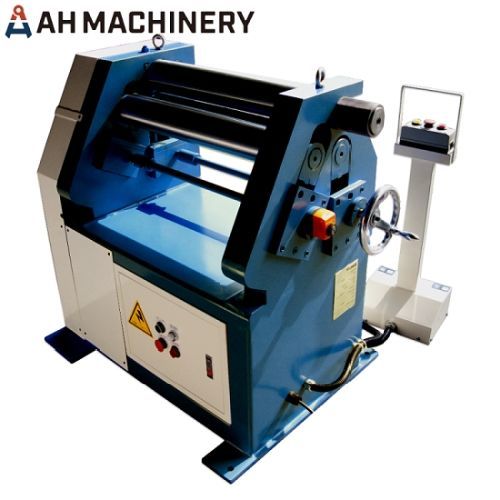

3-Rolls Bending Model | 3-Rolls Bending Machine |
|
|

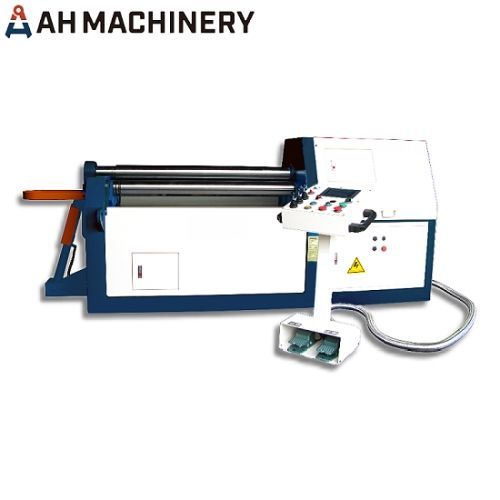

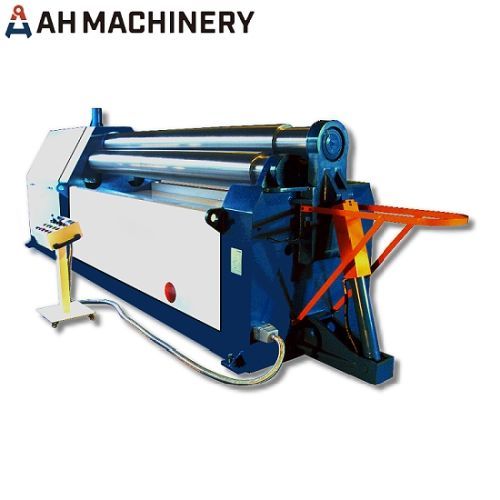

3-Rolls Bending Machine | 4-Rolls Bending Machine |
