AH Notching Machines for (SS 41, SUS 304)
Registered Supplier
Direct Contact
Inquiry via Message
Product Details

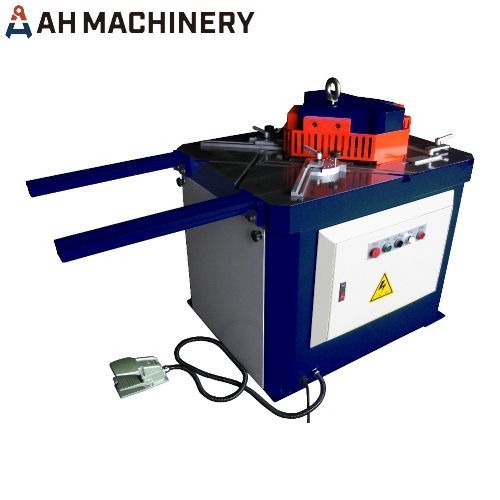

AH Machinery supplies full range of Hydraulic Notching Machine, Angle Notches made in Taiwan, customized specifications are available.
/APPLICATIONS/
Aluminum extrusions, cutting angles, decoration Industry, door and window frames, door frames, edges of soft steel, interior decoration, light boxes, screens, stainless steel plates, trims and so on./SPECIFICATION/
- Type= Hydraulic- Cutting Capacity [mm]= 2.0x220x220, 4.0x220x220, 4.5x250x250, 6.0x250x250
- Force [Ton]= 15, 20
- Strokes per Minute= 13, 35
- Blade Material= SKD 11
- Table Height [mm/inch]= 830/32.68, 900/35.43
- Pressure [Kg/cm2]= 140
- Pump [L/min]= 30
- Tank Volume [L]= 40
- Weight [Kgs/Lbs]= 900/1984, 2000/4409
- Overall Dimensions [mm] [LxWxH]= 1050x850x1200, 1550x110x1350
- Main Motor= 3HPx4P, 5HPx4P
- Stroke Optimization [mm]= 22, 50
- Edge Notch [mm]= 1.2x50x100, 2.0x50x100, 3.2x50x100, 4.5x50x100
- Suitable for= SS 41, SUS 304
/FEATURES/
#Customized_specifications_are_available.#High_caliber_and_Accurate.
#Heavy_duty_type
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
