AH Shearing Machine for (Hydraulic, Economy Hydraulic, NC Swing Arm, Hydraulic Guillotine)

With over 20 years of international experience, AH MACHINERY supplies a wide range of top-quality machinery made in Taiwan, including Shear Bed, Metal Cutting Machines, Shear Machines, Shearing Machines, Sheet Metal Shears, Plate Shears, Guillotine Shears.
Customized specifications are available to meet your unique needs.
Contact us today for high-caliber and accurate machinery solutions.

/APPLICATIONS/

Metal Fabrication and Manufacturing, Automotive Industry, Construction and Structural Engineering, Shipbuilding, Aerospace Industry, Appliance Manufacturing, Electronics and Electrical Industry, Energy Sector, Tool and Die Making, Metal Recycling.

/FINAL PRODUCTS/

Metal Sheets and Plates, Construction, Manufacturing, Fabrication, Structural Components, Beams, Columns, Other Structural Elements, Automotive Parts, Body Panels, Chassis Components, Brackets, Other Metal Components, Appliance Components, Panels, Frames, Other Parts, Refrigerators, Ovens, Washing Machines, Aerospace Components, Wings, Fuselage Sections, Structural Parts, Shipbuilding Components, Constructing Ship Hulls, Various Component, Electronics and Electrical Components, Enclosures, Panels, Housings, Metal Strips and Coils, Electrical Components, Automotive Parts, Metal Packaging, Tool and Die Components, Metal Scraps for Recycling.

/SPECIFICATION/

- Type= Hydraulic, Economy Hydraulic, NC Swing Arm, Hydraulic Guillotine

- Cutting Capacity [mm]= 1.0x650, 3.2x600, 3.2x660, 3.2x1250, 3.2x1320, 3.2x1550, 3.2x1580, 3.2x1880, 3.2x2000, 3.2x2500, 3.2x2540, 3.2x3100, 3.2x3700, 3.2x4100, 4.5x600, 4.5x1320, 4.5x1580, 4.5x1880, 4.5x2540, 4.5x3100, 4.5x3700, 4.5x4100, 6.5x600, 6.5x1320, 6.5x1550, 6.5x1580, 6.5x1850, 6.5x1880, 6.5x2500, 6.5x2540, 6.5x3100, 6.5x3700, 6.5x4100, 6.5x5100, 6.5x6200, 9.5x600, 9.5x1150, 9.5x1320, 9.5x1580, 9.5x1850, 9.5x1880, 9.5x2500, 9.5x2540, 9.5x3100, 9.5x3700, 9.5x4100, 9.5x5100, 9.5x6200, 13.0x1550, 13.0x1850, 13.0x2500, 13.0x2540, 13.0x3100, 13.0x3700, 13.0x4100, 13.0x5100, 13.0x6200, 16.0x1550, 16.0x1850, 16.0x2500, 16.0x2540, 16.0x3100, 16.0x3700, 16.0x4100, 16.0x5100, 16.0x6200, 19.0x1550, 19.0x1850, 19.0x2500, 19.0x3100, 19.0x3700, 19.0x4100, 19.0x5100, 19.0x6200, 20.0x2540, 20.0x3100, 20.0x4100, 22.0x3100, 25.0x3100

- Maximum Width Covered by the Blade [mm]= 1, 3.2, 4.5, 6.5, 9.5, 13, 16, 19, 20, 22, 25

- Cutting Length of the Machine [mm]= 600, 650, 660, 1150, 1250, 1320, 1550, 1580, 1850, 1880, 2000, 2500, 2540, 3100, 3700, 4100, 5100, 6200

- Main Motor [HP/kw]= 3/2.2, 5/3.7, 7.5/5.6, 10/7.5, 15/11.2, 20/14.9, 25/18.6, 30/22.4, 40/29.8, 50/37.3, 60/44.7, 75/55.9, 100/74.6

- Hold-downs Number= 1, 6, 8, 10, 11, 13, 16, 19, 21, 22, 25

- Front Gauge Range [mm]= 1300

- Rear Gauge [mm]= 600/800/1000

- Strokes per Minute [S.P.M]= 5, 7, 8, 9, 10, 11, 12, 13, 15, 16, 18, 20, 23, 26, 30, 32, 35, 7-16, 8-12, 8-13, 8-18, 9-15, 9-16, 9-18, 10-20, 11-18, 11-21, 12-20, 12-22, 12-24, 13-22, 13-24, 13-25, 14-23, 14-28, 16-32, 20-40, 23-45

- Weight [Kgs/Lbs]= 750/1653, 850/1874, 950/2094, 1150/2535, 1200/2646, 1400/3086, 1500/3307, 1600/3527, 1600/3527, 1800/3968, 1900/4189, 2000/4409, 2100/4630, 2200/4850, 2400/5291, 2500/5512, 2600/5732, 2750/6063, 2900/6393, 3000/6614, 3200/7055, 3450/7606, 3500/7716, 3800/8378, 4000/8818, 4650/10251, 4800/10582, 5200/11464, 5500/12125, 6000/13228, 6200/13669, 6800/14991, 7000/15432, 7500/16535, 7700/16976, 8300/18298, 9000/19841, 9800/21605

- Rake Angle= 1°, 1.5°, 1°30', 1° - 2°, 1° - 2°10', 1° - 2°30', 1°10', 1°15', 1°20', 1°30', 1°45', 2°, 2°25', 2°30', 3°, 4°

- Overall Dimensions [mm] [LxWxH]= 1200x1020x1100, 1330x760x1350, 1980x760x1350, 2200x760x1350, 2250x2300x2150, 2400x1020x1270, 2400x2100x1750, 2400x2150x1950, 2500x2250x2050, 2500x2250x2100, 2580x910x1550, 2650x2100x1800, 2650x2150x1950, 2750x2250x2100, 2850x2300x2150, 2900x2350x2250, 3050x1020x1560, 3300x2150x1900, 3350x2200x2050, 3400x2300x2200, 3450x1020x1560, 3550x2400x2550, 3600x2500x2800, 3850x2150x1950, 3900x2200x2100, 3950x2300x2250, 4000x1020x1630, 4200x2450x2600, 4250x2650x2900, 4300x2700x3050, 4450x2800x3200, 4500x2150x1950, 4550x2250x2150, 4600x2350x2250, 4650x2500x2700, 4700x2600x2900, 4900x2200x2100, 4950x2300x2250, 5000x2400x2400, 5200x2700x2750, 5250x2800x2950, 6000x2750x3050, 6150x2800x3200, 6200x2900x3300, 6350x2900x2850, 6400x2900x3000, 7200x2800x3150, 7250x2900x3200, 7300x2950x3300, 7350x3050x3400, 7400x3200x3550

/STANDARD/

v Ball Transfer Working Table

v Blade Clearance Adjustment

v Finger Guard

v Footswitch

v Front Gauge

v Manual Back Gauge

v NC Control System

v Nitrogen Cylinders

v Operation Instruction Manual

v Shadow Line Device

/OPTIONAL/

v NC Control System with Touch Screen
v Pneumatic Support for Thin Sheet
v Front Arm Lengthened 1.5/2/3 M
v Power Lubrication System

/FEATURES/

#Customized_specifications_are_available.
#High_caliber_and_Accurate.

Welcome to contact us!

A Homia will satisfy you as long as you give us a try.

FIND OUT MORE= https://www.ahmatw.com/
LINKEDIN= https://www.linkedin.com/in/ah-machinery-8836401b4/
FACEBOOK= https://facebook.com/ahmachinery.tw
INSTAGRAM= https://instagram.com/ah_machinery_tw

/WAREHOUSE/

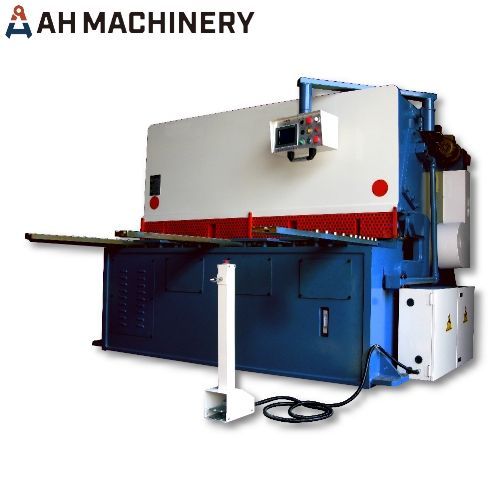

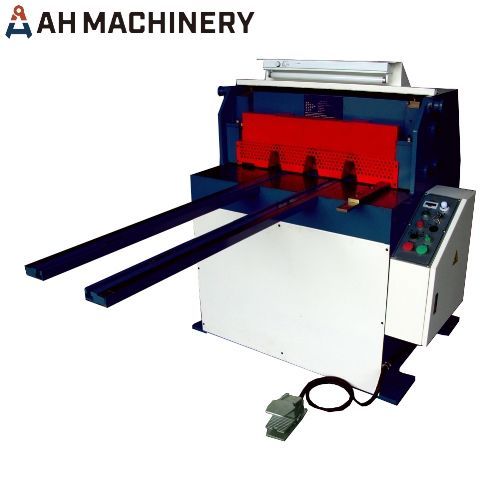

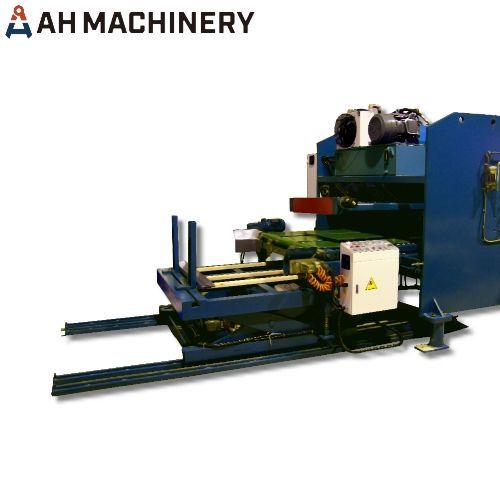

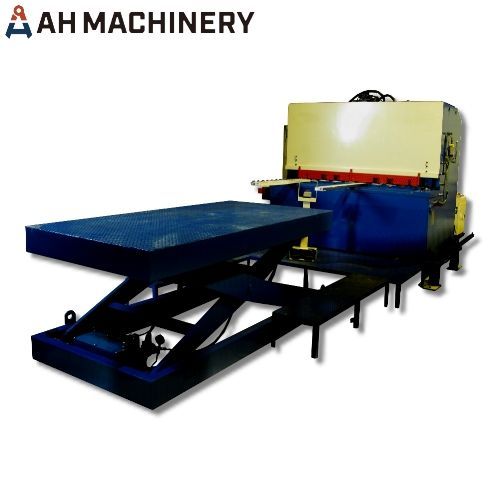

Shearing Machine	Shearing Machine
