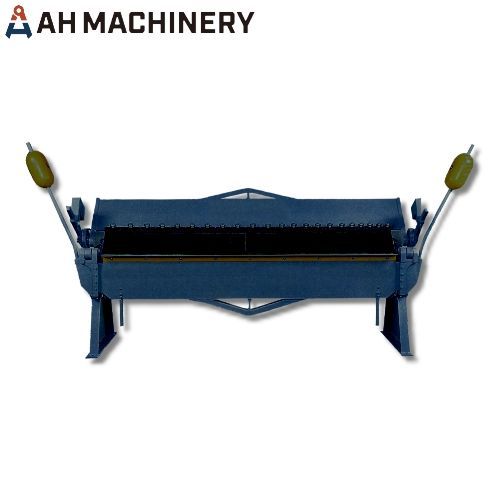

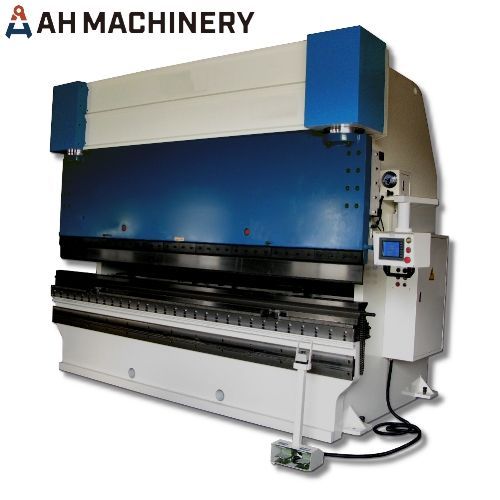

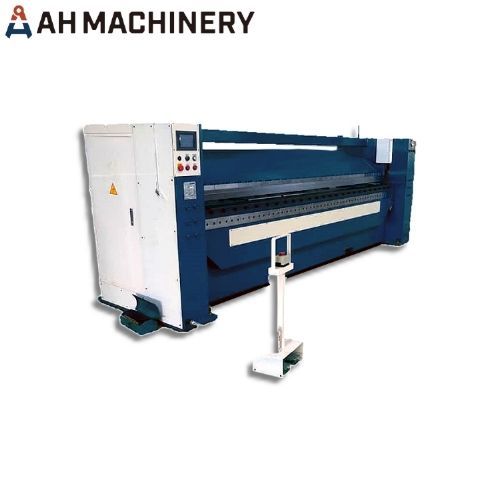

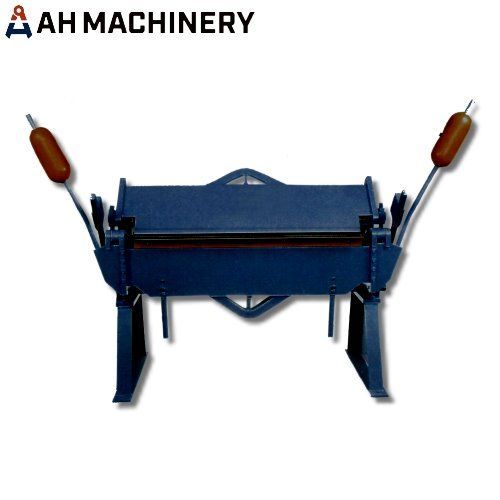

AH Press Brakes for (Manual, Hydraulic, NC Hydraulic, Manual Folding Machine, Power)

AH Machinery supplies full range of Press Brake, Straight Brake, Box and Pan Brakes, Folding Machine, Molding Machine made in Taiwan, customized specifications are available.

/APPLICATIONS/

Aerospace, automobile refit, aviation repair, farm implement, filing cabinets, larger industrial metal boxes, metal storage cases, parts assembly, product finishing, ship, small retail decorative boxes and so on.

/SPECIFICATION/

- Tonnage [Tons]= 30, 60, 100, 150, 200, 220, 300, 450, 600

- Bending Length [mm/inch]= 1220/48.0, 1232/48.5, 1270/50.0, 1500/59.1, 1550/61.0, 1830/72.0, 1855/73.0, 2000/78.7, 2020/79.5, 2440/96.0, 2465/97.0, 2500/98.4, 2520/99.2, 3000/118.1, 3020/118.9, 3048/120.0, 3075/121.0, 3100/122.0, 3700/145.7, 4000/157.5

- Bending Thickness [mm/GA]= 1.0/20GA, 1.2/18GA, 1.5/16GA, 1.6/16GA, 2.0/14GA, 2.5/12GA, 3.0/11GA, 3.5/10GA, 4.0/8GA, 4.5/7GA, 6.5/3GA

- Max. Open Height [mm/inch]= 100/3.9

- Distance Between Housing [mm/inch]= 1300/51.2, 1600/63.0, 2200/86.6, 2600/102.4, 3000/118.1, 3200/126.0, 4000/157.5, 4100/161.4, 5000/196.9, 5100/200.8

- Stroke [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 225/8.9, 250/9.8, 275/10.8, 300/11.8

- Main Motor [HP/kw]= 2/1.49, 3/2.2, 4/3.6, 5/3.6, 7/5.5, 7.5/5.6, 9/7.4, 10/7.5, 15/11.2, 25/18.6, 30/22.4, 40/29.8

- Working Height [mm/inch]= 800/31.5, 900/35.4, 1650/3637, 1800/3968, 2000/4409, 2300/5070, 2600/5732

- Throat Depth [mm/inch]= 200/7.9, 250/9.8, 300/11.8, 350/13.8, 400/15.7

- Overall Dimensions [mm] [LxWxH]= 1700x1100x2100, 1800x800x1000, 1800x800x1050, 2050x1000x1550, 2100x1730x1350, 2300x1100x2100, 2300x1250x2450, 2300x1650x2650, 2350x1730x1350, 2450x800x1000, 2450x800x1050, 2700x1000x1550, 2700x1100x1750, 2700x1200x1750, 2700x1300x2600, 2850x1730x1350, 2900x1250x2450, 2900x1600x2850, 2900x1650x2650, 3100x800x1100, 3100x800x1150, 3300x1550x1900, 3450x1750x1400, 3350x1000x1550, 3500x1250x2450, 3500x1600x2650, 3500x1600x2850, 3500x1800x3050, 3500x1800x3350, 3700x800x1150, 3700x800x1200, 3850x1700x1860, 3900x1750x2050, 3950x1000x1600, 400x1750x1400, 4100x1600x2750, 4100x1600x2950, 4100x1800x3150, 4100x1800x3550, 4300x1770x1890, 4400x1800x3150, 4400x2400x3500, 4400x2700x3800, 4500x1750x2050, 4900x1100x1700, 5300x1750x2050, 5500x2400x3700, 5600x1800x2100, 5600x2200x3650, 5600x2300x3500, 5600x2700x3900, 6700x2450x3900, 6700x2800x4000

- Type= Manual, Hydraulic, NC Hydraulic, Manual Folding Machine, Power

- Suitable for= SUS 304, SS 400, SPHC

- Capacity [mm]= 1.6x2000, 2.0x1600, 2.0x3220, 2.5x2600, 2.8x3200, 3.2x2000, 3.4x3200, 4.2x2600, 4.2x3200, 4.2x3800, 4.8x5100, 6.0x2000, 6.0x3800, 6.0x4000, 6.2x2600, 6.5x5100, 7.0x3200, 8.0x6200, 9.0x3800, 10x5100, 10.5x3200, 11x6200, 12x4000, 13x5100, 16x4000

- Min. Reverse Bend [mm/inch]= 8 [5/16"]

- Length Of Table [mm/inch]= 1600/63.0, 2000/78.7, 2600/102.4, 3200/126.0, 3800/149.6, 4000/157.5, 4100/161.4, 5100/200.8, 6200/244.1

- Width Of Table [mm/inch]= 120/4.7, 150/5.9, 200/7.9, 250/9.8, 300/11.8

- Day Light [mm/inch]= 250/9.8, 300/11.8, 340/13.4, 380/15.0, 420/16.5, 450/17.7, 500/19.7, 550/21.7

- Strike Depth-Stop Adjustment [mm/inch]= 70/2.8, 100/3.9, 120/4.7, 150/5.9, 180/7.1

- Beam Adjustment [mm/inch]= 25 [1"]

- Rake Angle [degree]= 0-135

- Floor-Pit Depth [mm/inch]= 365/14.4, 480/18.9, 750/29.5, 780/30.7, 850/33.5, 1050/41.3, 1100/43.3, 1180/46.5, 1300/51.2, 1500/59.1, 1700/66.9

/FEATURES/

Welcome to contact us!

A Homia will satisfy you as long as you give us a try!
