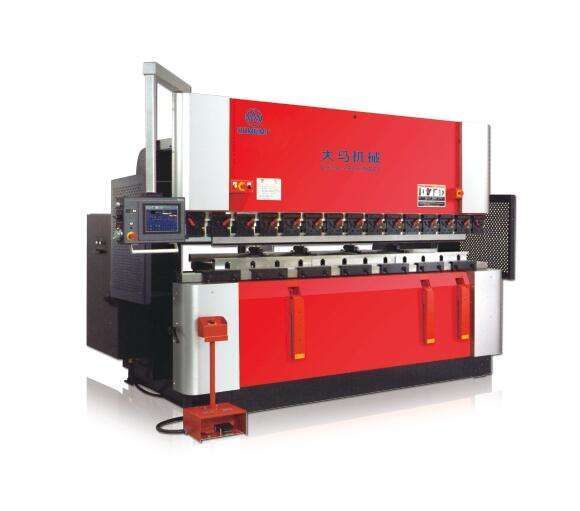

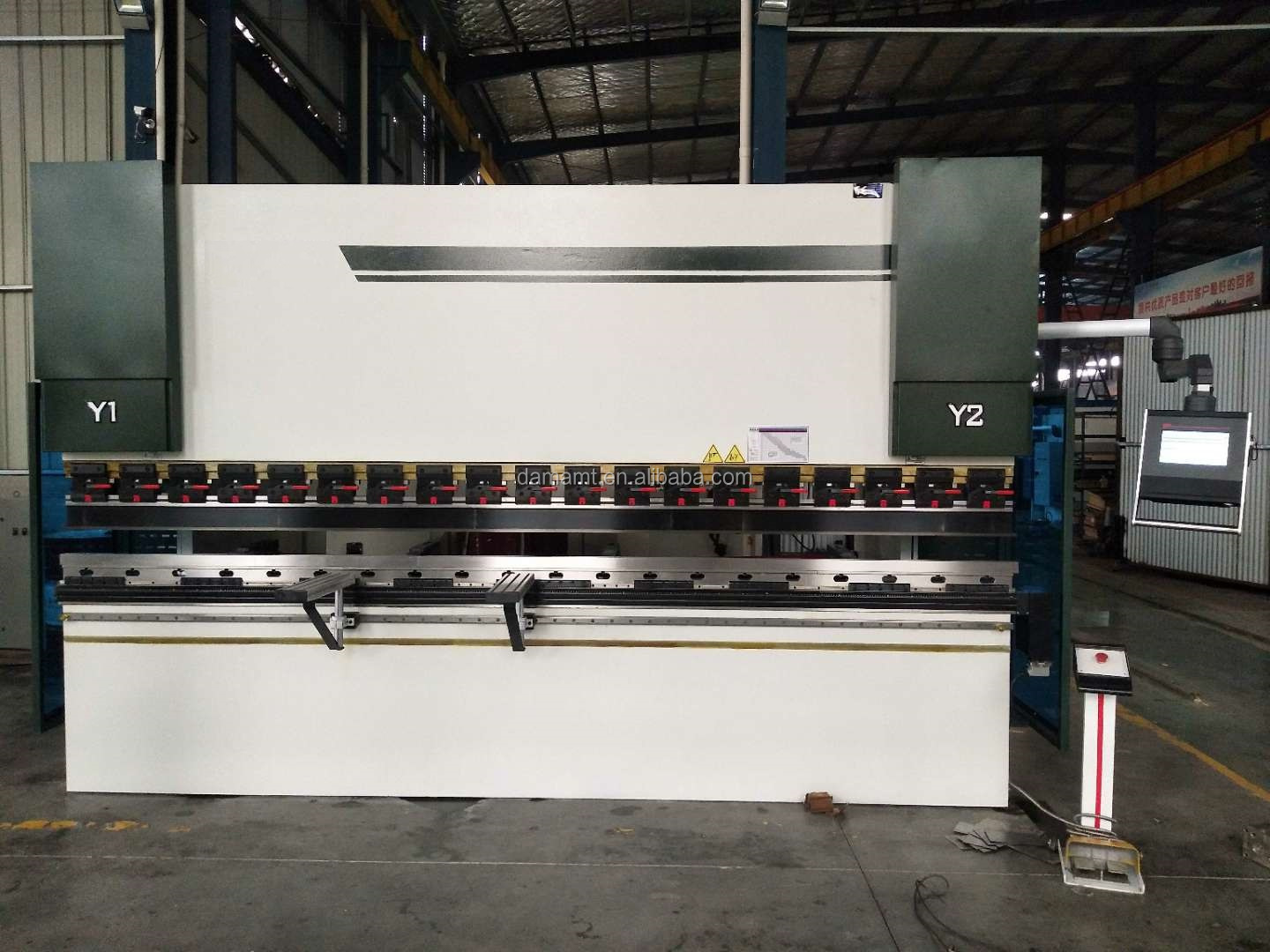

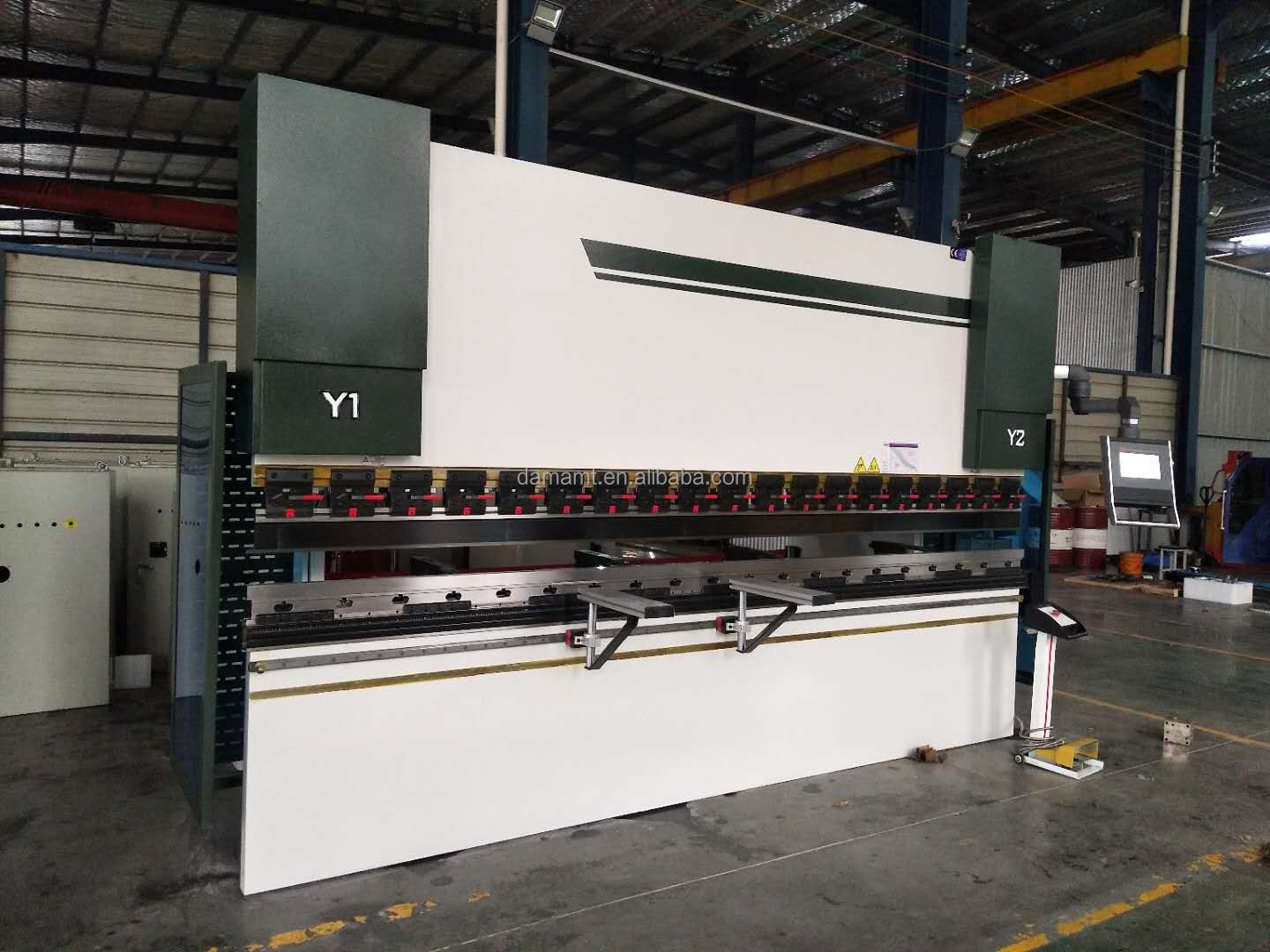

Hot selling hydraulic new bending machine sheet metal bending machine 80t 3000 4000 6000

Supplier: Maanshan Dama Machinery Manufacturing Co., Ltd.
Region: Anhui, China
Contact: Mr mark Zou
Price: $5000.00 / 1 - 1 sets
$3000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Packaging Details:	Plastic paper for bulk packaging for hydraulic press brakes, standard packaging
Auto level:	Fully automatic	Slider stroke:	100mm
Material/Metal Finishing:	Brass/Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum	Table Length:	3200
Extra Services:	heat treatment	Core Components Warranty:	4 years
Maximum opening height:	350mm	Table length (mm):	3200 mm
Slider stroke (mm):	200 mm	Throat depth (mm):	320 mm
Supply capacity:	100 sets per month At least 60 sets of hydraulic press brakes per month	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, metal bending
Showroom location:	United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka , Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Malaysia, Australia	Type of machine:	Bending Machine, Synchronized
Video external inspection:	if	Column spacing:	2560mm
brand:	DAMA Press Brake	Motor power (kW):	7.5kW
Throat deep:	320mm	place of origin; place of origin:	Anhui, China
Weight (kg):	6000	Marketing Type:	normal product
automation:	automatic	Mechanical test report:	if
main motor power:	7.5KW	Table width (mm):	200 mm
Certification:	ISO 9001:2000	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Warranty:	2 years, 2 years	Core components:	Bearings, motors, pumps, gears, pressure vessels, engines
After-sales service provided:	Engineers can repair machinery overseas	port:	FOB Shanghai China
Main selling point:	easy to operate

Hot selling hydraulic new bending machine sheet metal bending machine 80t 3000 4000 6000

Product Description

Full rear gauge and side safety fence

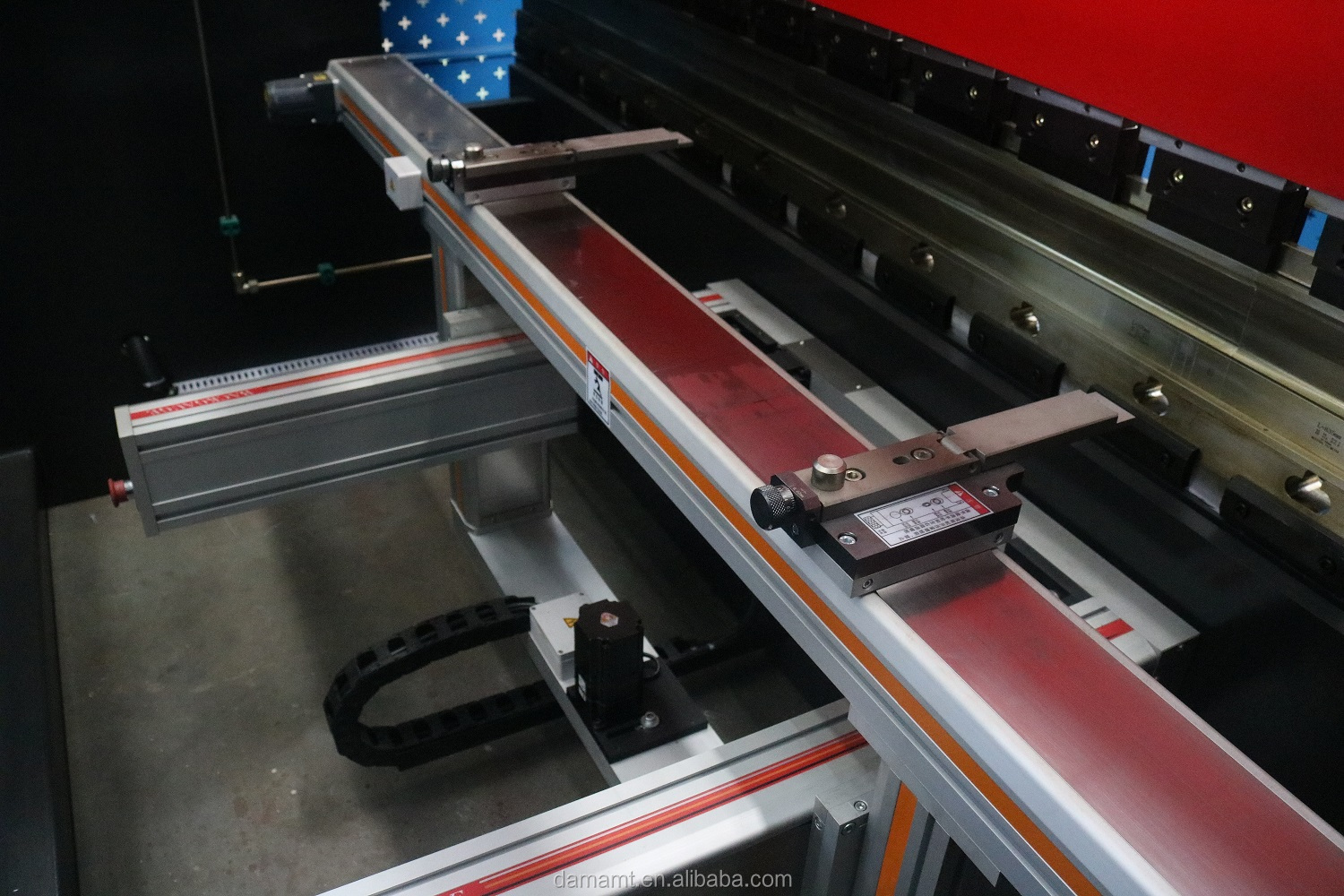

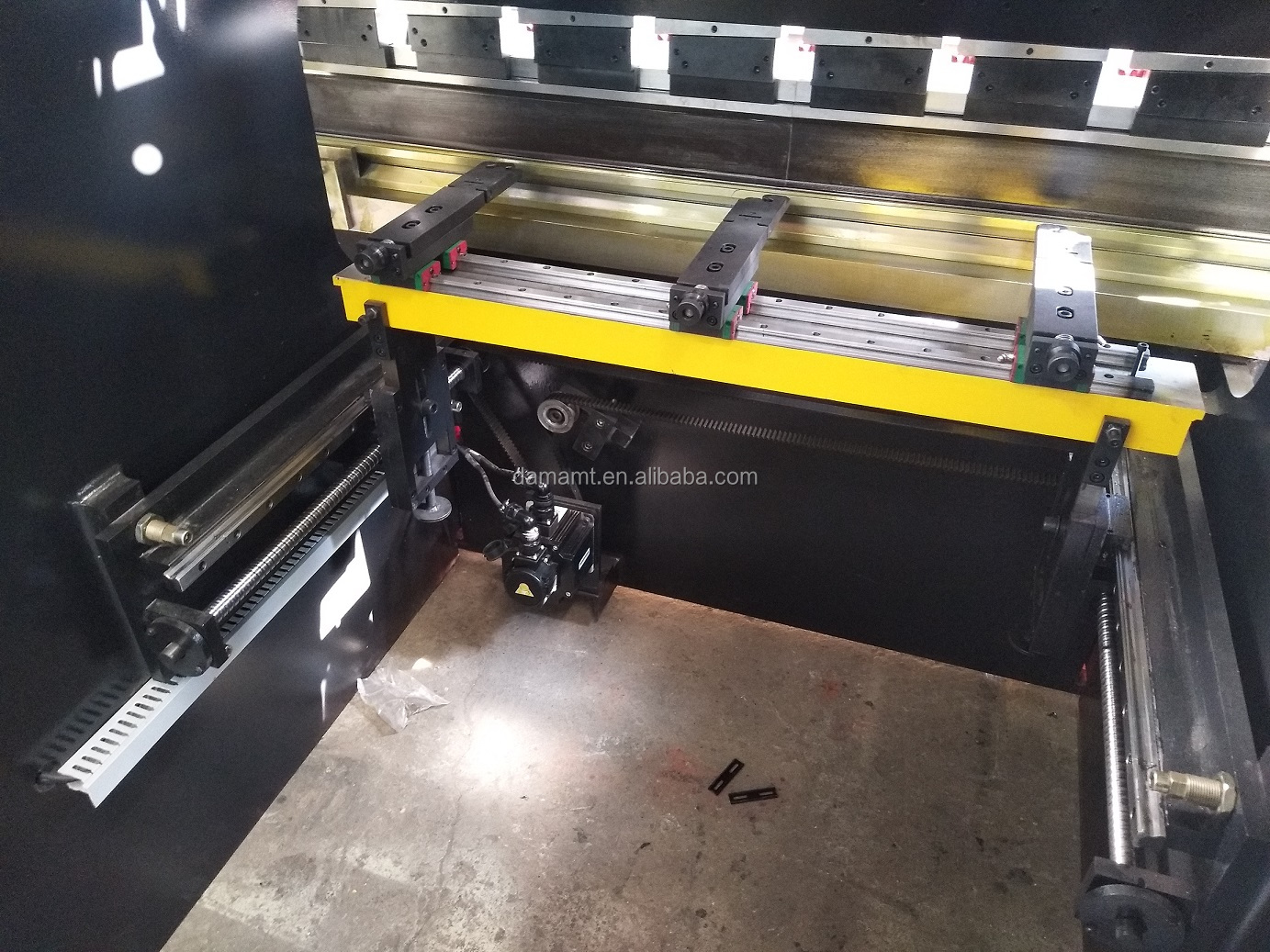

Back gauge with high precision ball screw and linear guide, CNC finger, with servo motor

CNC backgauge with RXZ axis, control system CT12 Delem DA52S DA56S DA66T

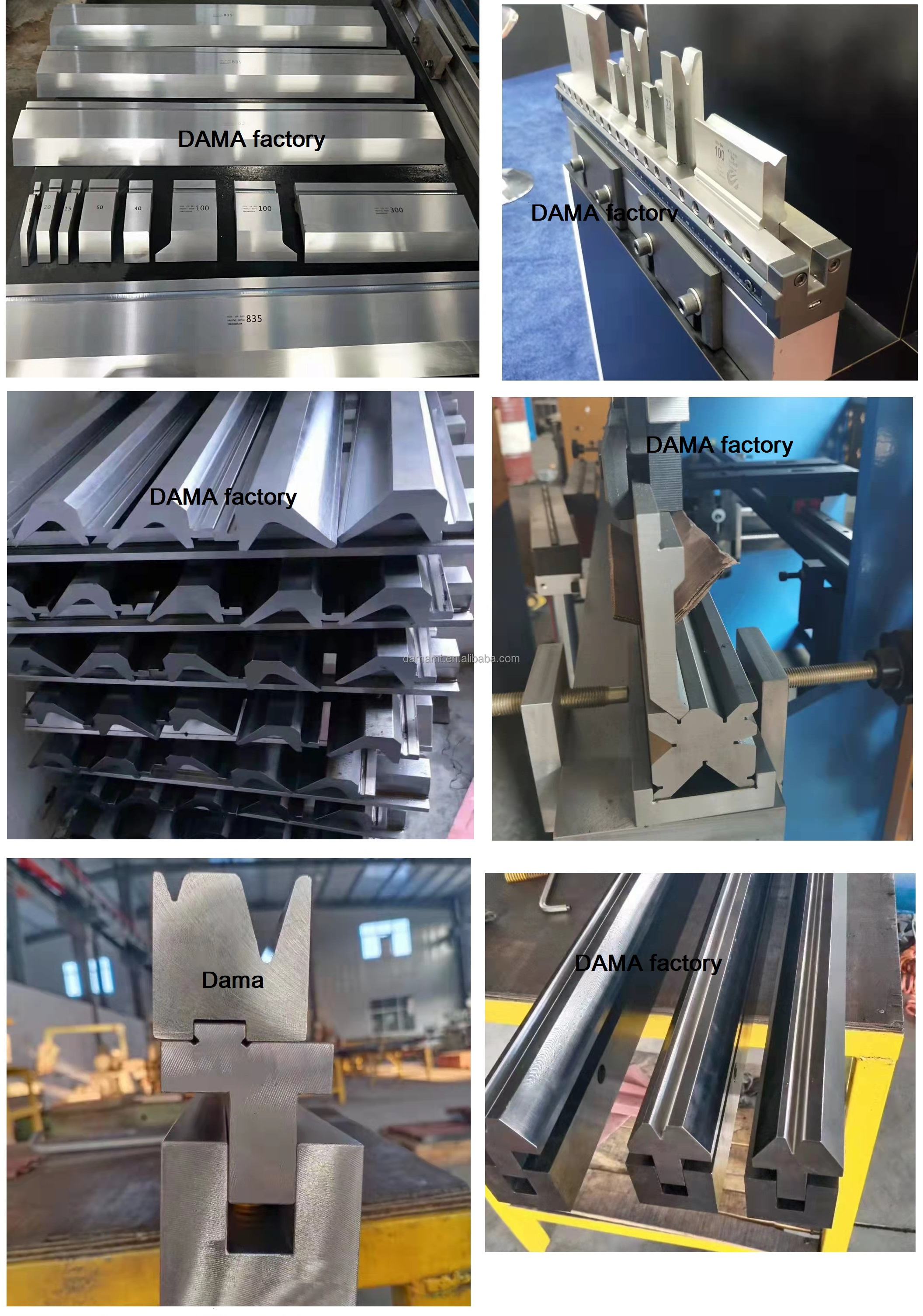

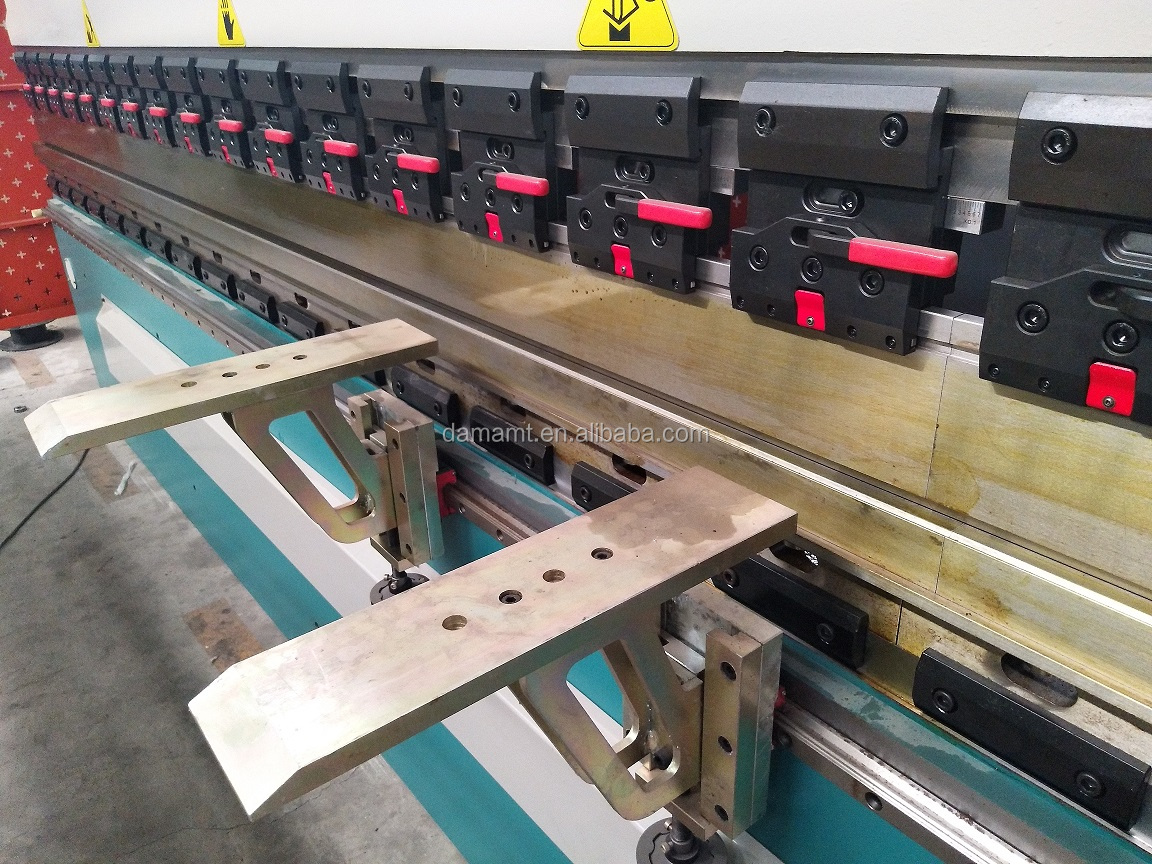

Different upper punches and dies are available:

Siemens motors and Bosch valves provide high performance

CNC system optional:
DA41 DA52 DA66T Estun E21 etc.

feature

1. All-steel welding, vibration relief stress, high mechanical strength, good rigidity. Hydraulic upper
Transmission, stable and reliable.
2. Mechanical stop, torsion shaft synchronization, high precision.
3. Back gauge distance, electric adjustment on the upper stroke, manual fine-tuning
equipment, digital display.
4.WE WORKTABLE full deflection compensation

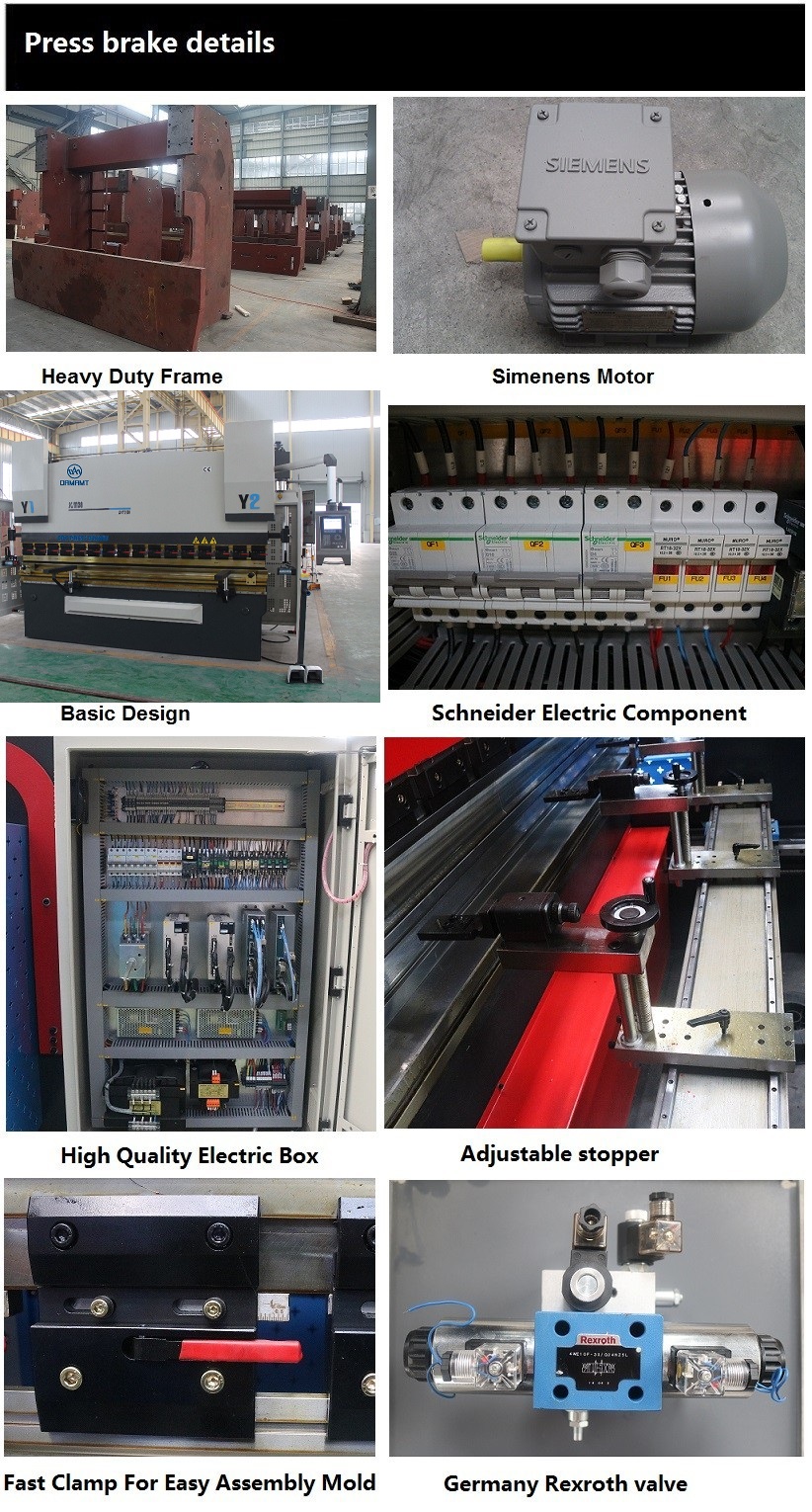

Basic main components

1.NC display: Korea
2 Main Seal: PARKER
3. Main electronic components: Siemens/Schneider
4 Main motor
5 groups of valves
6. Conjugate internal gear pump
7. After the regulation
8. Mould
9. Oil cylinder
10. Will be equipped with front plate feeding
11. Free standard upper and lower die

Main features and functions

All parts of the machine are designed under the guidance of computer-aided design and CAD/CAE/CAM software, which fully guarantees the strength and rigidity of all parts.

The whole adopts fully welded structure, the thickness of the body is reliable, the rigidity is high, and the shock absorption effect is good.

The machine structure is composed of the fuselage frame, worktable, slider, master cylinder and back gauge. The design and production method of the advantage guarantee the use and high precision of the machine. The main production procedures are as follows (all processes are strictly checked)
Plate - physical and chemical inspection - plate pretreatment (rust removal) - CNC flame cutting - cutting welding joint - welding - gas shielded welding - - aging treatment - milling processing - finished product assemble
The main components such as the machine body, slide block and worktable are clamped by the large floor-type boring and milling machine at one time, which ensures the geometric accuracy of the main engine.

The machine's anti-torque and electronic load capacity are greatly enhanced. The machine can work normally under full load. The workbench, column, beam and ram have good design rigidity and high design rigidity. When working, the deformation of the table and the ram is small, ensuring good straightness and angular uniformity.

The quality is guaranteed or the main parts of the company's machine

Motor and electronic system components are made of Siemens or Schneider
Moulds can be designed according to customer requirements.
The oil pump can choose the oil pump of the Chengjie enterprise in China's aircraft industry, or the oil pump of the German ECKERLER enterprise.
The stamp will be from American Parker or Japanese Valqua Company.

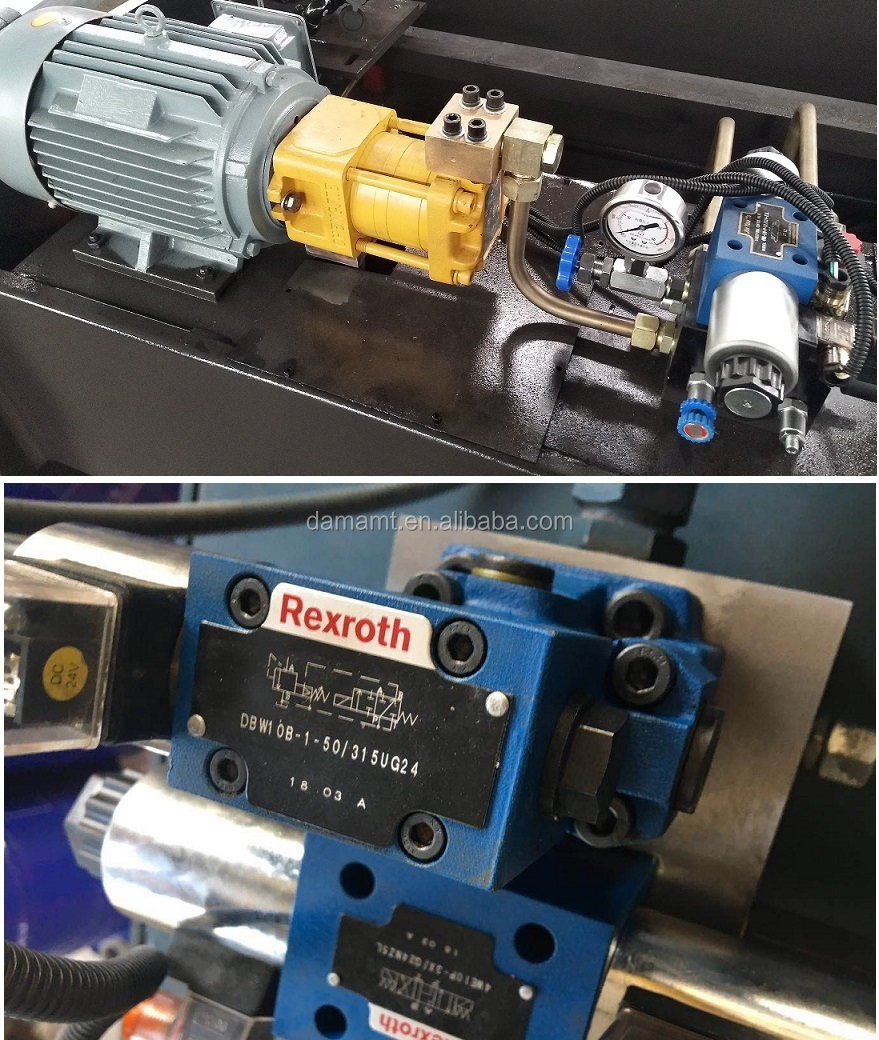

The hydraulic system and valve can be selected by German BOSCH company.

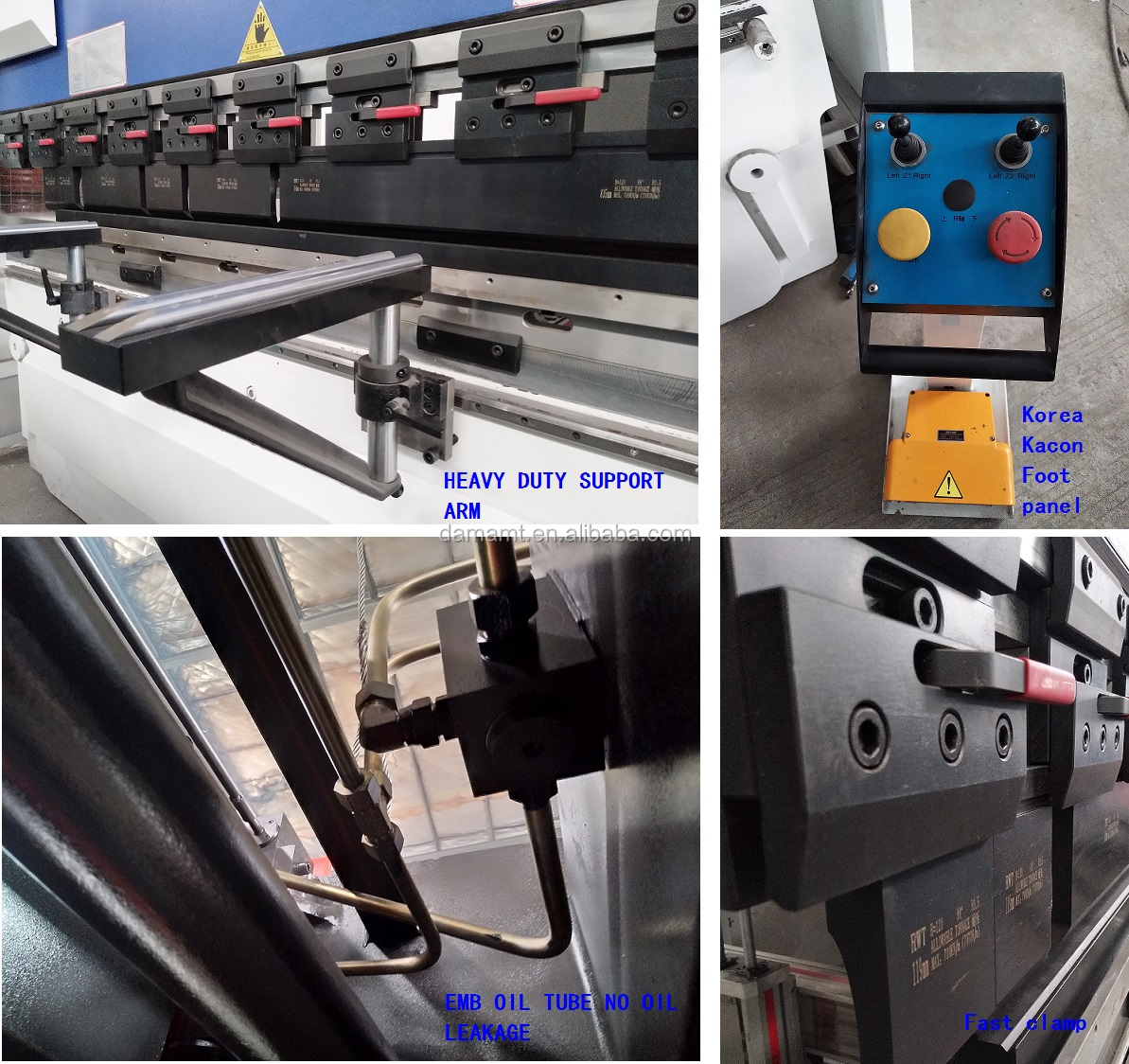

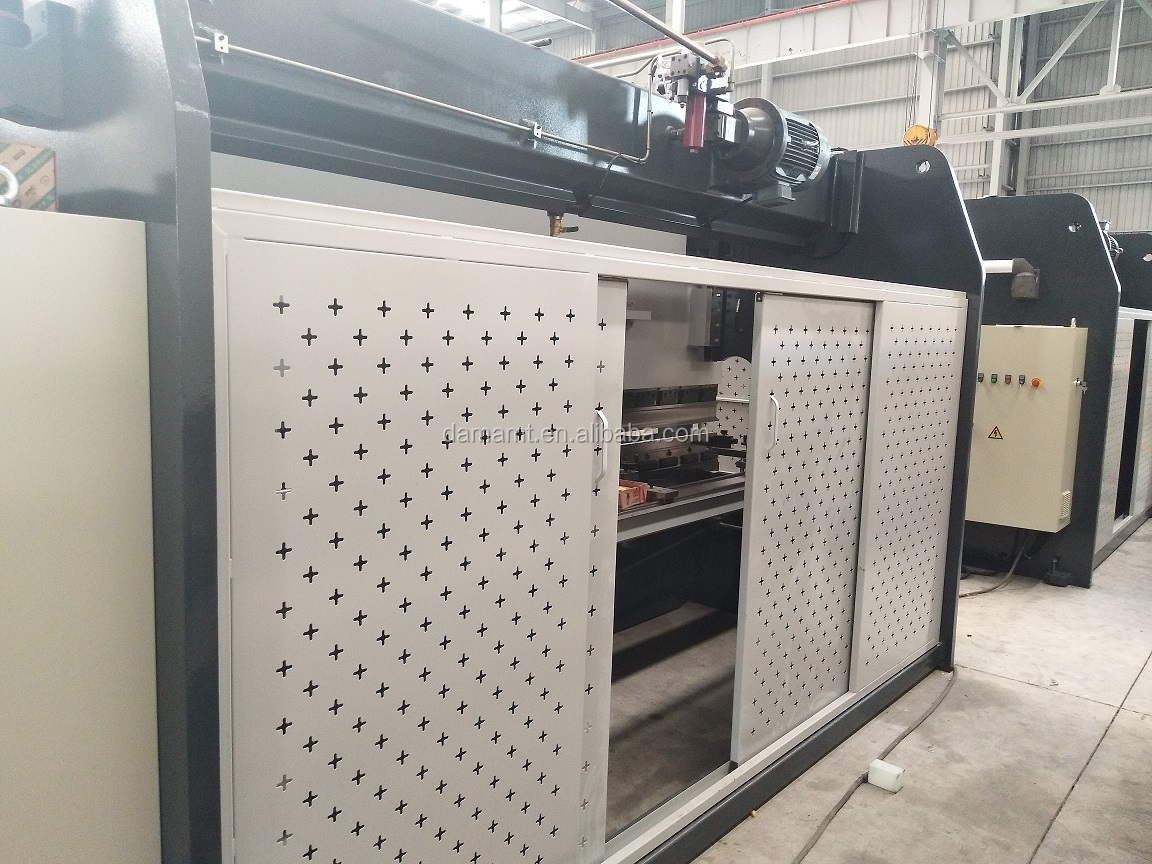

Safety Protection Equipment: We are equipped with a protective fence to avoid any internal penetration and a foot controller with emergency control button
