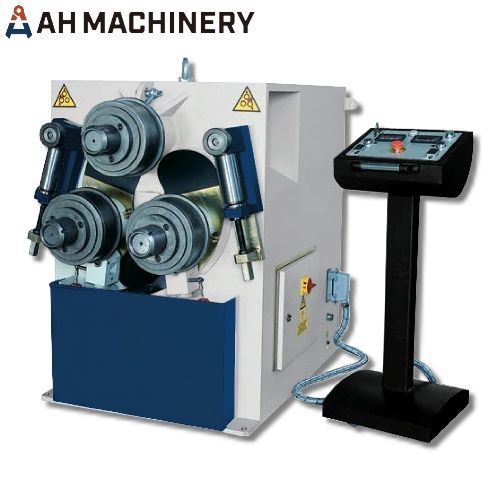

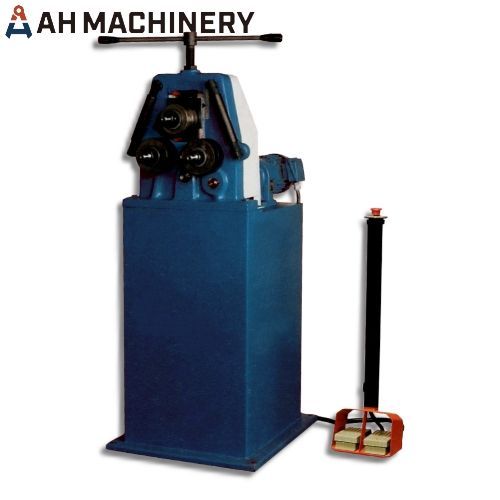

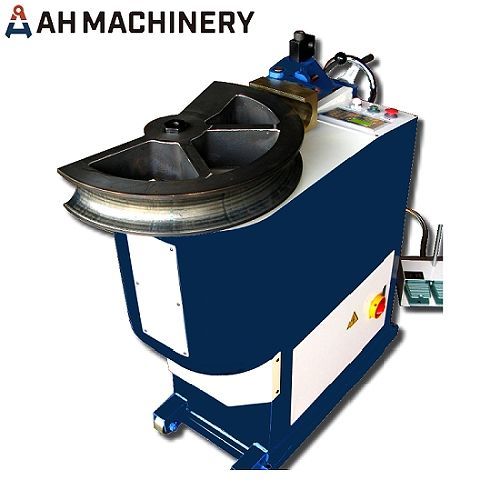

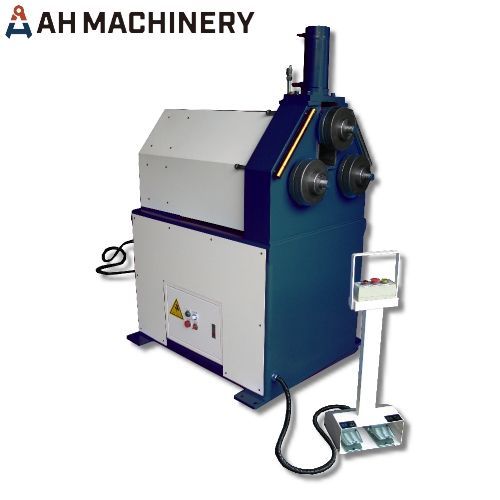

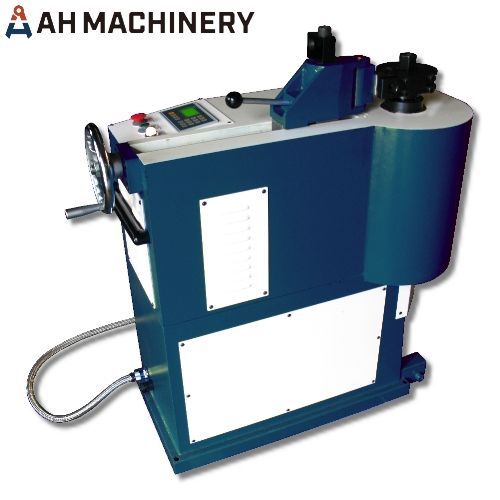

AH Tube Bending Machines for (Profile, Section, Rotary Draw Bander)
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
AH Machinery supplies full range of Rotary Draw Bander, Profile Tube Banding, Hydraulic Section Bending, Tube Bending Machine, Pipe Bending Machine made in Taiwan, customized specifications are available.
/APPLICATIONS/
Aerospace, auto accessories, auto aftermarket, construction, department of defense, exhaust applications, gym equipment, high performance racing, motorcycle parts, play structures, severe duty trucks, shipyard and so on./APPLICABLE METERIALS/
Conduit Tubes, Fumiture Iron Pipe, Gas Tubes, Hard Copper & Aluminum, Hydraulic Steel ST35, Mepla, Geberit & Similar Tubes, Mild Steel [EN:S275JO], Soft Brass, Soft Copper, Stainless Steel AISI304-316, Stainless Steel AISI308, Standard Steel Tubes/SPECIFICATION/
- Type= Profile, Section, Rotary Draw Bander- Shape= 1 - 18 Type
- For= Light / Heavy Duty
- Sheet Metal Thickness [mm/inch]= 1/0.04, 1.5/0.06, 1.8/0.07, 2/0.08, 2.5/0.10, 2.6/0.10, 2.77/0.11, 2.9/0.12, 3/0.12, 3.2/0.13, 3.5/0.14, 4/0.16, 5/0.20, 5.48/0.22, 6/0.24, 7/0.28, 8/0.31, 9/0.35, 10/0.39, 12/0.47, 15/0.59, 20/0.79, 25/0.98, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 42/1.65, 45/1.77, 50/1.97, 55/2.17, 60/2.36, 70/2.76, 80/3.15, φ10, φ15, φ20, φ30, φ35, φ50, φ60, UPN100, UPN120, UPN140
- Min. Diameter [mm/inch]= 200/7.87, 250/9.84, 280/11.02, 300/11.8, 350/13.78, 380/14.96, 400/15.75, 450/17.72, 500/19.69, 550/21.65, 600/23.62, 650/25.59, 700/27.56, 800/31.50, 850/33.46, 900/35.43, 1000/39.37, 1200/47.24, 1300/51.18, 1400/55.12, 1600/62.99, 2000/78.74
- Range of Bending Speed [m/min]= 5, 6, 7
- Diameter of Top Shaft [mm/inch]= 65/2.56, 80/3.15, 100/3.94
- Diameter of Lower Shaft [mm/inch]= 50/1.97, 70/2.76, 100/3.94
- Sheet Metal O.D. [mm/inch]= 10/0.39, 12/0.47, 12.7/10.5, 15/0.59, 20/0.79, 25.4/1, 25/0.98, 30/1.18, 32/1.26, 35/1.38, 40/1.57, 45/1.77, 50.8/2, 50/1.97, 6.35/0.25, 60/2.36, 65/2.56, 70/2.76, 76.2/3, 80/3.15, 100/3.94, 120/4.72, 125/4.92, 139.7/5.50, 140/5.51, 150/5.91, φ10, φ15, φ17.2, φ20, φ25, φ30, φ35, φ50, φ60, φ76.1, φ100, UPN100, UPN120, UPN140
- Sheet Metal Height [mm/inch]= 2/0.08, 3/0.12, 4/0.16, 5/0.20, 6/0.24, 7/0.28, 8/0.31, UPN100, UPN120, UPN140
- Main Motor [HP/kw]= 4/3.0, 5.5/4.1, 10/7.5
- Weight [Kgs/Lbs]= 1100/2425, 1700/3748, 3650/8047
- Overall Dimensions [mm] [LxWxH]= 1200x850x1200, 1450x1000x1400, 1465x2000x1700
/FEATURES/
#Customized_specifications_are_available.#High_caliber_and_Accurate.
Welcome to contact us!
A Homia will satisfy you as long as you give us a try.
FIND OUT MORE= https://www.ahmatw.com/
LINKEDIN= https://www.linkedin.com/in/ah-machinery-8836401b4/
FACEBOOK= https://facebook.com/ahmachinery.tw
INSTAGRAM= https://instagram.com/ah_machinery_tw
/WAREHOUSE/
|
|
Tube Bending Machine | Tube Bending Machine |
|
|
Tube Bending Machine | Tube Bending Machine |
