Hydraulic pipe bending machine CNC pipe bending machine steel pipe bending machine price

Supplier: Changge Deleixi Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Anna Ding
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	High bending speed:	4-6 rpm
port:	Qingdao/Dalian/Tianjin/Shanghai, hydraulic pipe bending machine CNC pipe bending machine steel pipe bending machine price	Applicable industries:	construction project
Materials/Metal Processing:	Alloy, Brass/Copper, Carbon Steel, Aluminum	Type of machine:	working group 51
Marketing type:	Popular products	Health status:	new
Core component warranty:	1 year	automation:	automatic
product name:	Hydraulic pipe bending machine CNC pipe bending machine Steel pipe bending machine	Supply capacity:	100 sets per month
Video outbound inspection:	if	Weight (kg):	Chapter 395
type:	Hydraulic pipe bending machine CNC pipe bending machine Steel pipe bending machine	Power (kW):	4
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	maximum. Bending angle (degrees):	180
Main selling points:	automatic	Dimensions (mm):	930x680x850
Warranty:	1 year	application:	Round tube bending
Core components:	Motors, engines	Package preview:

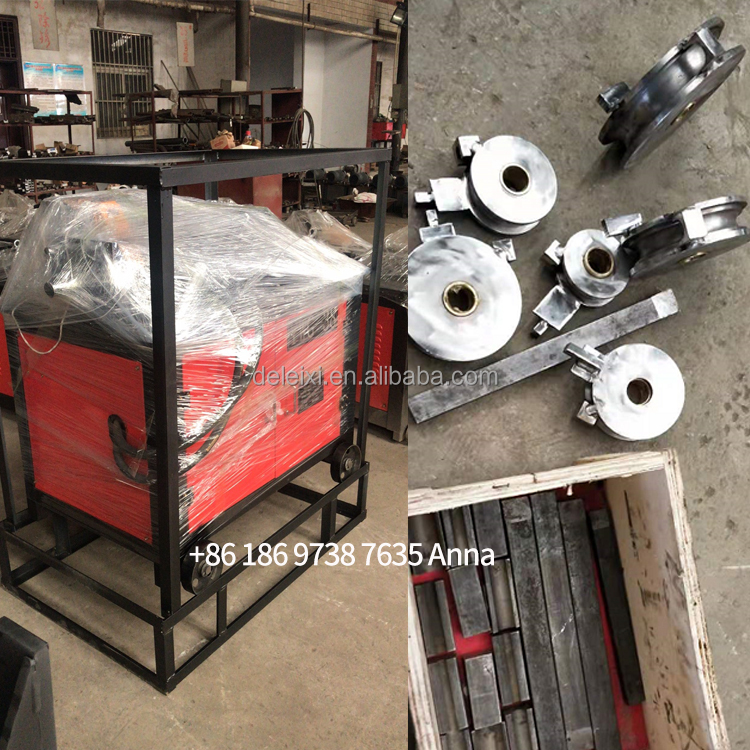

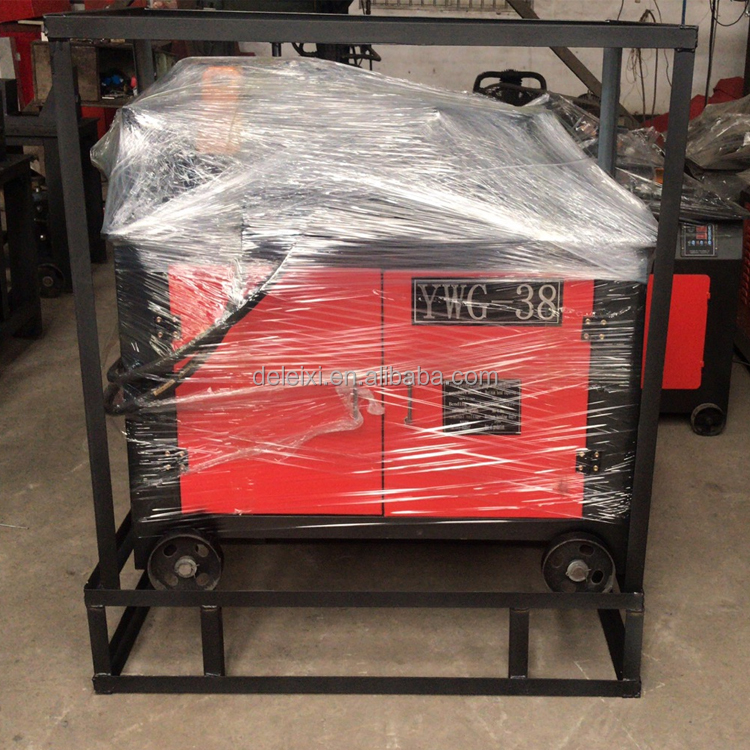

Packaging details:	Plywood case, iron frame case hydraulic pipe bending machine CNC pipe bending machine steel pipe bending machine price	usage:	Pipe bend
Bending accuracy (degrees):	1	brand:	DLX
Key words:	Bender	Showroom location:	not any
power supply:	380V50HZ	Model:	WG-51
Place of origin:	China	Function:	Hydraulic elbow

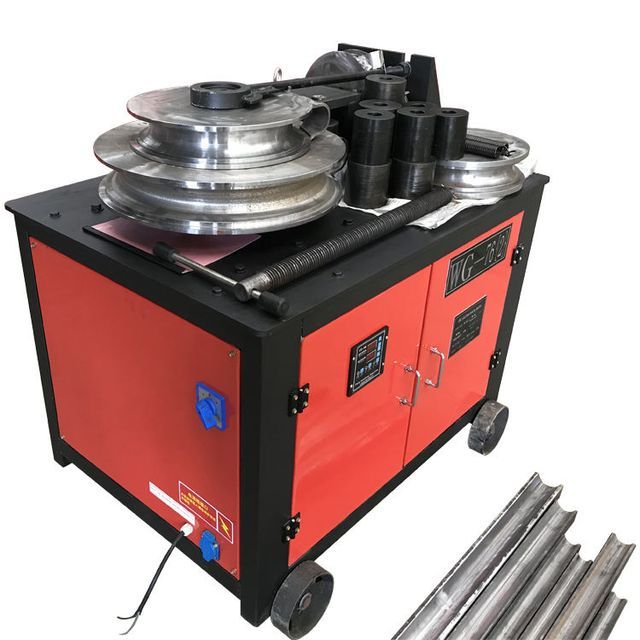

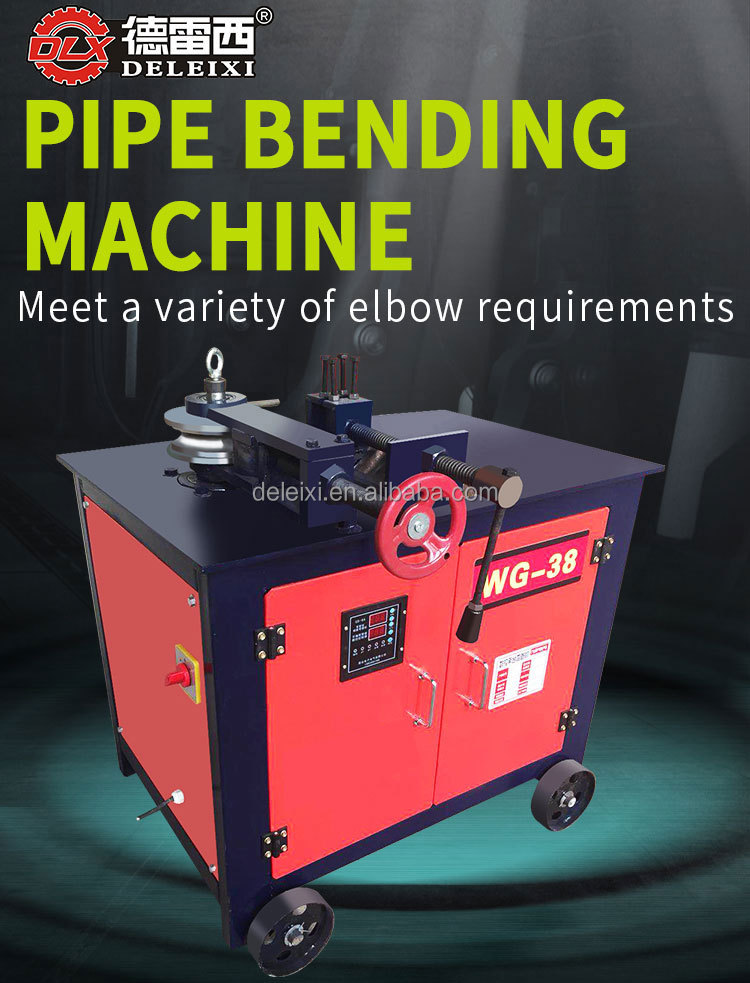

WG 26/38/51/76 Hydraulic automatic CNC stainless steel square steel pipe bending machine

Product Description

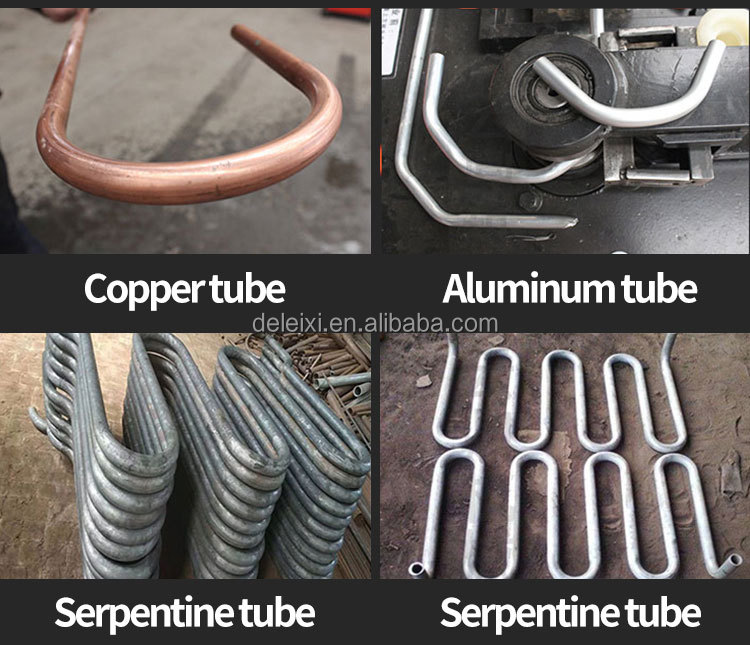

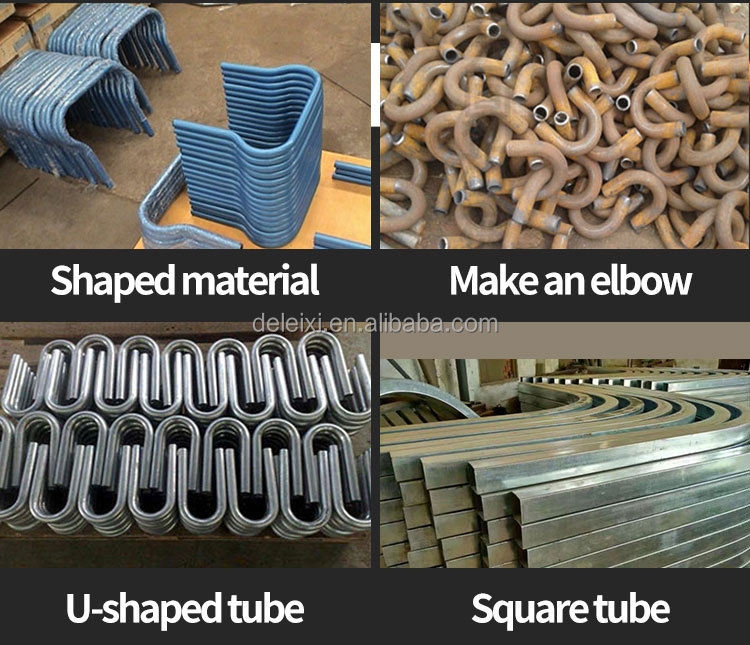

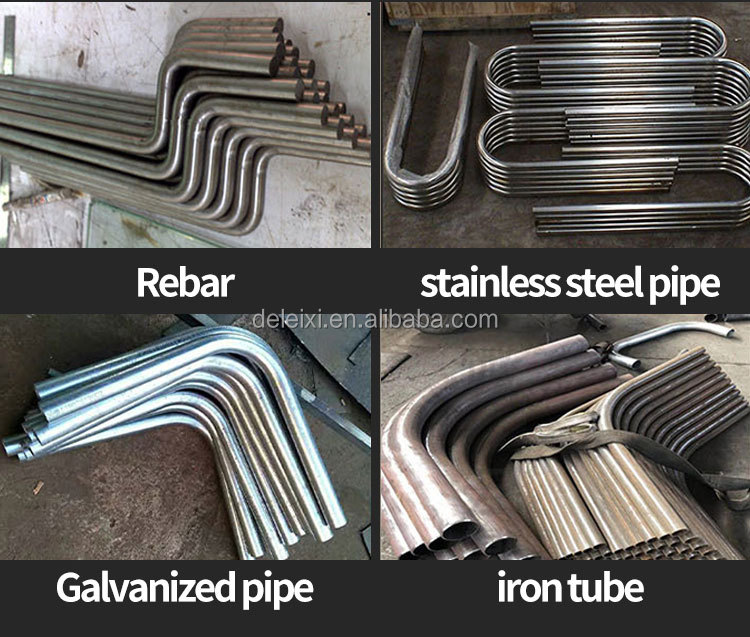

WG-38/51/76 CNC steel pipe bending machine is mainly used to bend different types of pipes, such as round or square low carbon steel pipes, 201 or 304 stainless steel pipes, rectangular steel pipes, aluminum pipes, copper pipes or other special-shaped steel pipes. This machine always bends the pipe into different angles from 5 to 180 degrees.

This model is the latest technological achievement developed by our company. Has the following characteristics:

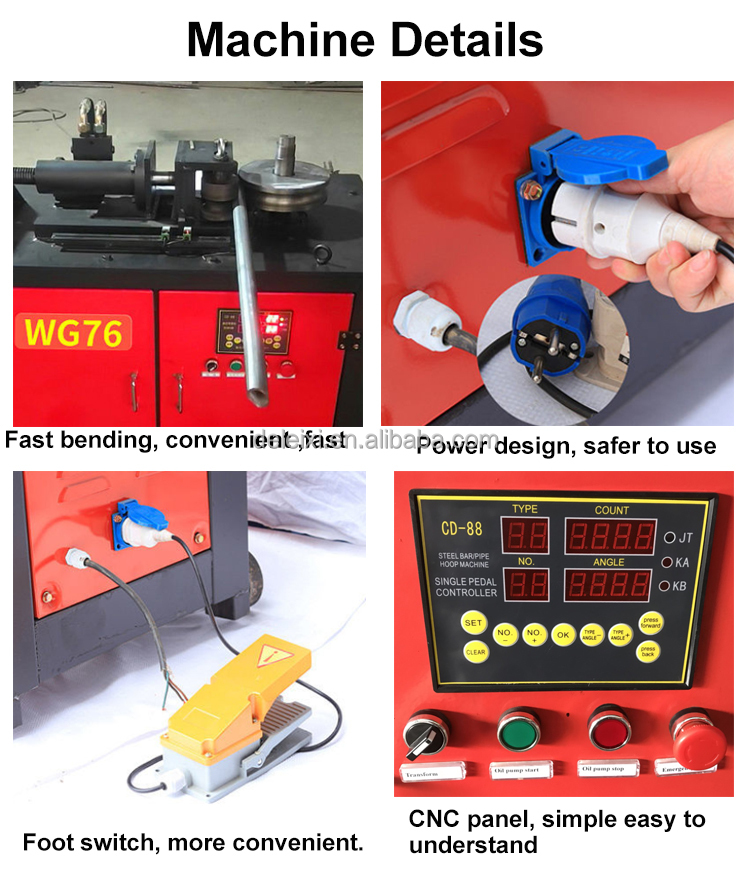

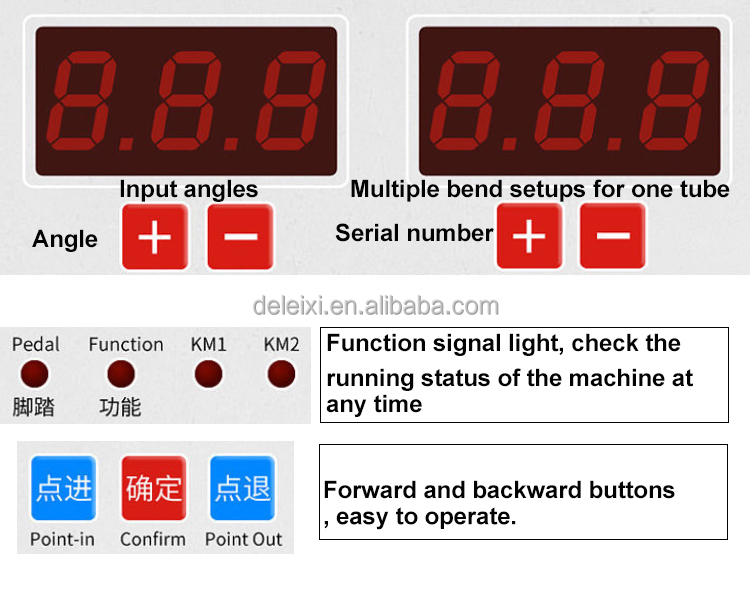

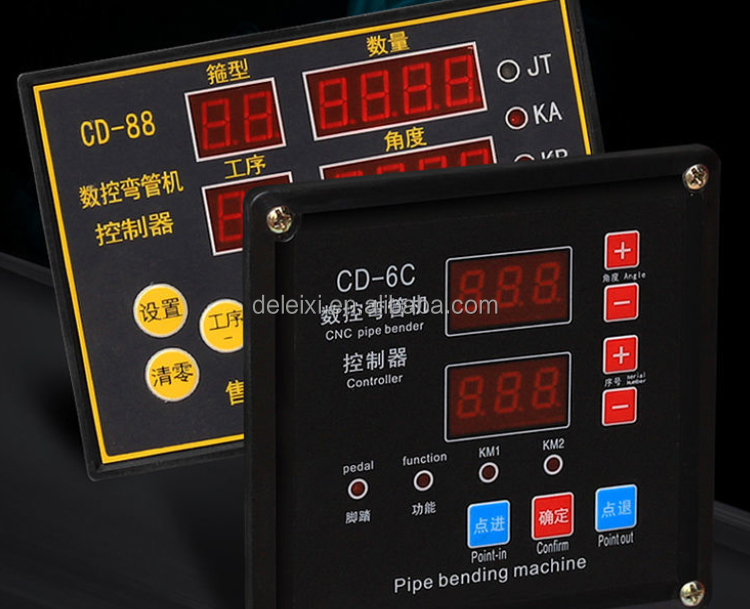

1. Micro CNC computer panel is used to control the bending angle and batch.
2. The gear transmission is durable and easy to maintain. Just add grease in the gear box.
3. Both thin and thick tubes can be processed by this machine.
4. The foot switch and CNC operation make pipe processing so simple and convenient.

Technical parameters of electric small semi-automatic CNC pipe bending machine

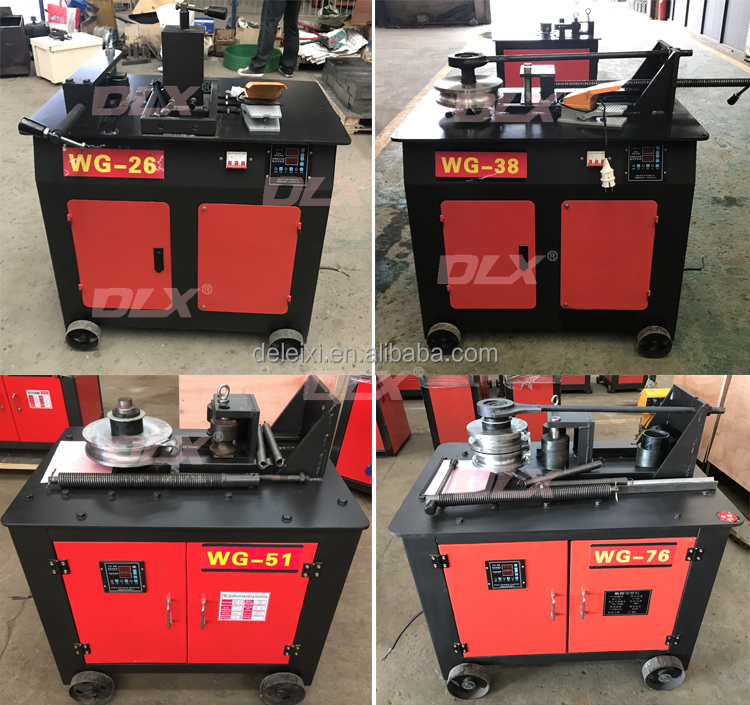

Model	WG-26	WG-38	WG-51	WG-76	WG-76 heavy duty
Engine type	Electric type
bending diameter	≤26mm	≤38mm	≤51mm	≤76mm	≤76mm
Thickness range	≤2mm	≤3mm	≤3mm	≤3mm	≤5mm
High bending speed	10-20 rpm	10-20 rpm	4-6 rpm	3-5 rpm	3-5 rpm
Number of bending angles	9	9	9	9	9
Maximum bending angle	180°	180°	180°	180°	180°
Minimum bending angle	5°	5°	5°	5°	5°
Motor Power	2.2kW	3kW	3kW	4kW	5.5kW
power supply	380V, 50Hz, three-phase AC or customized
Foot switch voltage	DC 5V	DC 5V	DC 5V	DC 5V	DC 5V
Dimensions (mm)	800650900	9008001000	9508501000	10009001100	11009001100mm
weight	180kg	260kg	320kg	350kg	400kg

Technical parameters of hydraulic CNC pipe bending machine

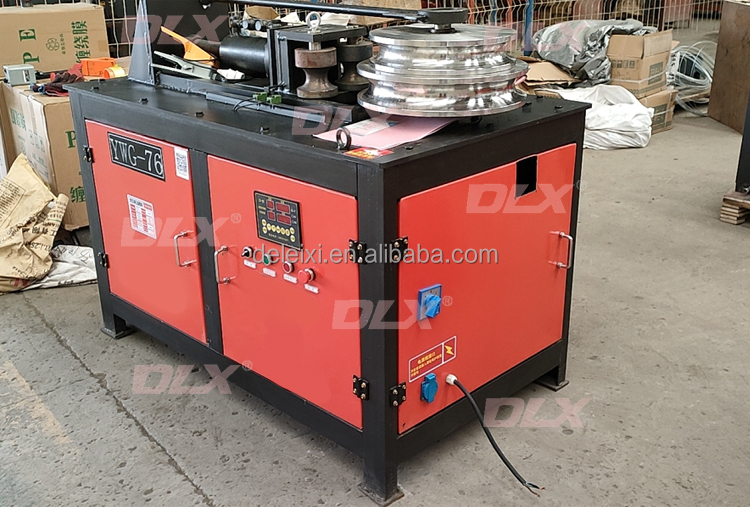

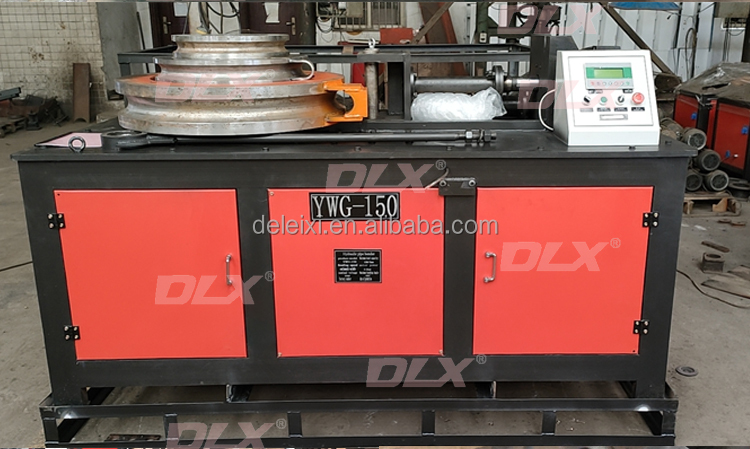

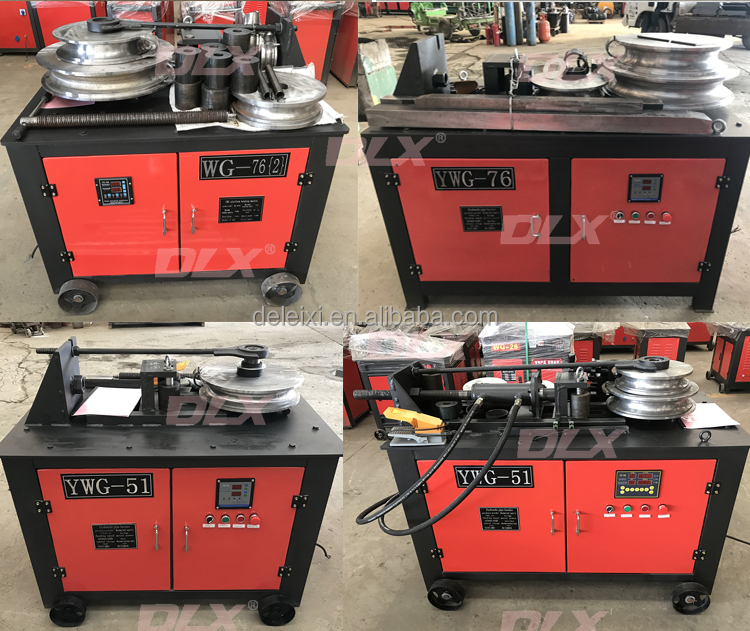

Model	YWG-38	YWG-51	YWG-76	YWG-100	YWG-114	YWG-150
Engine type	Hydraulic
bending diameter	≤38mm	≤51mm	≤76mm	≤100mm	≤114mm	≤133mm
Thickness range	≤3mm	≤4mm	≤5mm	≤3mm	≤5mm	≤5mm
Motor Power	3kW	4kW	5.5kW	7.5kW	9kW	11 kilowatts
power supply	380V 50HZ three-phase or customized
aspect	12007001100	13009001100	18009001350	200010001350	220011001400	240012001400
weight	360kg	480kg	900kg	1200kg	1500kg	2200kg
