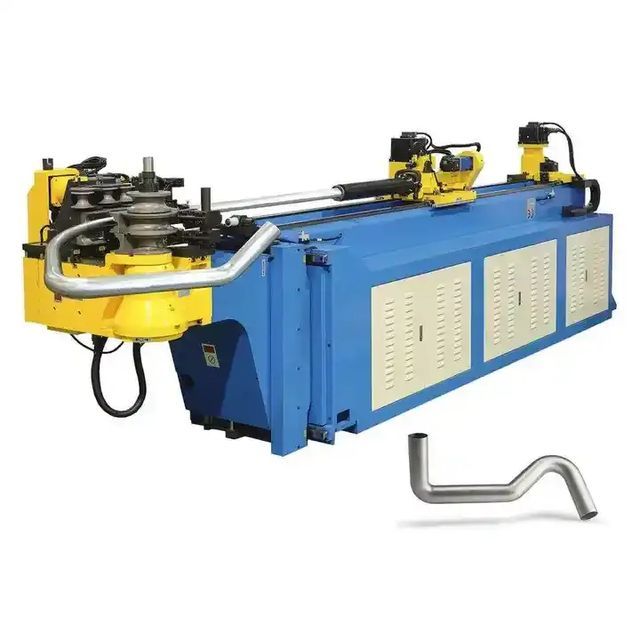

Easy to operate hydraulic stainless steel round square pipe bending machine bending machine Products from SJR Machinery Co., Ltd.

Product Details

Marketing type:	New products for 2023	Power (kW):	4
After-sales service provided:	Engineers can repair machinery overseas	Applicable industries:	Machinery repair shop, manufacturing plant
Package preview:		automation:	automatic
strength:	Hydraulic	Name:	Fully automatic pipe bending machine
Weight (kg):	1500	maximum. Bending angle (degrees):	190
Packaging details:	Wooden box, iron or wooden pallet plus waterproof film	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Showroom location:	Algeria, Egypt, Canada
Processing type:	iron tube	Place of origin:	China
Warranty:	1 year	Additional services:	processing
color:	as a customer	Video outbound inspection:	if
Core component warranty:	1 year	raw material:	metal rod
Bending accuracy (degrees):	0.1	Health status:	new
Materials/Metal Processing:	Alloy, carbon steel, stainless steel	Type of machine:	Bender
engine:	import	Supply capacity:	20 pieces per month
Core components:	Motor, PLC, gearbox	Main selling points:	Easy to operate
pack:	wooden box	Model:	38B

Recommended Products

Product Description

Machine features

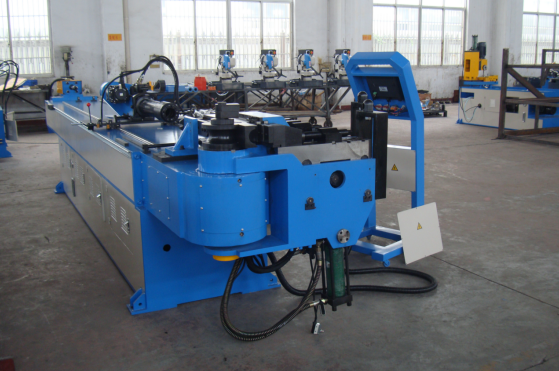

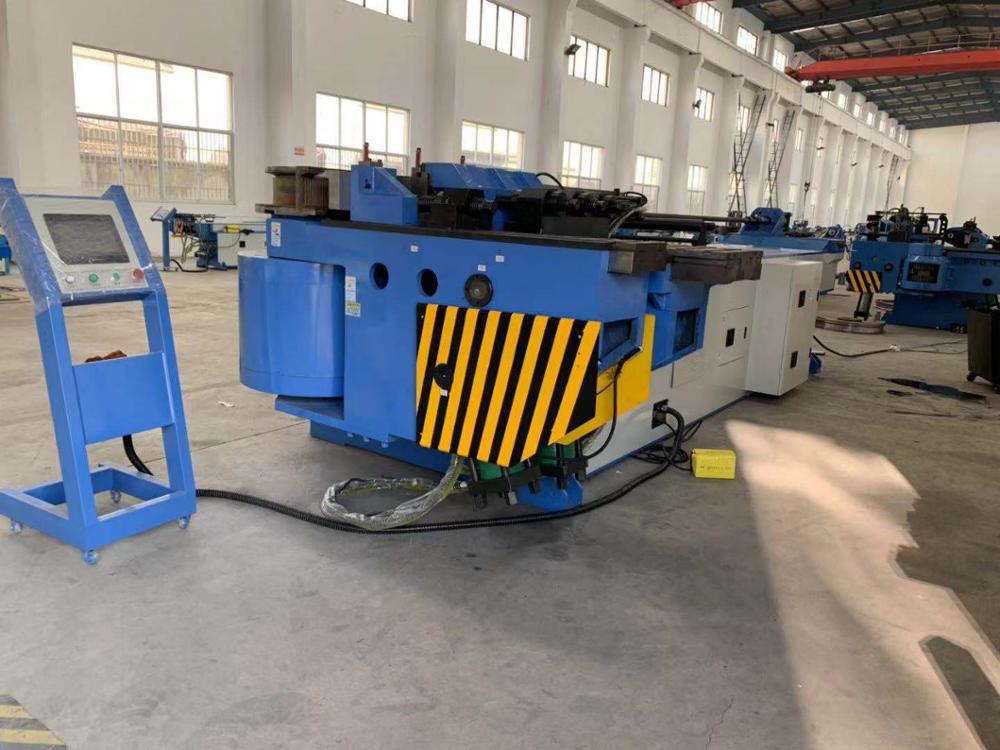

◆63CNC series CNC single-head pipe bending machine is a product integrating machine, hydraulics and electricity, which is a combination of our company's technology and Italian advanced technology. This series of products adopts VDU touch screen operation panel, which can input, store and display various bending data and instructions. Y, B, C three-coordinate precision movement
Industrial computer control can realize fully automatic core loading or core rapid bending

The title goes here.

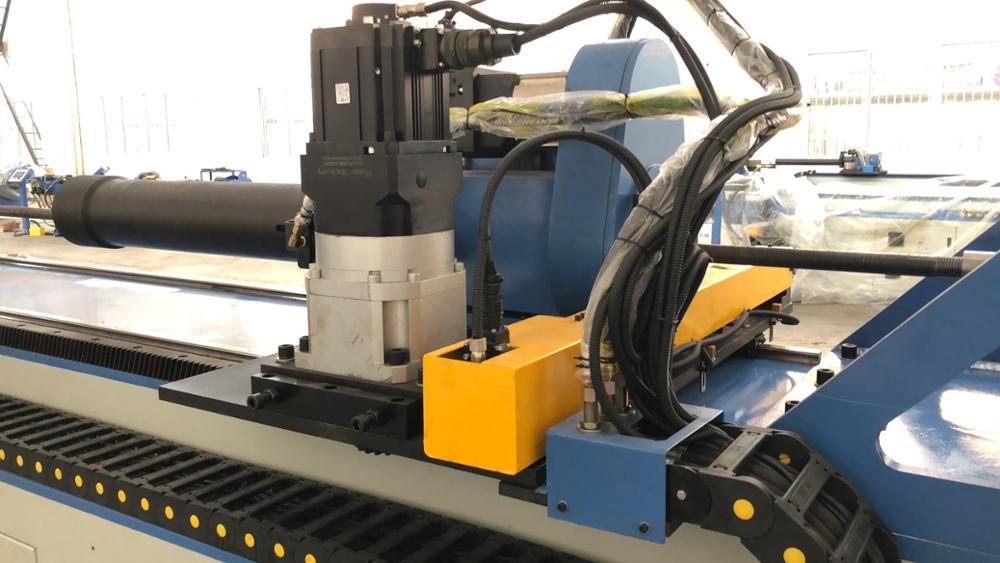

◆CNC machine tools also have advanced functions such as component bending and rebound compensation, error self-diagnosis and alarm, power-off memory, automatic lubrication, and safety protection. Pipe bending (C-axis), pipe rotation (B-axis), and pipe feeding (Y-axis) are all driven by closed-loop servo motors. Advanced technology, high automation reliability, integrated design
Make the CNC pipe bending machine a world-class pipe processing machine.

Specification

Name	unit	scope
maximum. Bending ability	mm	￠63*6
Bending radius range	mm	30-300
maximum. bending angle	°	190°
bending speed	degrees/second	30
Swing speed	degrees/second	160
Feed rate	mm/sec	800
Bending accuracy	°	±0.10
Turning accuracy	°	±0.10
Feeding accuracy	mm	±0.10
Rotary servo motor power	kilowatt	1
Feeding servo motor power	kilowatt	1.5
Although the effective distance	mm	2600
System motor power	kilowatt	7.5
maximum. pressure	MPa	16
Oil pump delivery volume	L	25
Lengthwidthheight (packaging size)	mm	500012001350
weight	time	3.5
