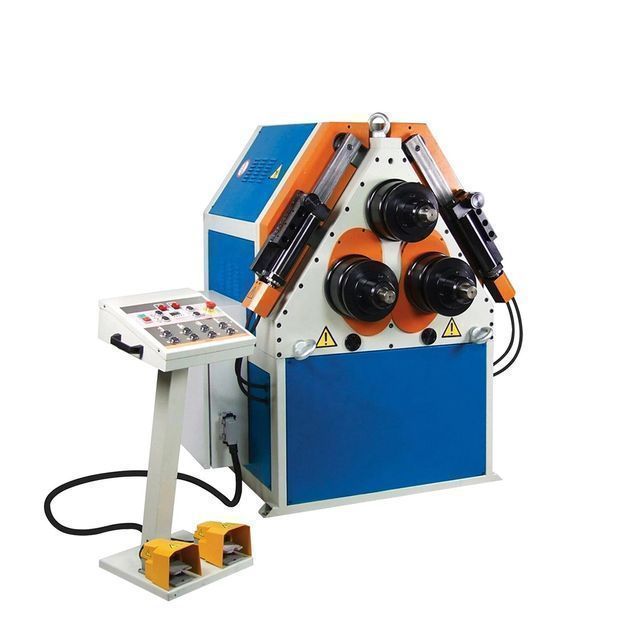

Automatic Profile Rolling Aluminum Hydraulic Profile Bending Machine
- 1558.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Wooden box, iron or wooden pallet with waterproof membrane | Weight (kg): | 500kg |
| Model: | W24-400 | Marketing Type: | New Products 2020 |
| automation: | automatic | Motor power (kW): | 2.2kW |
| Showroom location: | Egypt, Canada, Algeria | Core Components Warranty: | 1 year |
| Material/Metal Finishing: | aluminum | port: | Shanghai FOB |
| Applicable industries: | Mechanical Repair Shop | Supply capacity: | 20 pieces per month |
| Warranty: | 1 year | place of origin; place of origin: | Jiangsu, China |
| Health status: | new | Video external inspection: | if |
| Core components: | PLC, gearbox, motor | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Mechanical test report: | if | Main selling point: | automatic |
| After-sales service provided: | On-site installation, commissioning and training |
Product Description
A press brake is a machine that can bend thin sheets. Its structure mainly includes a bracket, a workbench and a plywood. The workbench is placed on the stand. The workbench consists of a base and a pressure plate. The base is connected to the splint by a hinge. The base consists of a seat shell, a coil and a cover plate. The coils are placed in the recesses of the housing, and the tops of the recesses are covered with a cover plate.
2. The oil cylinders at both ends of the machine tool are set on the slider to directly drive the sliding work;
3. The slider synchronization mechanism adopts torsion shaft forced synchronization;
5. The slider stroke can be quickly adjusted, manually adjusted, and displayed by the counter;
6. The wedge-shaped deflection compensation mechanism is adopted, and the bending precision is high.
Specification
Model | W24-400 | |
production limit | ≤245 | |
Minimum hemming diameter (angle steel leg out) | 200-400 | |
capacity | L40X4 | |
large | 1000 | mm |
Venison W | 750 | mm |
size H | 1350 | mm |
weight | 500 | Kilogram |
main motor | 2.2/1.5 | kilowatt |
