Carbon steel rolling pipe bending machine JW159S profile pipe bending machine

Supplier: Wuxi Zhouxiang Complete Set Of Welding Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Tracy Yan
Price: $7800.00 /set
Min. Order: 1 set

Click here to contact

Product details

After warranty service:	Video technical support, no service, online support	Voltage:	custom made
Local service location:	Egypt, Vietnam, Brazil, Chile	Core components:	Bearings, motors, pumps, gears, engines, gearboxes, PLCs
Core component warranty:	2 years	Rolling speed:	4.5m/min
Mechanical test report:	if	Showroom location:	Egypt, Vietnam, Russia, Argentina, Chile
Motor power (kW):	15 kW	control:	Programmable Controllers
place of origin; place of origin:	Jiangsu, China	Packaging Details:	Steel frame wooden box
Weight (kg):	9500 kg	color:	custom made
port:	Shanghai	Material/Metal Processing:	Carbon Steel, Stainless Steel, Alloy, Aluminum, Aluminum Alloy, Brass/Copper
Standard module diameter:	460mm	Main selling points:	long lasting
Type of machine:	Profile bending machine	Curved material:	Angle iron, channel steel, flat steel
Supply capacity:	50 sets per month	Package preview:
Marketing Type:	factory sales	Warranty:	2 years
Video shipment inspection:	if	Applicable industries:	Mechanical repair shops, manufacturing plants, construction works
Model:	JW-159S	brand:	Zhou Xiang
Health status:	new	automation:	automatic
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram

Product Description

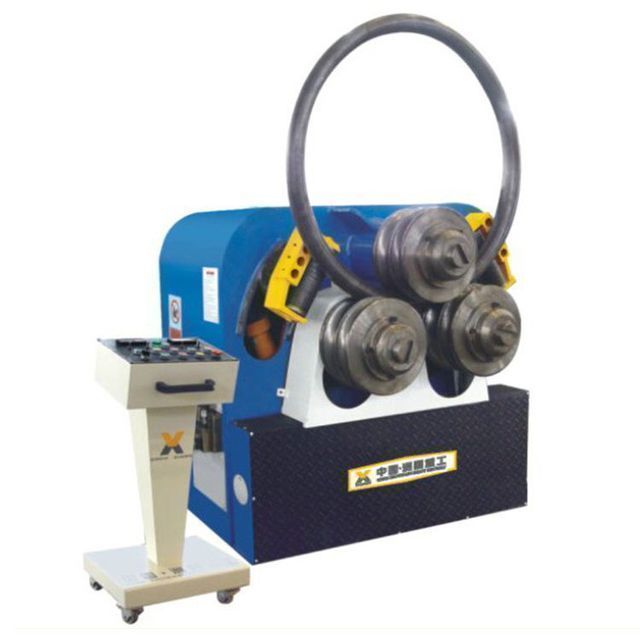

Three Roller Profile Bending Machine

The under-arc adjustment CNC digital display three-roller machine is specially used for profile bending.

It can bend circular and arc-shaped workpieces, and is widely used in petroleum, chemical, shipbuilding, hydropower, metal structure, machinery manufacturing and other industries.

This equipment is based on the principle of making a circle at three points, and bends metal profiles into arcs and tubes.

Product parameters

Model			JW-75S	JW-89S	JW-115S	JW-159S
Maximum section elastic modulus (cm3)			16	30	45	100
Profile yield limit (MPa)			245
Angle Iron Inward Bend	Maximum Section (mm)	70×70×8	75×75×10	100×100×12	110×110×14
		Minimum bending diameter (mm)	1200	1200	1300	1600
		Minimum Section (mm)	30×30×3	35×35×3	36×36×3	40×40×4
		Minimum bending diameter (mm)	600	560	600	800
Angle Iron Outward Bending	Maximum Section (mm)	75×75×10	90×90×10	100×100×16	120×120×16
		Minimum bending diameter (mm)	1000	1150	1300	1600
		Minimum Section (mm)	30×30×3	35×35×3	36×36×3	40×40×4
		Minimum bending diameter (mm)	500	500	560	600
Channel steel bend	Model	8	12.6	16	twenty two
Channel steel bend		Minimum bending diameter (mm)	1000	1000	1350	1500
Outward bending of channel steel	Model	14	16	18	twenty two
Outward bending of channel steel		Minimum bending diameter (mm)	800	800	1300	1400
Flat steel bending method is simple	Maximum Section (mm)	150×25	180×25	220×30	250×40
Flat steel bending method is simple		Minimum bending diameter (mm)	700	900	1000	1200
Flat steel hard bend	Maximum Section (mm)	75×16	90×20	95×30	120×40
Flat steel hard bend	Flat steel hard bend	Minimum bending diameter (mm)	900	900	1000	1200
pipeline	Maximum Section (mm)	76×3	89×5	114×5	159×5
		Minimum bending diameter (mm)	800	1000	1250	1600
		Minimum Section (mm)	20×2	25×2	25×2	28×2.3
		Minimum bending diameter (mm)	420	500	600	650
Standard module diameter (mm)			350	360	385	460
Rolling speed (m/min)			5	5	5	4.5
Main motor power (KW)			7.5	11	11	15

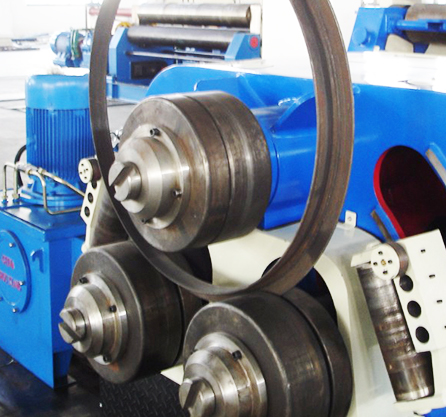

roller

The three rollers are driving rollers. It can prevent slippage when bending thin-walled and large-section profiles.

Hydraulic system

This hydraulic press is designed by a professional manufacturer with good performance and reliable use. It has three loops: pressure regulating loop, in-phase loop and speed regulating loop.
