Hydraulic Pipe Bender Reinforcement Bar Bender CNC Profile Bending Machine

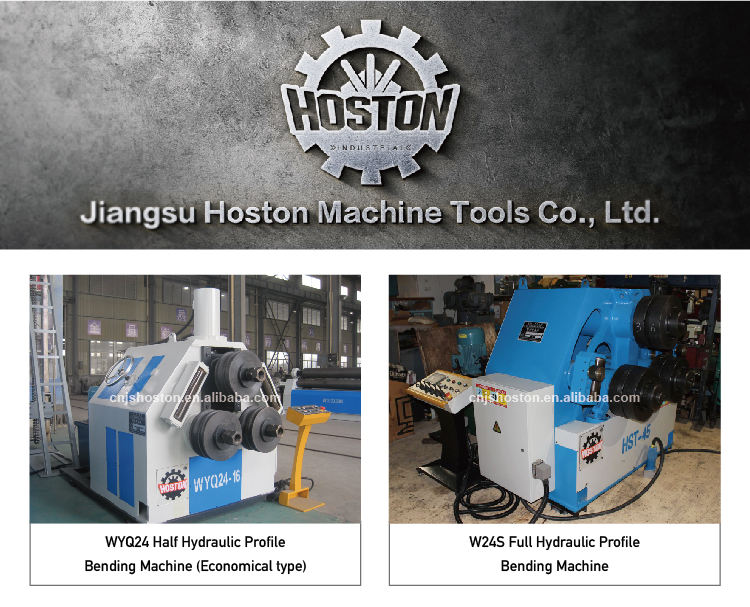

Supplier: Jiangsu Hoston Machine Tools Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hoston Jiangsu
Price: $5000.00 / 1 - 4 sets
$4900.00 / 5 - 14 sets
$4800.00 / >=15 sets
Min. Order: 1 set

Click here to contact

Product details

Core components:	engine, pump	Showroom location:	Egypt, France, Brazil, Saudi Arabia, Indonesia, Mexico, Thailand, Morocco, Argentina, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan
Key words:	Profile bending machine	year:	2020
Certification:	CE, ISO	Supply capacity:	50 sets per month
color:	custom made	Motor power (kW):	4kW
contour:	client needs	brand:	horston
control:	programmable logic controller	Mechanical test report:	if
Weight (kg):	3500kg	Material/Metal Finishing:	Aluminum, Carbon Steel, Brass/Copper, Alloy, Stainless Steel, Alloy, Aluminum, Brass, Carbon Steel, Stainless Steel
payment terms:	letter of credit, wire transfer	application:	Profile bending
port:	Shanghai, Qingdao, Guangzhou, Tianjin, Ningbo, Dalian	Core Components Warranty:	1 year
Voltage:	custom made	Warranty:	1 year
Raw materials:	Carbon steel	Applicable industries:	Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
Marketing Type:	New Products 2020	Main selling point:	competitive price
place of origin; place of origin:	Jiangsu, China	Video external inspection:	if
Health status:	new	Packaging Details:	Steel tray or protective film
Model:	W24S Hydraulic Profile Bending Machine	Material yield limit (Mpa):	245
automation:	automatic

Machine Features of Tube Bender Hydraulic Tube Steel Bar Bar Machine Channel Letter Wholesale CNC Square Tube Automatic Profile Bending Machine

This profile bending machine is a high-efficiency equipment for bending various profiles such as angle steel, channel steel, I-beam, flat steel, square pipe, pipe, pipe and so on. Once fed, the bending and pre-bending are then done. Widely used in petroleum, chemical, shipyard, metal processing and machinery manufacturing industries.

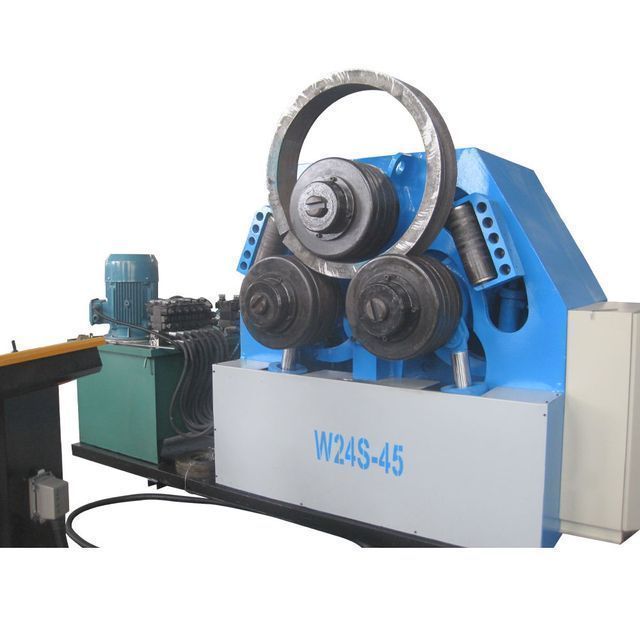

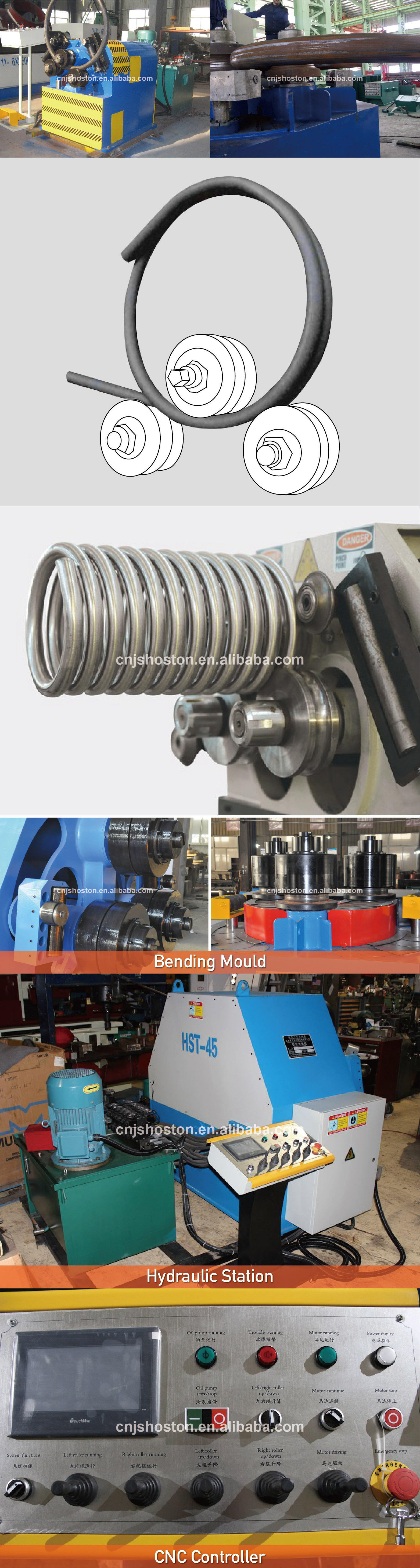

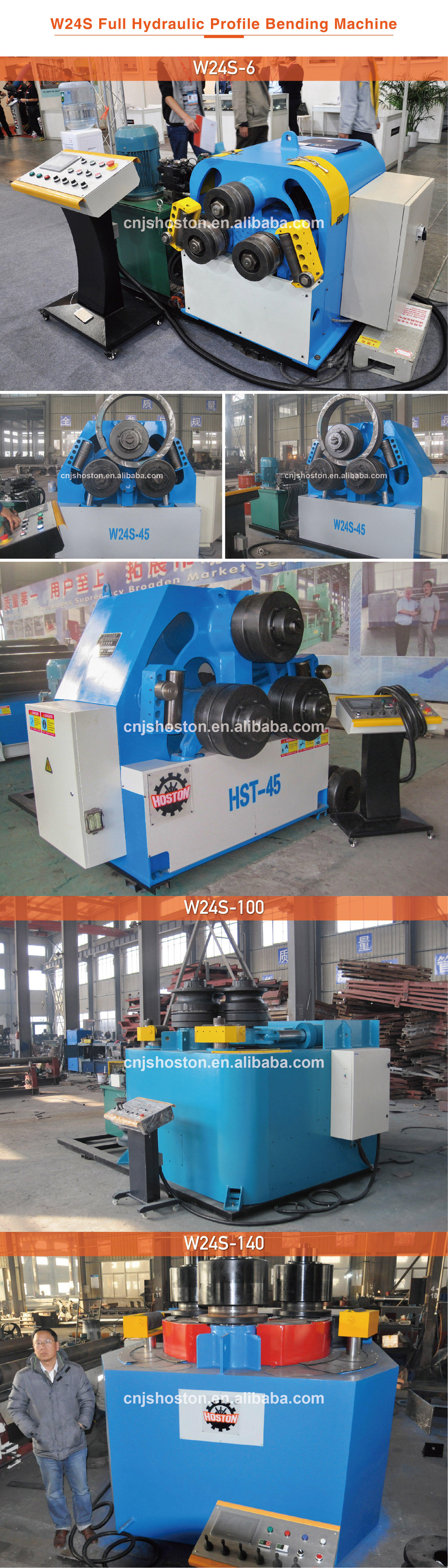

W24S Full Hydraulic Profile Bending Machine

1. Full hydraulic transmission, centralized electrical control, digital display, no return after one feeding, complete bending and pre-bending and other processes.
2. The upper roller is fixed, and the two lower rollers make an arc-shaped lifting movement around the fixed center. They can rise and fall separately, or both.
3. The three drive rollers are equipped with hydraulic motors, which do not slip and can bend even thin materials.
4. Side guide rollers to ensure high quality of asymmetrical section bending.
5. Complete functions, changing molds can bend various profiles.
6, vertical and horizontal optional
7. Customers can choose CNC or CNC.
8. CE certificate

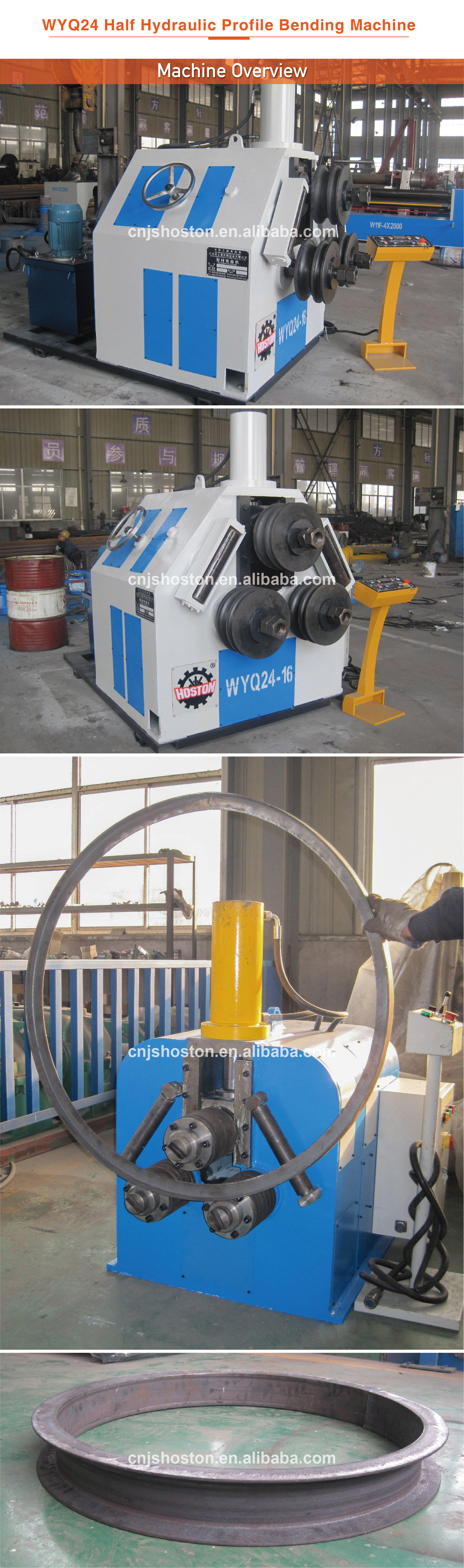

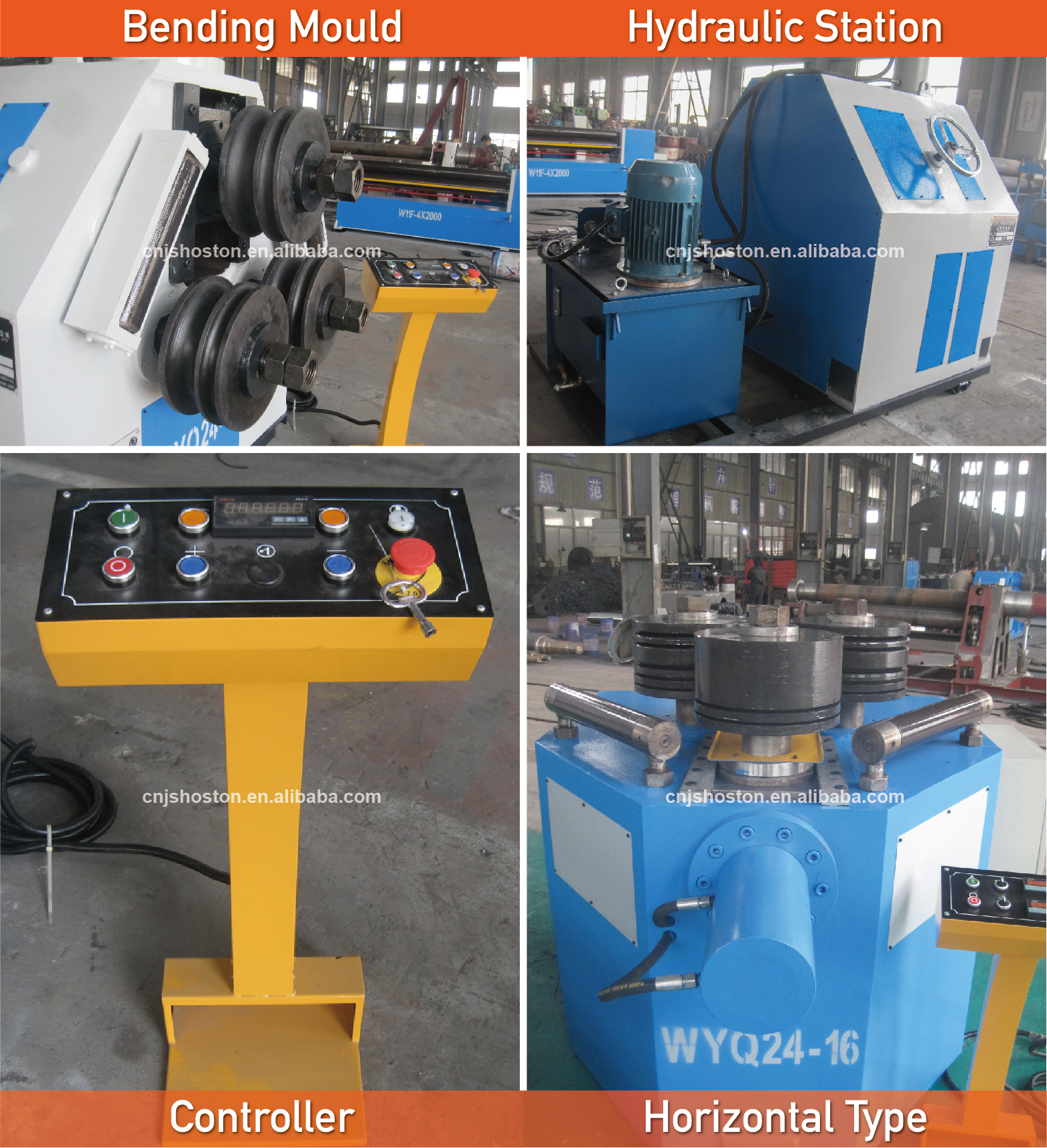

WYQ24 Semi-hydraulic profile bending machine (economical)

1. WYQ24 series is a semi-hydraulic profile bending machine.

2. Widely used in petroleum, chemical, shipbuilding, metal processing and machinery manufacturing industries

3. Bending and circle checking can be completed in one feeding. The two lower rollers are fixed and the upper roller is lifted by the hydraulic oil tank. Three drive rollers, powered by hydraulic motors. Side guide rollers ensure high-quality bending of asymmetrical profiles.

4. Advanced and reliable structure.

5. Small size and full function.

6. It is the most advanced metal forming equipment in the world.

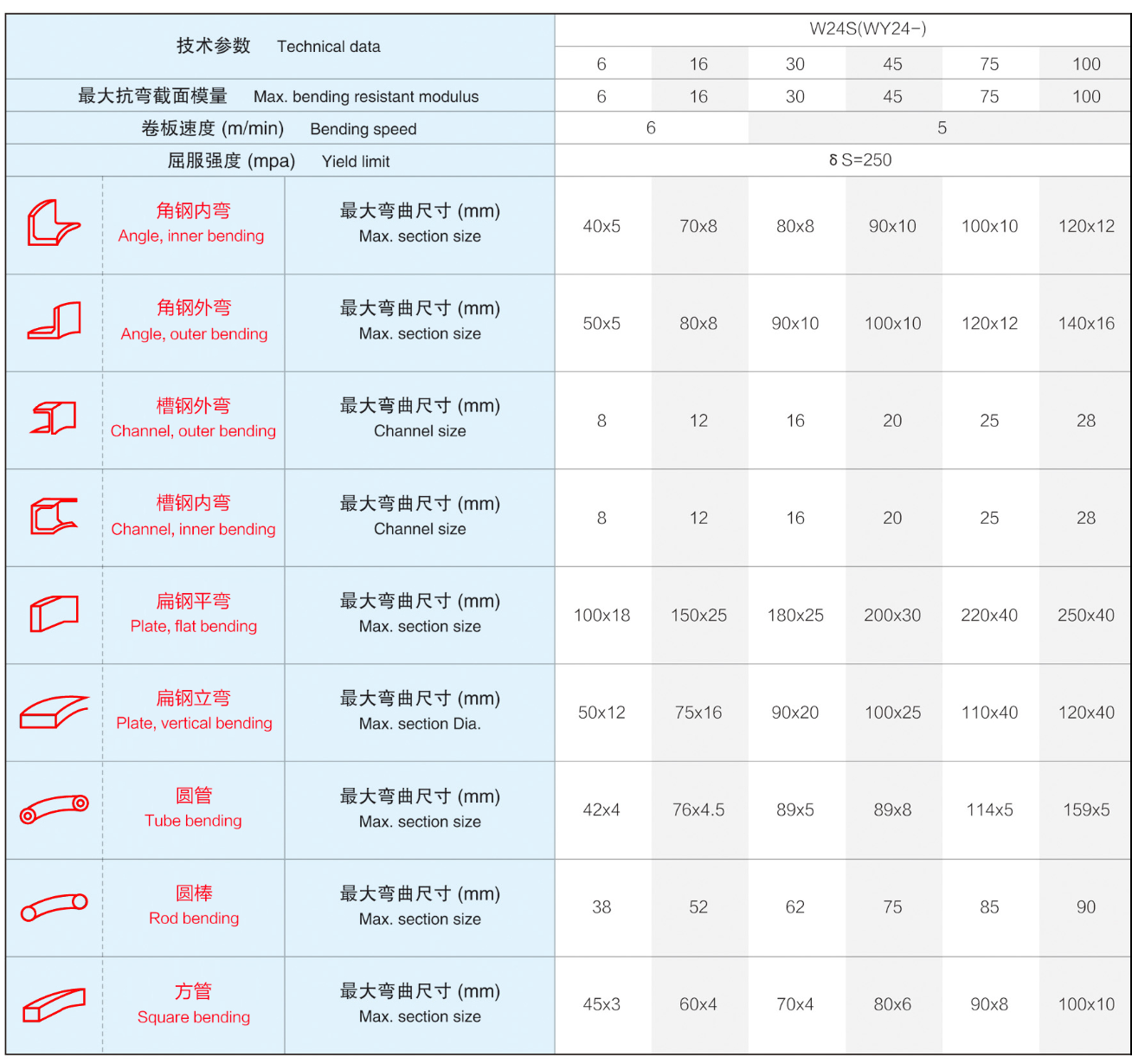

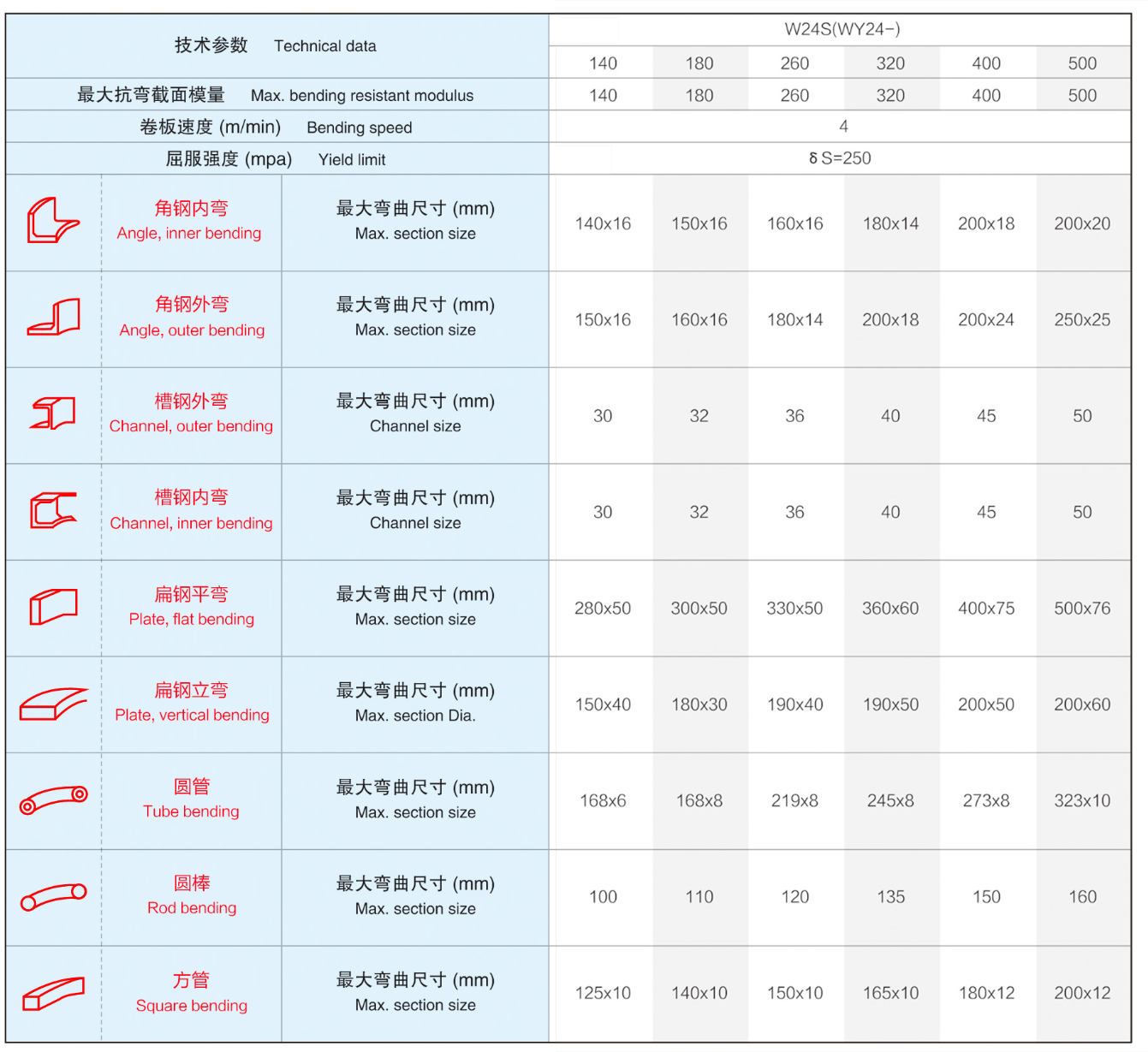

Technical parameters of pipe bending machine hydraulic pipe steel bar bar machine slot word wholesale CNC square pipe automatic profile bending machine
