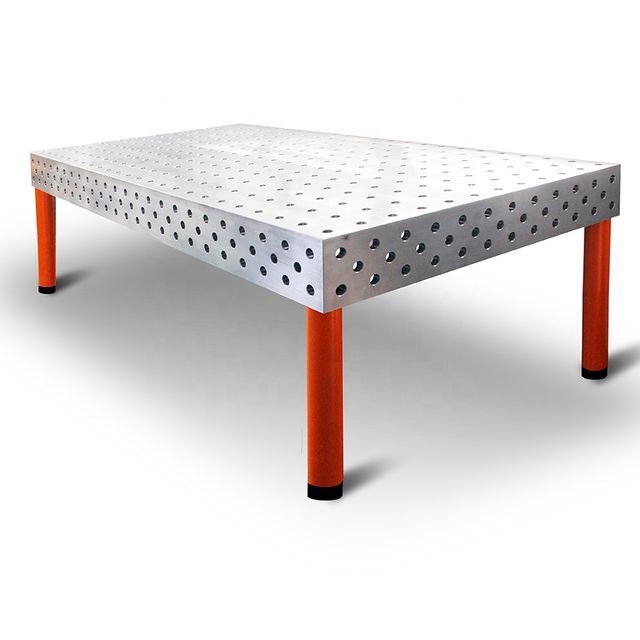

Smart Fixture System Fixture 3D Soldering Station Accessories D28 D16 Cast Steel Soldering Station

Supplier: Jiangsu Hoston Machine Tools Co., Ltd.
Region: Jiangsu, China
Contact: Mr Hoston Jiangsu
Price: $1500.00 / 1 - 2 sets
$1350.00 / 3 - 9 sets
$1000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	United States, Brazil, India, Mexico, Kenya, Algeria, South Africa, Nigeria, Tajikistan;	usage:	Workpiece fixing and clamping for welding;
Marketing Type:	Hot selling products in 2019;	Packaging Preview:	;
Weight (kg):	200 kg;	port:	Shanghai Port;
Health status:	new;	payment terms:	Letter of credit, wire transfer;
diameter:	28mm to 16mm;	Packaging Details:	3d modular welding table: plywood case;
Diagonal grid D16:	50x50mm;	Work surface (3D):	5;
place of origin; place of origin:	Jiangsu, China;	Core components:	programmable logic controller;
Main selling point:	high productivity;	type:	2D and 3D, soldering stations;
Supply capacity:	1000 sets of 3d modular welding workbenches per year;	Key words:	Welding fixture table;
brand:	good things;	Mechanical test report:	if;
Work surface (2D):	1;	feature:	Economical, flexible, precise and repeatable;
surface:	D28 and D16;	Applicable industries:	Hotels, building materials stores, machinery repair shops, manufacturing plants, restaurants, printing plants, construction engineering, energy and mining;
aspect:	1m-4m (or OEM);	Warranty:	1 year;
Diagonal grid D28:	100x100mm;	Certification:	CE, ISO, CQC, BV;
Core Components Warranty:	1 year;	Video external inspection:	if;

• By material: smallThielWeldingTonable (1040) andCastingWeldingTonCan (GG25~30).

• According to itsAperture:D28 series and D16 series.

• Diagonal grid:D28 is 100*100mm; D16 is 50*50mm.

• supporting: leg, steel frame and hydraulic lift box, upon request.

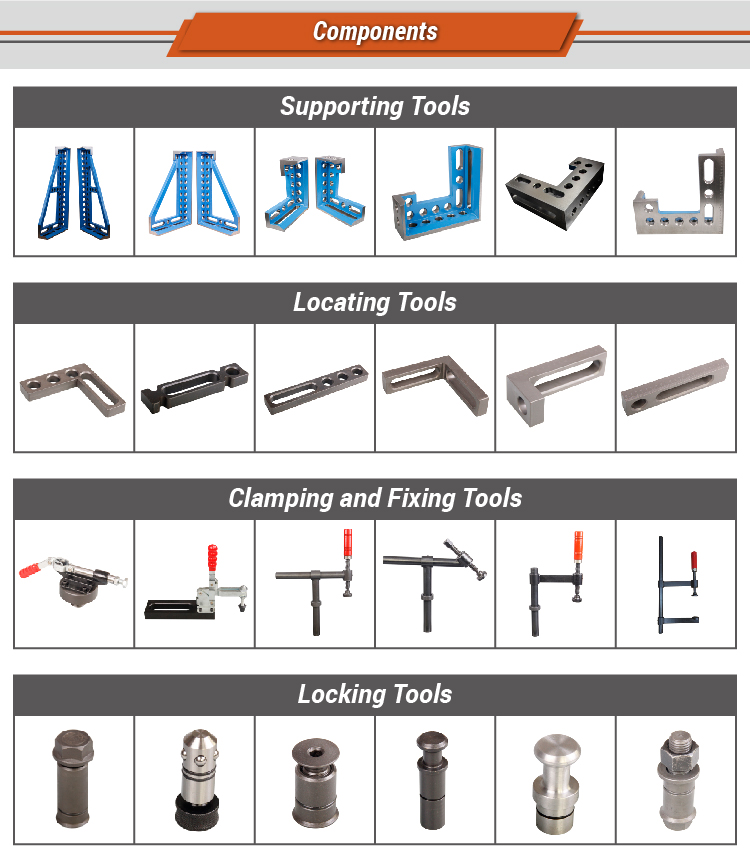

• Components can be equipped when selected:

1.Support Tools:U-Cube Housing, L-Cube Housing, Angle Support, Angle Gauge.

2.Locating spare parts:Positioning square, positioning plane, plane square, V-shaped positioning piece.

3. Clamping tools:Fixed quick clip (screw clip), telescopic clip (screw clip), 45 degree clip (screw clip),and many more

4.Repair tool:Quick lock pin, countersunk head lock pin, countersunk head quick lock pin.

5.Accessories and Auxiliary Parts:Height adjuster, lifting ring, tool cart, grounding device, adjusting washer, hexagon wrench, nylon brush, oil stone, oil tank.

1.economy

·Save a lot of money instead of keeping a lot of complicated and expensive traditional fixtures.

·Suitable for various working conditions without any modification.

·Simple and safe operation.

2.flexible

·hardEnough to withstand extremely heavy loads.

·Five sides, regular holes and grid lines(No angled holes or T-slots)

·Any workpiece can be fixed and clamped on the table with dowel pins.

·The 3D soldering station can be joined together on any of its five surfaces.

3. Precise

·During assembly or welding, almost all workpieces can be precisely fixed at certain points or faces with spacers, adapters, fasteners and support pieces.

·Inaccurate workpiece dimensions can be adjusted during preliminary machining.

4.repeat

·It is easy to simulate a shop using existing parts in the shop and simulate workpiece assembly via CAD.

·Widely used in the manufacture and processing of machinery, machining equipment, railways and tracks, automobiles, motorcycles, ships, pressure vessels, sheet metal, sorting and cabinets, test and measuring instruments, and steel structures.

3D Soldering Station (D28 Series)

Do not.	product	picture	Dimensions (mm)	Model
1	3D Steel Soldering Station (D28 Series)		1000x1000x200	TT-PT281010H
			1200x1200x200	TT-PT281212H
			1500x1500x200	TT-PT281515H
			2000x1000x200	TT-PT282010H
			2400x1200x200	TT-PT282412H
			3000x1500x200	TT-PT283015H
			4000x2000x200	TT-PT284020H
2	3D Cast Soldering Station (D28 Series)		1000x1000x200	TT-PT281010Z
			1000x1500x200	TT-PT281015Z
			1200x1200x200	TT-PT281212Z
			1500x1500x200	TT-PT281515Z
			2000x1000x200	TT-PT282010Z
			2400x1200x200	TT-PT282412Z
			3000x1500x200	TT-PT283015Z
			3000x2000x200	TT-PT282030Z
			4000x2000x200	TT-PT284020Z
3	2D Steel Welding Station (D28 Series)		1000×1000x150	TT-PT281010E
			1200×1200x150	TT-PT281212E
			1500×1500x150	TT-PT281515E
			2000×1000x150	TT-PT282010E

3D Soldering Station (D16 Series)

Do not.	product	picture	Dimensions (mm)	Model
1	3D Casting Soldering Station (D16 Series)		1000x1000x700	TT-PT161010H
			1200x1200x700	TT-PT161212H
			1500x1500x700	TT-PT161515H
			2000x1000x700	TT-PT162010H
			2400x1200x700	TT-PT162412H
			1000x1000x700	TT-PT161010H
			1200x1200x700	TT-PT161212H
