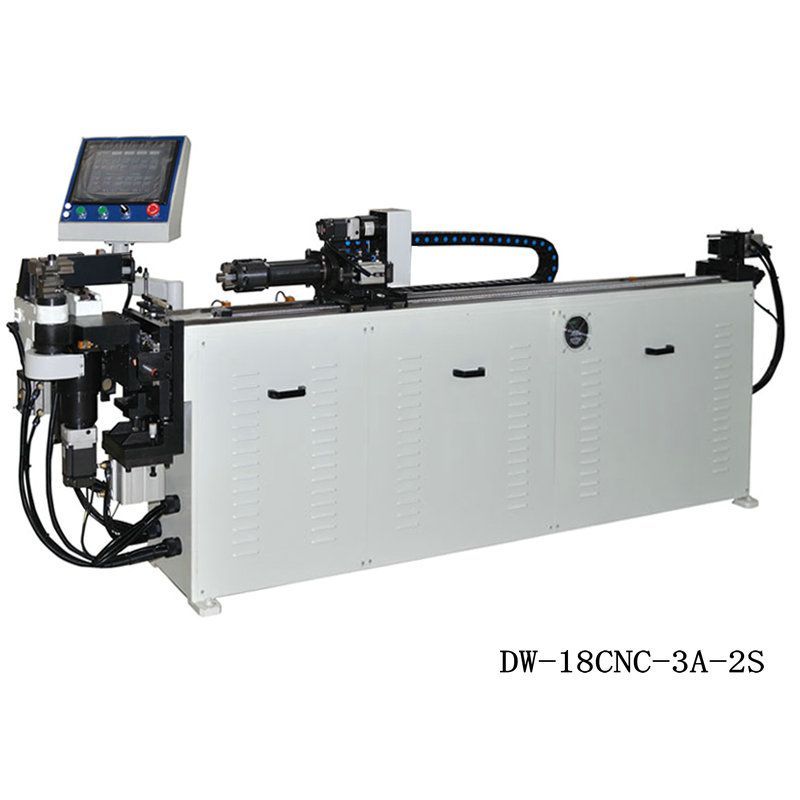

CNC pipe bending machine
i)
|
Main specifications/models |
DW-10CNC-3A2S-Q |
DW-18CNC-3A2S-Q |
DW-25CNC-3A2S-Q |
|
Maximum bending pipe diameter * Wall thickness (mm) |
10*1.5 |
18*1.6 |
25*1.6 |
|
Maximum bending radius (mm) |
R50 |
R80 |
R120 |
|
Maximum bending Angle |
185° |
||
|
Max feeding length (mm) |
1200 |
1500 |
1800 |
|
Number of bends per pipe fitting |
16 |
16 |
16 |
|
Number of parts that can be stored |
1000（PLC） |
1000（PLC） |
1000（PLC） |
|
Maximum atmosphere of the system |
10Mpa |
10Mpa |
10Mpa |
|
Bending speed |
MAX:220°/s |
MAX:220°/s |
MAX:220°/s |
|
Feeding speed |
MAX:1000mm/s |
MAX:1000mm/s |
MAX:1000mm/s |
|
Rotating speed |
MAX:360°/s |
MAX:360°/s |
MAX:360°/s |
|
Bending servo motor power |
750W |
1KW |
2KW |
|
Feed servo motor power |
400W |
400W |
400W |
|
Rotating tube servo motor power |
400W |
750W |
1KW |
|
Bending accuracy |
±0.1° |
±0.1° |
±0.1° |
|
Feeding accuracy (mm) |
±0.1 |
±0.1 |
±0.1 |
|
Rotating accuracy (mm) |
±0.1° |
±0.1° |
±0.1° |
|
Machine weight (kg) |
700 |
800 |
1000 |
|
Machine size (mm) |
2000*650*1000 |
2760*690*1000 |
3000*780*1100 |
