Small manual steel shearing machine

Supplier: Zhejiang Handa New Energy Co., Ltd.
Region: Zhejiang, China
Contact: Ms sabrina sun
Price: $700.00 / 1 - 29 units
$650.00 / 30 - 299 units
$550.00 / >=300 units
Min. Order: 1 unit

Click here to contact

Product details

Packaging Details:	export standard packaging	Automatic level:	manual
maximum. Cutting thickness (mm):	1mm	usage:	cutting sheet metal
State of health:	new	brand:	Handa
After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support	Features:	Shear plate
Types of:	sheet metal cutting machine	Blade length (mm):	650 mm
Key words:	Shearing machine	place of origin; place of origin:	Zhejiang, China
Weight (kg):	160 kg	Cutting material:	Metal. Alloy metal. Aluminum
Supply capacity:	60 units per month	Dimensions (LWH):	1550x760x1150
name:	Mechanical shears	year:	2019
Local service location:	Egypt, Canada, Turkey, United Kingdom	color:	blue
Warranty:	3 years	Power (kW):	0 kW
Cutting thickness:	1mm	Main selling points:	easy to operate
Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, food and beverage plants, construction, energy and mining	Throat depth (mm):	500mm
payment terms:	L/C, D/P, T/T, Western Union	Type of machine:	Shearing machine Shearing machine
Package preview:		Showroom location:	Egypt, Canada, Turkey, United Kingdom
application:	Industrial Metal Cutting	After warranty service:	Video technical support, online support
port:	Shanghai; Ningbo	Certification:	CCC, CE, ISO 9001:2000
maximum. Cutting width (mm):	1300mm

Technical data

Types of	HPE-SM03
product name	Pedal shears
Applicable industry	Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining
Weight (kg)	160
color	blue
usage	sheet metal cutting
State of health	new
Cutting times	30 (times/min)

Product Description

The shearing machine has a beautiful appearance, adopts sliding guide rails, and the tension spring is fixed by a sliding fulcrum, which reduces the operating force by two-thirds. The shearing machine can be equipped with a pressure loading device, which has the characteristics of high cutting quality, light weight, and convenient movement. It is widely used in 6CrW2Si high-alloy tool steel is used for cutting materials in the sheet metal industry, and the blade is durable.

Features

●The manual shear adopts fully welded steel structure with high strength.

●Strong cutting ability, reduce labor intensity.

●Pedals can be retracted freely.

●Pedal height is low, easy to operate.

●For mild steel, aluminum copper, brass, zinc, plastic and lead.

●High carbon and chrome steel blades.

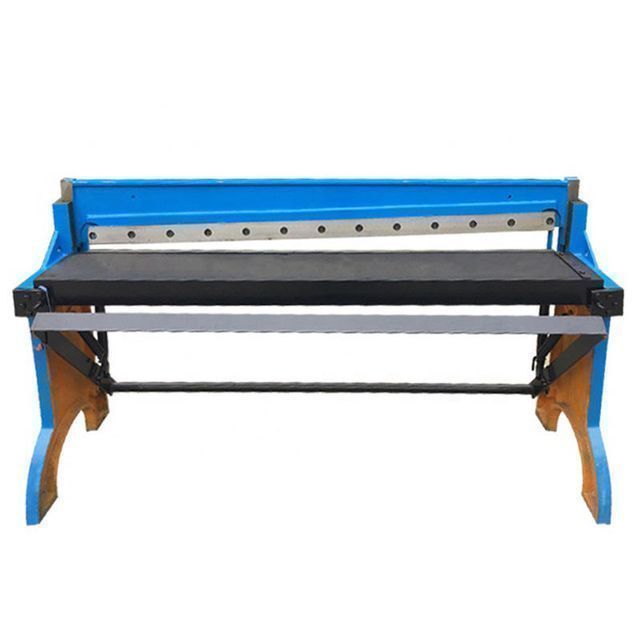

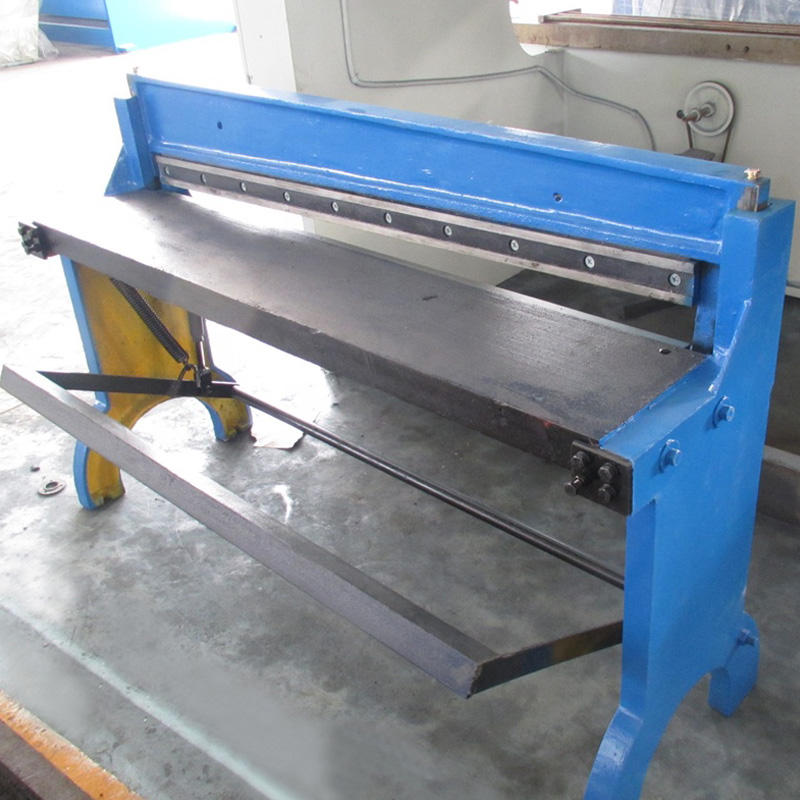

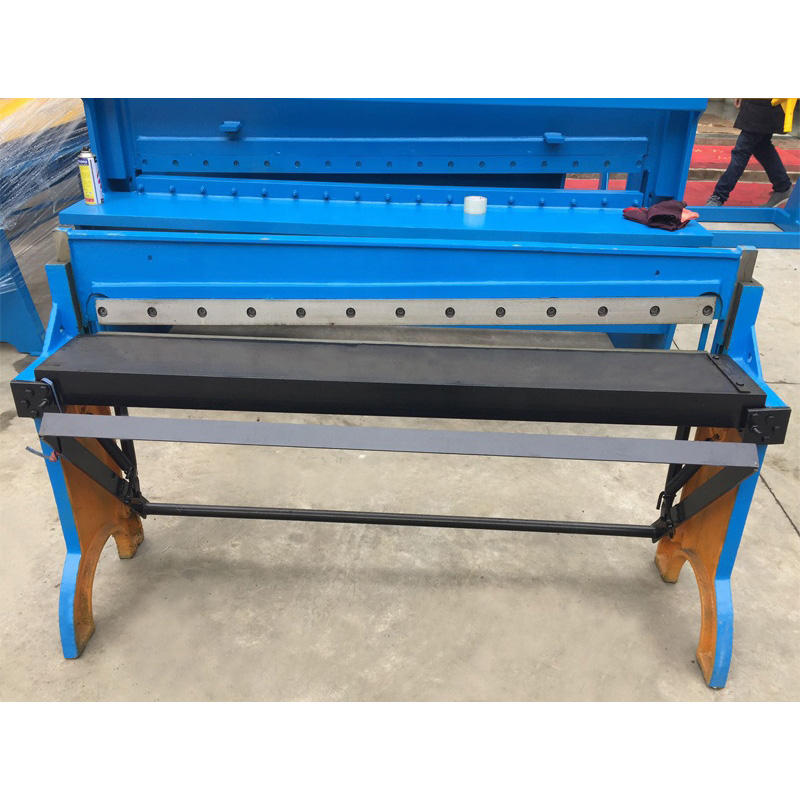

detailed drawing
