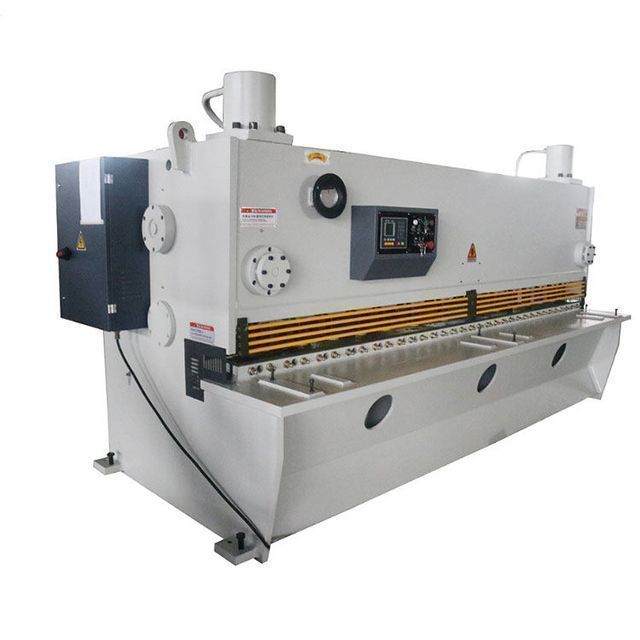

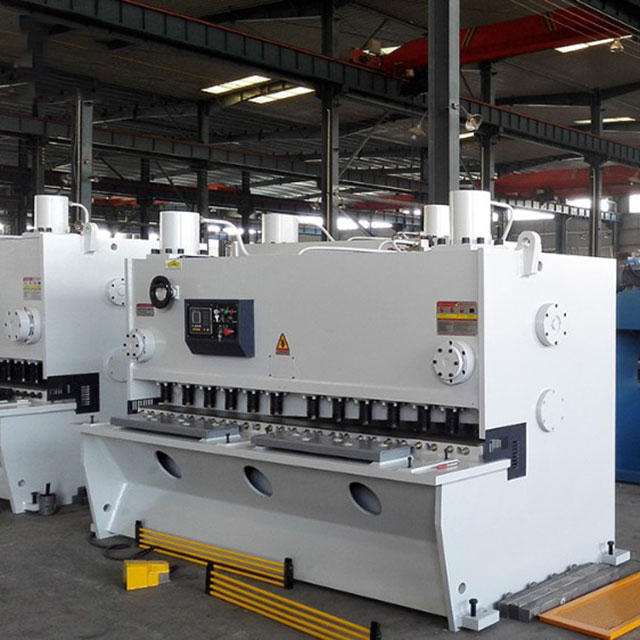

QC11K / QC11Y 6x2500 mm Automatic Stainless Steel Sheet Metal CNC Hydraulic Guillotine Shearing Machine

Supplier: Nanjing Dijia Machinery Trade Co., Ltd.
Region: Nanjing, China
Price: $9815.00 / 1 - 2 sets
$8833.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Mechanical test report:	if
Year:	2021	Applicable industries:	Hotels, Mechanical Repair Shops, Manufacturing Plants, Farms, Retail, Construction
Bumper distance:	600mm	brand:	DG machine
After warranty service:	Video technical support, online support, spare parts	Throat depth (mm):	80 mm
Local service location:	not any	Dimensions (LWH):	310017251960
Supply capacity:	20 guillotine shears per month	Main selling points:	high security level
Video shipment inspection:	if	product name:	QC11K/QC11Y CNC Hydraulic Shearing Machine
Blade length (mm):	2500mm	Weight (kg):	5800 kg
Health status:	new	port:	Shanghai
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Core component warranty:	1 year
Warranty:	1 year	type:	QC11Y-6*2500mm
Packaging Details:	QC11K/QC11Y 6x2500 mm Automatic Stainless Steel Metal Plate Iron Plate CNC Hydraulic Shearing Machine Packaging: Shearing Machine Wooden Box	Cutting method:	cold cutting
Core components:	Bearings, motors, pumps, gears, PLCs, pressure vessels, engines, gearboxes	Cutting thickness:	6 mm
color:	white/red or customized	Origin:	Anhui, China
Shear angle:	0.5°-1°30'	travel time:	≥14 times/min
Marketing Type:	normal product	Power (kW):	7.5 kW
After-sales service provided:	Free spare parts, on-site installation, commissioning and training, online support, video technical support	maximum. Cutting thickness (mm):	6 mm
Automatic level:	fully automatic	Certification:	International Organization for Standardization
Cutting material:	Stainless Steel/Alloy/Metal/Aluminum	Voltage:	custom made
maximum. Cutting width (mm):	2500	Back gauge travel (mm):	14 - 600mm
Control System:	Eston E21S	Blade material:	9CrSi/6CrW2Si

type	Cutting thickness	cutting width	cutting angle	bumper distance	deep throat	Schedule time	strength	aspect
	(mm)	(mm)	(°)	(mm)	(mm)	(minutes﹣¹)	(kilowatt)	Length × width × height (mm)
6×2500	6	2500	0.5°～1°30´	600	80	14	7.5	3100×1725×1960
6×3200	6	3200	0.5°～1°30´	600	80	12	7.5	3650×1750×1980
6×4000	6	4000	0.5°～1°30´	600	80	10	7.5	4650×1780×2075
6×5000	6	5000	0.5°～1°30´	600	80	8	7.5	5650×1830×2250
6×6000	6	6000	0.5°～1°30´	600	80	8	7.5	6650×1890×2380
8×2500	8	2500	0.5°～1°30´	600	80	14	7.5	3100×1725×1960
8×3200	8	3200	0.5°～1°30´	600	80	12	7.5	3850×1750×1980
8×4000	8	4000	0.5°～1°30´	600	80	10	7.5	4650×1850×2075
8×5000	8	5000	0.5°～2°	600	80	7	15	5805×2000×2500
8×6000	8	6000	0.5°～2°	600	100	7	15	6805×2115×2715
10×2500	10	2500	0.5°～2°30´	600	120	10	15	3195×1800×2210
10×3200	10	3200	0.5°～2°30´	600	120	8	15	3895×1800×2240
10×4000	10	4000	0.5°～2°30´	600	120	6	15	4695×1930×2275
10×5000	10	5000	0.5°～2°30´	600	120	5	15	5905×2115×2715
10×6000	10	6000	0.5°～2°30´	600	120	5	15	6905×2215×2800
12×2500	12	2500	0.5°～2°30´	600	120	10	15	3195×1800×2210
12×3200	12	3200	0.5°～2°30´	600	120	8	15	3895×1800×2240
12×4000	12	4000	0.5°～2°30´	600	120	6	15	4710×1950×2485
12×5000	12	5000	0.5°～2°30´	600	120	5	18.5	5905×2115×2800
12×6000	12	6000	0.5°～2°30´	600	120	4	18.5	7000×2300×3100
16×2500	16	2500	0.5°～2°30´	600	120	8	15	3215×1880×2340
16×3200	16	3200	0.5°～2°30´	600	120	7	15	3915×1880×2445
16×4000	16	4000	0.5°～2°30´	600	120	6	15	4715×1950×2590
16×5000	16	5000	0.5°～3°	600	120	5	twenty two	6000×2300×3000
16×6000	16	6000	0.5°～3°	600	120	4	37	7000×2300×3100
20×2500	20	2500	0.5°～3°	600	120	6	twenty two	3215×1890×2465
20×3200	20	3200	0.5°～3°	600	120	5	30	4120×1890×2780
20×4000	20	4000	0.5°～3°	600	120	4	30	4925×2150×2900
20×5000	20	5000	0.5°～3°	600	120	4	37	6000×2300×3050
25×2500	25	2500	0.5°～3.5°	600	120	5	30	3435×2000×2710
25×3200	25	3200	0.5°～3.5°	600	120	5	30	4120×2200×3000
25×4000	25	4000	0.5°～3.5°	600	120	3	30	4950×2200×3150
30×2500	30	2500	1°～3.5°	600	120	4	30	3435×2020×2770
30×3200	30	3200	1°～3.5°	600	120	3	37	4200×2300×3200

Q1: After I bought the machine, if I don't know some functions, what will you do?

A1: We will show you how to use the machine perfectly. Provide technical support and videos.

Q2: Can you tell me how to install the machine?

A2: Of course, we will attach the production specification with the machine, we can provide the video to you online, and our engineer can repair the machine overseas.

Q3: How about your after-sales service?

A3: Our experienced engineers are waiting to serve you. Top-notch terms of service enable us to survive the fierce competition.

Q4: What's the policy of warranty and broken parts?

A4: The equipment warranty period is two years, and damaged parts and spare parts caused by quality reasons during the warranty period can be provided free of charge.
