Doctson W11 automatic sheet metal rolling machine three-roll bending machine semi-automatic / small plate rolling machine customization

Supplier: Zhenjiang Lifeng Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr doctson liu
Price: $4500.00 / 1 - 1 sets
$4300.00 / 2 - 2 sets
$4000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	1 set per month	place of origin; place of origin:	Jiangsu, China
Types of:	Mechanical plate rolling machine	State of health:	new
automation:	automatic	Material/Metal Processing:	Aluminum, carbon steel, brass/copper, alloy, stainless steel, stainless steel
Core components:	Engines, Motors, Pumps	Marketing Type:	New Products 2021
Weight (kg):	1455 kg	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, other
Material:	mild steel	Warranty:	1 year
Additional services:	processing	After warranty service:	Video technical support, online support, spare parts
maximum. Working length (mm):	2000mm	Packaging Details:	The inner packaging is plastic film, which is directly loaded into the container and fixed with chains to prevent collisions during transportation.
Motor power (kW):	11 kW	brand:	Daxon
Type of machine:	roll bender	port:	Shanghai Port
Number of rollers:	3	Showroom location:	not any
Mechanical test report:	if	Main selling points:	high security level
Rolling speed (m/min):	2 - 5.5	maximum. Plate thickness (mm):	12 mm
Package preview:		Model:	Three roll plate rolling machine
Raw materials:	Sheet/Plate Rolling	Video shipment inspection:	if
payment terms:	wire transfer	Core component warranty:	1 year

Specification

Model	maximum. Bending thickness (mm)	Maximum bending width (mm)	Top roller diameter(mm)	Bottom rolling diameter(mm)	Center distance(mm)
W11-4x1500	4	1500	150	140	200
W11-6x2000	6	2000	170	160	220
W11-6x2500	6	2500	180	170	250
W11-8x1500	8	1500	170	160	220
W11-8x2000	8	2000	180	170	250
W11-8x2500	8	2500	240	180	280
W11-12x2000	12	2000	240	180	280
W11-12x2500	12	2500	260	220	320
W11-12x3000	12	3000	280	240	360
W11-16x2000	16	2000	260	220	320
W11-16x3000	16	3000	340	270	440
W11-20x2500	20	2500	340	270	440
W11-25x2000	25	2000	340	270	440
W11-25x2500	25	2500	370	280	480
W11-30x2500	30	2500	420	360	550
W11-30x3000	30	3000	450	390	600
W11-40x2500	40	2500	500	400	600

Main features: The structure of this machine is three-roller symmetry. The top roller moves up and down at the center of the two bottom rollers. It is driven by a screw nut and a worm gear. The two lower rollers are the main drive rollers. They are rotated by the meshing of the output gear of the gearbox and the lower roller, providing smooth torque for the bending plate. It is compact and easy to operate and maintain. Extension shafts for profile bending. ●This machine is widely used in petroleum, chemical, cement, boiler, shipbuilding, aviation, water conservancy, transmission tower and other mechanical equipment. Its working principle is rotation bending deformation. Since the upper roller can move up and down and horizontally, it can realize bending and correction of workpiece without additional press or equipment; The meshing of rollers and gears generates torque; ●This machine adopts three-roller asymmetric structure, the upper roller is the main drive, and the lower roller moves vertically to clamp the plate. Tight. The drive of the machine comes from the meshing between the lower roller gear and the upper roller gear; ●This machine is the most precise three-roller machine among similar products. The RGS design minimizes the distance between the bending points and ensures higher bending accuracy; The ultra-wide roller support with lubrication circuit is installed in the linear slide rail to prevent wear; The extremely high rotational power is the machine Guaranteed superior rolling torque and speed, available without loss of energy, as all three rolls are driven independently by gears and gearboxes directly connected to the roll shafts;

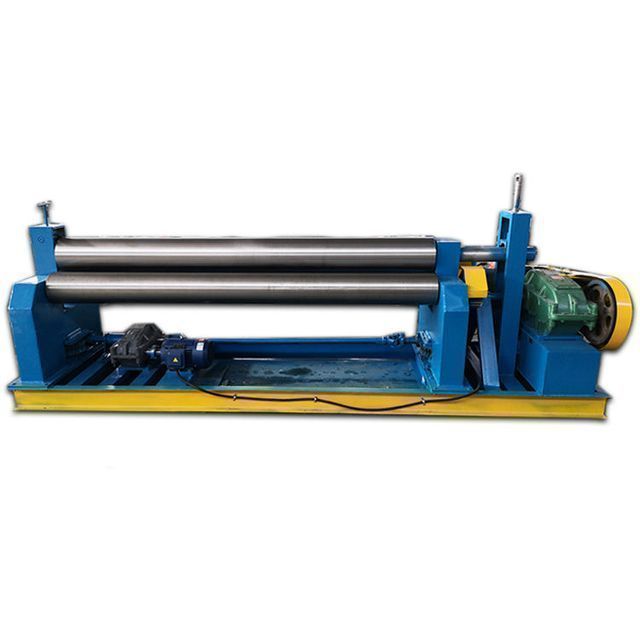

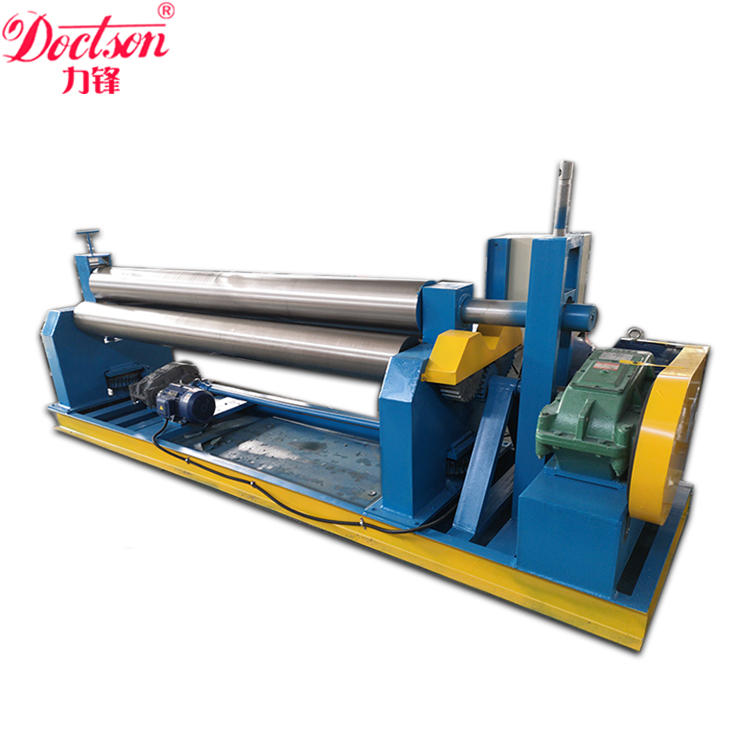

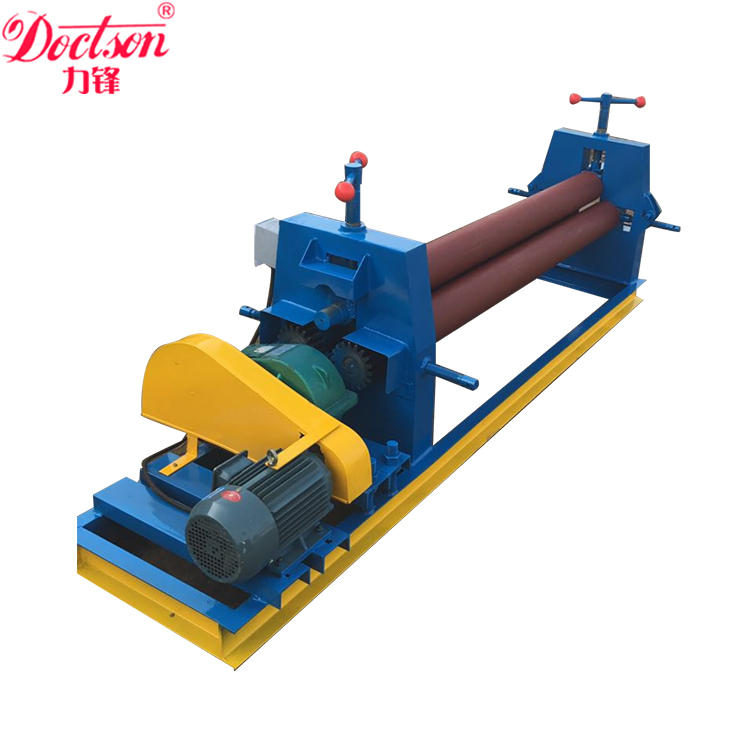

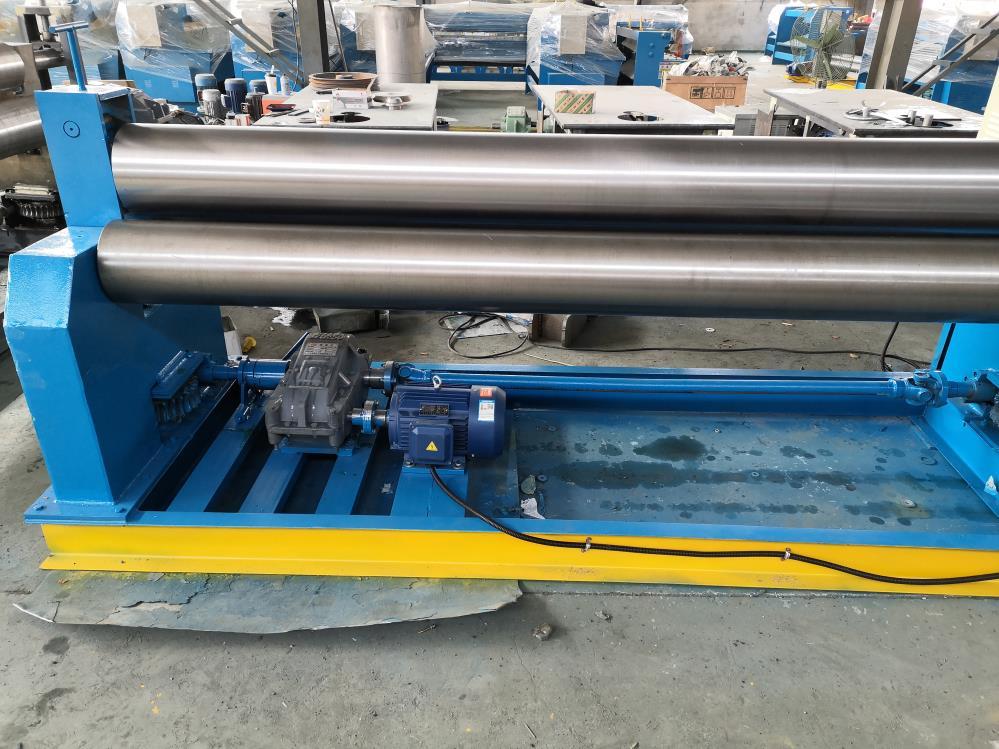

Product Image
