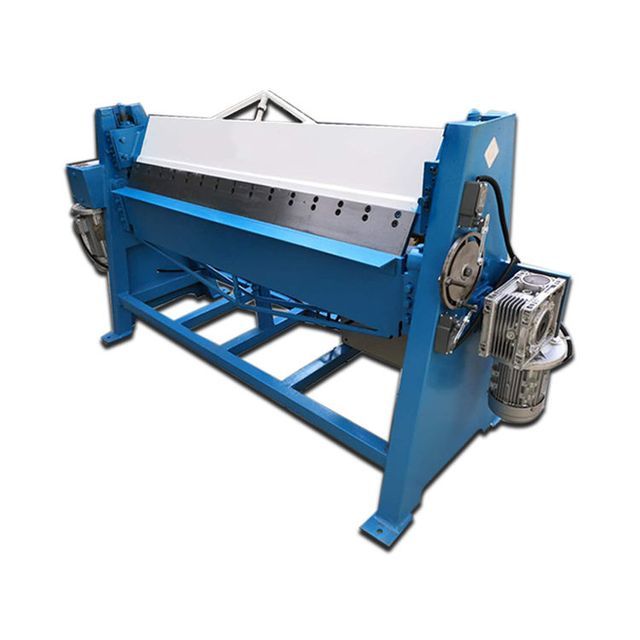

Electric Bending Machine Galvanized Sheet Bending Machine Sheet Metal Bending Machine Sheet Metal Bending Machine

Supplier: Zhenjiang Lifeng Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr doctson liu
Price: $1450.00 /set
Min. Order: 1 set

Click here to contact

Product details

payment terms:	wire transfer	Dimensions (LWH):	22007001100mm
Package preview:		Health status:	new
Weight (kg):	450	Bending Length(mm):	1300mm
Video outbound inspection:	if	Mechanical test report:	if
Voltage:	380V/50Hz/three-phase	Core component warranty:	1 year
brand:	docson	Packaging Details:	wooden box for machine
port:	Shanghai Port	Origin:	Jiangsu, China
Showroom location:	not any	Marketing Type:	normal product
Applicable industries:	Hotels, Clothing Stores, Retail, Energy and Mining, Food and Beverage Stores, Printing Stores, Household, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Food Stores, Advertising Agencies, Restaurants, Construction Works, Building Materials Stores	Warranty:	1 year
Material/Metal Processing:	Alloy, Brass/Copper, Stainless Steel, Aluminum	Supply capacity:	50 sets per month
Main selling points:	competitive price	Core components:	Engines, bearings, motors, pumps
Bending Thickness(mm):	0.3 - 1.5 mm

Specification

Model	Minimum folding angle (°)	Weight (kg)	Thickness (mm)	Maximum processing length (mm)
WSD1.5*1300	60	400	0.3-1.5	1300
WSD1.5*1500	60	450	0.3-1.5	1500
WSD1.5*2000	60	500	0.3-1.5	2000
WSD1.5*2500	60	600	0.3-1.5	2500
WSD1.5*3000	60	650	0.3-1.5	3000
TDFD1.5*1300	60	450	0.3-1.5	1300
TDFD1.5*1500	60	500	0.3-1.5	1500
TDFD1.5*2000	60	550	0.3-1.5	2000
TDFD1.5*2500	60	650	0.3-1.5	2500
TDFD1.5*3000	60	700	0.3-1.5	3000

Main features: Electric folding machineIt can be used for galvanized bending and flanging of less than 2mm galvanized bending and flanging of sheet metal, steel plate and color plate supporting equipment of rectangular air duct production line. And can be used in electric lighting lamps, hardware tools, air-conditioning equipment, sheet metal processing and other industries. The machine adopts a heavy-duty chassis and arc steel frame to ensure a sturdy and durable structure, and uses a full-copper core brand motor with low temperature rise efficiency. Simple operation, manual operation, greatly reducing labor intensity and manual operation cost.

● Heavy duty steel frame provides precise bends; ● Extended fingers allow bending of pans or boxes to a depth of 200mm; ● Scale scales on both sides of the machine for readout take the guesswork out of bending angles; ● Ground segmented fingers Can be repositioned to accommodate a variety of applications; ● Safety top beam support stop bar located on the right side of the machine; ● Quickly adjust crosshead to accommodate varying material thicknesses; ● Includes rear manual backgauge.

Pure copper core motor

Durable, the service life is 10 times that of ordinary models.

Angle arm

Adjustable panel cutting tool can process different sizes according to different needs.

electric box

Branded electrical boxes are selected to ensure quality and safety.

Common size

TDF size

The material of the knife mold is tool steel, which has small bending deformation and long service life. You can choose the type of machine you need according to the processed productsMetal plate.

Product Image
