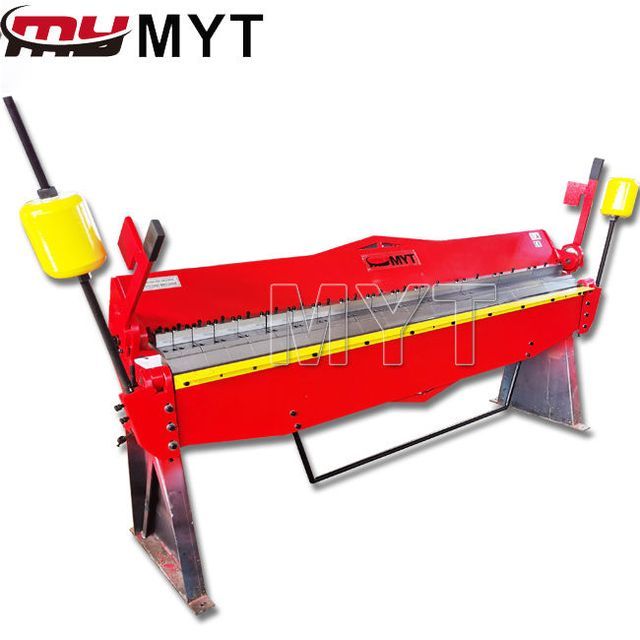

MYT brand W2.5X2540/W 2X3050 steel plate bending machine, sheet metal bending machine, manual bending machine

Supplier: MYT (Shanghai) Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Melody Zhao
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material/Metal Processing:	Stainless Steel/GI/Iron	Bending angle:	60-130 degrees
Mechanical test report:	if	Marketing Type:	Hot Products of 2019
length:	3000mm	machine type:	W2X3000
Core component warranty:	2 years	port:	Shanghai
automation:	manual	Bending Thickness:	2mm
Showroom location:	not any	Voltage:	Customization
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, steel plate bending machine, metal plate folding machine	Weight (kg):	1200
Applicable industries:	Steel plate bending machine, metal plate bending machine	raw material:	steel
Warranty:	2 years	Tool material:	42 chrome molybdenum steel
Packaging Details:	Steel plate bending machine, metal plate bending machine standard wooden box	brand:	my T
Video outbound inspection:	if	Main selling points:	long lasting
Year:	2019	strength:	manual
Origin:	Other countries	Health status:	new
Supply capacity:	500 steel plate bending machines, metal plate folding machines per month	Bending Length(mm):	2550mm
Bending Thickness(mm):	0.5 - 2.5mm	aspect:	3150x900x1200mm
Core components:	bearing

MYT brand steel plate bending machine, metal plate bending machine, manual bending machine

Product Description

Description of steel plate bending machine, metal plate bending machine, manual bending machine

Manual folding machine is one of the sheet metal processing equipment. Especially suitable for bending processing of thin plates. It has the characteristics of light weight, simple operation and convenient transportation. Suitable for use in any environment, the length can be customized according to customer requirements.
It can be adjusted on the moving mold, or it can be adjusted by the cutting machine in the adjustment mode, and it can be processed according to the different needs of different sizes, and the flanging or four sides of the plate can be folded together to form a single piece or a component. Manual disc brake folder
Advantages of steel plate bending machine and metal plate bending machine
The up and down movement of the machine can be adjusted. They can process workpieces according to customers' requirements, and can fold sheets into four-sided boxes/trays.
Portable, energy-saving, high-efficiency, high output speed.

standard featuresManual sheet metal bending machine / bending machine

1. Segmented top blade
2. The clamping blade can adjust the clamping pressure and material thickness
3. Heavy-duty steel prefabricated buildings
4. Adjustable clamping pressure beam and rubber ring to prevent deformation during bending
5. With a certain range of finger width, pans or boxes can be bent

Model	Capacity (mm)			Package size (cm)	Net weight/Gross weight(kg)
Model	length	thickness	angle	Package size (cm)	Net weight/Gross weight(kg)
W2.5X1220	1220 mm (48 inches)	2.5mm (12Ga)	0-135°	171x75x94	513/575
W2.0X2040A	2040 mm (80 inches)	2.0mm (14Ga)	0-135°	255x76x100	850/1000
W2.5X2040A	2040 mm (80 inches)	2.5mm (12Ga)	0-135°	255x76x100	1145/1295
W2.0X2540A	2540 mm (100 inches)	2.0mm (14Ga)	0-135°	300x76x100	1190/1360
W2.5X2540A	2540 mm (100 inches)	2.5mm (12Ga)	0-135°	300x76x100	1310/1480
W2.0X3050A	3050 mm (120 inches)	2.0mm (14Ga)	0-135°	350x76x110	1490/1690
W1.2X3700A	3700 mm (146 inches)	1.2mm (20Ga)	0-135°	425x85x120	2450/2670
W0.8X4000A	4000 mm (157 inches)	0.8mm (22Ga)	0-135°	470x90x120	2700/2950

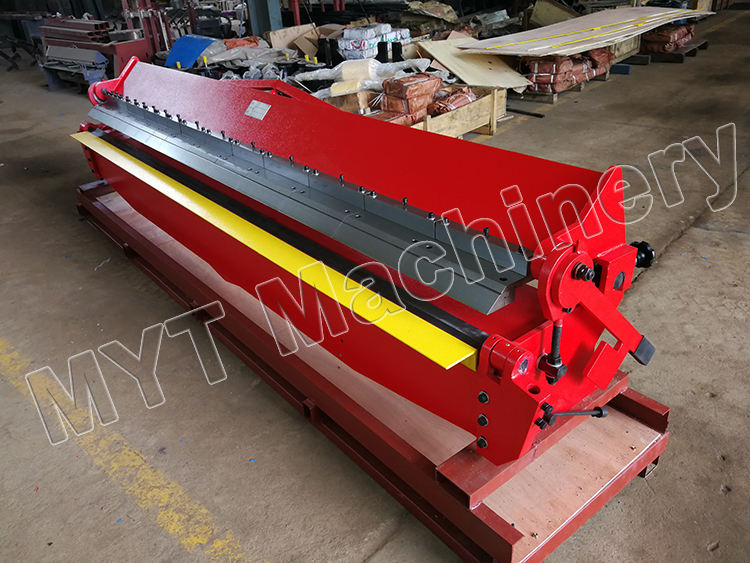

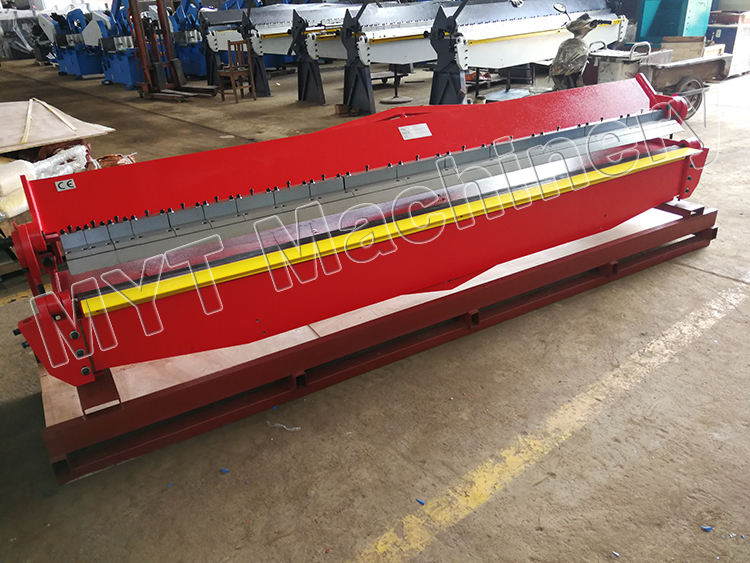

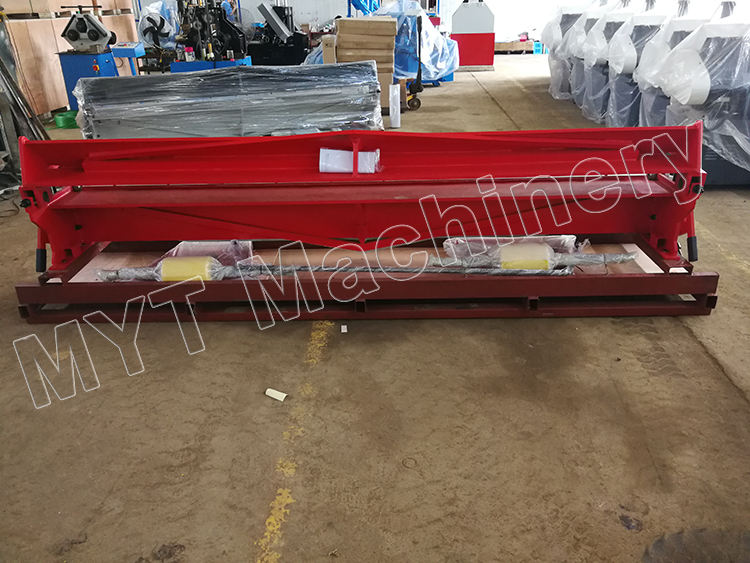

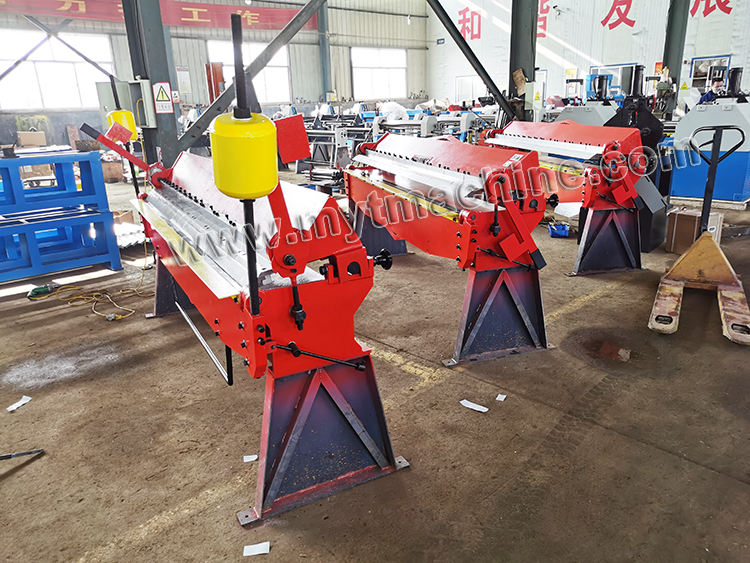

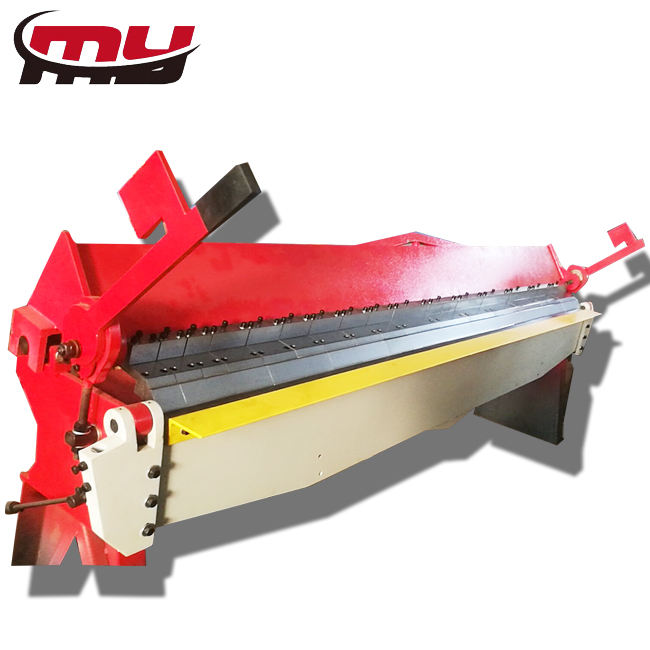

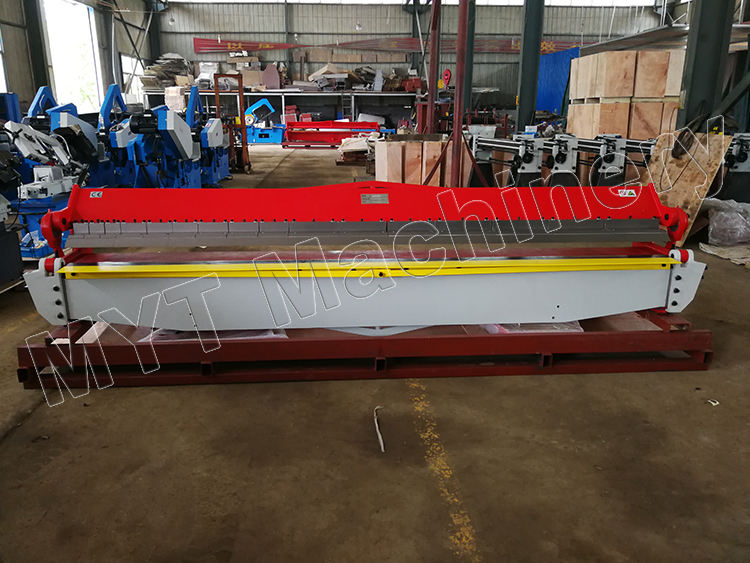

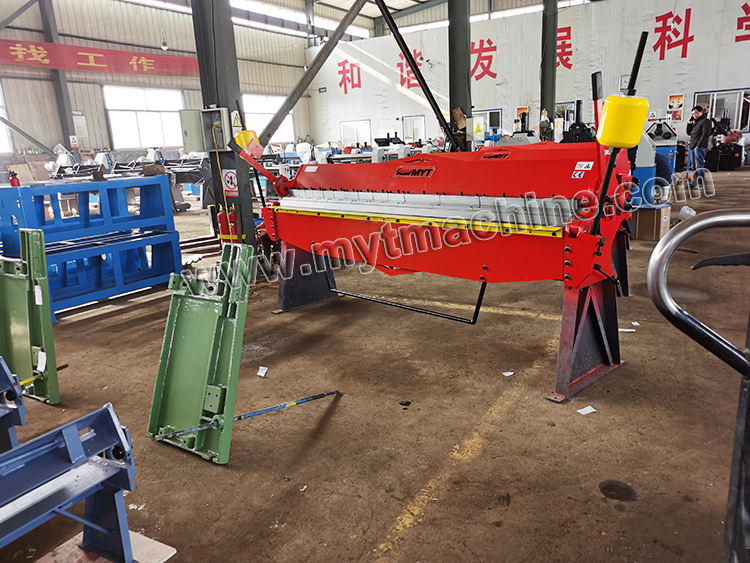

Detailed pictures about steel plate bending machine, sheet metal bending machine, manual bending machine

Introducing steel plate bending machines, sheet metal bending machines, and manual bending machines from the left

Steel plate bending machine blades, sheet metal bending machine blades, manual bending machine blades

Steel plate bending machine, sheet metal bending machine, manual bending machine

Steel plate bending machine, sheet metal bending machine, manual bending machine
