MYT brand 2-6mm multi function CNC automatic stainless steel iron wire shaping 2d bender 2D wire bending machine

Supplier: MYT (Shanghai) Machinery Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Melody Zhao
Price: $11500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220V/380V/415V/440V/customized;	Condition:	New;
Control system:	Computer+Touch Screen;	Material / Metal Processed:	Carbon steel;
Video outgoing-inspection:	Provided;	The max feeding wire speed:	30m/min;
Key Selling Points:	Automatic;	Core Components:	PLC,Engine;
Place of Origin:	Shanghai, China;	Axis:	4 Axis;
Extra Services:	End Forming;	Applicable Industries:	CNC automatic stainless steel iron wire bender;
Automation:	Automatic;	Weight (KG):	800;
Packaging Detail:	Standard wooden case for CNC automatic stainless steel iron wire bender;	Warranty of core components:	2 years;
Name:	CNC automatic stainless steel iron wire bender;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,CNC automatic stainless steel iron wire bender;
Port:	Shanghai CNC automatic stainless steel iron wire bender;	Power:	CNC;
Bending Capacity:	3-8mm;	Size:	230016001650mm;
feeding wire tolerance:	±0.5mm;	Marketing Type:	Hot Product 2021;
Motor power:	5.5kw;	Year:	2021;
Brand Name:	MYT;	Showroom Location:	None;
Raw Material:	Steel Bar;	Warranty:	2 years;
Supply Ability:	500 Sets per Month CNC automatic stainless steel iron wire bender;	Machine Type:	Pipe End Forming Machine;
Machinery Test Report:	Provided;

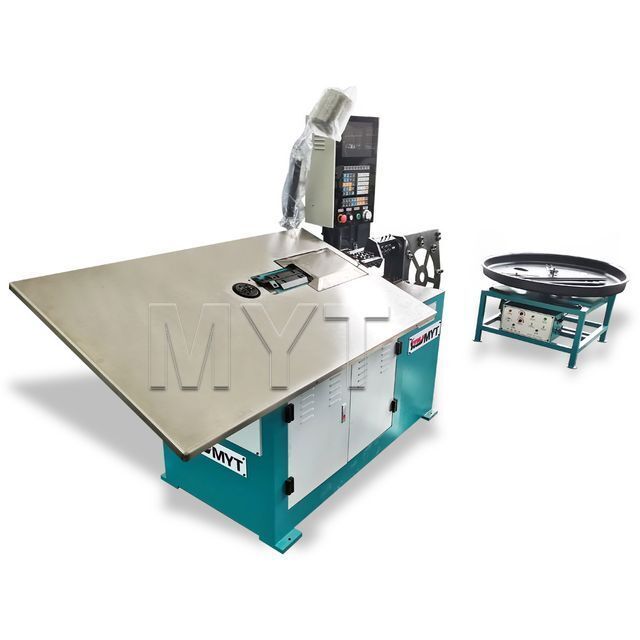

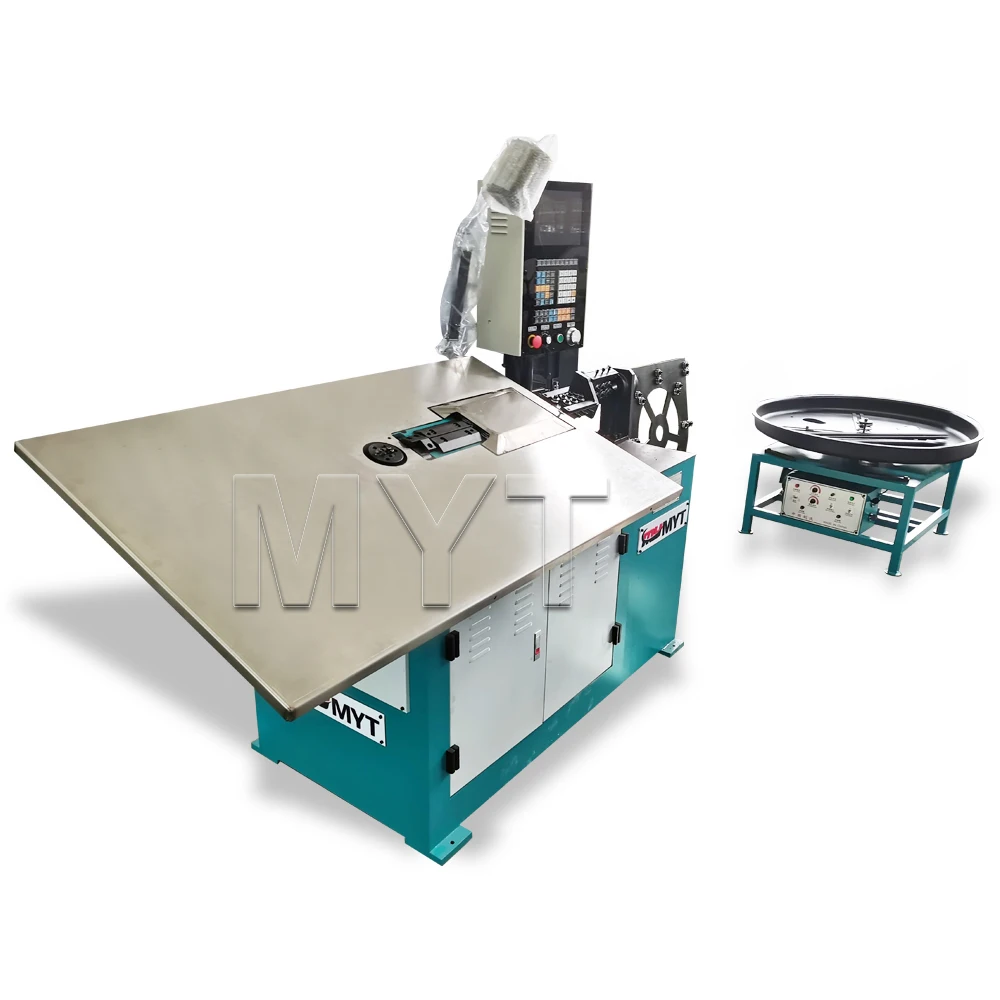

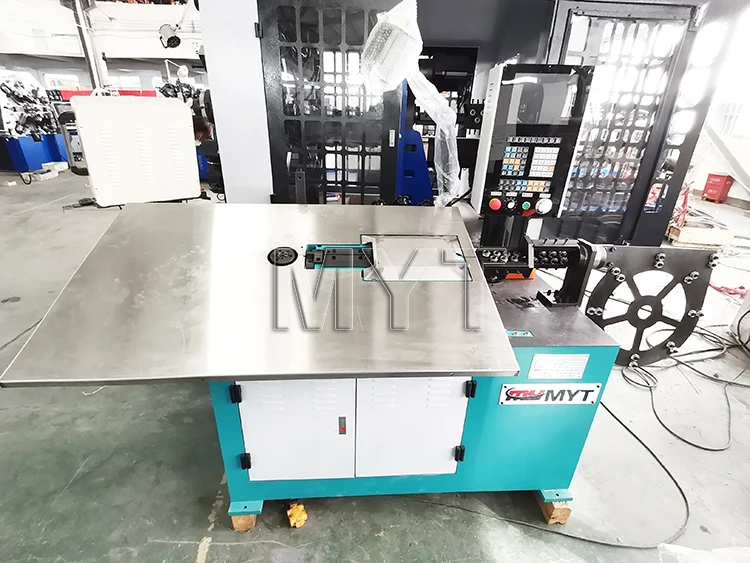

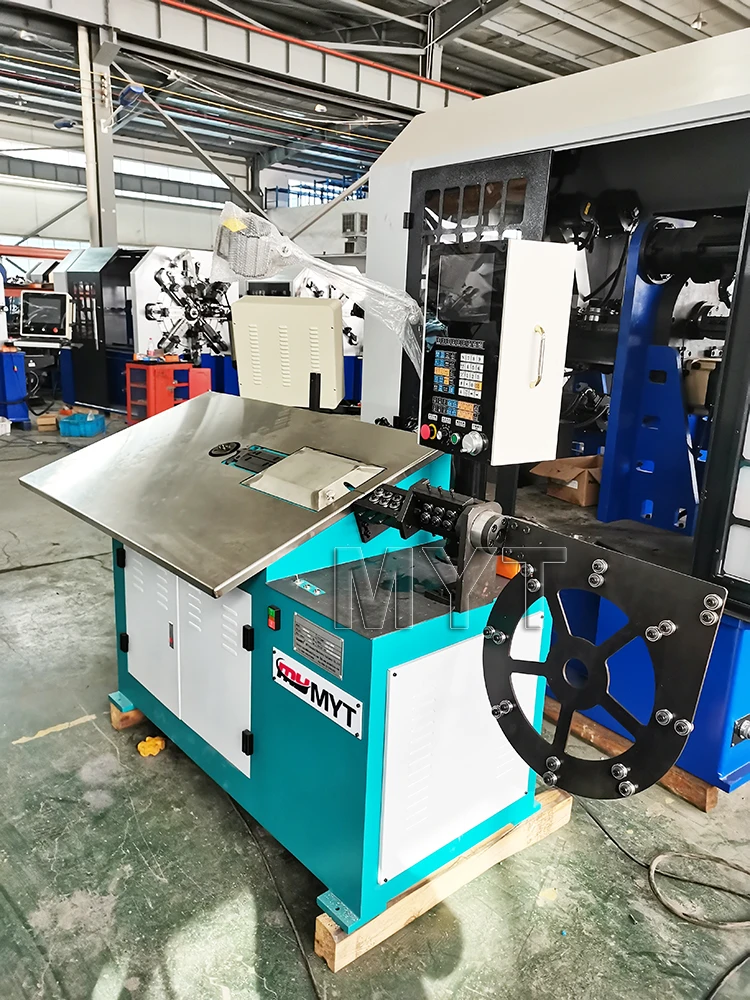

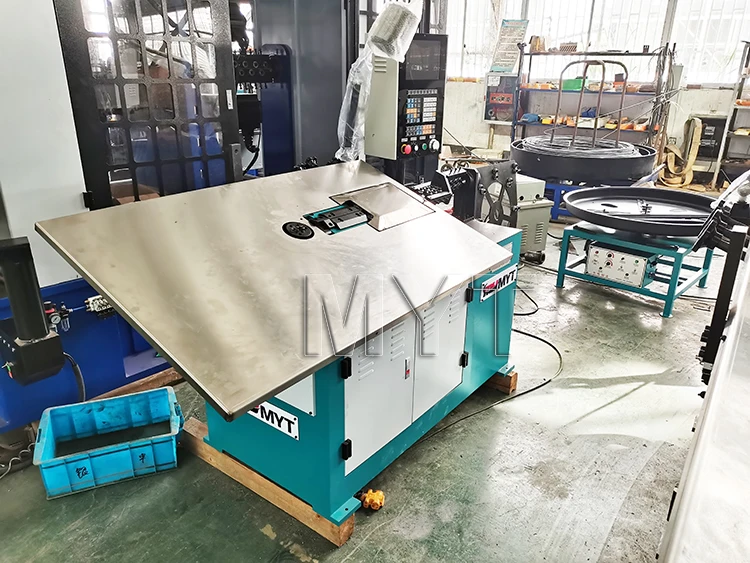

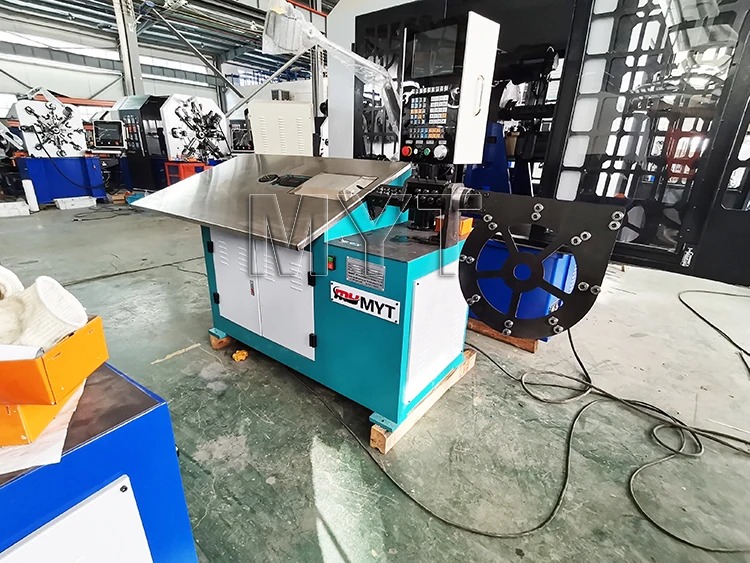

MYT brand CNC automatic stainless steel iron wire bender

Product Description

Main Features : CNC automatic stainless steel iron wire bender

1.Servo drive, Stable performance;

2.High precision, no noise; 2D CNC rebar bender and stainless wire bending machine

3.Easy to operate,adopt special microcomputer control,intelligent forming,high efficiency,save electricity;

4.Automatic straightening, wire feeding, forming, cutting and record number;

5.Wire feeding wheels, straightening wheels, forming wheels adopt the German high quality alloy, after vacuum heat treatment ,the high abrasion resistance and long service life;

6.Suitable for forming Various 2D shapes for all kinds of metal ( such as steel, iron, stainless steel and aluminum wire, etc. ) CNC automatic stainless steel iron wire bender

	Model	MO-720
1	Wire size	hard material Φ3.0~φ6.0 mm
1	Wire size	soft material Φ3.0~φ8.0 mm
2	Axis	4
3	Feeding Round	3
4	Wire feed motor power	2.7KW
5	Angle control motor power	1.5KW
6	Lift Control Motor power	750W
7	Cutting motor power	1.0KW
8	Input Power	380V/50HZ/3PH
9	Weight	2000KG
