CNC Four Roller Bending Machine Double Pinch Stainless Steel Pipe Rolling Machine

Supplier: Shanghai Honggang Machinery Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Mr Alan Liu
Price: $1280.00 / 1 - 1 pieces
$650.00 / >=2 pieces
Min. Order: 1 piece

Click here to contact

Product details

Material/Metal Finishing:	Aluminum, Carbon Steel, Brass/Copper, Alloys	Core Components Warranty:	1 year
Weight (kg):	280kg	Key words:	high yield
After Warranty Service:	Video technical support, online support	Number of rollers:	3
application:	stainless steel bending	Certification:	ISO 9001:2000
Raw materials:	sheet	Local service location:	not any
automation:	automatic	Supply capacity:	240 pieces per week
Name:	Three-roll plate rolling machine	product name:	Rolling machine
Core components:	Bearings, gearboxes, motors	Health status:	new
Warranty:	1 year	Type of machine:	Roll bender
Packaging Preview:		Extra Services:	processing
Voltage:	380v/50HZ (according to customer requirements)	Motor power (kW):	2.2kW
port:	SHANGHAI PORT CNC 4 Roll Steel Bending Machine Double Pinch Stainless Steel Pipe Coiler	Main selling point:	multifunctional
usage:	sheet metal rolling	brand:	HG
Video external inspection:	if	Showroom location:	not any
maximum. Plate thickness (mm):	3 mm	color:	customizable
type:	Hydraulic bending tools	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Food and Beverage Plants, Farms, Retail, Construction Engineering, Energy and Mining, Food and Beverage Stores
maximum. Working Length (mm):	1250 mm	payment terms:	Letter of Credit, T/T, Western Union, MoneyGram
Marketing Type:	normal product	year:	2020
Model:	HG-330	place of origin; place of origin:	China
After-sales service provided:	Video technical support	Packaging Details:	Standard export wooden case or carton CNC 4 roll bender, double clamp and stainless steel coiler
Mechanical test report:	if

Product Description

CNC Four Roller Bending Machine Double Pinch Stainless Steel Pipe Rolling Machine

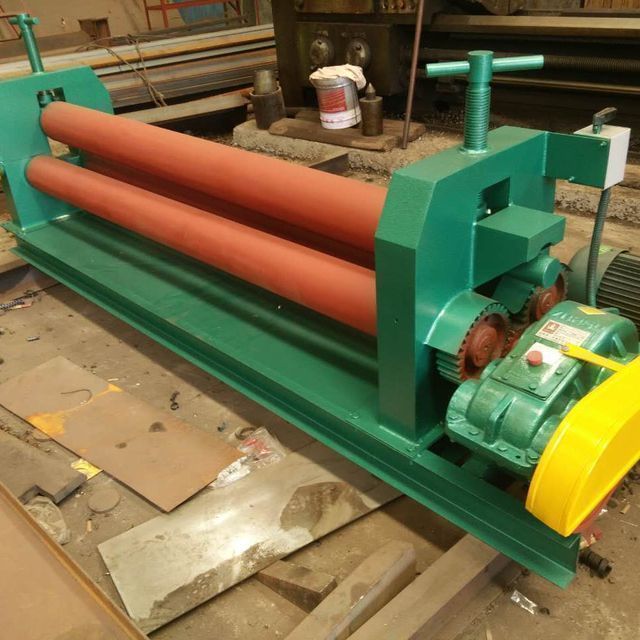

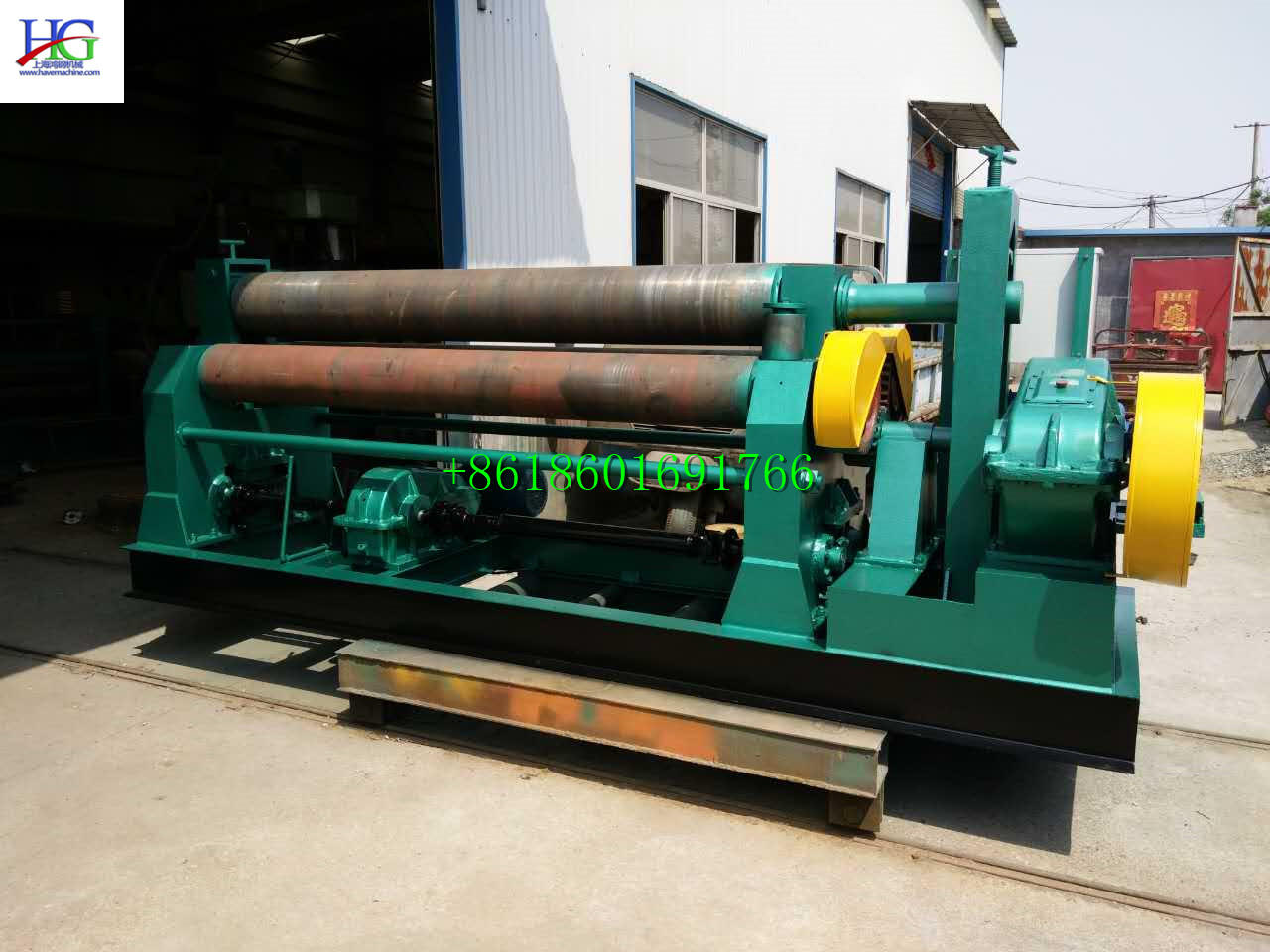

Performance characteristics of mechanical three-roller symmetrical plate bending machine: The structure of this machine is three-roller symmetry, the upper roller is in the center symmetrical position, the two lower rollers move vertically up and down, driven by the screw screw, the two lower rollers rotate, and the output of the reducer The gear meshes with the lower roller gear to provide torque to the coil. The disadvantage of this machine is that it needs to pre-bend the board end with the help of other equipment.

feature

Model	W11-20*2500	W11-30*2500
Maximum coil thickness (mm)	20	30
Maximum coil width (mm)	2500	2500
Upper roller diameter (mm)	320	380
Bottom roller diameter (mm)	270	320
Hydraulic motor (Kw)		4
Auxiliary motor power (Kw)	7.5	15
Sheet yield limit (MPa)	245	245
Main drive motor power (Kw)	twenty two	30
Coil speed (m/min)	5.5	5.5
main reducer	JZQ650	JZQ750
Auxiliary reducer	JZQ350	JZQ500
Weight (tons)	7.5	16
