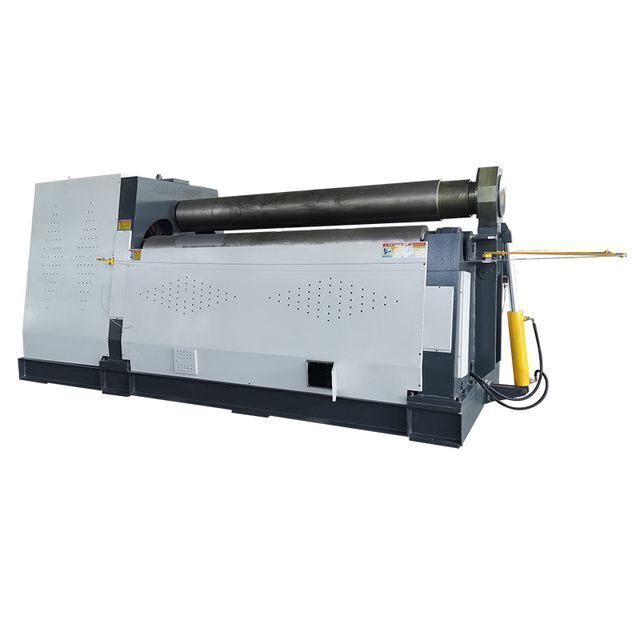

W12 Factory price CNC 4 roller plate rolls roller bending machine

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	Hot Product 2019;	Year:	brand new;
Controller:	Hydraulic Control;	Key Selling Points:	High Productivity;
Weight (KG):	3800 KG;	Name:	Plate Rolling Machine;
Motor Power (kw):	15 kw;	Warranty:	1 Year;
Supply Ability:	20 Sets per Month;	Packaging Detail:	Standard exporting polywood case.;
Local Service Location:	Colombia,Romania,Bangladesh,Saudi Arabia,Indonesia;	Application:	Stainless Plate Bending;
Place of Origin:	Anhui, China;	Material / Metal Processed:	Aluminum,Carbon Steel,stainless steel;
Rolling shape:	Cylinder;	Warranty of core components:	1 Year;
Core Components:	Engine,Bearing,Pump;	Applicable Industries:	Manufacturing Plant,Construction works ;
Voltage:	220V/380V/415V/440V/customized;	No. of Roller:	4;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;	Color:	Optional;
Max. Working Length (mm):	3200 mm;	Machine Type:	Roller-Bending Machine;
Video outgoing-inspection:	Provided;	Max. Plate Thickness (mm):	10 mm;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Condition:	New;	Port:	Shanghai port;
Brand Name:	WMT or customized;	Showroom Location:	Morocco,Turkey,Germany,Viet Nam,Saudi Arabia;
Machinery Test Report:	Provided;

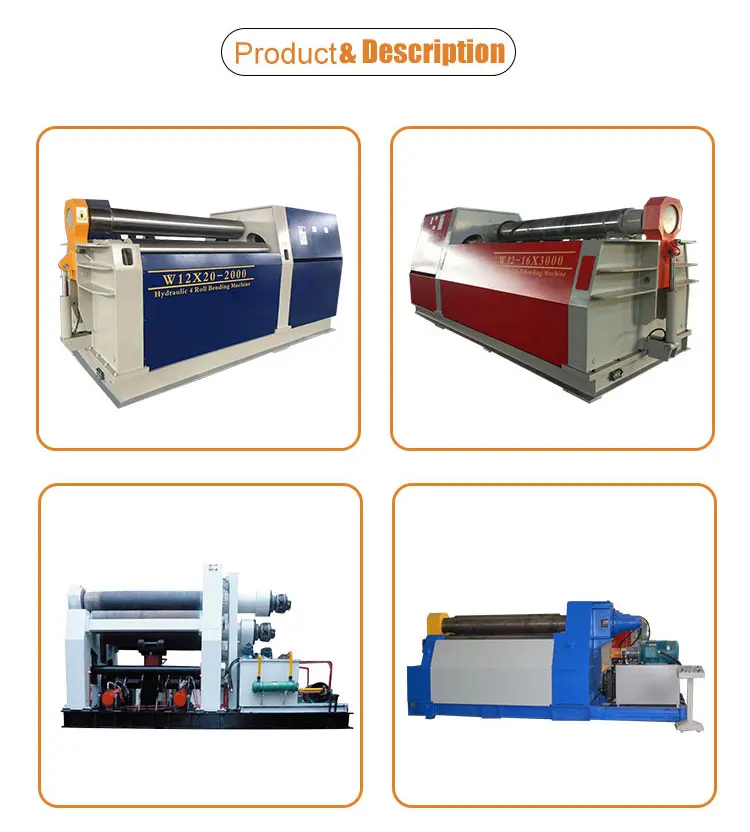

Product Description

Introduce:

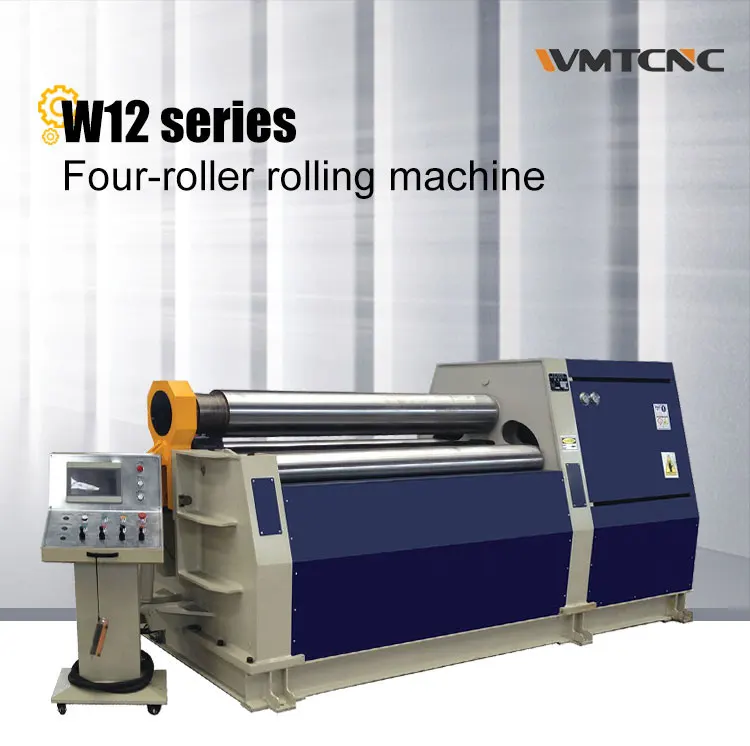

The machine adopts the four-roller structure with the upper roller as the main drive,Both upward and downward movement through hydraulic motors powered.The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.Side rollers are arranged on the two sides of the lides of the lower roller,and make inclining movement along the guide rail,and provide drive through the screw,the nut,the worm and the leadscrew.The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.

Max. rolling thickness when full loaded			Common Mild Steel	≤10MM
			SS304/316L	≤6MM
Max. pre-bending thickness when full loaded			Common Mild Steel	≤8MM
			SS304/316L	≤4MM
Max. rolling width(Cylinder Length)			3200MM
Min. roll diameter when max. specification				500MM
yield limit S245			245 MPA
yield limit S355/AISI304			345Mpa
Upper roller diameter			300MM
lower roller diameter			270MM
lower roller speed			80MM/MIN
Side roller diameter			220MM
Side roller speed			80MM/MIN
Working roller	Material	42CRMO
	Hardness	HB240-286
Hydraulic system pressure			20MPA
Rolling speed			4.5M/MIN
Main motor power			11 KW
Cone accessory			NO standard
