Metal shaping machine

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $3700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 YEAR;	Marketing Type:	New Product 2020;
Core Components:	Bearing,MOTOR;	Supply Ability:	100 Set/Sets per Month;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Showroom Location:	Egypt,canada,none;
Payment Terms:	L/C,D/P,T/T;	Color:	Customized;
Processing:	Metal;	Weight:	1000kgs;
Place of Origin:	China;	Precision:	Precision;
Certification:	CE ISO;	Package Preview:	;
Product Name:	planing machine;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Controlling Mode:	normal;	Warranty:	1 YEAR;
Video outgoing-inspection:	Provided;	Machinery Test Report:	Provided;
Voltage:	according to customer's requirement;	Condition:	New;
Local Service Location:	Egypt,canada,none;	After Warranty Service:	Video technical support;
Packaging Detail:	Wooden Case,Steel Pallet.;	Port:	shanghai port;
Key Selling Points:	Competitive price;	Brand Name:	smac;
Dimension(LWH):	1390x860x1450;

https://smac.en.alibaba.com/product/60174947726-201348051/High_Efficiency_Industrial_CNC_Common_Gear_Shaper_Machine.html?spm=a2700.icbuShop.41413.35.17225793flUcsm

METAL CIRCULAR CUTTING SAW

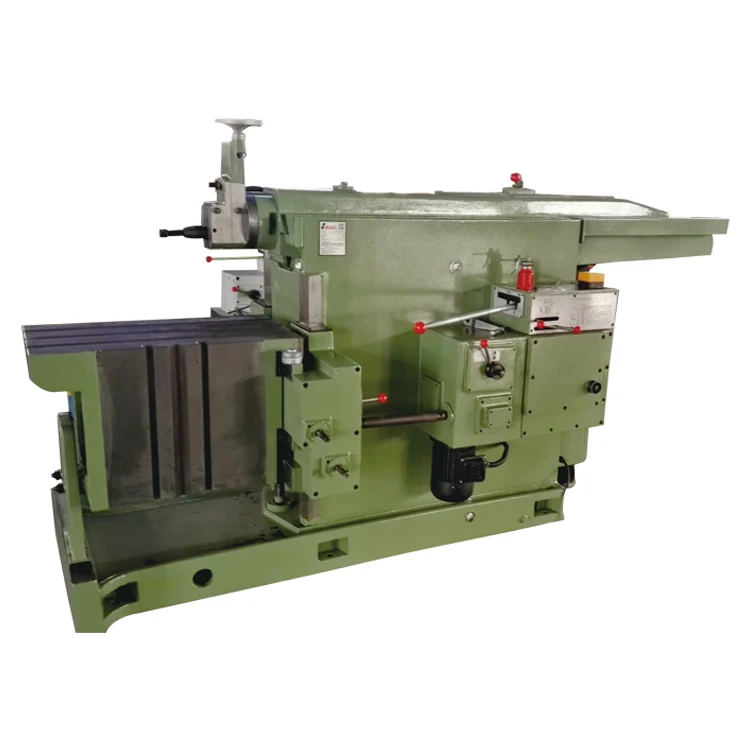

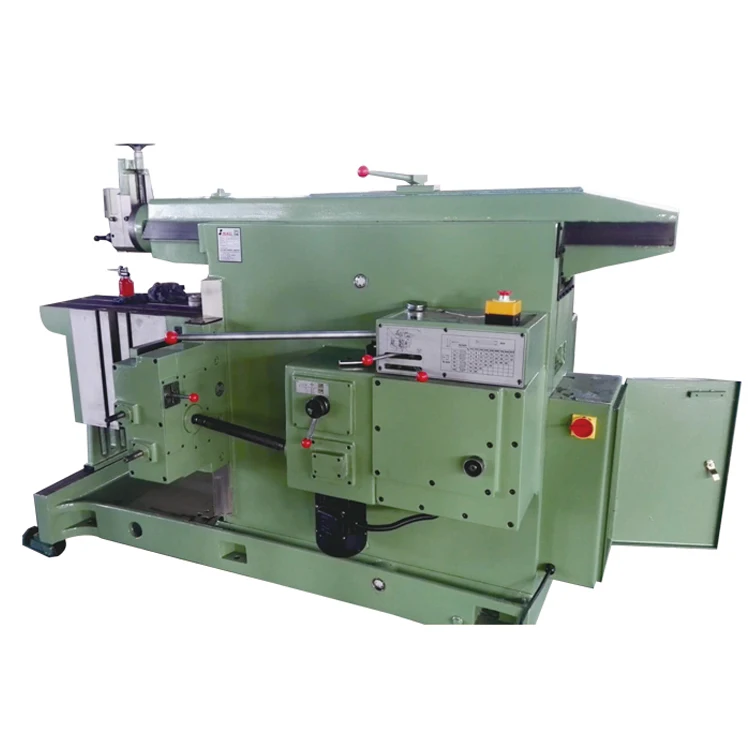

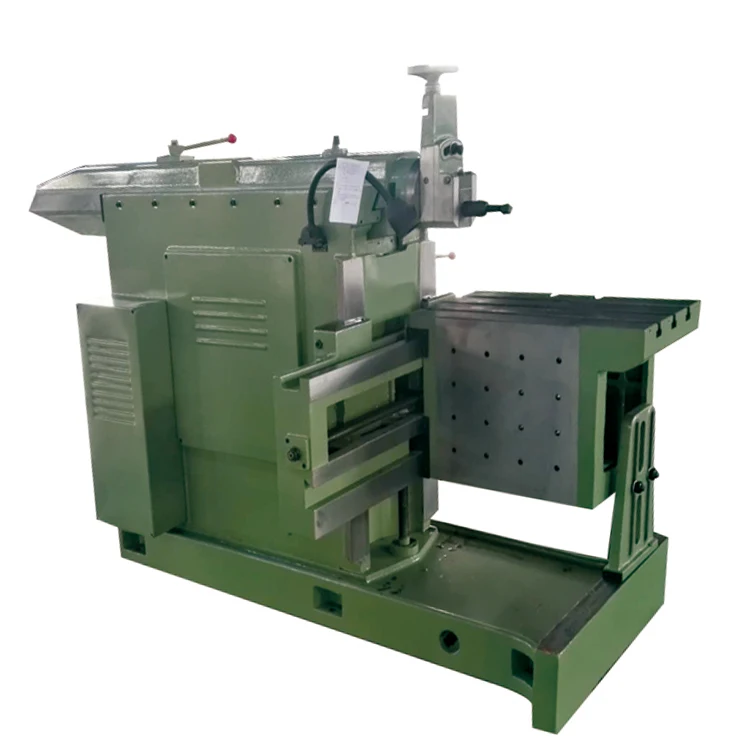

planing machine

The machine is designed for cutting flat and fomed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.

The main cutting motion of the machine is linear motion being converted from circular motion of gears by link bolck mechanism. With smooth transmission.

Short over run and less consume of power, the machine is easy to start and stop.

If being provided with a tool lifter, the mechine table can obtain rapid motion in vertical and horizontal direction. The machine, with pleasing appearance and stable accuracy, can be oerated and maintained conveniently

Specification\Model		Unit	15501	15502	15503	15504	15505	15506	15507
Specification\Model		Unit	SM350	SM500	SM630	SM700	SM800	SM1000	SM1200
Max.Shaping length		mm	350	500	630	700	800	1000	1000
Max. distance from lower edge of ram to table		mm	330	370	385	420	400	400	400
Max.travel of table	Horizontal	mm	400	500	630	630	750	800	800
Max.travel of table	Vertical	mm	270	300	360	320	320	320	320
Max.swivel angle of table	Without vice		90	90	90	90	90	90	90
Max.swivel angle of table	With vice		55	55	55	55	60	60	60
Max.vertical travel of tool head		mm	110	110	120	125	160	160	160
Frequecy of stroke per		min	32, 50, 800, 125	15,24,37,51,64, 80,102,126,158	14,20,28,40, 56,80	11,20,38, 52,72,100	8,11,17,23,32, 45,64,92	8, 11, 17, 23, 32, 45, 64, 92	8, 11, 17, 23, 32, 45, 64, 92
Overall Dimensions (L x W x H)		cm	139x860 x145	194x117 x153	222x122 x148	255x140 x176	139x860 x145	361x157 x176	403x121 x193
Net weight		kg	1000	1800	1750	2900	4000	4200	5600
Old model			B635A	B6050	B6063B	BH6070	B6080	BY60100C	BY60120

1. Accept L/C, T/T ,D/A,D/Ptype of payments.
2. Regarding to the technical questions, pls contact our R&D.
3. Any question, call us or send email, we will try our best to satisfy you.
