Aluminum mini C type fin press machine

Supplier: SJR Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms Selina Ren
Price: $22000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	Egypt,canada,UAE;	Showroom Location:	Egypt,canada,UAE;
Applicable Industries:	HOME USE,Construction works ;	Type:	Heat Exchange Equipment;
Storke of Slide:	40-50MM;	Max. die-set height:	270MM;
After-sales Service Provided:	Free spare parts,Engineers available to service machinery overseas;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Distance between Uprights:	510MM;	Supply Ability:	1 Set/Sets per Month;
Warranty:	1 YEAR;	Stack Length:	600-1200MM;
Nominal pressure:	450KN;	Port:	Shanghai;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Packaging Detail:	wooden packing;
Name:	condenser machine;	Condition:	New;
Certification:	ce,CSA,GS,UL;	Brand Name:	ZJMECH;
Main Motor Power:	5.5KW;	Place of Origin:	China;

Product Description

condenser machine

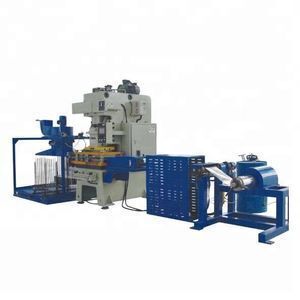

The line is mainly including decoiler ,aluminum foil protective net cover,high speed and high precision press(high precision fin dies),material pulling device ,vacuum sucking and collecting material device , collecting device of wasted materials and electirc controlling system etc.

This kind of producing in uses PLC electric controlling system, and equips 2-4pcs 6 stations pre-set counter,and equips 10 groups non- contact proximity switch cam controller, as well as the imported electric magnetic valve tec, which can satisfy the pre-set counter of cutter (counting holes) and thickness counter of fin during the course of producing the fin

The specification of fin dies

Φ5*19.5*11.2*(6-24)R

Φ7*21.0*12.7 OR 20.5*12.7*(12-24)R

Φ7.94*22.0*19.05*(12-18)R

Φ9.52*25.4*22.0 OR 25.0*21.65*(12-18)R

Φ10.2*20.0*15.5*(12-24)R

Φ12.7*31.75*27.5*(6-12)R

Φ15.88*38.0*32.91 OR 38.1*22.2(6-12)R

Φ19.4*50.8*38.1*(4-8)R

Φ20*34.0*29.5*(6-12)R

Φ25*(4-6)R

Optional:

Inverter type sucking motor

Touch screen

Safe guard

Die lubricating and oil-spraying device

Model		11444	11445	11446
Model		ZFP-45C	ZFP-65C	ZFP-85C
Nominal pressure	kN	450	650	850
Nominal pressure Stroke	mm	1.5	1.5	1.5
Storke of Slide	mm	40-50	40-60	40-60
Storkes	S.P.M	100-220	100-160	100-150
Max. die-set height	mm	270	290	290
Die Height Adjustment	mm	70	80	80
Depth of Throat	mm	300-400	320-450	360-500
Distance between Uprights	mm	510	570	650
Size of Table(L-RxF-B)	mm	800x580	850x600	920x700
Thickness of Table	mm	80	80	90
Bottom Size of Slide(L-RxF-B)	mm	550x330	650x380	680x400
Hole for Punch Shank(Diameter x Depth)	mm	Φ50x60	Φ50x60	Φ50x60
Main Motor Power	kW	5.5	7.5	7.5
Slide Motor	kW	Manual/Electric	YPE300-S2	YPE300-S2
Decoiler Motor	MPa	XWD2-29-0.75	XWD2-29-0.75	XWD2-29-0.75
Vacuum Sucker Motor	kW	Y90s-2-1.5	Y90s-2-1.5	Y90s-2-1.5
Width of Material	mm	300-550	320-600	360-650
Stack Length	mm	600-1200	800-1500	800-1500
Collecting Height of Material	mm	600-750	600-800	600-850
lnner Diameter of Material Rolling	mm	Φ75/Φ150	Φ75/Φ150	Φ75/Φ150
Outer Diameter of Material Rolling	mm	Φ850	Φ850	Φ850
Overall Dimonsions(L-RxF-BxH)	mm	7000x2500x2650	7200x2580x2950	7500x2630x3100
Total Weight	kg	6500	7800	9500
Overload Protection Device		Hydraulic over Loading System (optional)
