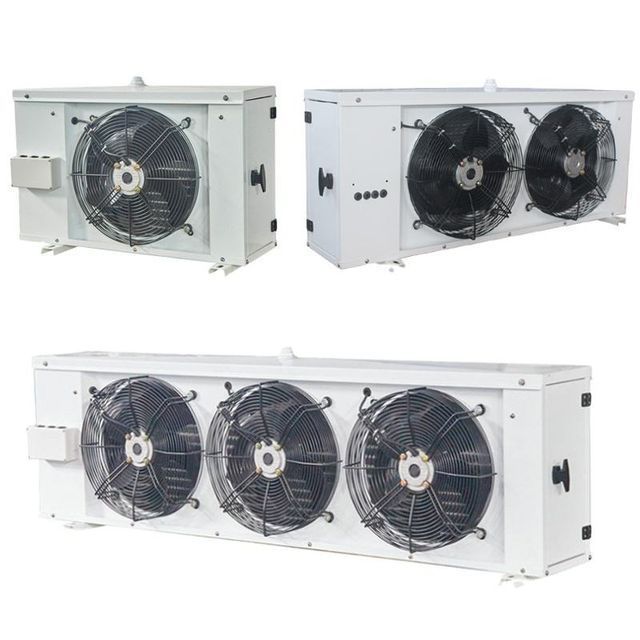

Cold storage air-cooled condenser Low-noise unit cooler for cold storage evaporator

Vegetable and meat cold storage refrigeration air-cooled evaporator

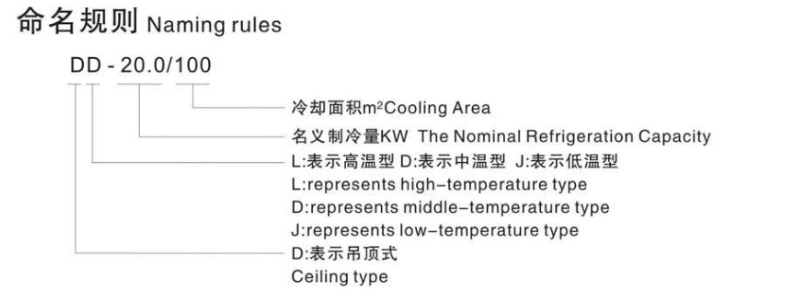

The water defrosting air cooler is a cooling device used in cold storage where electric defrosting cannot be used or rapid defrosting is required. According to the applicable temperature, there are 3 types such as DL, DD and DJ, which are suitable for refrigerated rooms at 0-18 degrees and -25 degrees respectively.

Air cooling is suitable for high, medium and low temperature (+10°C- -35°C)

1. Light weight, easy installation, compact structure, fast cooling and long storage time.

2. High-efficiency fins, larger evaporation area.

3. Mechanical tube expansion, fins and copper tubes are closely connected to improve heat transfer efficiency.

4. Wall thickness of bright copper tube: 0.35mm, and the elbow is brazed with silver.

5. Motor: high efficiency, low power consumption, strong wind, wide range, low noise and long service life.

6.2.6MPa above pneumatic test permit, reasonable design, 25% power saving.

7. The shell is made of cold-rolled steel plate and phosphating electrostatic spraying process, which is beautiful in appearance and rust-proof.

8. Defrost thermal performance: 8-hour defrost cycle.

Designed for preservation, refrigeration, freezing

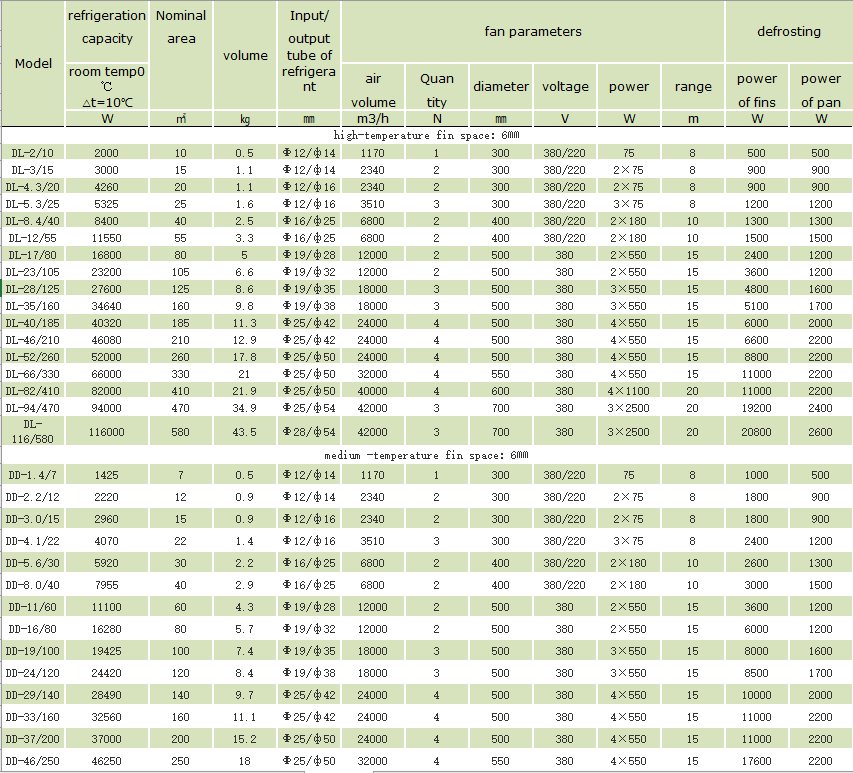

High temperature air cooler technical parameters
