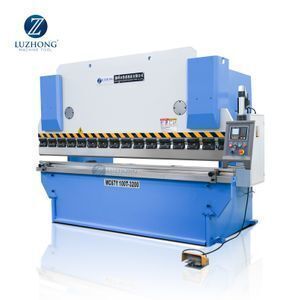

WC67K 100 Ton Sheet Metal Hydraulic CNC Press Brake

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $7700.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Raw Material:	Sheet / Plate Rolling;	Key Selling Points:	Competitive Price;
Packaging Detail:	Plywood case WC67K 100 Ton Sheet Metal Hydraulic CNC Press Brake;	Material / Metal Processed:	Stainless Steel;
Port:	Any port in China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;
Applicable Industries:	Manufacturing Plant;	Machine Type:	Synchronized;
Name:	WC67K 1000 Ton Sheet Metal Hydraulic Bending Machine;	Slider Stroke (mm):	120 mm;
Throat Depth (mm):	320 mm;	Certification:	ce;
Warranty:	1 year;	Supply Ability:	100 Unit/Units per Month WC67K 100 Ton Sheet Metal Hydraulic CNC Press Brake;
Motor Power (kw):	7.5 kw;	Length of Working Table (mm):	3200 mm;
Weight (KG):	6000;	Brand Name:	Luzhong Machine;
Automatic Level:	Fully Automatic;	Nominal Pressure (kN):	1000 kN;
Extra Services:	Machining;	After-sales Service Provided:	Video technical support,Online support;
Automation:	electric;	Ram stroke:	100-500mm;
Condition:	New;	Machine Type:	Press Brake;
Place of Origin:	Shandong China;	Width of Working Table (mm):	3200 mm;

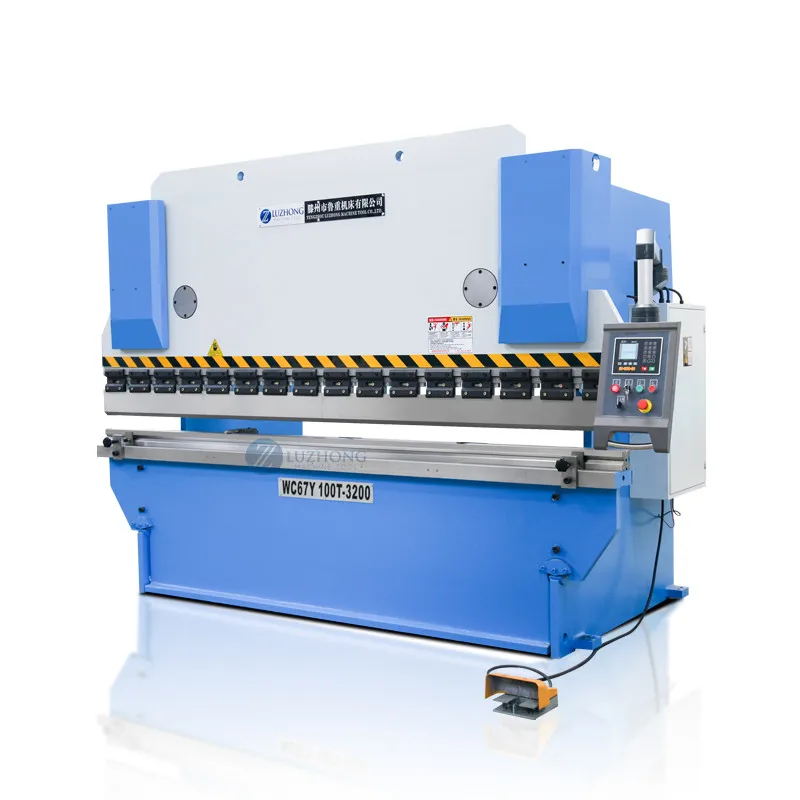

WC67K 100 Ton Sheet Metal Hydraulic CNC Press Brake

Product Description

Product main technical parameters:

Specification	Nominal force	Length of working table	Distance between columns	Throat depth	Max. slide stroke	Max. shut height	Travel times	Main motor power	Max. hydraulic pressure	Outline dimensions
WC67Y	KN	mm	mm	mm	mm	mm	Mm-1	KW	MPa	mm
30T-1600	300	1600	1240	150	85	180	20	3	16	1620x800x1600
30T-2000	300	2000	1640	150	85	180	20	3	16	2020x800x1600
40T-2500	400	2500	2040	200	110	340	10	4	20.5	2500x1300x2000
50T-2500	500	2500	2040	200	110	340	10	4	20.5	2500x1500x2120
63T-2500	630	2500	2040	200	110	360	12	5.5	20.5	2500x1500x2250
63T-3200	630	3200	2500	200	110	360	12	5.5	20.5	3200x1500x2300
100T-2500	1000	2500	1900	320	120	370	15	7.5	25	2500x1600x2400
100T-3200	1000	3200	2600	320	120	370	15	7.5	25	3200x1600x2500
100T-4000	1000	4000	3200	320	120	370	15	7.5	25	4000x1600x2500
125T-2500	1250	2500	1900	320	120	370	12	7.5	25	2500x1600x2400
125T-3200	1250	3200	2600	320	120	370	12	7.5	25	3200x1600x2600
125T-4000	1250	4000	3200	320	120	370	12	7.5	25	4000x1600x2600
160T-2500	1600	2500	1850	320	200	460	10	11	25	2500x1800x2590
160T-3200	1600	3200	2460	320	200	460	10	11	25	3200x1800x2690
160T-4000	1600	4000	3260	320	200	460	10	11	25	4000x1800x2690
160T-6000	1600	6000	4800	320	200	460	10	11	25	6000x1900x3200
200T-3200	2000	3200	2460	320	200	460	10	15	25	3300x1800x2690
200T-4000	2000	4000	3260	320	200	460	10	15	25	4000x1800x2690
200T-6000	2000	6000	4800	320	200	460	10	15	25	6000x2070x3300
250T-3200	2500	3200	2400	400	250	530	10	18.5	20.5	3300x2140x3250
250T-4000	2500	4000	3200	400	250	530	10	18.5	20.5	4000x2140x3250
250T-6000	2500	6000	4800	400	250	530	10	18.5	20.5	6000x2140x3400
300T-3200	3000	3200	2400	400	250	530	10	22	20.5	3300x2100x3100
300T-4000	3000	4000	3200	400	250	530	10	22	20.5	4000x2140x3250
300T-6000	3000	6000	4800	400	250	530	10	22	20.5	6000x2100x3540
400T-3200	4000	3200	2600	500	250	540	10	30	20.5	3200x2500x3060
400T-4000	4000	4000	3200	500	250	540	10	30	20.5	4000x2500x3310
400T-6000	4000	6000	4800	500	250	540	10	30	20.5	6000x2500x4100
400T-7000	4000	7000	5800	650	250	850	8	30	20.5	7000x2500x4350
500T-6000	5000	6000	4800	500	320	590	10	45	20.5	6100x2500x4360
500T-8000	5000	8000	5800	650	320	590	8	45	20.5	7000x2500x4350
800T-6000	8000	6000	4760	500	400	920	8	55	20.5	6100x4500x6000
