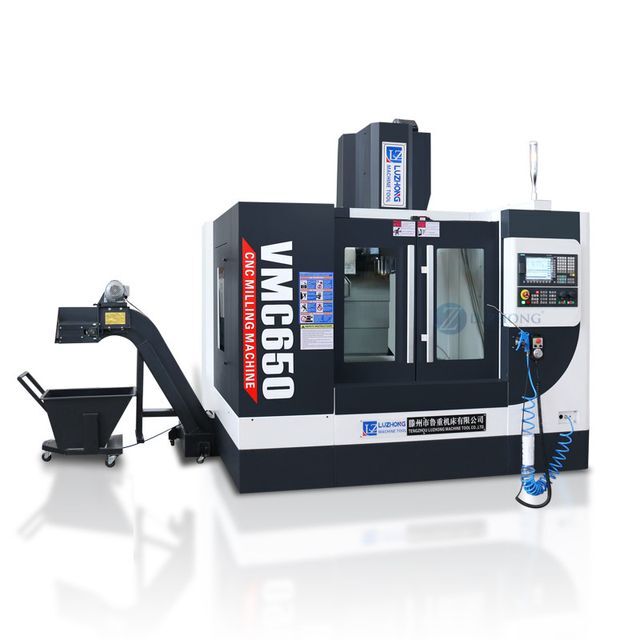

Manufacturer of cnc grinder with 5 axes Vertical machining center VMC650

Supplier: Shandong Luzhong Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Ms Wenjing Pan
Price: $23000.00 / 1 - 2 sets
$22500.00 / 3 - 9 sets
$21000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Product name:	VMC650 vertical processing center cnc milling machine with 5 axes;	Capacity of tool magazine:	16.20;
Travel at the table (X) (mm):	650;	Basic components warranty:	13 months;
Highlights:	Automatic;	Max. Table load (kg):	400 kg;
Trade term:	EXW, FOB, CIF;	Location of the exhibition hall:	Indonesia, India, United Arab Emirates;
Travel in the table (Y) (mm):	400;	Weight (T):	4 T;
X / Y / Z maximum throughput:	24/24 / 20m / min;	Type of marketing:	New product 2020;
Travel in the table (Z) (mm):	500;	Supply Ability:	100 sets per month VMC650 vertical processing center cnc milling machine with 5 axes;
Finger speed:	8000 rpm;	Video inspection at the exit:	With one condition;
Table size:	800x400mm;	Z axis travel:	500 mm;
X-axis travel:	650 mm;	But you:	Every port in China;
Positioning accuracy (mm):	0.0075;	Condition:	New;
Country of origin:	Shandong, China;	Location of local service:	India, United Arab Emirates;
Type:	VERTICAL;	Conical axis:	BT40;
Guarantee:	13 months;	Payment terms:	L / C, Western Union, D / P, D / A, T / T, MoneyGram, Trade Assurance;
Certification:	ISO CE;	Number of axes:	3,4,5;
Repeatability (X / Y / Z) (mm):	0.005;	Number of axles:	Single;
Machinery test report:	With one condition;	Applicable industries:	Production factory;
Shaft motor power (kW):	5.5;	Main ingredients:	Engines;
CNC control system:	GSK, FANUC, KND, Siemens;	Packaging Details:	The package of our cnc grinding machine is standard export plywood box with iron pallet down, very strong and durable. Cnc grinding machines will be sent to customers with land or sea goods .;
Brand Name:	Luzhong Machinery;	Warranty service:	Video technical support, Internet support, Spare parts;
Shaft taper:	BT40;	Maximum table load:	450 kg;
Min. Tool change time:	9;	Y-axis travel:	400 mm;
Tensions:	220V / 380V;

product description

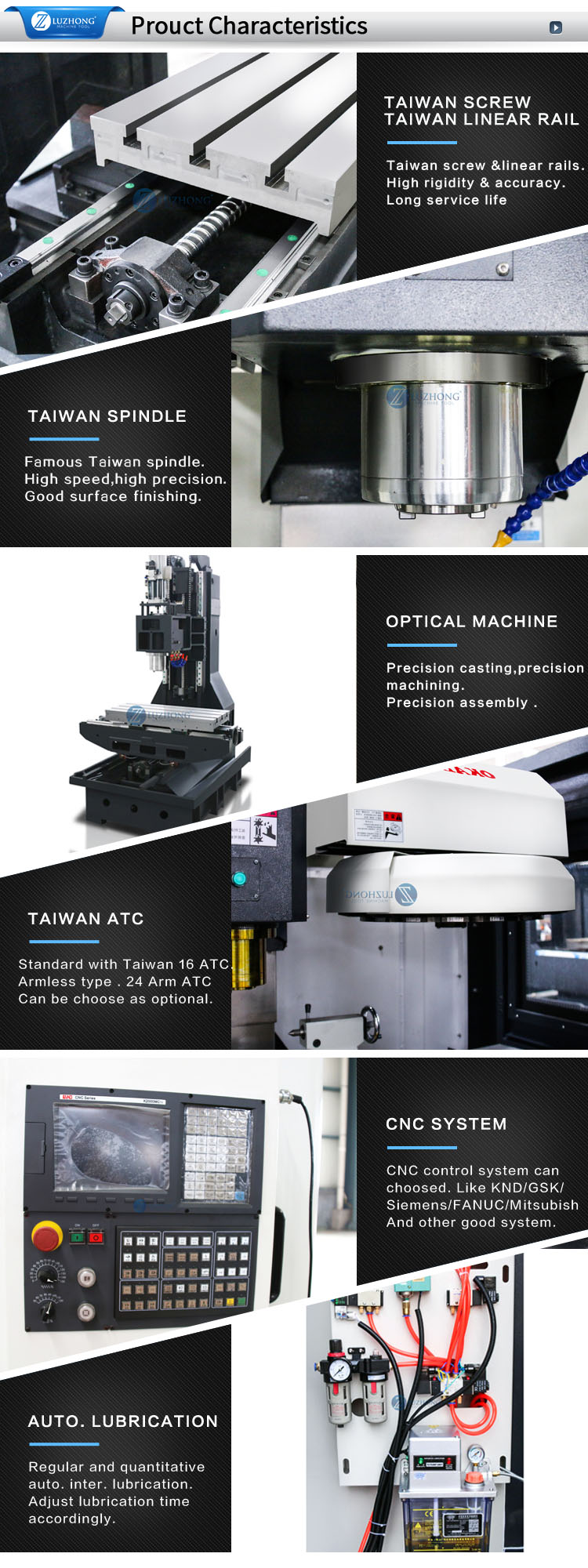

Characteristics:
High quality resin sand
The axis of Taiwan
Taiwan ball screw and locking nut
Taiwan pressure cylinder
NSK Japanese German coupling R + W with bearings
Automatic lubrication system
Chip conveyor optional
Application:
This VMC is suitable for tooling and mold making. And can be adapted to processing
Demand from rough processing to finished processing. Many work procedures such as grinding, drilling, knocking, boring, etc. can also be completed.

specification	units The	VMC650
Table size	mm	800x400
Travel on the X axis	mm	650
Travel on the Y axis	mm	400
Travel on the Z axis	mm	500
Max. work table load	kg	400
Slot T (number-width-pitch)		3-18x125
Max. finger speed	rpm	8000 (Optional: 10000)
Taper shaft	mm	BT40
Main engine power	kw	5.5
Fast X / Y / Z crossing speed	m / min	24/24/20 (Optional: 48/48/36)
Food cutting speed	mm / min	1-10000
Type of guide rail		Linear rail
Distance from the shaft to the surface of the column	mm	469
The distance between the shaft nose and the work table surface	mm	100-600
Positioning accuracy	mm	± 0.0075
Repeat positioning accuracy	mm	± 0.005
Tool magazine		16 without wings / (Optional: arm 24)
Max. tool diameter	mm	φ90
Maximum tool weight	kg	8
Car weight	kg	4000
Overall dimension	mm	2400x2000x2550

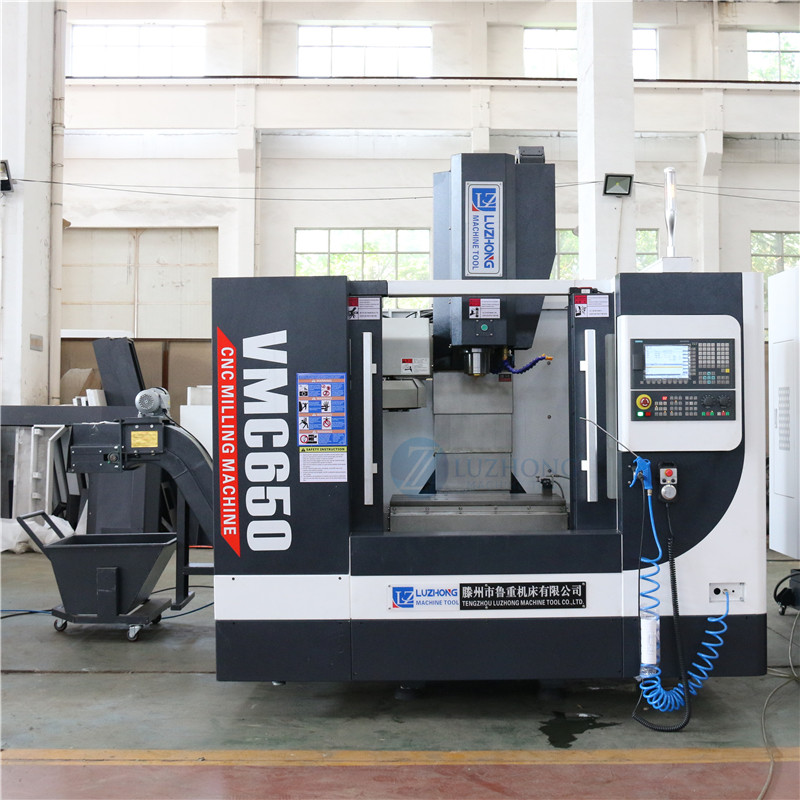

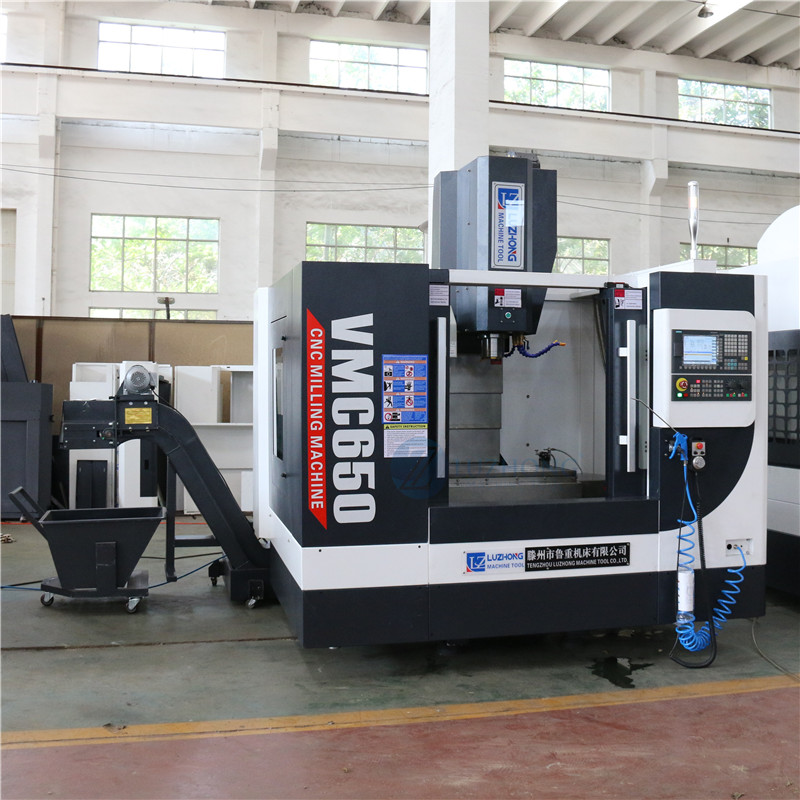

Display of details

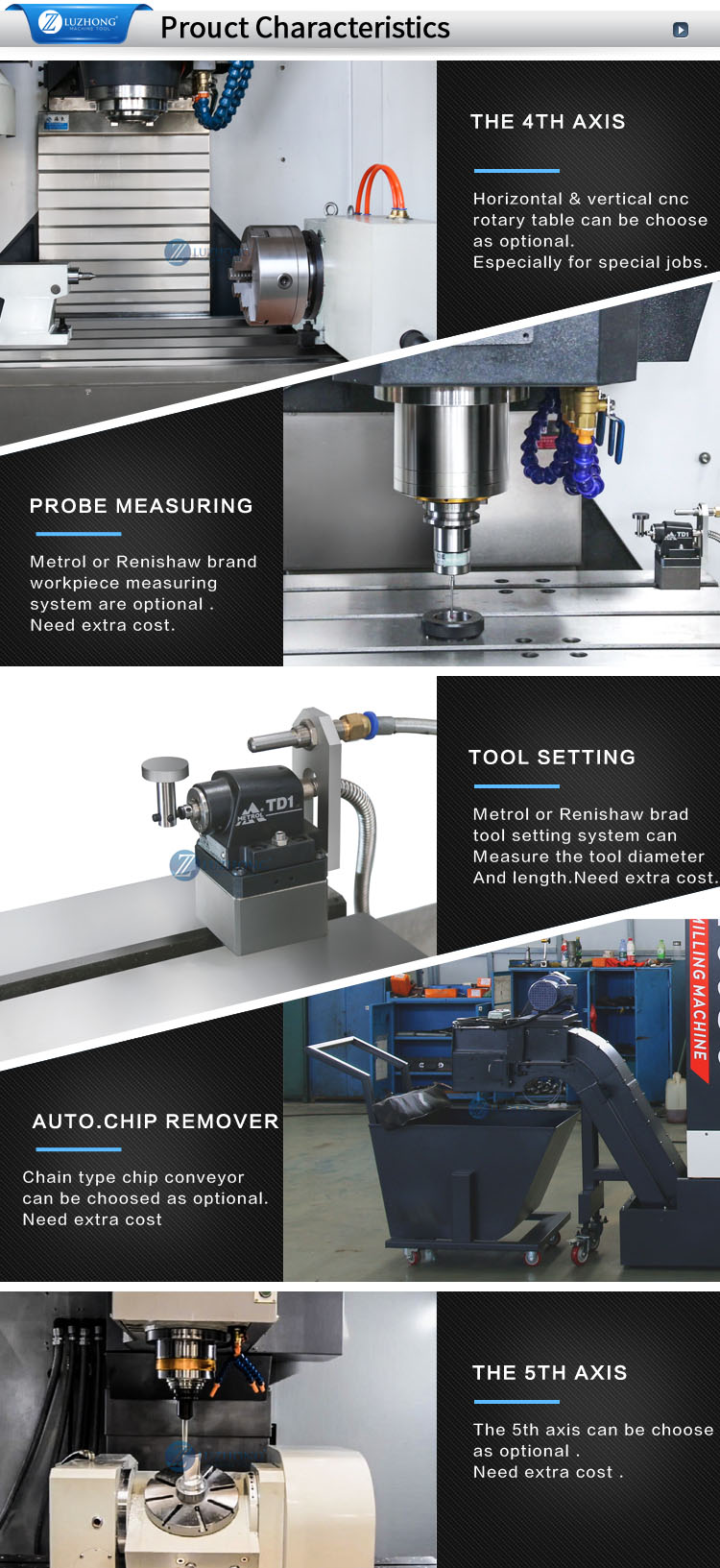

Optional configurations

Recommend Products

Company Profile

FAQ

1: How can I choose the most suitable machinery?
A: Please tell me your specifications, we can choose the best model for you, or you can choose the correct model.
You can also send us the drawing of the products, we will choose the most suitable machines for you.

2: What are your main products of your company?
Answer: We specialize in all kinds of machines, such as CNC lathe machines, CNC grinding machines, Vertical machining center, Lathe machines, Drilling machines, Radial drilling machines, Saw machines, Shaping machines and so on .

3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City, Shandong Province, 277500 China. You are warmly welcome to visit us.

4. What are your trading conditions?
Answer: FOB, CFR and CIF all acceptable.

5: What are the payment terms?
A: T / T, 30% initial payment when ordering, 70% balance payment before shipment;
Irrevocable LC at sight.

5: What is MOQ?
A: 1 group. (Only a few low cost cars will be more than 1 set)
