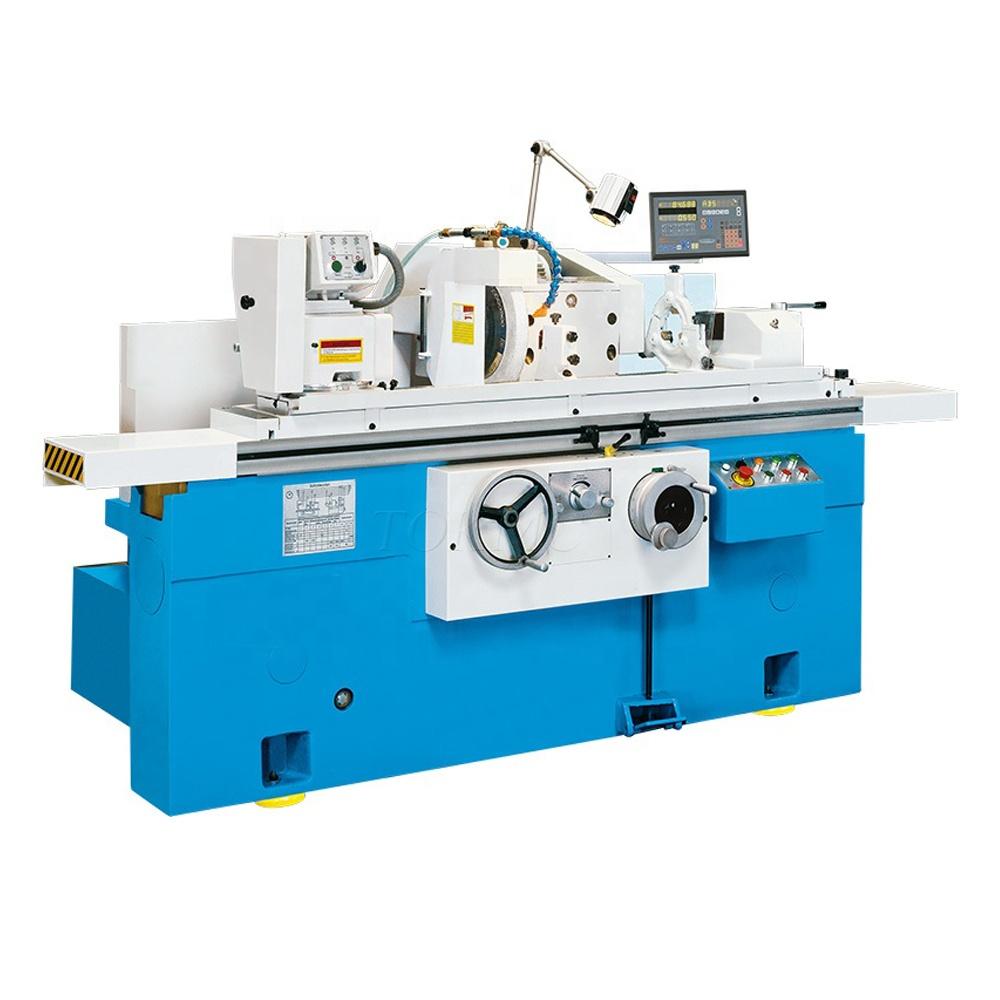

M1420 Universal cylindrical grinder

Click here to contact

Product details

Cylindricity (mm):	0.005	Showroom location:	Germany, South Africa, Russia, Malaysia, Colombia, Kazakhstan, Uzbekistan, Thailand, Ukraine, Saudi Arabia, Bangladesh, Algeria, Chile
Video outbound inspection:	if	Applicable industries:	Manufacturing plants, energy and mining, machinery repair shops
Dimensions (LWH):	225014501650mm	Table travel (X) (mm):	550
Wheel speed (rev/min):	1780	Center height (mm):	125
Wheel Size (mm):	400x40x203	Origin:	China
maximum. Workpiece weight (kg):	50	Roundness (mm):	0.002
Supply capacity:	199 sets per month	brand:	Tok Mike
Whether CNC:	normal	Marketing Type:	2020 New Products
Surface roughness (μm):	0.32	Grinding diameter (outer diameter) (mm):	200
Weight (kg):	2200	Grinding length(mm):	520
Core components:	Motors, bearings, gearboxes, engines, gears, pressure vessels, pumps	Mechanical test report:	if
Voltage:	380V/220V	port:	Qingdao
Health status:	new	Power (kW):	4
Packaging Details:	Plywood boxes	Core component warranty:	1 year
Main selling points:	energy saving	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Warranty:	1 year

Product Description

Specification

Universal Cylindrical Grinder	M1420-520
Grinding diameter	Ø8~200mm
grinding length	520mm
Grinding aperture	Ø13~80mm
Grinding depth	125mm
Internal mold speed	11000 rpm
Spindle maximum load	50 kg
Maximum stroke of worktable	550mm
Table speed	100~4000mm/rev/min
Table rotation angle	-5~+9°
Headstock Rotating Angel	-30~90°
Grinding wheel rotation angle	180°
Center height	125 mm
Center sleeve taper	MT2
Grinding wheel size	2004075
Headstock speed	60, 85, 230, 120, 170, 460 rpm
Wheel speed	1780 rpm
Grinding wheel moves at high speed	20mm
Maximum stroke of grinding wheel	150mm
Grinding wheel handwheel feed per grid	0.005 mm
Grinding wheel handwheel feed per revolution	1 mm
Grinding wheel motor power	4 kW
Spindle box motor power	0.25 kW
Oil pump motor power	0.75 kW
cooling motor power	0.125 kW
Dimensions (LWH)	220014501650
weight	2500 kg
Roundness 0.002mm Cylindricity 0.003mm Roughness Ra0.32
