mini cnc vertical milling machine

Supplier: Zaozhuang Tok Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Harry Tung
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Positioning accuracy (mm):	±0.005	type:	vertical
Video external inspection:	if	Spindle taper:	MT2
Type of machine:	Mini Vertical CNC Milling Machine	brand:	TOKMC
Number of spindles:	1	model:	CK-20
CNC control system:	GlaxoSmithKline/Fanuc/Systems	Table travel (Z) (mm):	280
Packaging Details:	Plywood case	place of origin; place of origin:	China
payment terms:	letter of credit, wire transfer	Spindle motor power (kW):	1.1
Main selling point:	competitive price	Marketing Type:	normal product
Mechanical test report:	if	Spindle speed range (rpm):	50 - 2500
Dimensions (LWH):	1220x910x1890 mm	Applicable industries:	Manufacturing plants, mechanical repair shops, farms, home use
Weight (kg):	418	Packaging Preview:
Number of axes:	3	Processing capacity:	relaxing work
maximum. Table load (kg):	10 kg	Health status:	new
Table stroke (X) (mm):	220	Core Components Warranty:	1 year
Warranty:	1 year	Voltage:	220V/380V, 50HZ
Repeatability (X/Y/Z) (mm):	±0.005	Table travel (Y) (mm):	165
Core components:	Gear, PLC	Showroom location:	Germany, Indonesia, Thailand, UAE

Product Description

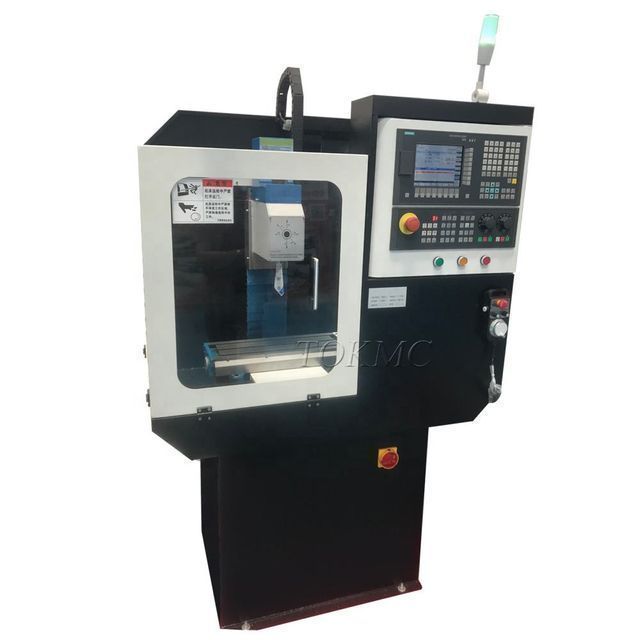

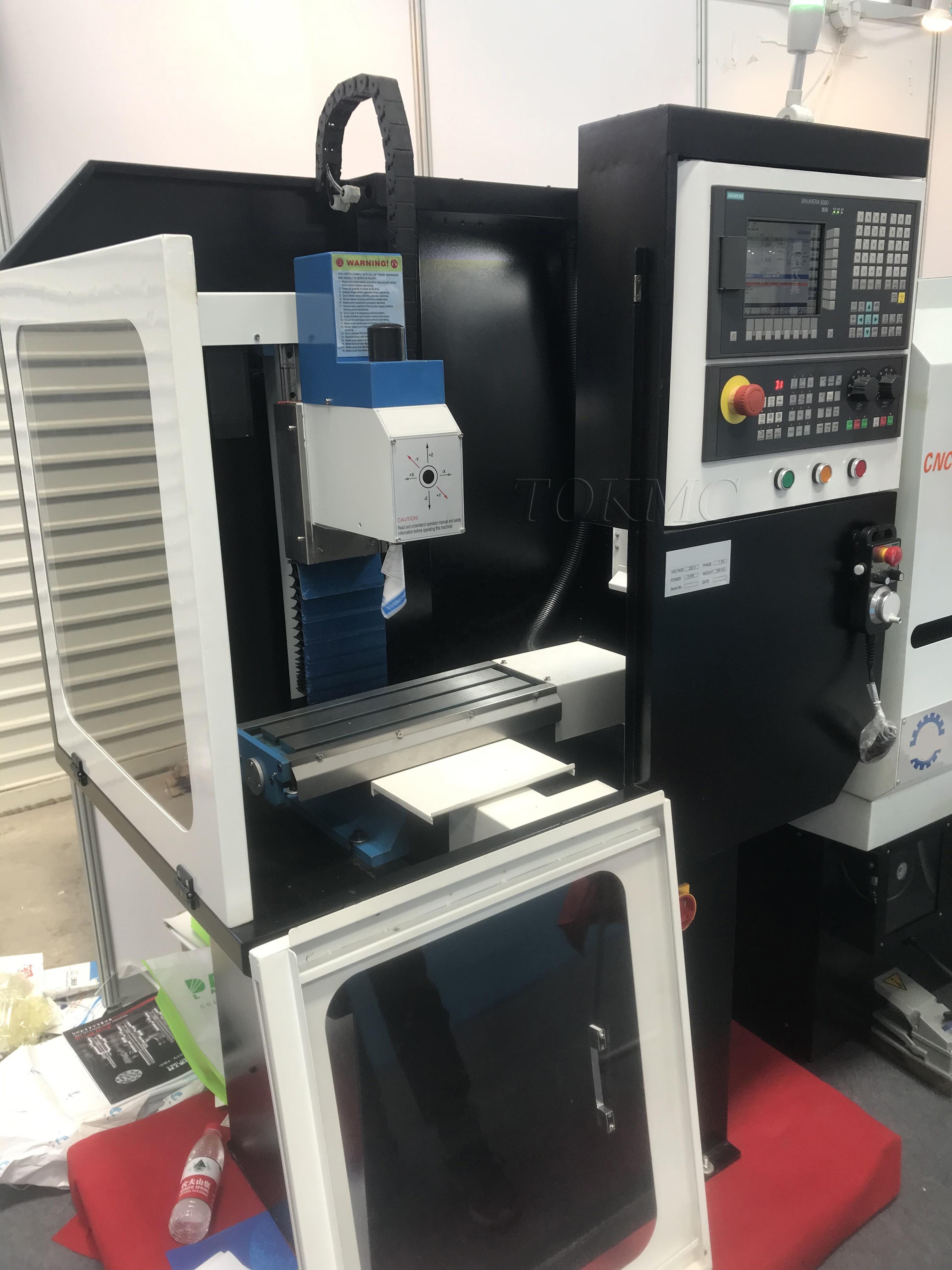

Vertical CNC milling machine, Siemens 808D system

Specification

Model	CK-20
table size	180x500 mm
maximum load weight	10 kg
T-slot width/spacing	12/62 mm
Table travel X/Y/Z axis	220/165/280 mm
Distance from spindle nose to work table	348 mm
Distance between spindle and vertical guide	185 mm
Rapid feed rate	16m/min
Feed rate	0-16m/min
Spindle taper	MT2
Spindle speed	50-2500 /100-15000 rpm
Spindle motor	1.1kW
Net weight/GW	298/418 kg
Package dimensions	1220x910x1890 mm
