High speed metal grinding machine frame

Supplier: Nantong Sunway Science And Technology Development Co., Ltd.
Region: Jiangsu, China
Contact: Ms Xing Pan
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	control method:	CNC
Mechanical test report:	if	CNC or not:	CNC
Local service location:	Vietnam	Automatic level:	automatic
Warranty:	one year	usage:	General
brand:	sun access	maximum. Table load(kg):	1500 kg
port:	Shanghai	Repeatability (X/Y/Z) (mm):	0.005
Core components:	Bearings, motors, pumps, gears, PLCs, pressure vessels, engines, gearboxes	Table travel (Z) (mm):	420mm
Main selling points:	high productivity	Number of spindles:	single
Applicable industries:	Manufacturing plants, machinery repair shops	Spindle motor power (kW):	7.5/11
Spindle speed range (rpm):	8000 - 15000	Table travel (X) (mm):	1000 mm
Health status:	new	Core component warranty:	1 year
Packaging Details:	Wooden package or can adjust the safety of the machine	Marketing Type:	normal product
Spindle taper:	BT40	product name:	Gantry milling machine frame
Origin:	Jiangsu, China	Table travel (Y) (mm):	900 mm
Number of axes:	3	accurate:	high precision
Processing:	milling machine	After-sales service provided:	Engineers available to service machinery overseas
type:	Gantry	Processing type:	Metal
Positioning accuracy (mm):	0.01	Voltage:	380V
Certification:	ISO9000	Showroom location:	Vietnam
payment terms:	L/C, T/T	Processing capacity:	burden
Weight (kg):	6000	Video shipment inspection:	if
Supply capacity:	10 sets per month

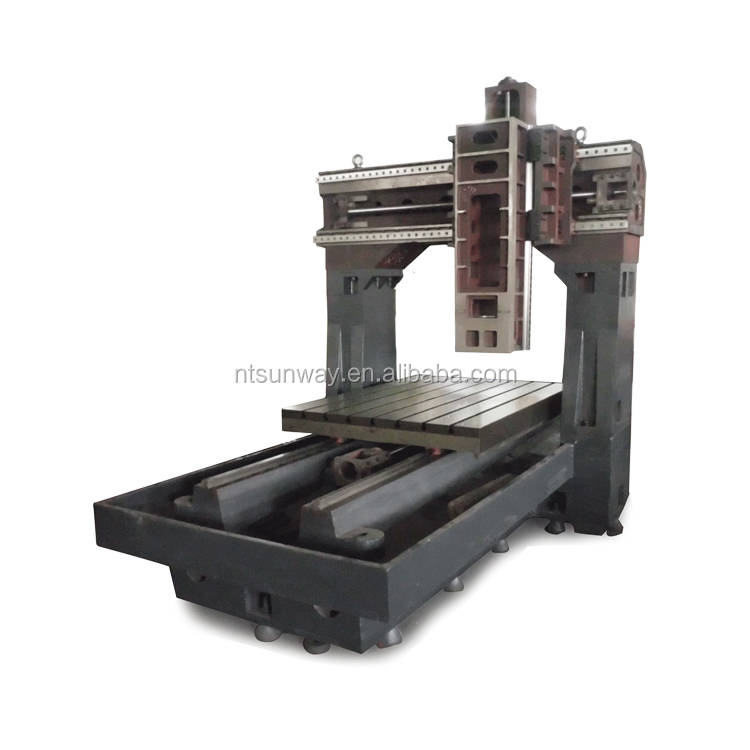

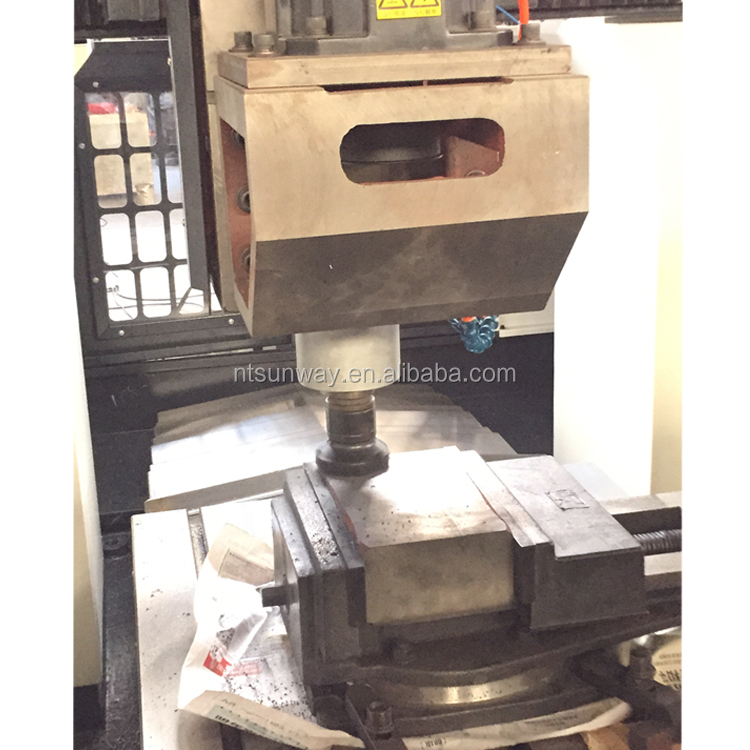

High speed metal gantry milling machine frame

Product Description

Model		LM1090	LM1311	LM1609	LM2011	LM1613	LM2013	unit
worksheet	working desk size	1060×800	1300×1000	1600×800	2000×1000	1600×1200	2000×1200	mm
	Gantry door width	930	1230	930	1230	1400	1400	mm
	table load	1500	2000	2000	3000	3000	4000	Kilogram
	T-slot width	5-18	7-18	5-18	7-18	7-22	7-22	mm
Processing width	X-axis travel	1000	1300	1600	2000	1600	2000	mm
	Y-axis travel	900	1100	900	1100	1300	1300	mm
	Z axis travel	420	420	420	420	550	550	mm
	Distance from spindle end face to worktable surface	70~490 220~640 (higher)	120~540 270~690 (higher)	110~530 260~680 (higher)	150~570	150~700	150~700	mm
Spindle	Taper model	BT40 (boring and tapping)	BT40 (boring and tapping)	BT40 (boring and tapping)	BT40 (boring and tapping)	BT40 (boring and tapping)	BT40 (boring and tapping)
	Rivet specifications	45°	45°	45°	45°	45°	45°
	speed range	8000/15000	8000/15000	8000/15000	8000/15000	8000/15000	8000/15000	Rotating speed
	Spindle motor power	7.5/11	7.5/11	7.5/11	7.5/11	11/15	11/15	kilowatt
feed	X-axis rapid movement	15000	15000	15000	12000	15000	12000	mm/min
system	Y-axis rapid movement	15000	15000	15000	15000	15000	12000	mm/min
	Z axis rapid movement	12000	12000	12000	12000	12000	12000	mm/min
	Z axis rapid movement	12000	12000	12000	12000	12000	12000	mm/min
accessories	3-axis guide rail raid specifications (XYZ)	X: H35 roller track	X: H35 roller track	X: H45 roller track	X: H45 roller track	X: H45 roller track	X: H45 roller track
		Y: H35 roller track	Y: H35 roller track	Y: H35 roller track	Y: H35 roller track	Y: H45 roller track	Y: H45 roller track
		Z: H35 roller track	Z: H35 roller track	Z: H35 roller track	Z: H35 roller track	Z: H45 roller track	Z: H45 roller track
	Three-axis ball screw	X:4010	X:4010	X:5010	X:5010	X:5010	X:5010
		Y:4010	Y:4010	Y:4010	Y:4010	Y:5010	Y:5010
		Z:4010	Z:4010	Z:4010	Z:4010	Z:4010	Z:4010
accurate	positioning accuracy	0.01/300	0.01/300	0.01/300	0.01/300	0.01/300	0.01/300	mm
accurate	Repeatability	0.005/300	0.005/300	0.005/300	0.005/300	0.005/300	0.005/300	mm
machine weight		6000	7500	8500	10000	12000	16000	Kilogram

For the hard rail vertical machining center, the guide rail of the machine tool is a double-layer guide rail. The machine base is a box-shaped design, matched with a large-span column, which is 40% wider than similar machine tools, and the design conforms to the principle of mechanics.

C3 grade high-precision ball screw and pre-tensioned bearings are used to ensure rigidity and precision.

The machine tool castings exported to DMG are high-grade high-quality gray cast iron, aging treatment, TURCITE American RULON, manual scraping, and the line rail adopts Taiwan famous brand to ensure precision and prolong the life of processing machine tools.

Adopt Mitsubishi, Fanuc or other international brand control system

Use Taiwan Royal or Pusen spindle

Adopt Taiwan Shangyin or PMI guide rail and ball screw, Japan NSK or NARCH bearing to ensure the accuracy of the machine tool

Use Taiwan Deda 24-arm tool magazine

Fourth axis and chip conveyor, Renishaw Tool Gage are optional
