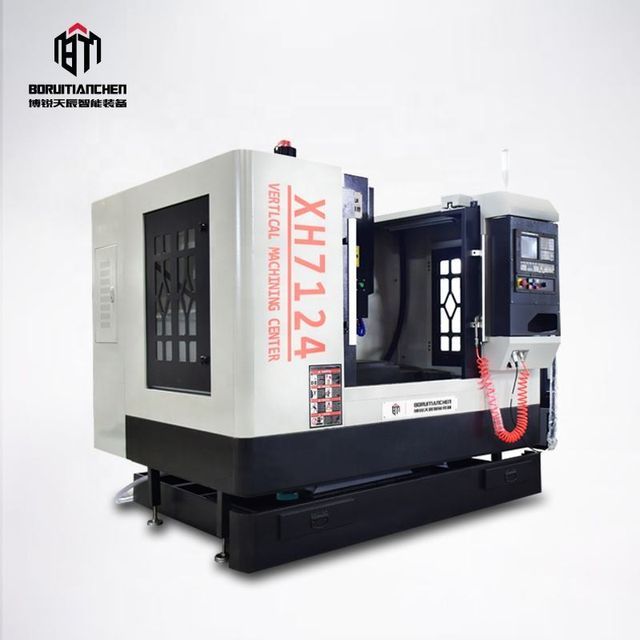

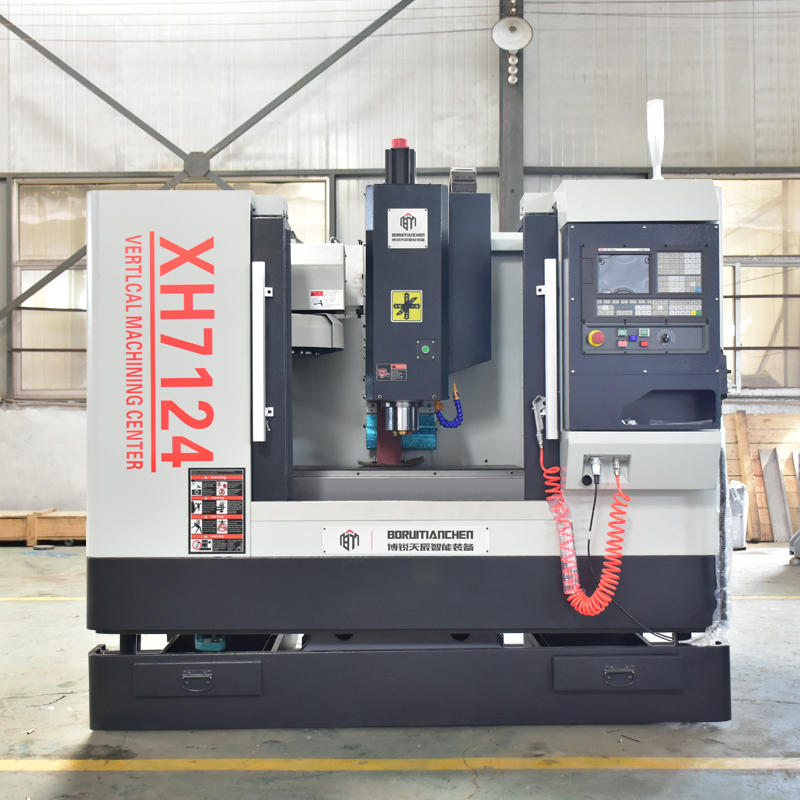

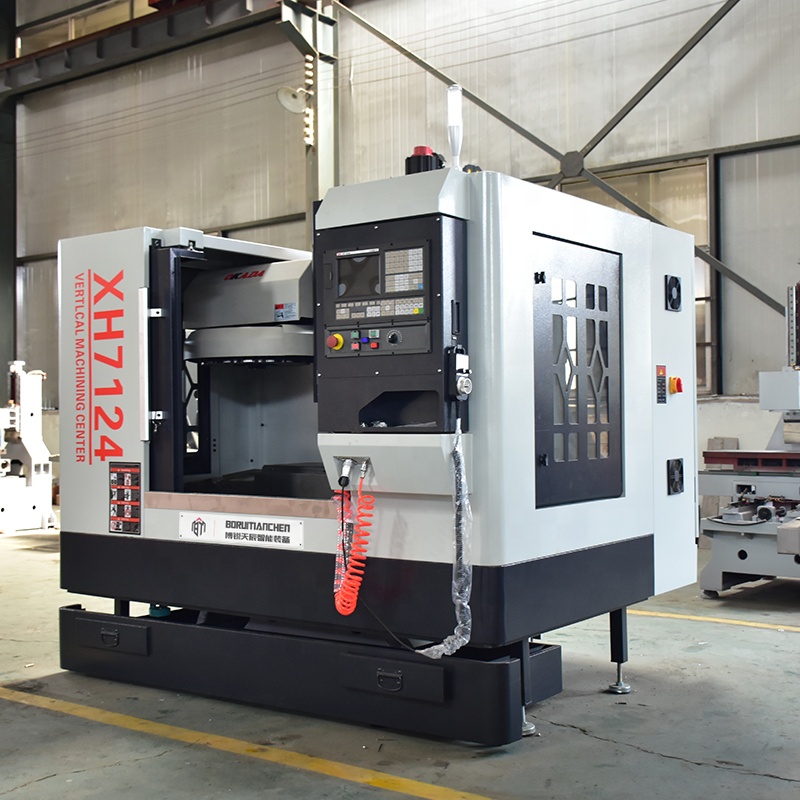

XH7124 Small 4 Axis Metal Cnc Milling Machine

Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Lauren G
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Name:	CNC milling machine XK7124	Spindle motor power (kW):	3.7
Marketing Type:	2020 New Products	Spindle taper:	BT40
color:	white	Video outbound inspection:	if
Main selling points:	multifunctional	Weight (kg):	2400
Origin:	Shandong Province, China	Spindle speed range (rpm):	10 - 10000
Core component warranty:	1 year	accurate:	high precision
Repeatability (X/Y/Z) (mm):	±0.005mm	type:	vertical
Health status:	new	Dimensions (LWH):	1900X1620X2000mm
Processing capacity:	medium	brand:	BTMC
Applicable industries:	mechanical repair shop	Whether CNC:	CNC system
Year:	new	Spindle speed:	8000 rpm
Number of axes:	3	Core components:	engine
Voltage:	client needs	Number of spindles:	single
Table travel (Z) (mm):	400	model:	XH7124
Table travel (mm):	450/320/450	Packaging Details:	plywood case
CNC system:	Siemens	Showroom location:	not any
Package preview:		Mechanical test report:	if
usage:	General	Type of machine:	CNC vertical milling machine
Positioning accuracy (mm):	0.01	Spindle taper:	BT40
Table travel (Y) (mm):	350	maximum. Table load (kg):	300 kg
Power (watts):	3.7 kW	table size:	1000X240mm
Table travel (X) (mm):	400	Warranty:	1 year
payment terms:	L/C, Western Union, D/A, T/T

XH7124 Small Metal CNC Milling Machine 4 Axis CNC Milling Machine

Product Description

application:

This product X, Y, Z three-axis servo direct control semi-closed vertical machining center, three-axis linear ball guide rail, guide rail
Guide rail load, wide span, high precision, suitable for heavy load, compact structure, reasonable size, the main shaft is driven by synchronous belt servo motor. It can realize the clamping of various parts such as discs, plates, shells, cams, and molds at one time. It can be used for drilling, milling, boring, expanding, reaming, rigid tapping, etc. The production of small and medium batch products can meet the processing of complex and high-precision parts. It can be equipped with a fourth shaft to meet the processing requirements of special parts.

The CNC milling machine has a strong bearing capacity. The three-way guide rail is hardened hard rail. The guide rail has a wide span and a large span. The structure is reasonable and the size is compact. The main shaft is driven by a servo motor through a synchronous belt. Can be milled, drilled, reamed, reamed, etc. Other functions can realize the processing of complex and high-precision parts such as plates, discs, shells, molds, etc., suitable for various types, medium and small
The plane, slope, groove and other processes of parts are ideal processing equipment for machining and mold manufacturing. They can adapt to the processing requirements from rough machining to finish machining. They have the characteristics of high precision and high efficiency. They are widely used in aerospace and military industries. Fields, moulds, automobiles, internal combustion engines, textile machinery, chemical machinery processing, petroleum, electronics and other industries.

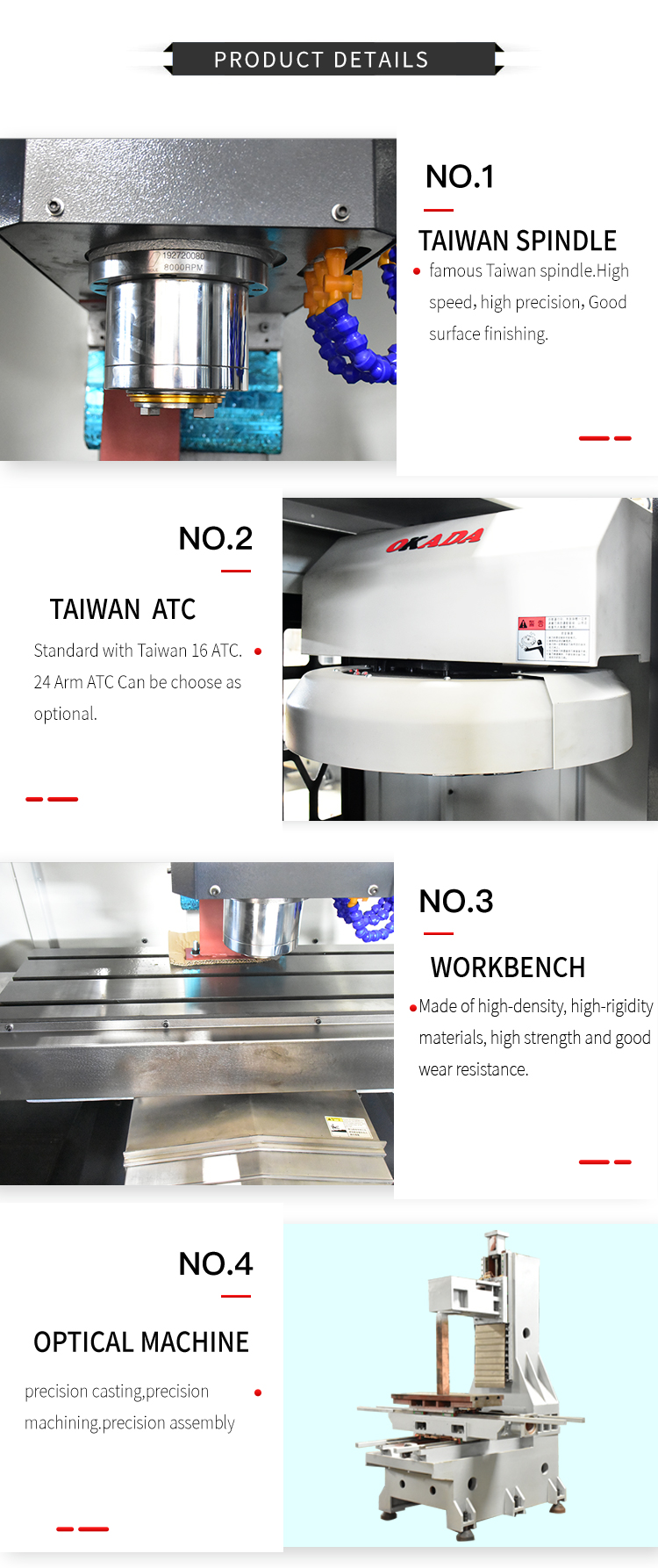

main feature:

1. Vertical three-axis mini fresadora CNC for sale: advanced body casting technology, aging process, casting label
2. Vertical 3 axis mini fresadora cnc for sale with high precision guide rail and high precision.
3. Manual and pneumatic tool change methods can be selected.
4. Metal CNC milling machine has high precision, and ATC can adopt stepping motor or servo motor, providing customers with good cost performance.
5. The metal CNC milling machine has high precision and ATC function, and the corresponding products can be customized according to customer requirements.

Product parameters

working desk size	1000×240mm
Workbench maximum load	300 kg
Number of T slots - width * distance	3-14x75
Spindle speed	8000 rpm
Spindle nose to table top	90-470 mm
Spindle center to column surface	360mm
Spindle taper	BT40
main motor power	2.2/3.7kw (servo)
X-axis travel	450mm
Y-axis travel	380mm
Z axis travel	400 mm
X/Y/Z axis rapid feed	15/15/15m/minute
positioning accuracy	±0.01 mm
Repeatability	±0.005mm
net weight	2400 kg

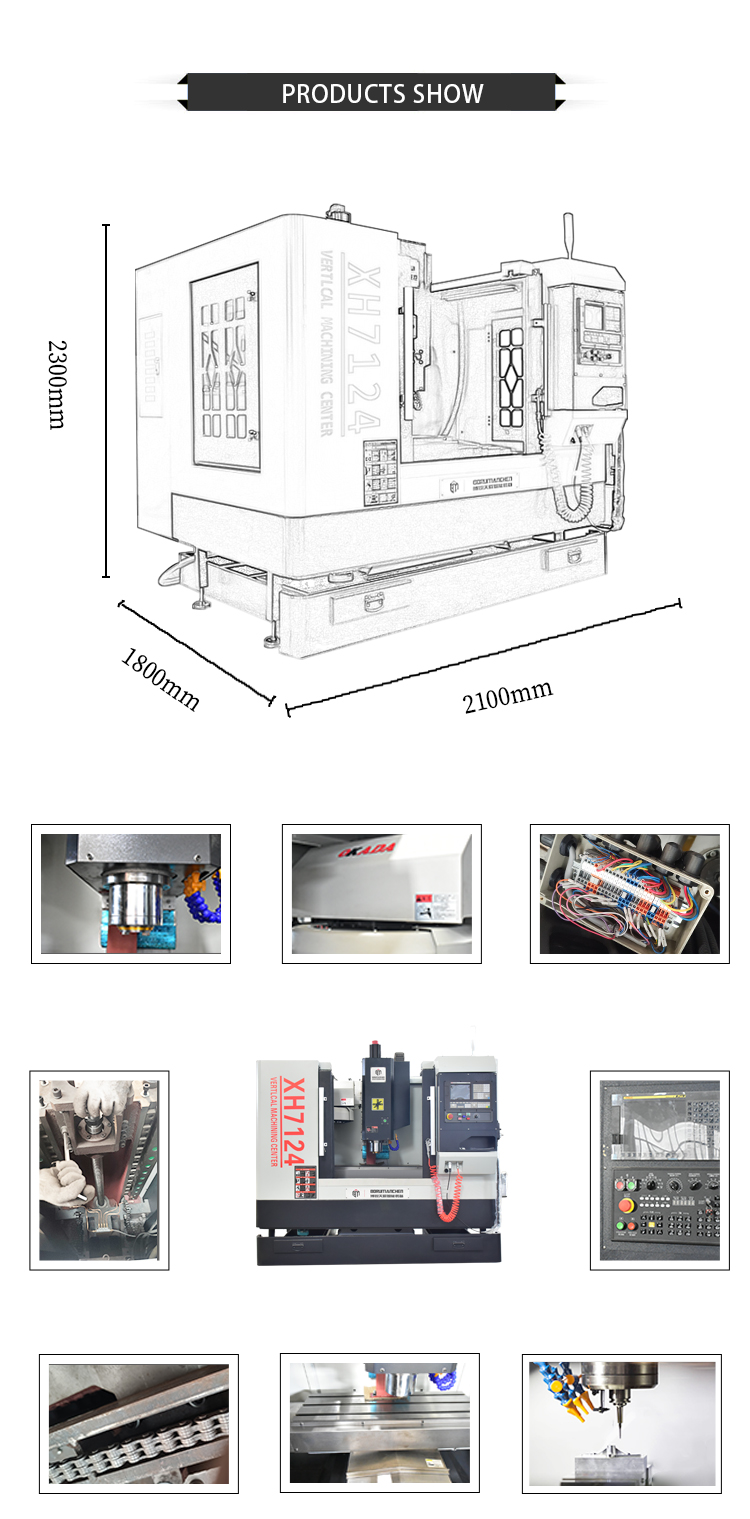

Dimensions	1900X1620X2000
