Large Heavy Duty CNC Gantry Machining Center XH2412A Double Column Milling Machine

Supplier: Shandong Lunan Seiki Co., Ltd.
Region: Shandong, China
Contact: Mr Keli Wang
Price: $115000.00 /set
Min. Order: 1 set

Click here to contact

Product details

color:	custom color	Main selling point:	multifunctional
Weight (kg):	25000	Health status:	new
CNC control system:	Fanuc	Showroom location:	Italy, France, Germany, Vietnam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Morocco, Argentina, Chile, Colombia, Algeria, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan Stan, Malaysia
Repeatability (X/Y/Z) (mm):	0.012	brand:	Lunan
payment terms:	letter of credit, wire transfer	Marketing Type:	Hot Products of 2019
Voltage:	optional	Positioning accuracy (mm):	0.025
model:	XH2412A	Core components:	Motor, PLC, other
maximum. Table load (kg):	7500 kg	Core Components Warranty:	1 year
Table travel (Z) (mm):	700	port:	Qingdao
Packaging Details:	tray	Table stroke (X) (mm):	3100
Dimensions (LWH):	800040004000	Mechanical test report:	if
Spindle taper:	BT50	Warranty:	1 year
place of origin; place of origin:	Shandong China	Number of axes:	3
Processing capacity:	heavy load	Spindle motor power (kW):	15
Video external inspection:	if	Spindle speed range (rpm):	50 - 3000
Number of spindles:	single	Table travel (mm):	3100*2000
type:	Gantry	Table travel (Y) (mm):	2000
Applicable industries:	Manufacturing plants, machinery repair shops	Supply capacity:	2 sets per month

product description

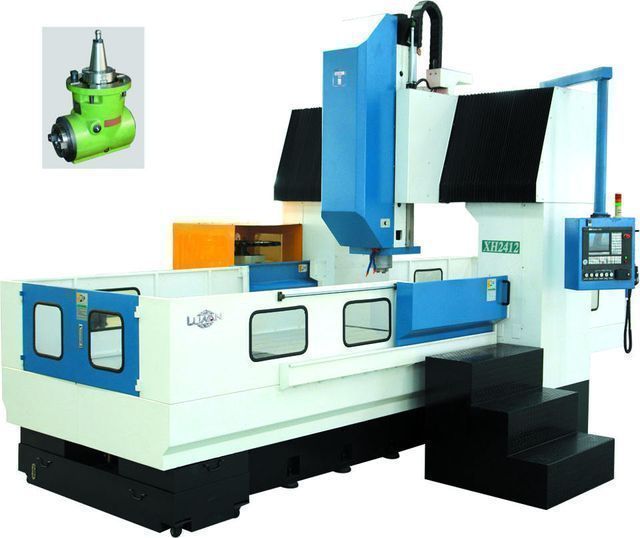

XH2412A Gantry Machining Center

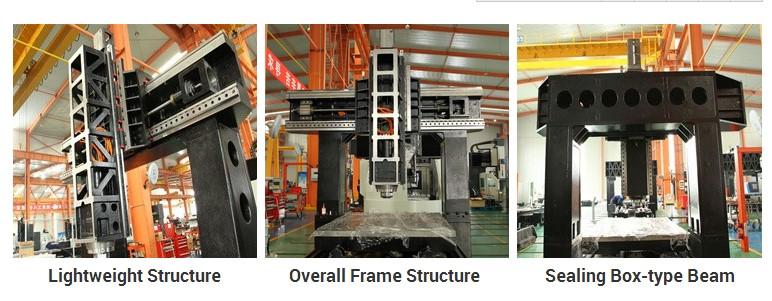

The machine adopts the structure of moving table and fixed gantry structure, which is widely used in automobile, aerospace, printing,
Packaging, textile machinery, metallurgy, petrochemical, locomotive, mold and other large and medium-sized machinery parts
In the processing and mold manufacturing industry, the requirements of rough, semi-finish and fine can be met in one clamping.
Fine milling, drilling, tapping, boring, reaming and other processes.

Function list

1) Spindle speed 50-3000rpm (gear transmission, hydraulic 2 gears, high speed 1:1.7, low speed 1:4.1
2) FANUC 0i MF CNC system
3) Spindle servo motor: 15KW, torque 94.5NM
4) Hydraulic drive Z-direction automatic balance system
5) Separate electronic handwheel.
6) Centralized automatic oil lubrication
7) Round head type tool magazine with 24 tools
8) External cooling system and water tank
9) Double helix automatic chip conveying device
10) Chassis protective cover and lead screw, guide rail protective cover
11) Adjusting shim type and ER BT40 handle
12) Working lights, alarm lights
4. Optional configuration

1) Siemens, Mitsubishi GlaxoSmithKline, etc.
2) Manual 90° side milling head
3) Chain type chip conveyor

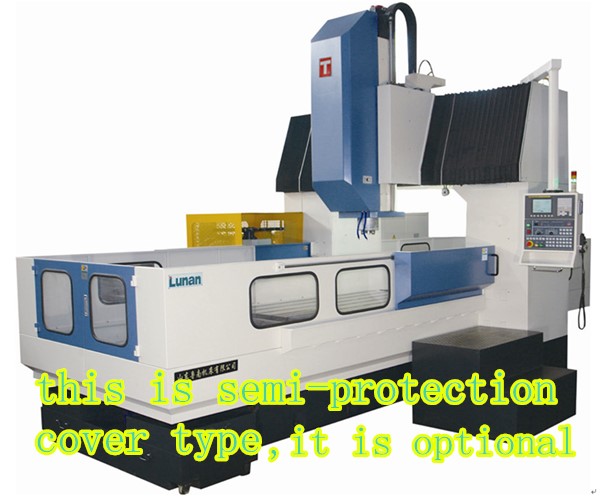

4) Half splash guard
5) 4th axis

Product Specifications

thing		data
Spindle nose taper		BT50
speed	rpm	50-750/750-3000rpm (Hydraulic 2 shifts)
Spindle nose to table	mm	370-1070
Spindle center to column guide surface	mm	450
table size	mm	3000*1400
T-slot number/width/table distance	mm	7-22*180
maximum. Table carrying capacity	Kilogram	7500

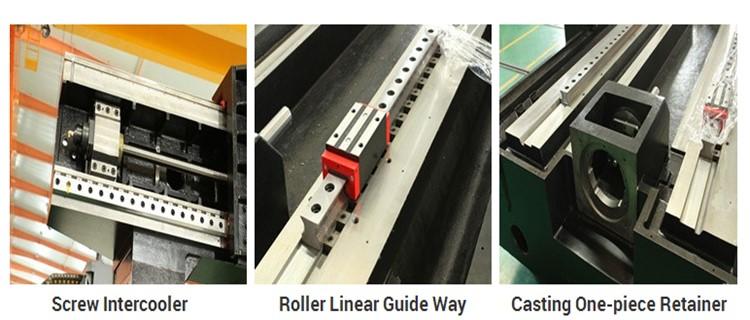

Rail type		Linear/Linear/Box
Single rail width	mm	55/55/110
X axis	mm	63*20
Y axis	mm	50*10
Z axis	mm	50*10
X axis	mm	3100
Y axis	mm	2000
Z axis	mm	700
Gantry width	mm	1750
Rapid feed of X	m/min	15
Y fast feed	m/min	15
Z rapid traverse	m/min	12
Tool diameter (adjacent/hollow)	mm	127/200
tool length	mm	300
Tool maximum weight	Kilogram	15
Tool magazine tool type and quantity		Air Traffic Control 24
Tool change speed (tool to tool)		3
Cooling pump power	w	530
Cooling pump flow	L/min	40
Fuel tank capacity	large	400
positioning accuracy	mm	0.025/0.025/0.025
Repositioning Accuracy	mm	0.012/0.012/0.012
Overall Dimensions (D×L, R×H)	mm	8000×4000×4000
weight	Kilogram	25000
