Precision three-point bore micrometer set

Supplier: Shandong Lunan Seiki Co., Ltd.
Region: Shandong, China
Contact: Mr Keli Wang
Price: $150.00 / 1 - 9 sets
$110.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Customization support:	OEM production
port:	Qingdao	Measuring range:	0-300mm
Supply capacity:	100000 sets per month	payment terms:	Western Union, T/T, MoneyGram
Material:	Stainless steel + hard alloy measuring surface	Warranty:	3 years
graduate:	0.001mm (Witnin 12mm) & 0.005mm (Range Over 12mm)	pack:	Aluminum shell
brand:	Neutral or OEM	After-sales service:	lifetime
Origin:	Shandong China	Packaging Details:	Aluminum shell

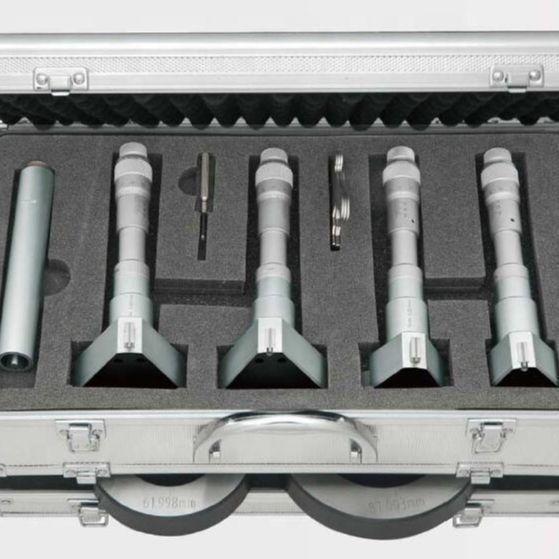

Supply high quality three-point bore micrometer set.

feature:
(1) With carbide contacts and aluminum body.
(2) Ratchet stops.
(3) Scale: 0.001mm (range within 12mm) and 0.005mm (range above 12mm).
(4) This kit includes the mandrel, mandrel sleeve and retaining ring.
(5) Both blind and through holes are available.
(6) Available in imperial and metric sizes.

size:

For blind holes
***Imperial sizes are also available.

scope	personal range	model.
6-12mm	6-8,8-10,10-12mm	600-2220
11-20 mm	11-14,14-17,17-20mm	600-2230
12-20 mm	12-16,16-20 mm	600-2235
20-40 mm	20-25,25-30,30-35,35-40mm	600-2240
20-50mm	20-25,25-60,30-40,40-50mm	600-2245
40-100mm	40-50, 50-60, 60-70, 70-80,80-90,90-100mm	600-2260
50-100mm	50-63,63-75,75-88,87-100mm	600-2250
50-100mm	50-70,70-100mm	600-2265

for through hole

***Imperial sizes are also available.

scope	describe	model.
6-12mm	3 heads	600-9220
11-20mm	3 heads	600-9230
20-40mm	4 heads	600-9240
40-100mm	6 heads	600-9260
