Keyway slotting machine HC-B5012

Supplier: Zaozhuang Tok Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Harry Tung
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	tokmc;	Cross travel for the worktable:	150 mm;
Power(W):	1.1kw;	COLOR:	red;
Model:	HC-B5012;	Usage:	General;
Payment Terms:	L/C,D/A,D/P;	Weight:	220KG;
Supply Ability:	100 Set/Sets per Month;	Product Name:	key cutting machine duplicating;
Warranty:	12 Months;	After-sales Service Provided:	No overseas service provided;
Dimension(LWH):	1000x650x1000mm;	The max. travel for the cutter arbor:	120mm;
Condition:	New;	Certification:	ISO CE;
Packaging Detail:	plywood cases;	Port:	qingdao;
Place of Origin:	Shandong China;	Voltage:	220V-415V;
Processing Types:	Automatic Slotter;	Name:	key cutting machine silca;
Keyword:	mini slotting machine;	Type:	Slotter;

Product Description

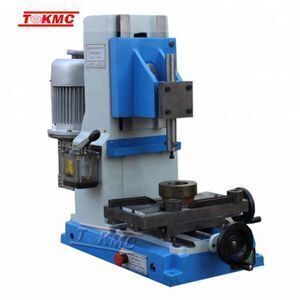

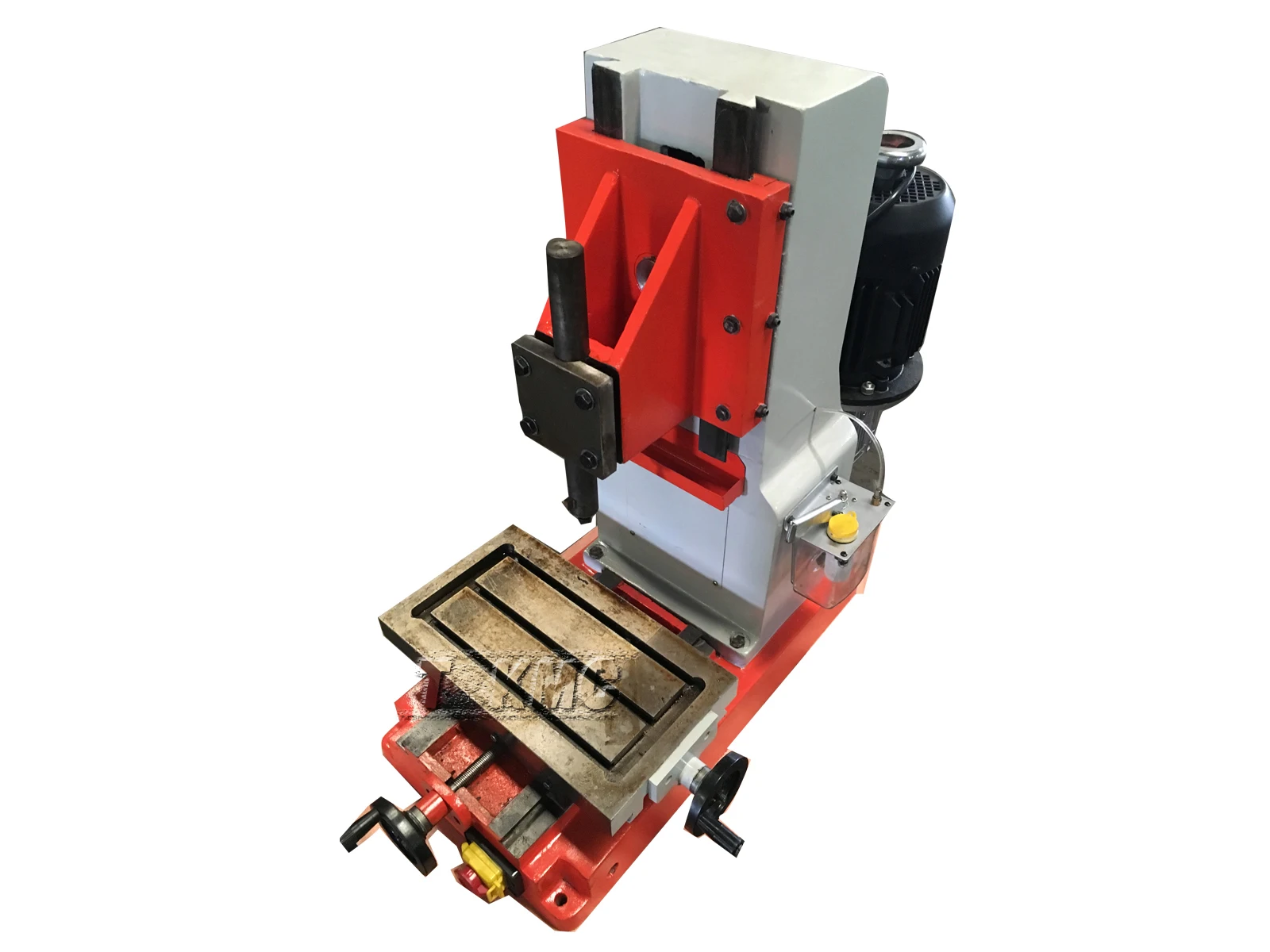

cutting key machine HC-B5012

Features of Mechanical Slotting Machine.

1. Mechanical Slotting Machine is used for machining the key groove and spline joint during single and small batch production, especially suitable for machining the key groove in blind hole.
2. The assembling of the work piece is not limited by the column, and it is flexible for machining the key groove in large parts.

Specifications	B5012
The max. clamping workpiece dia. For the worktable	420mm
The max. clamping workpiece height for the worktable	120mm
Longitudinal travel for the worktable	130mm
Cross travel for the worktable	150mm
The max. travel for the cutter arbor	120mm
Motor power	1.1kW
N.W./G.W.	196/220kg
Packing size	1000x650x1000mm
