XK7132/XK7136 High precision 3 axis vertical fresadora cnc milling machine price with CE certificate

Supplier: Zaozhuang Wojie CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Zhong
Price: $12000.00 / 1 - 2 sets
$10000.00 / 3 - 4 sets
$8000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support;	Place of Origin:	Shandong China;
Package Preview:	;	Machining Capacity:	Light Duty;
No. of Spindles:	1;	Core Components:	Bearing,Motor,Gear;
Machinery Test Report:	Provided;	Local Service Location:	Egypt,Canada,United States,Italy,France,Germany,Peru,Saudi Arabia,Indonesia,Pakistan,Russia,Spain,Australia,Morocco,South Korea,Chile,UAE,Sri Lanka,South Africa,Kazakhstan,Kyrgyzstan,Nigeria,Uzbekistan;
Warranty:	1 Year;	Packaging Detail:	The machine will be packed by the playwood case XK7132/XK7136 High precision 3 axis vertical fresadora cnc milling machine price with CE certificate;
spindle nose to table surface:	125-520mm;	Payment Terms:	L/C,D/A,D/P,T/T;
Spindle Motor Power(kW):	3.5;	Marketing Type:	New Product 2020;
Spindle center to Column surface:	360;	Range of Spindle Speed(r.p.m):	60 - 8000;
Number of Axes:	4;	Voltage:	380V;
CNC or Not:	CNC;	Type:	VERTICAL;
Dimension(LWH):	190018002100mm;	Year:	2020;
After-sales Service Provided:	Free spare parts,Online support,Video technical support;	spindle speed:	60-8000 r p m;
Warranty of core components:	1 Year;	Spindle Taper:	BT30/BT40;
Machine Type:	Cnc fresadora Vertical Milling Machine;	Supply Ability:	30 Set/Sets per Month;
Brand Name:	WOJIE;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail;
Repeatability (X/Y/Z) (mm):	0.005;	Certification:	ISO CE;
Model Number:	XK7132/XK7136;	X axis travel:	500mm;
Spindle taper:	BT30/BT40;	Key Selling Points:	Multifunctional;
Table Travel (mm):	800*320;	Video outgoing-inspection:	Provided;
Table load:	300kg;	Showroom Location:	Egypt,Canada,United Kingdom,Italy,France,Viet Nam,Philippines,Brazil,Peru,Indonesia,Pakistan,India,Russia,Spain,Argentina,South Korea,Chile,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Ukraine,Kyrgyzstan,Nigeria,Japan,Malaysia;
Table Travel (Y) (mm):	320 mm;	Condition:	New;
T slot qty-width*distance:	3-14x110;	Table Travel (Z) (mm):	400 mm;
Table Travel (X) (mm):	500 mm;	CNC Control System:	GSK;
Port:	Qingdao or Shanghai Port;	Positioning Accuracy (mm):	0.010;
Max. Table Load(kg):	300;	Main motor power:	3.7kw (servo);
Weight (KG):	2650;

Product Description

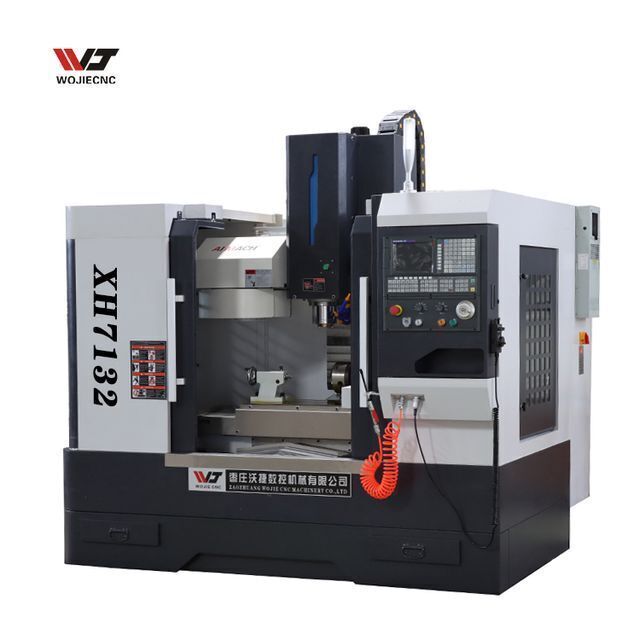

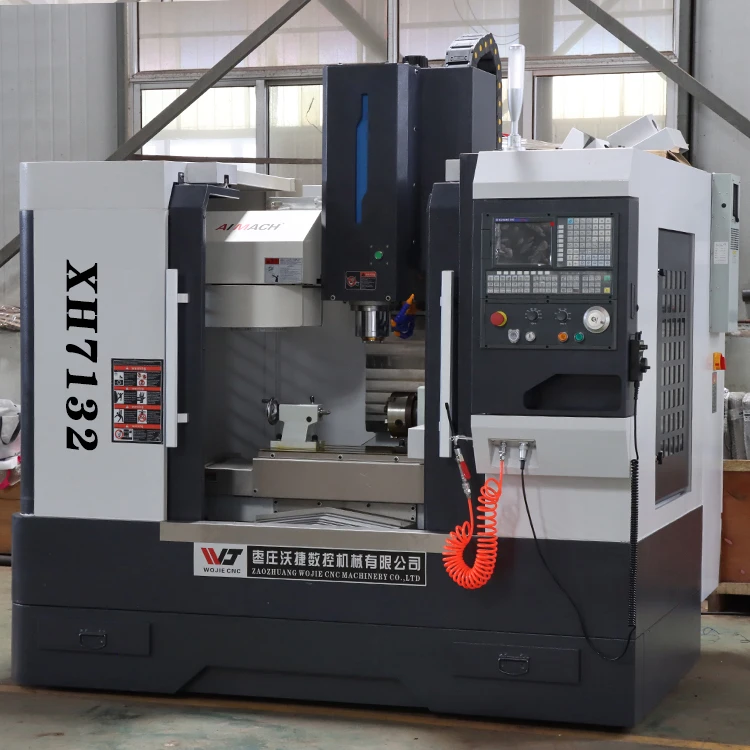

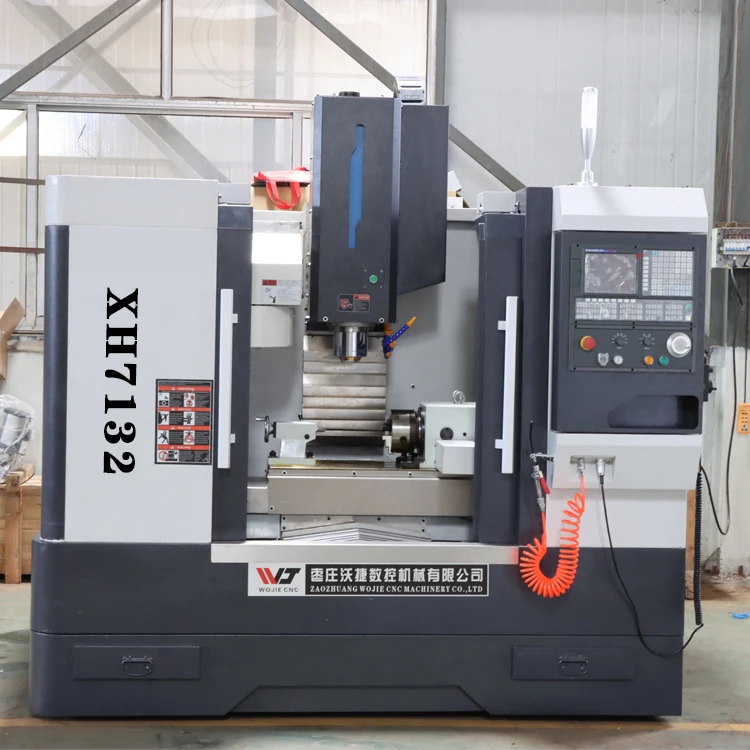

CNC milling machine	XH/K7132
Spindle taper/Spindle unit shaft diameter	BT40/120
Table size(mm)	800X320
X/Y/Z axis travel(mm)	600/400/500
Spindle servomotor（KW）	5.5
Spindle speed(rpm)	8000
X/Y/Z axis(Nm)	X/Y 6 Z 15
Spindle end face to work table (mm)	80-580
Spindle center to column guide surface (mm)	440
T slot (width x number x distance) (mm)	12-3-105
Table load(Kg)	300
rapid traverse(X/Y/Z) (m/min)	X/Y/Z 24
Diameter/Screw pitch(XYZ) (mm)	32/12
Linear guideway(mm)	X/Y/Z 35(TAIWAN HIWIN)
positionaI accuracy(mm)	±0.008
repeated positioning accuracy(mm)	±0.005/300
System	GSK980MDi
4th axis（optional accessory）	FK15125
Hat type	BT40-T16
Weight（Kg）	2800

Standard Configuration:
KND-1000MI
·X/Y/Z axes SIEMENS servo motor&driver
·Servo spindle motor&driver
·10T FUNNEL type tool magazine
·Full closed cover

Optional configuration:
·SIEMENS 808D BASIC/828D CNC Controller
·16T DISC type tool magazine
·WITHOUT tool magazine(CNC Milling)
·BOX guideway or LINEAR guideway
·4th axes(NC Dividing Head)
·CE protection

Detailed Images

Related Products

Company Introduction

Packing&Shipping

FAQ

1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.

2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.

4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.

6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
