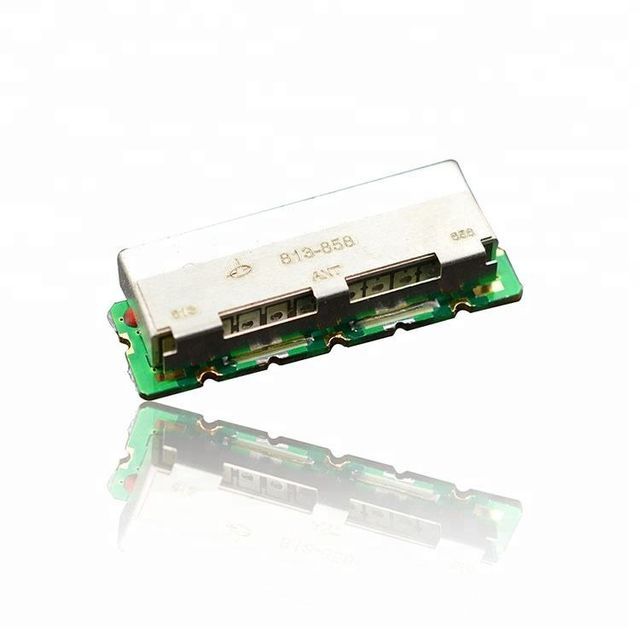

Jiakang Internet of Vehicles Communication Signal Amplifier High Dielectric Material
- 1.50 >=10 pieces
| Stopband attenuation: | 55.0 dB minimum | port: | Shanghai |
| Center frequency: | 813-858 MHz | Packaging Details: | into the tray, |
| Insertion loss: | 3.0 dB max | size: | 30*8.8mm |
| Inhibition zone: | Min 55.0 dB @ [ 851 ~ 886 ] Min 35 dB @ [ 836.0 ] | Stopband attenuation: | Min 55.0 dB @ [ 851 ~ 886 ] Min 35 dB @ [ 836.0 ] |
| type: | other | Nominal center frequency: | 813-858MHz |
| 3dB bandwidth: | fo±7.5 MHz | Insertion loss: | 3.0 dB max |
| input resistance: | 50Ω | Supply capacity: | 100000 pieces per month |
| bandwidth: | fo±7.5 MHz | Convert function: | other |
| payment terms: | Western Union, T/T, Credit Card | application: | mobile base station |
| VSWR: | 18.0 minute rate | Origin: | Zhejiang, China |
| model: | DDP0410R813-858P015A | brand: | Kakang |
Your present location: Home>>Dielectric Antenna & Filter>> Dielectric Filter & Duplexer>> Dielectric Duplexer>>

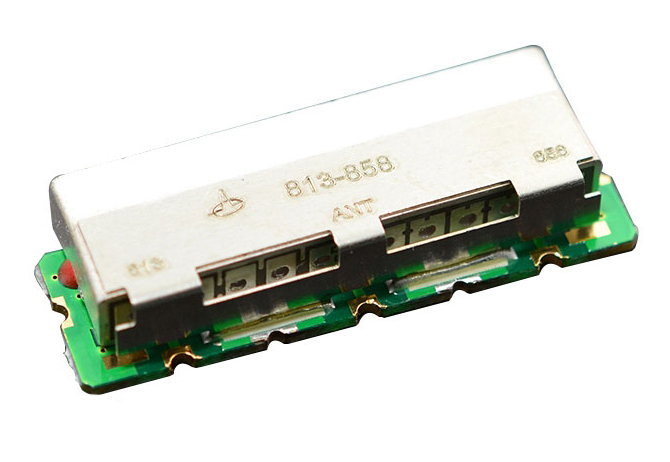

Telematics Communication Signal Amplifier High Dielectric Materials
 |
|
Electrical Specifications |
||||
|
thing |
LOW >>> ANT |
High< Ant |
unit |
|
| 1 |
center frequency [fo] |
813 | Chapter 858 |
megahertz |
| 2 |
Bandwidth [BW] |
fo±7.5 |
fo±7.5 |
megahertz |
| 3 |
BW insertion loss |
3.0 dB max |
3.0 dB max |
D b |
| 4 |
Ripple BW |
1.0 dB max |
1.0 dB max |
D b |
| 5 |
Standing wave ratio (BW) |
18.0 minutes | 18.0 minutes |
ratio |
| 6 |
attenuation [absolute value] |
Minimum 55.0 dB@[851~886] 35 dB minimum @[836.0] |
Minimum 55.0 dB@[806~821] 35 dB minimum @[836.0] |
ratio |
| 7 |
input power |
max 3.0 |
watt | |
| 8 |
Input/Output Impedance |
50 |
Ω |
|
| 9 |
range of working temperature |
-40 to +85 |
℃ |
|
|

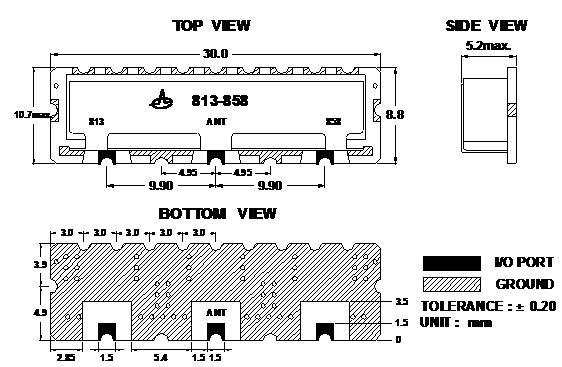

Mechanical Specifications |
|
|

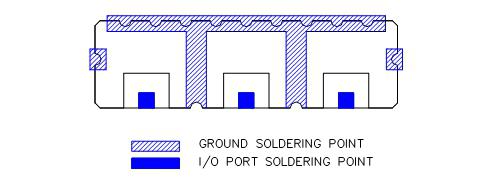

Recommended PC Board Pattern
|
 |
Click for more information
| Iecon Microwave Product Introduction |
|

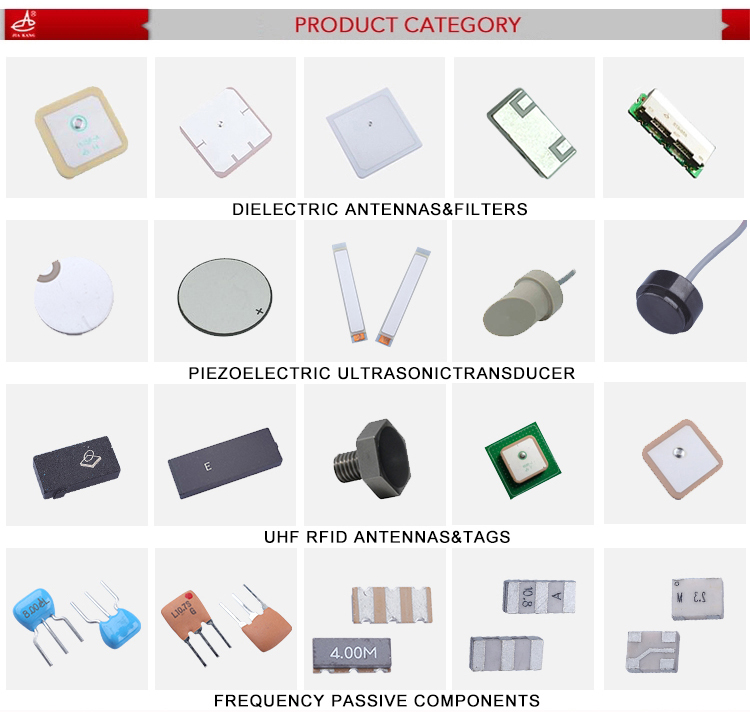

Our microwave dielectric products mainly include dielectric patch antennas, filters, duplexers and GPS modules, which are widely used in positioning, satellite broadcast receiving systems, RFID, ETC and other fields. We are committed to the development of core technology, and have achieved a leading position in ceramic powder formula, manufacturing process, testing technology, etc. Some products and processes have obtained national patents. Customized products are available.
Remarks: The above specifications are subject to change without prior notice. Please contact us for more details. |

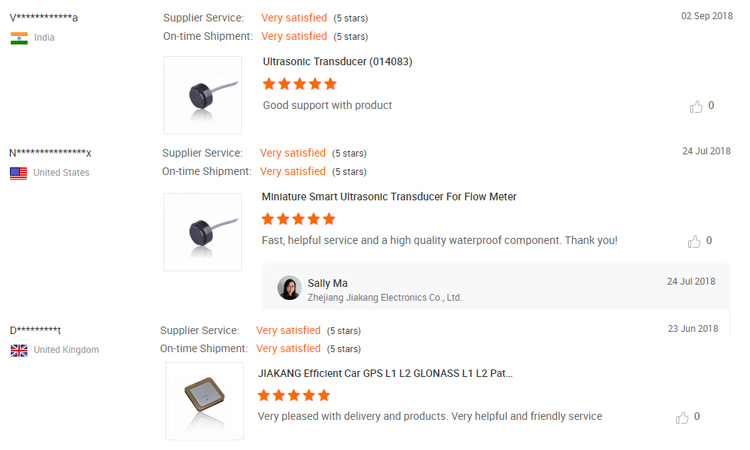

Customer praise
