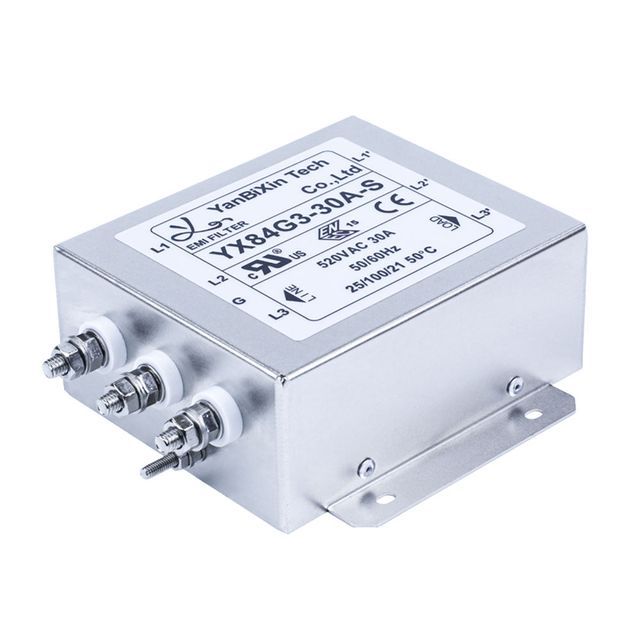

YX84G3-30A-S EMI filter three-phase power line filter 30A high current 520V inverter RFI filter
- 20.00 1 - 99 pieces
- 18.50 100 - 499 pieces
- 13.00 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Voltage - Rated AC: | 500V | Rated Voltage - DC: | 250V/440V |
| product name: | YX84G3-30A-S EMI filter | pack: | carton |
| Stopband attenuation: | 20~100 decibels | Packaging Details: | Box/90 pieces Net weight: 12KG Gross weight: 13.6KG Size: 0.565*0.285*0.205 |
| impedance: | 50 ohms | Rated current: | 1A-30A |
| tolerant: | -20%, +80% | Origin: | Guangdong, China |
| Ambient temperature: | 40℃ | port: | Shenzhen |
| Resistance - Channel (Ohms): | 50Ω | Insertion loss: | 30-100 decibels |
| Voltage - Rated DC: | 250V | Filter type: | three phase |
| Rated Voltage - AC: | 250V/440V | Convert function: | Lowpass |
| Sitting height (maximum): | Specification | Impedance @ frequency: | 50Ω |
| Rated voltage: | 115V/250V | DC resistance (DCR) (maximum): | 50Ω |
| model: | YX84G3-30A-S | Nominal center frequency: | 150KHz-30MHz |
| working frequency: | 50/60 Hz | input resistance: | 50Ω |
| brand: | YBX | Certification: | CUL CQC CE ROHS |
| application: | medical equipment | type: | EMI filter,EMI filter |
| letter of credit: | 400 Hz | Termination method: | M4 screw |
| current: | 1A-30A | Installation type: | surface mount |
| Supply capacity: | 5,000,000 pieces of USB noise filters per month | Main features: | Enhanced Filter Design |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Rated voltage: | 250V/440V |
| 3dB bandwidth: | 3.75 | brand: | ask |
| Current rating (maximum): | 30A |
1. YBX provides the widest selection of EMC/EMI filters in the world. Standardized and customer-specific solutions - with full engineering support - help to meet international compliance standards and improve the immunity and safety of electrical and electronic equipment.
2. Deeply cultivated the EMI filter industry for 15 years, and the products have obtainedUL, CQC, CE, TUV, ROSH, ISO9001:2015certified.
3. We have a professional design team and testing instruments, and provide EMC testing for free.
4. The production workshop covers an area of 3,000 square meters, with large production scale, favorable price, good service and fast delivery.
5. YBX provides freeEMI filterSample and half year replacement and lifetime warranty.
Product parameters
product name | Three-phase three-wire EMI filter | ||||||
Model | YX84G3-30A-S | ||||||
conversion function | Lowpass | ||||||
type of packaging | surface mount | ||||||
Nominal center frequency | 10K-30MHZ | ||||||

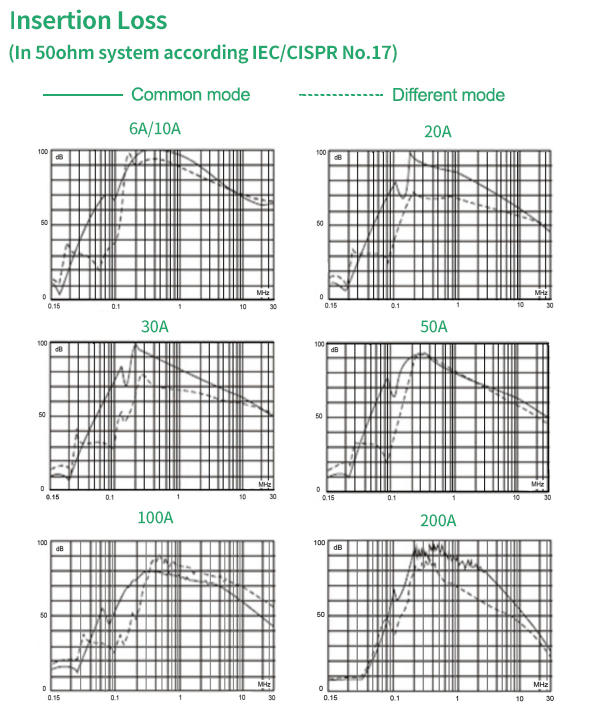

Insertion loss | 60~90 decibels | ||||||
input resistance | 50Ω | ||||||
Rated voltage | 115V/220V | ||||||
rated current | 1A-100A | ||||||
ambient temperature | 40℃ | ||||||
temperature range | 25/085/21 | ||||||
working frequency | 50/60 Hz | ||||||
line to line | 1450VDC | ||||||
line to ground | 2250VDC or 2000VAC | ||||||
Maximum Leakage Current | 115VAC/60HZ maximum 1.4mA 250VAC/60HZ maximum 2.5mA | ||||||
MOQ | 5 pieces | ||||||
Our advantage
