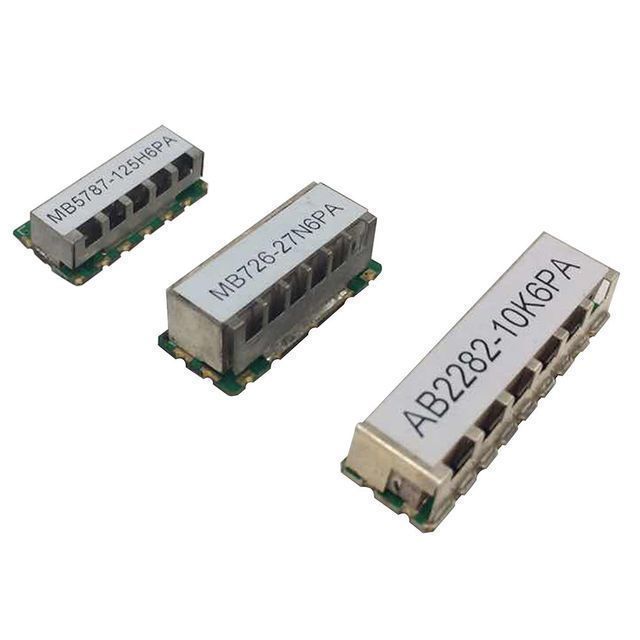

UGwave Custom 2.4 GHz Rf Ceramic Dielectric Low Pass Filter 836.5 Mhz
- 20.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| pay: | Paypal\TT\Western Union\Trade Assurance | Convert function: | Bandpass |
| Operating temperature: | -40°C to +85°C | type of packaging: | surface mount |
| Types of: | ceramic filter | Terms of trade: | diammonium phosphate |
| Supply capacity: | 500000 pieces per month | application: | GSM |
| impedance: | 50Ω | port: | Qingdao |
| brand: | Ceramic Dielectric Filter | pack: | carton |
| Certification: | ISO 9001:2015 / ROSH | delivery time: | 7-21 days |
| transportation: | DHL\FEDEX\UPS\TNT\EPACK\China Post | brand: | UG wave |
| Dimensions/dimensions: | 15mm*13mm*4.5mm | Installation type: | surface mount |
| input resistance: | 50Ω | Filter type: | Ceramic Dielectric Filter, Bandpass |
| Insertion loss: | 3.0dB max | custom made: | Accept OEM/ODM |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Material: | ceramic powder |
| model: | SRA836D4R25SH | Nominal center frequency: | 836.5MHz |
| place of origin; place of origin: | Shandong China | Packaging Details: | carton |
| MOQ: | 5 |
RF filter
UGwave Custom 2.4ghz Rf Ceramic Dielectric Band Pass Low Pass Filter 836.5Mhz
Recommended Products
Product Description

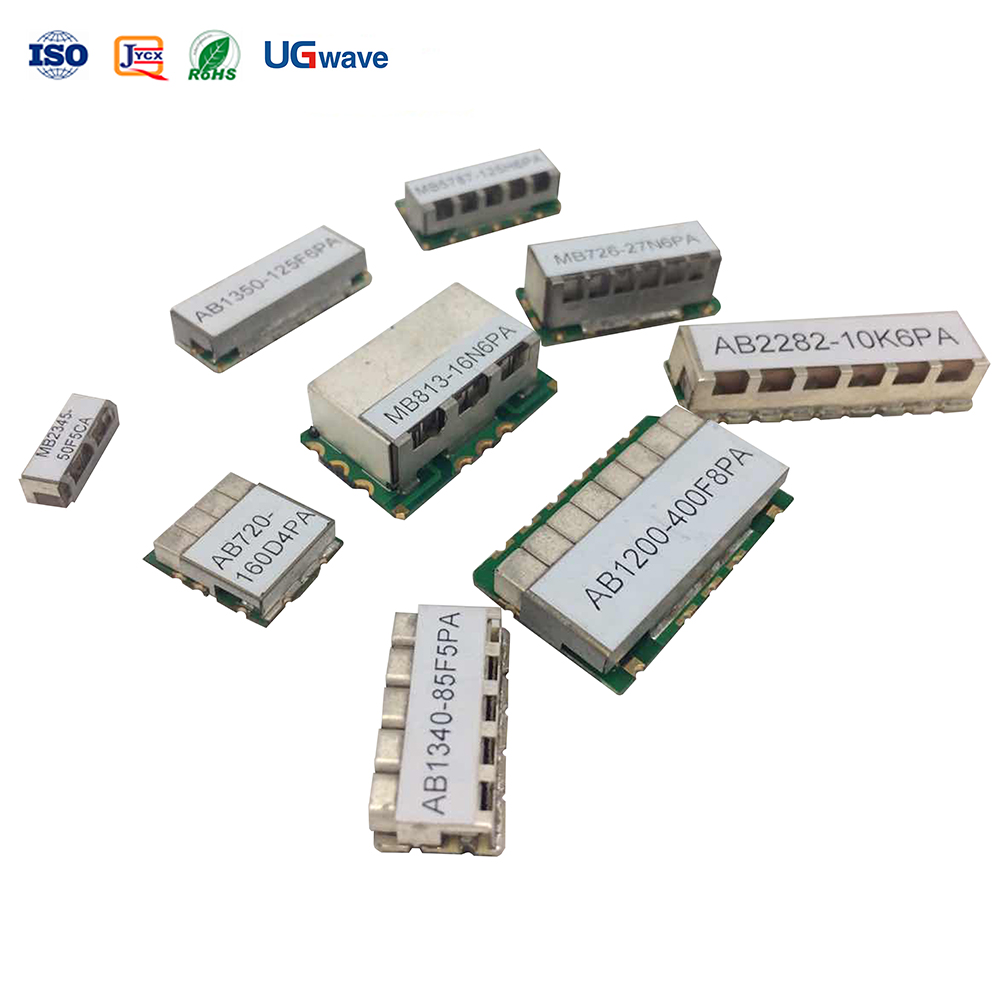

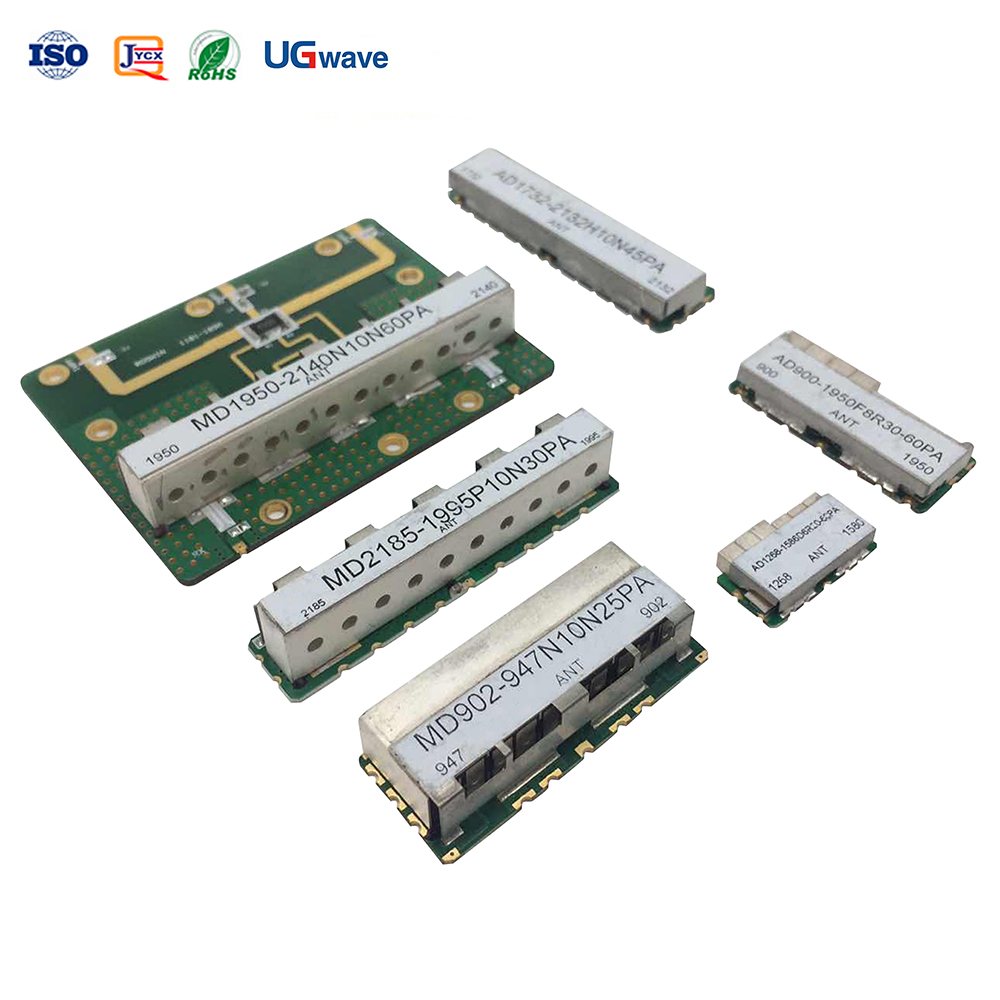

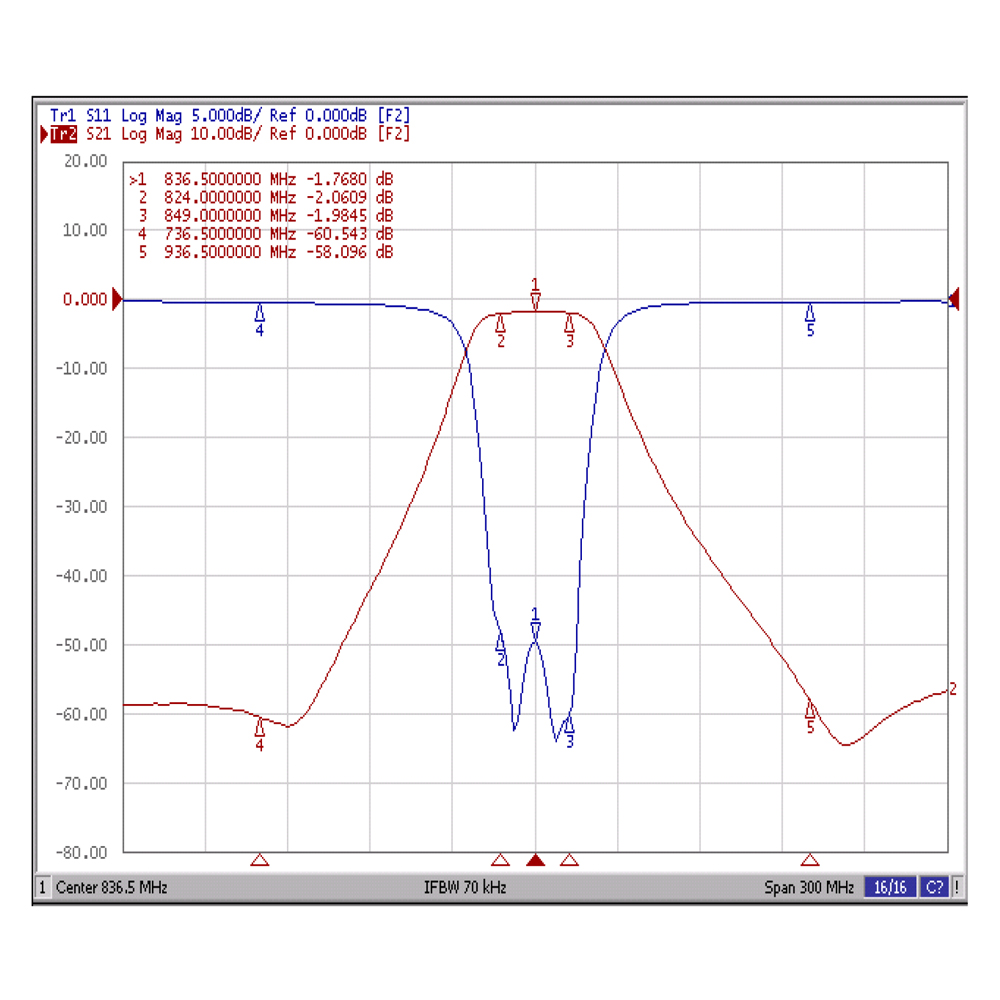

Electrical Specifications
thing | specification | unit | |
center frequency [fo] | 836.5 | megahertz | |
Bandwidth [BW] | fo ± 12.5 [ 824.0 ~ 849.0 ] | megahertz | |
Insertion loss in BW | 3.0 | maximum decibel | |
Ripple in BW | 0.35 | maximum decibel | |
Return loss in BW | 15.0 | decibel min. | |
VSWR in BW | 2.0 | maximum. | |
attenuation | 50.0 dB min. @ fo ± [ 736.5 & ] | megahertz | |
50.0 dB min. @ fo ± [ 936.5 & ] | megahertz | ||
decibel min. @fo±[&] | megahertz | ||
decibel min. @fo±[&] | megahertz | ||
Group delay variation | nanosecond maximum | ||
input power | maximum width | ||
Input/Output Impedance | 50Ω | ||
operating temperature. scope | -40°C to +85°C | ||
Mechanical Specifications

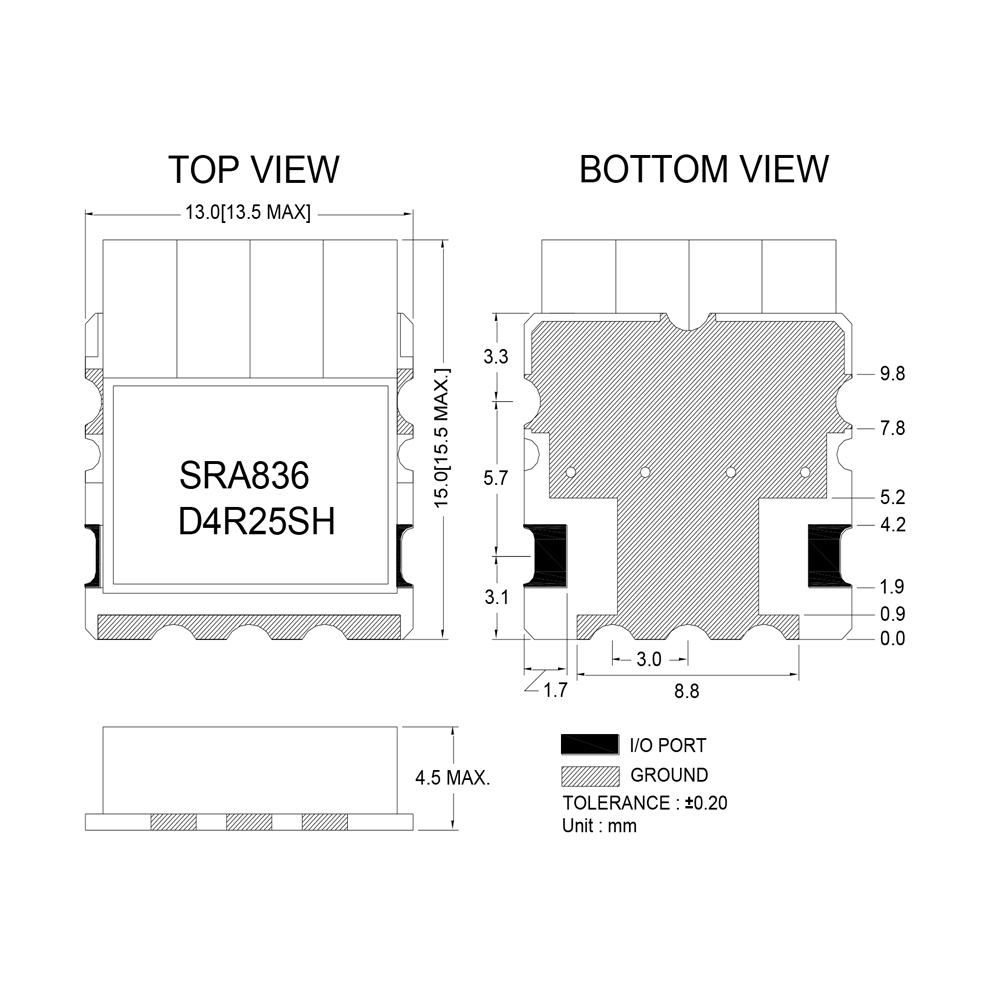

drawing data

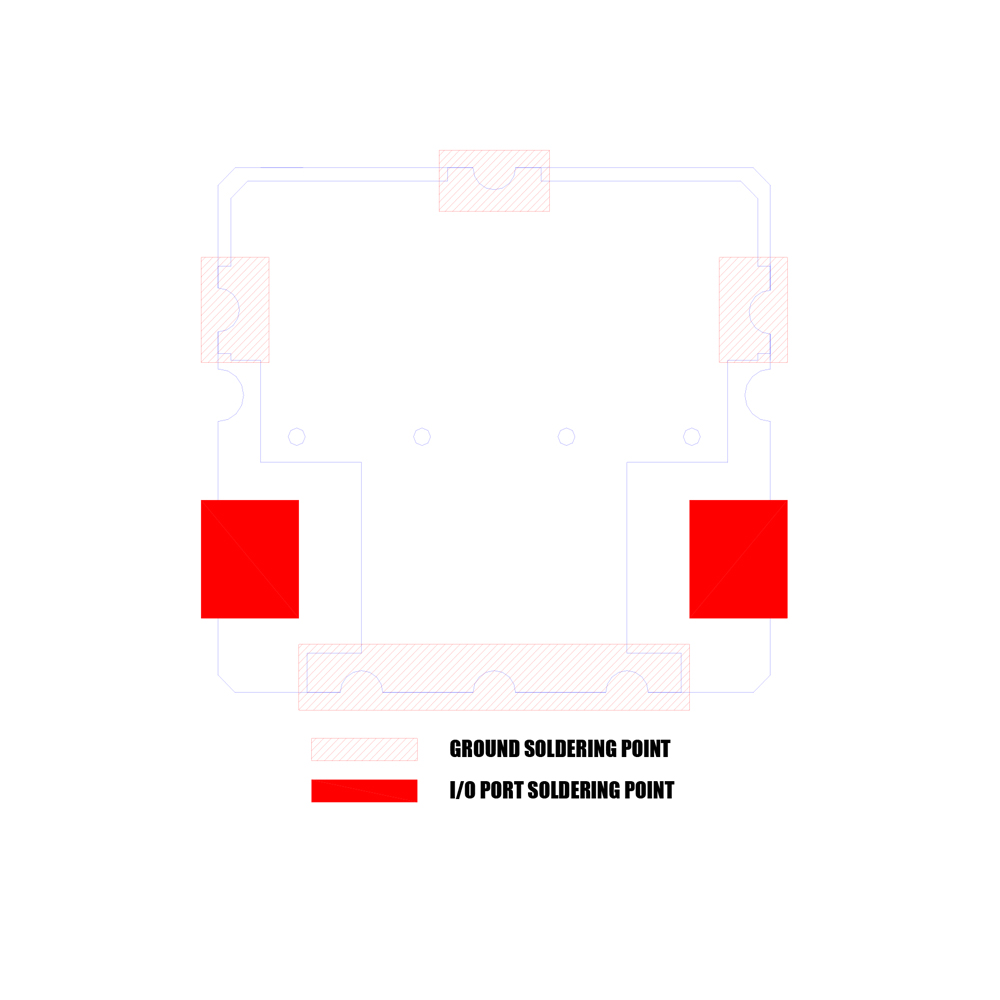

Recommended PCB Pattern
