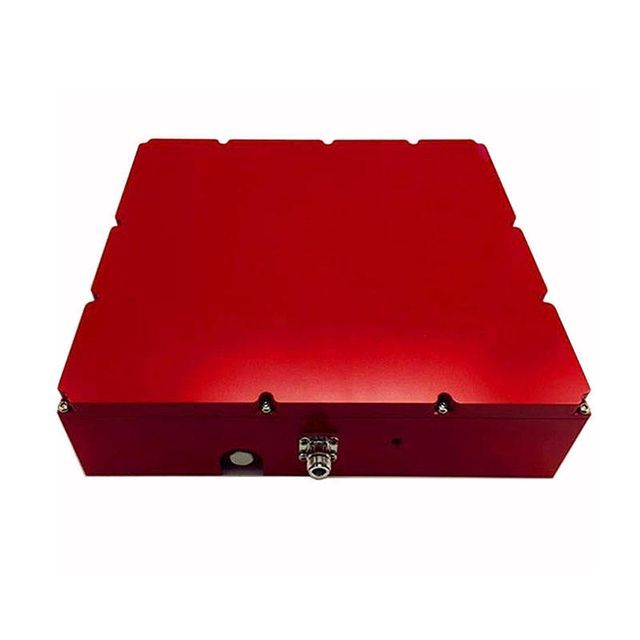

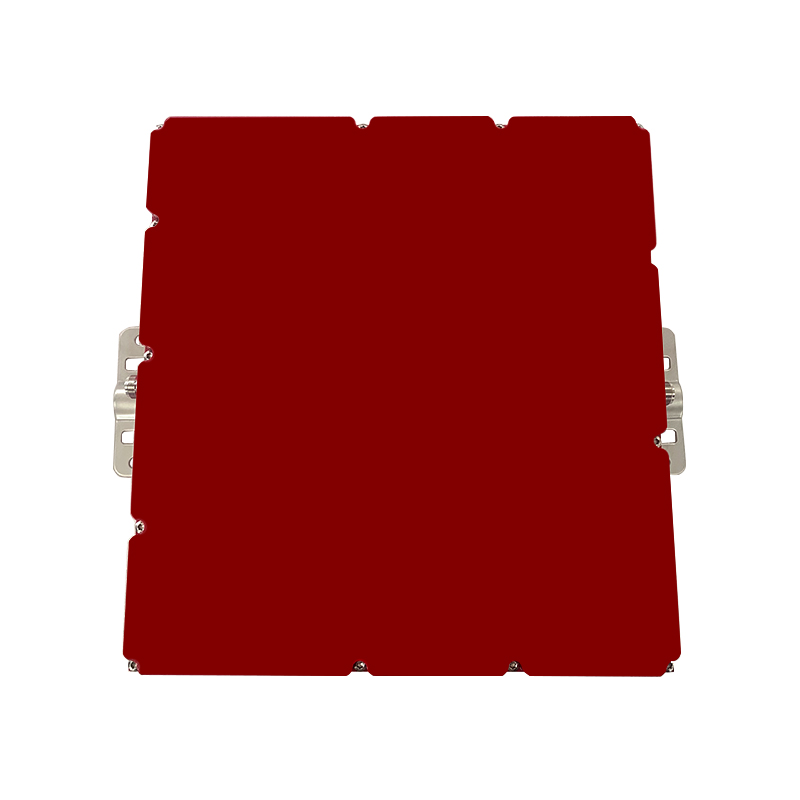

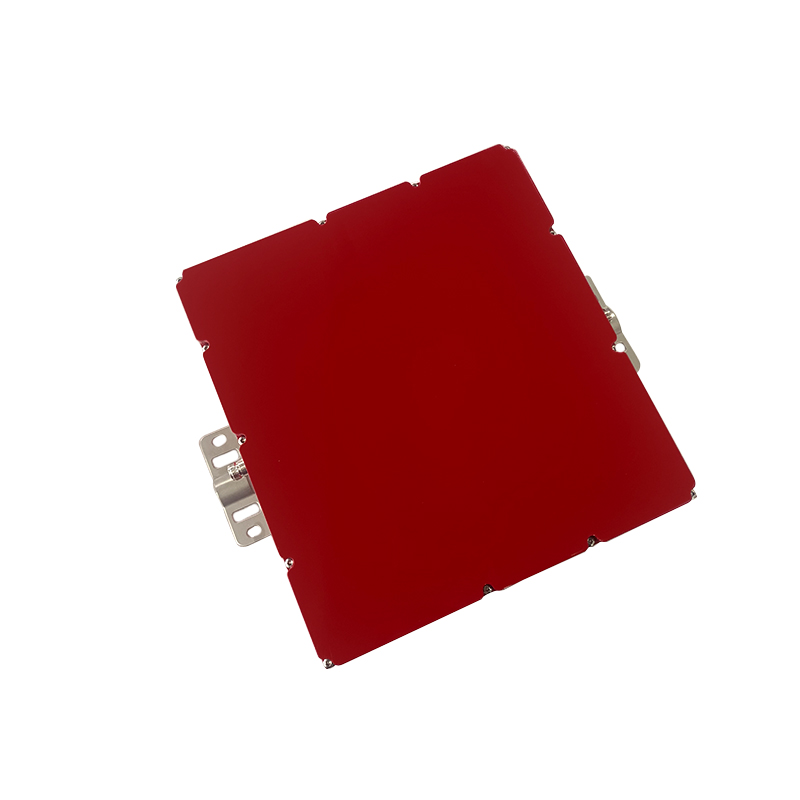

700 MHz RF Cavity Band Stop Filter, N Female for IBS BTS DAS
- 150.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| product name: | band pass filter | type: | RF filter |
| VSWR: | 1.3 | input power: | Average 100W |
| Installation type: | not applicable | port: | Shanghai/Ningbo/Shenzhen |
| Personal Information Management: | 150dBc | Convert function: | Bandpass |
| reject: | 788-798&758-768MHz ≥30dB | impedance: | 50 ohms, 50 ohms |
| Stopband attenuation: | 30 decibels | Origin: | Anhui, China |
| Supply capacity: | 100 pieces per day | Insertion loss: | 1.5 |
| IP: | 65 | input resistance: | 50 |
| brand: | Manila | brand: | RF bandpass filter |
| Packaging Details: | Standard export carton | Frequency Range: | 769-775&799-816&851-861MHz |
| payment terms: | L/C, Western Union, T/T, Paypal | Filter type: | Bandpass |
| Package preview: | Insertion loss: | 1.5 | |
| Connector: | National Forest Foundation | model: | MF-800-NF/F |
Product Description
product name | RF bandpass filter |
frequency band(MHz) | 769-775MHz&799-816MHz&851-861MHz |
VSWR | 1.25 |
Insertion loss | 1.5 |
impedance | 50 ohms |
RF connector | NF/F |
reject | ≥30dB@788-798MHz & 758-768MHz |
Personal Information Management | -150dBc@2*43dBm |
Working temperature (degrees) | -0~+65 |
Relative humidity | 5%-95% |
application | Indoor or outdoor IP67 |
color | Red |
Product Features 1
* Broadband
*Low VSWR≤1.3
* Low insertion loss
Product Features 2
* RF connector: N-female-female
* gray or customized
* Widely used in indoor solutions
